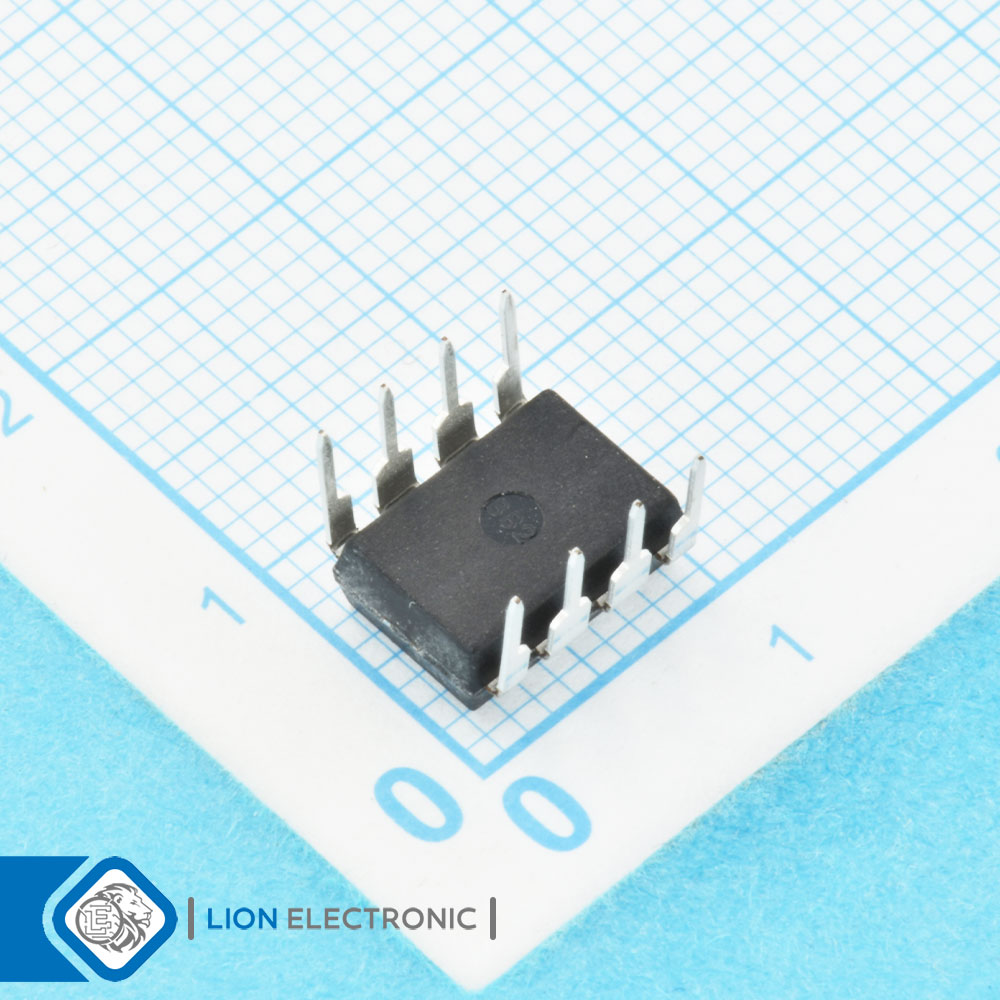

مشخصات LM258P

  • Part Number
    LM258P
  • Mounting Style
    Through Hole
  • Series
    LM258
  • Shutdown
    No Shutdown
  • Number of Channels
    2
  • SR - Slew Rate
    0.3V/us
  • Packaging
    Tube
  • Minimum Operating Temperature
    -25C
  • GBP - Gain Bandwidth Product
    700KHz
  • Maximum Operating Temperature
    +85C
  • CMRR - Common Mode Rejection Ratio
    70dB to 80dB
  • Output Current per Channel
    30mA
  • Supply Voltage - Min
    3V
  • Vos - Input Offset Voltage
    5mV
  • Supply Voltage - Max
    32V
  • Ib - Input Bias Current
    150nA
  • Operating Supply Current
    350uA
  • Package-Case
    PDIP-8
