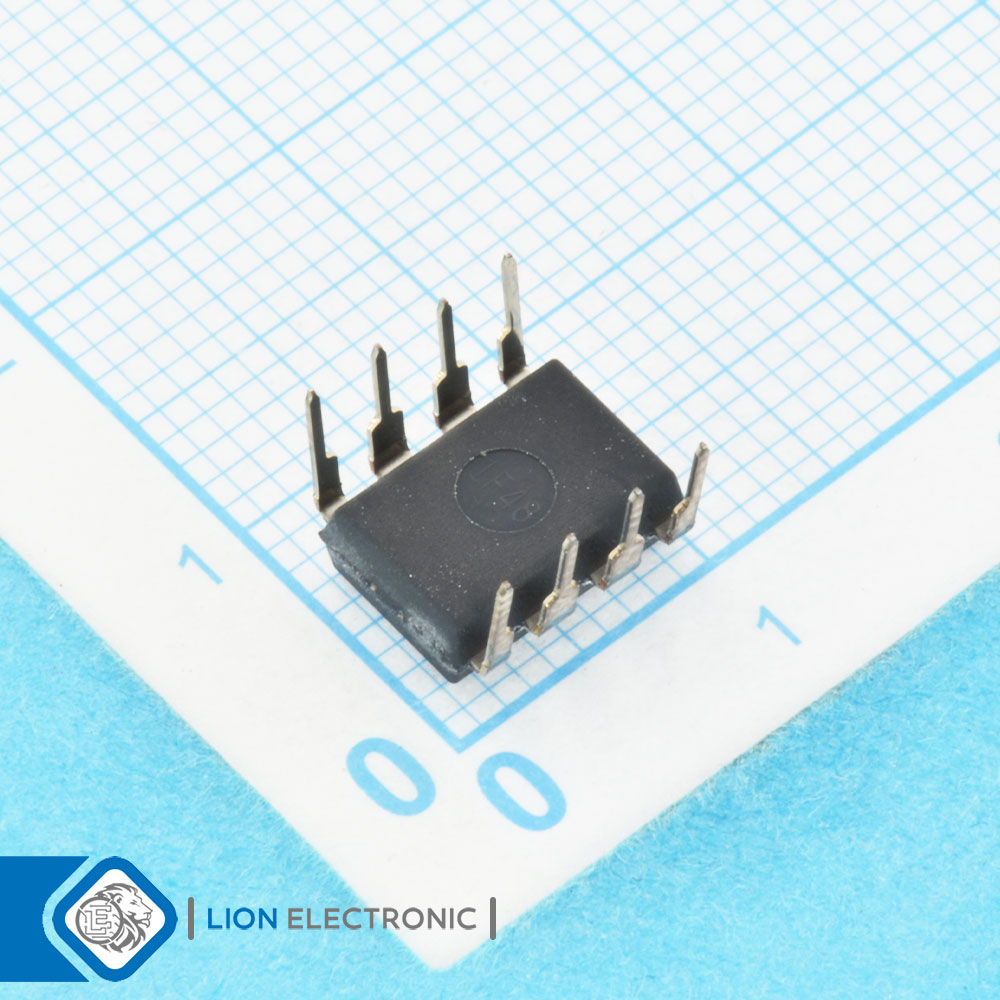

مشخصات TL072CP

  • Part Number
    TL072CP
  • Mounting Style
    Through Hole
  • Number of Channels
    2
  • Shutdown
    No Shutdown
  • Minimum Operating Temperature
    -40C
  • Packaging
    Tube
  • Output Current per Channel
    10mA
  • Maximum Operating Temperature
    +85C
  • Ib - Input Bias Current
    200pA
  • CMRR - Common Mode Rejection Ratio
    70dB to 100dB
  • GBP - Gain Bandwidth Product
    3MHz
  • Supply Voltage - Max
    30V
  • SR - Slew Rate
    13V/us
  • Vos - Input Offset Voltage
    6mV
  • Supply Voltage - Min
    7V
  • Operating Supply Current
    1.4mA
  • Package-Case
    PDIP-8
  • Series
    TL072
