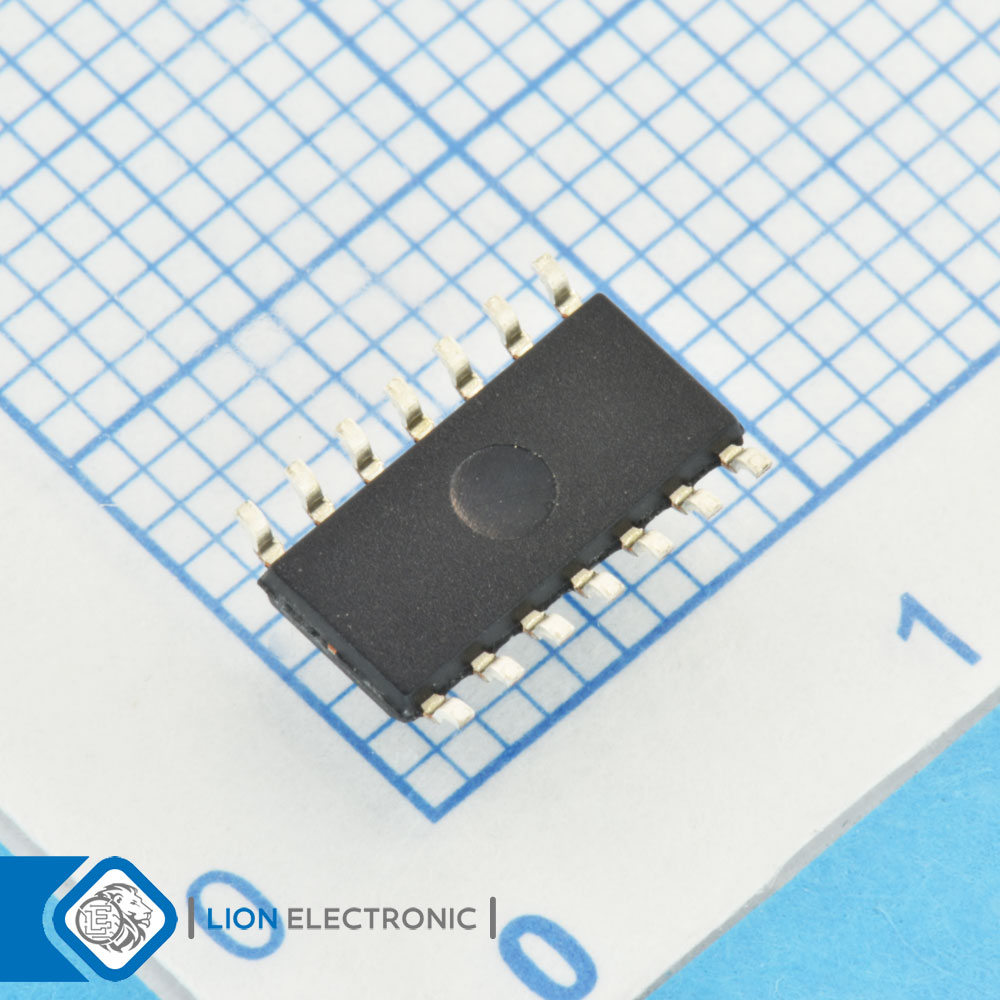

مشخصات TSV994AID

  • Part Number
    TSV994AID
  • Series
    TSV994A
  • Shutdown
    No Shutdown
  • Mounting Style
    SMD/SMT
  • CMRR - Common Mode Rejection Ratio
    58dB
  • Number of Channels
    4
  • Minimum Operating Temperature
    -40C
  • Ib - Input Bias Current
    10pA
  • Packaging
    Tube
  • Maximum Operating Temperature
    +125C
  • Supply Voltage - Max
    5.5V
  • Output Current per Channel
    35mA
  • Supply Voltage - Min
    2.5V
  • Vos - Input Offset Voltage
    1.5mV
  • SR - Slew Rate
    10V/us
  • GBP - Gain Bandwidth Product
    20MHz
  • Operating Supply Current
    4.4mA
  • Package-Case
    SO-14
