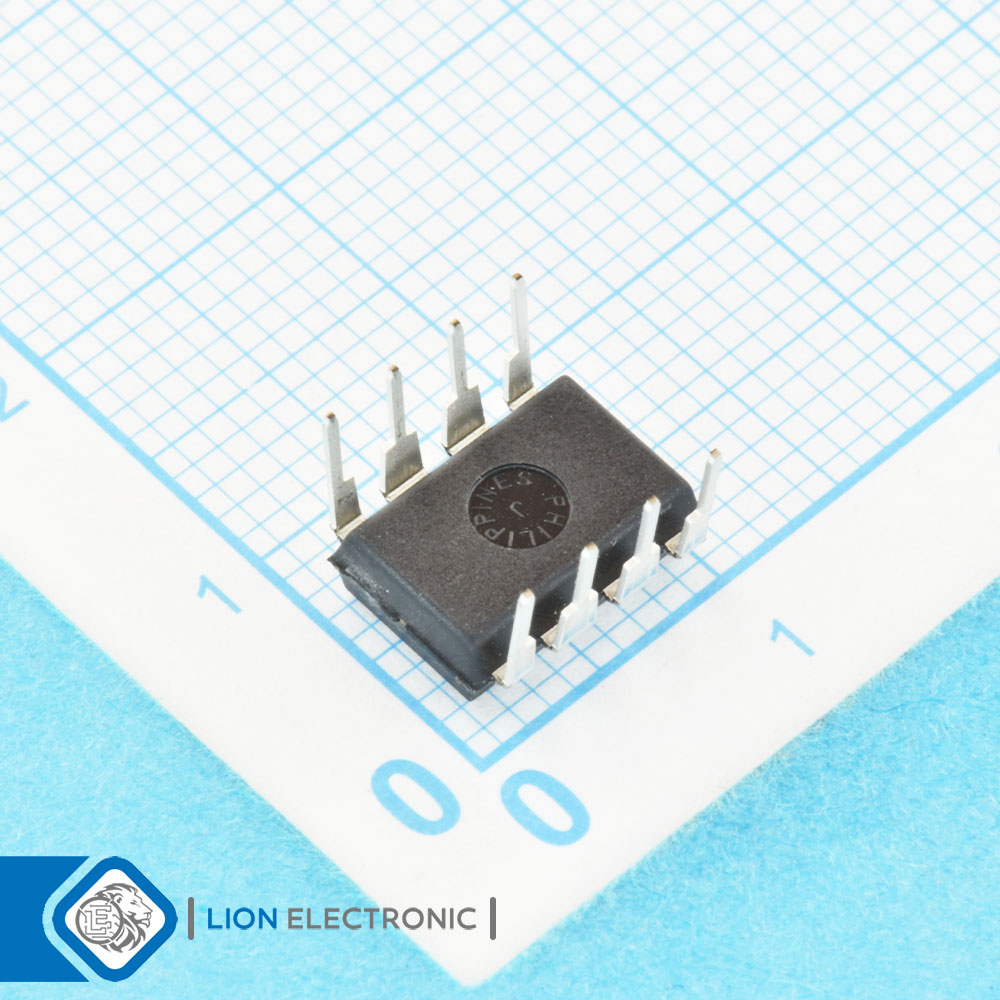

مشخصات OP200GPZ

  • Part Number
    OP200GPZ
  • Mounting Style
    Through Hole
  • Series
    OP200
  • Shutdown
    No Shutdown
  • Number of Channels
    2
  • SR - Slew Rate
    0.15V/us
  • Minimum Operating Temperature
    -40C
  • Packaging
    Tube
  • GBP - Gain Bandwidth Product
    500KHz
  • en - Input Voltage Noise Density
    22nV/sqrt Hz
  • Vos - Input Offset Voltage
    80uV
  • Maximum Operating Temperature
    +85C
  • Supply Voltage - Max
    18V
  • Supply Voltage - Min
    3V
  • Ib - Input Bias Current
    10nA
  • CMRR - Common Mode Rejection Ratio
    130dB
  • Operating Supply Current
    570uA
  • Package-Case
    PDIP-8
