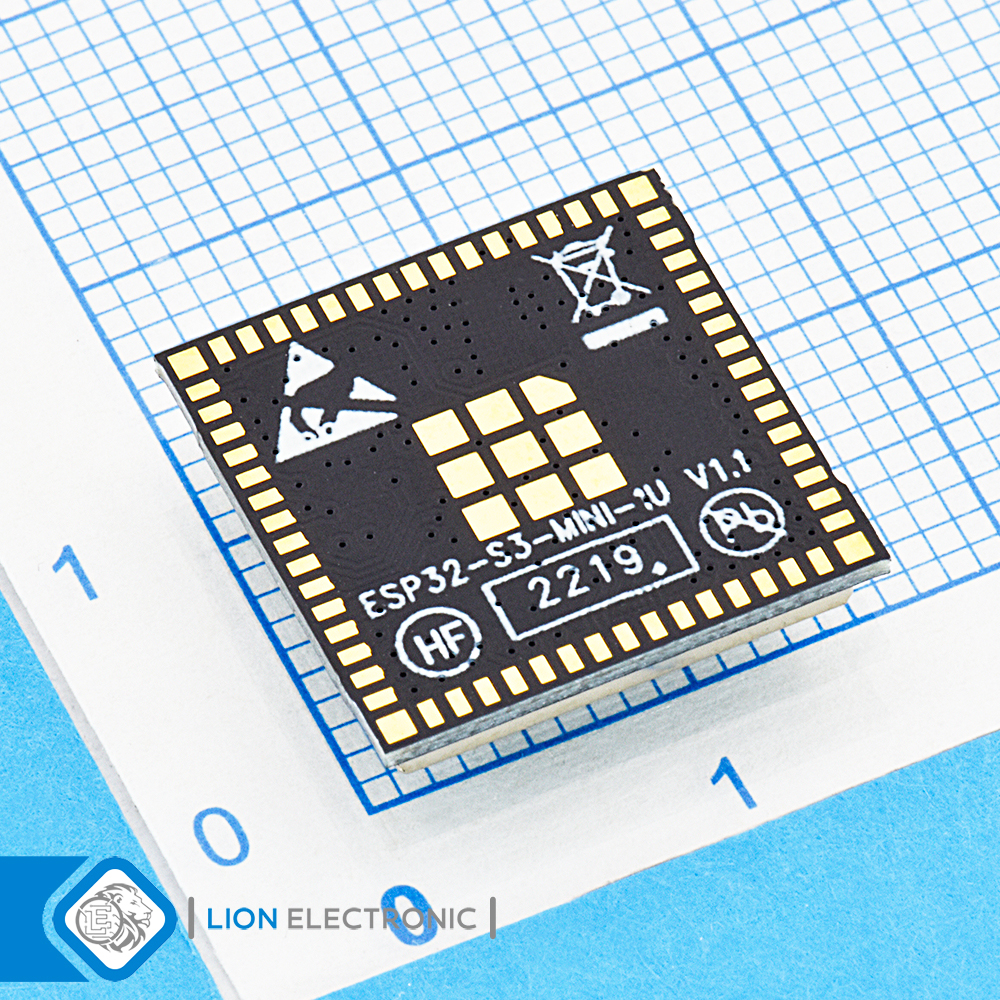

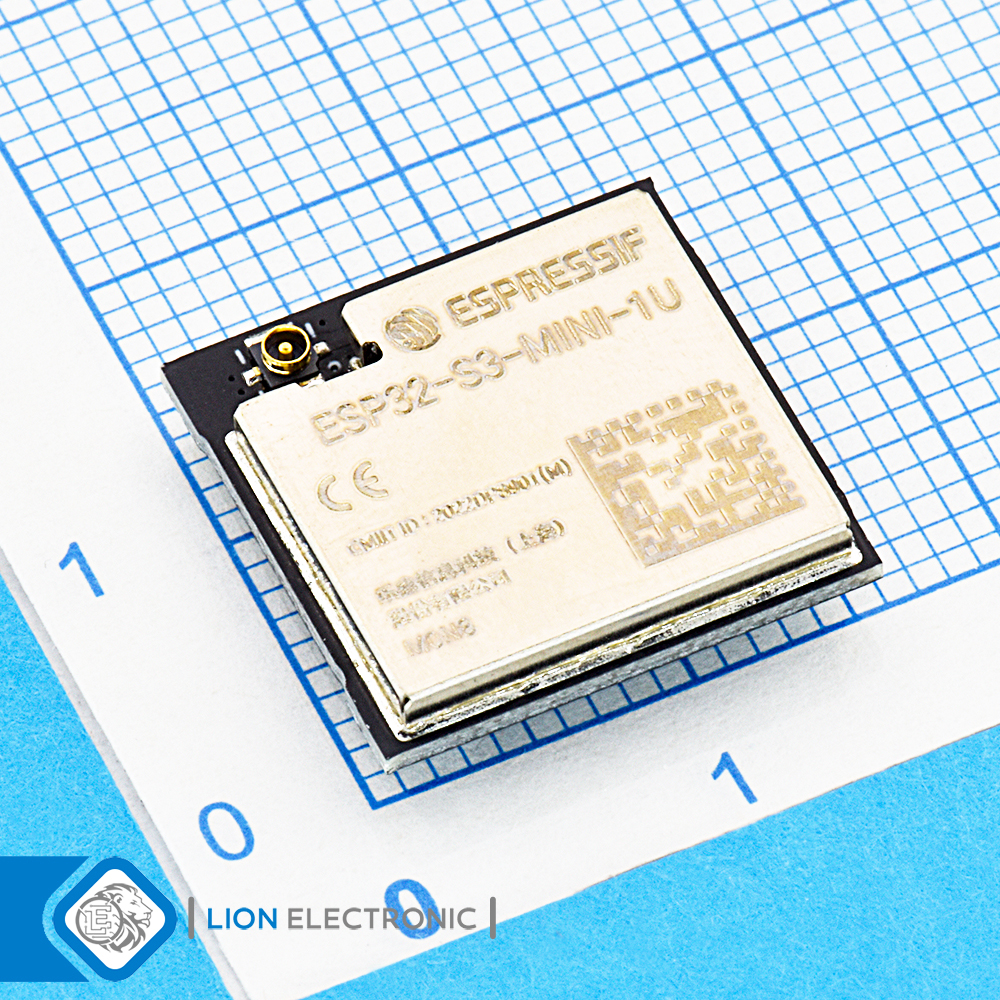

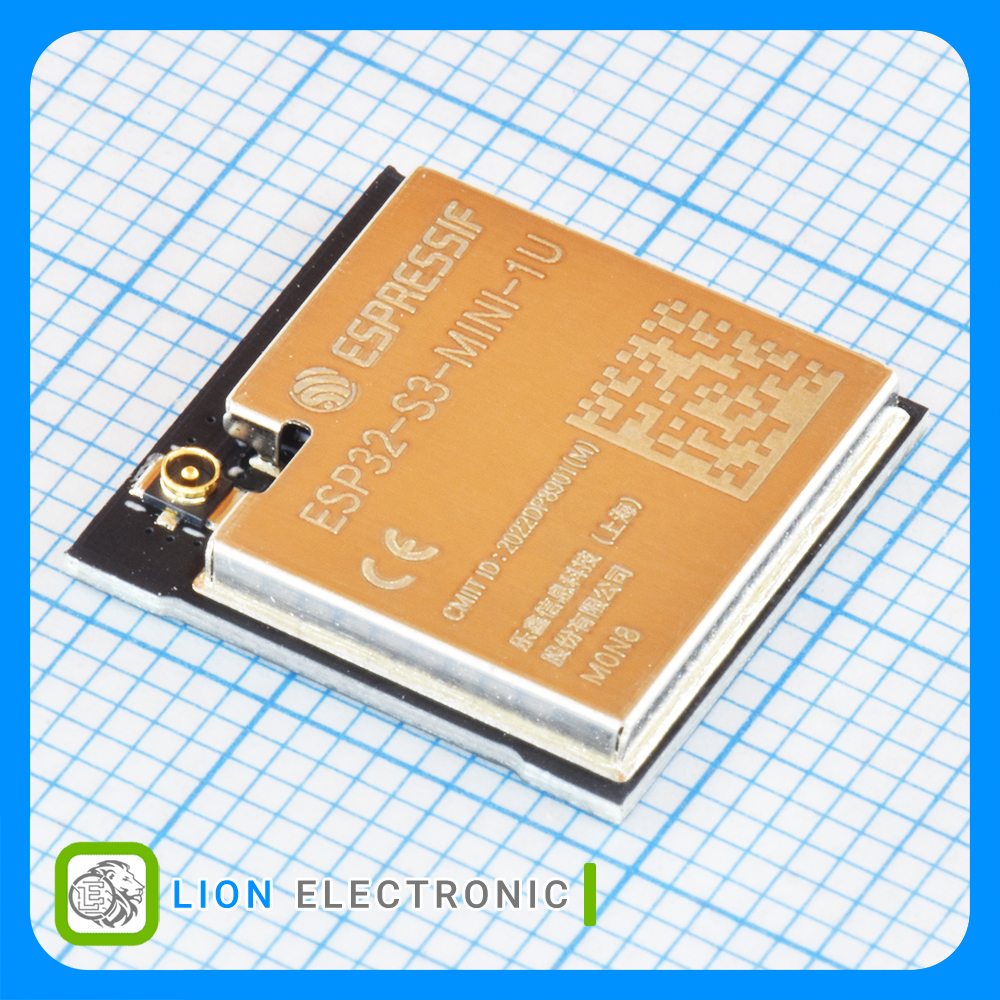

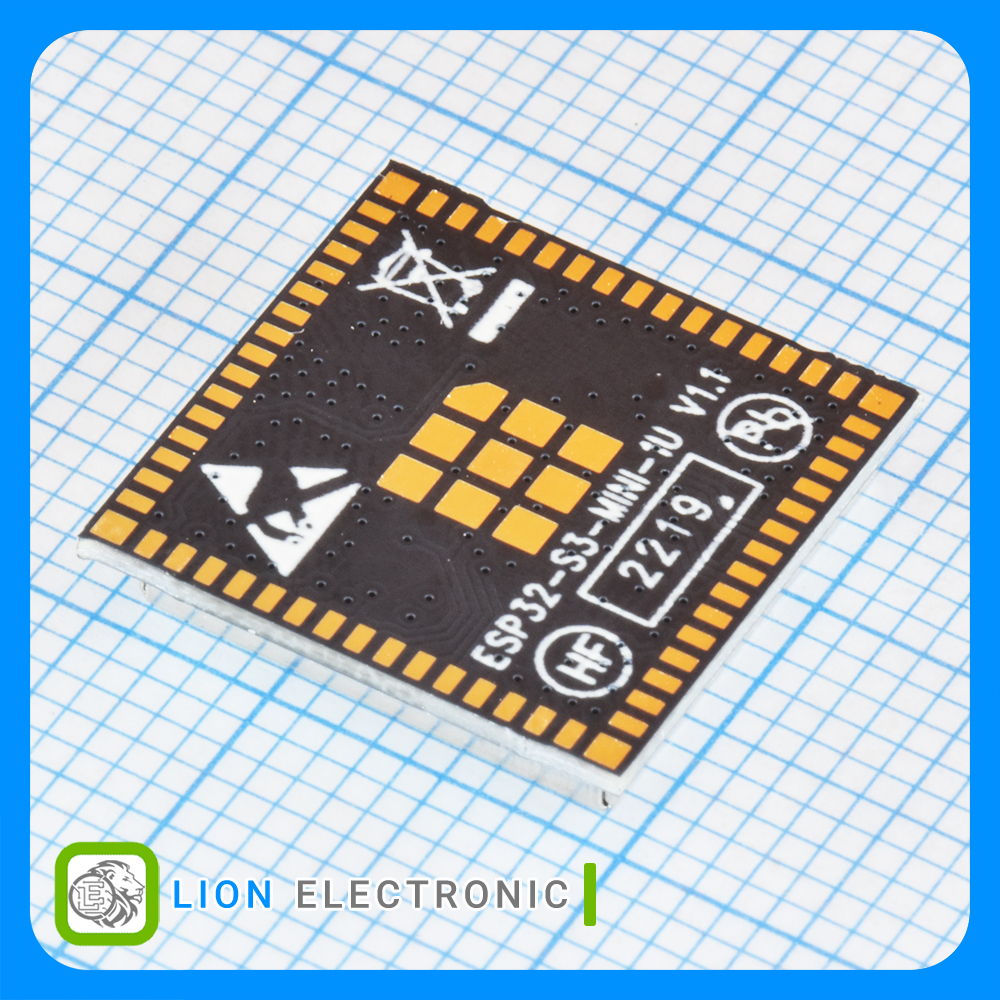

ماژول وای فای و بلوتوث ESP32-S3-MINI-1U-N8

Part Number

ESP32-S3-MINI-1U-N8

Datasheet

Manufacturer

Espressif

Description

Small-Sized Module Supporting 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)

8MB Quad SPI Flash

External Antenna Connector

39GPIOs

موجودی محصول

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول

تعداد	قیمت
1	2,016,554 ریال
10	1,972,071 ریال
25	1,942,416 ریال

معرفی

CPU and On-Chip Memory
• ESP32-S3 embedded, Xtensa® dual-core 32-bit LX7 microprocessor, up to 240 MHz
• 384 KB ROM
• 512 KB SRAM
• 16 KB SRAM in RTC
• 8 MB Quad SPI flash

Wi-Fi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150 Mbps
• A-MPDU and A-MSDU aggregation
• 0.4 µs guard interval support
• Center frequency range of operating channel: 2412 ~ 2484 MHz

Bluetooth
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
• Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

Peripherals
• GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), ADC, touch sensor, temperature sensor, timers and watchdogs

Integrated Components on Module
• 40 MHz crystal oscillator

Antenna Options
• External antenna via a connector (ESP32-S3-MINI-1U)

Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V
• Operating ambient temperature: –40 ~ 85 °C

مشخصات ماژول وای فای و بلوتوث ESP32-S3-MINI-1U-N8

Part Number

ماژول وای فای و بلوتوث ESP32-S3-MINI-1U-N8
Antenna Connector Type

IPEX
Packaging

Reel
Minimum Operating Temperature

-40C
Maximum Operating Temperature

+85C
Dimensions

15.4mm x 20.5mm
Supply Current Transmitting

285mA, 286mA, 297mA, 355mA
Supply Current Receiving

95mA, 97mA
Frequency

2.412GHz to 2.484GHz
Output Power

17dBm, 17.5dBm, 18dBm, 18.5dBm, 19dBm, 20.5dBm
Operating Supply Voltage

3V to 3.6V
Product

Wi-Fi & Bluetooth (LE) & MCU Module
Interface Type
