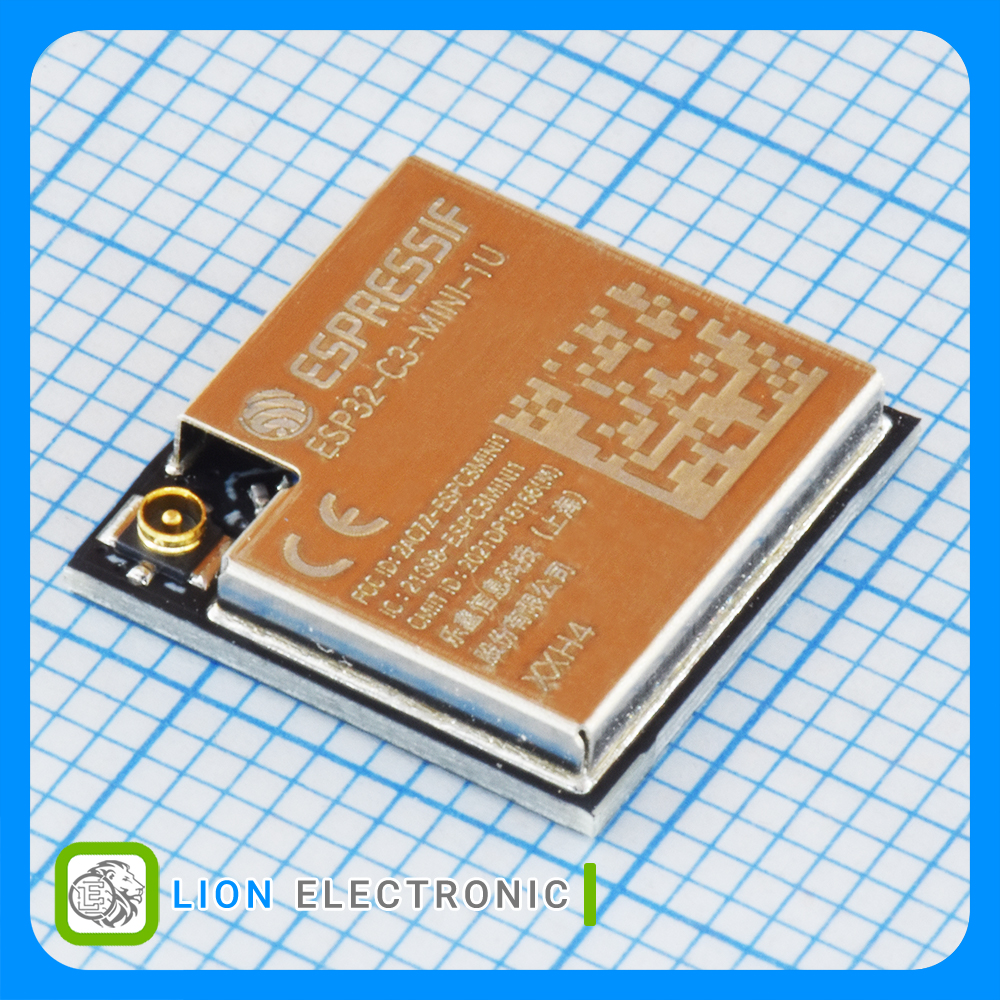

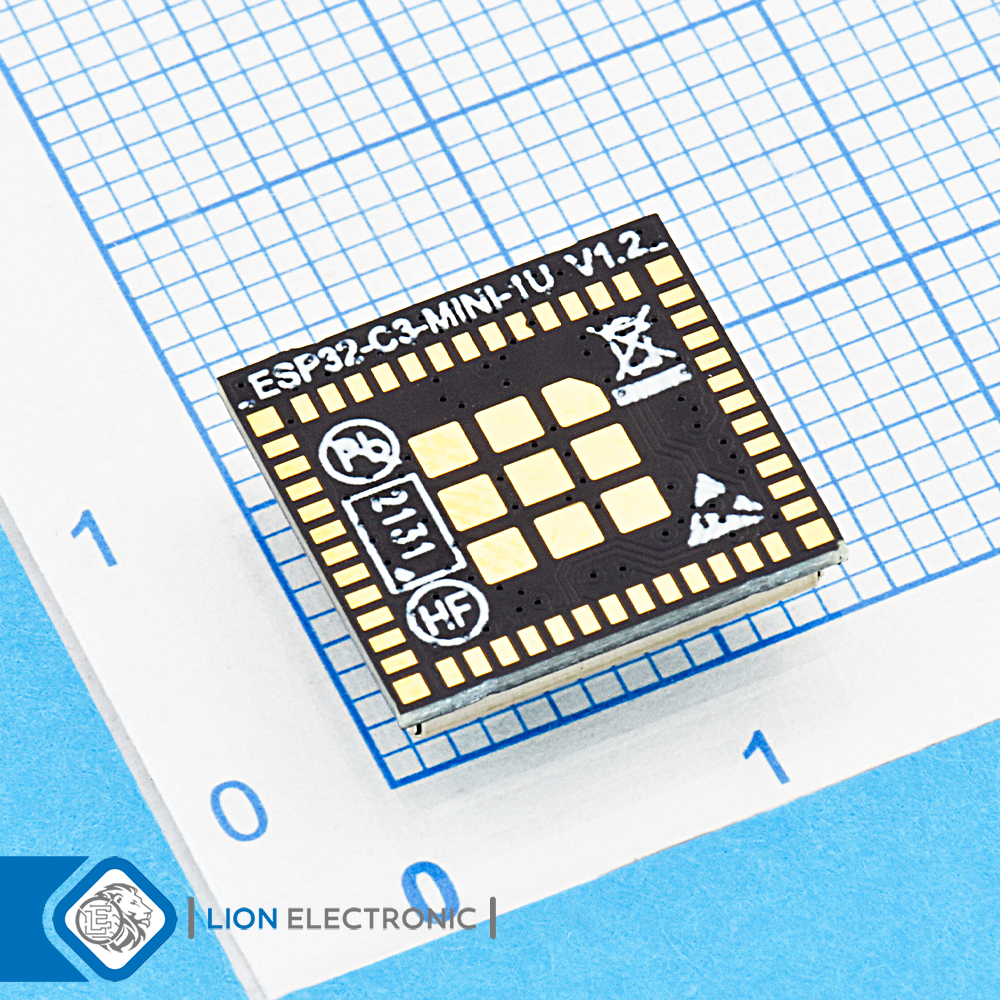

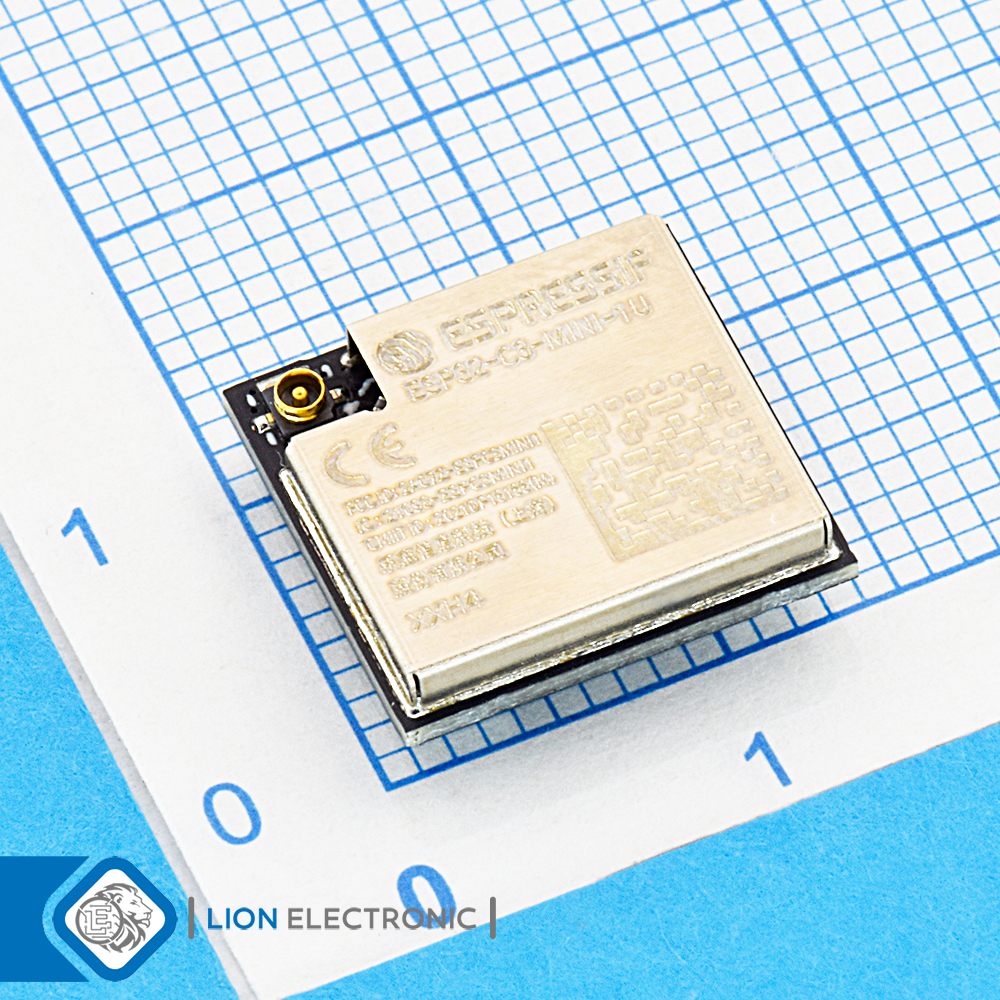

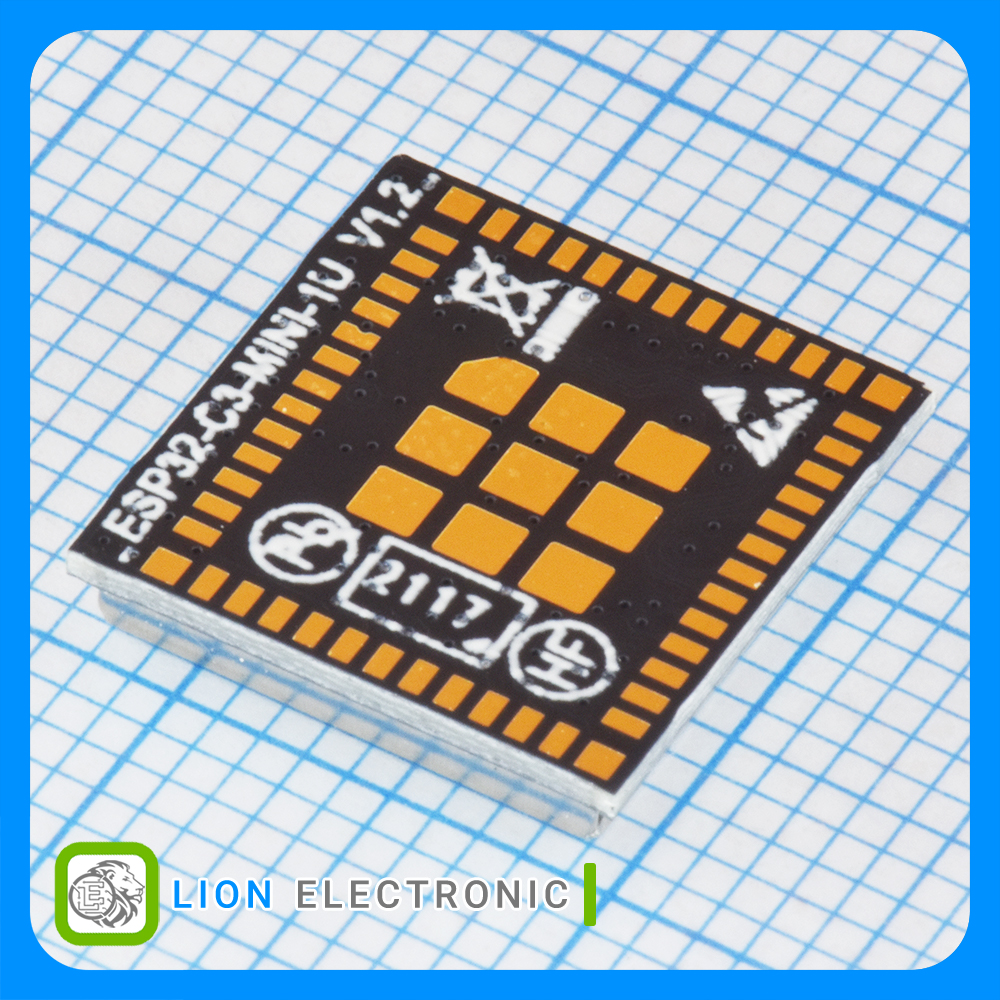

ماژول وای فای و بلوتوث ESP32-C3-MINI-1U-H4

Part Number

ESP32-C3-MINI-1U-H4

Datasheet

Manufacturer

Espressif

Description

Small sized 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 Module

4MB Quad SPI Flash

External Antenna Connector

15 GPIOs

موجودی محصول

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول

تعداد	قیمت
1	1,571,279 ریال
10	1,536,618 ریال
25	1,513,511 ریال

معرفی

CPU and OnChip Memory
• ESP32-C3FH4 or ESP32-C3FN4 embedded, 32-bit RISC-V single-core processor, up to 160MHz
• 384 KB ROM
• 400 KB SRAM (16 KB for cache)
• 8 KB SRAM in RTC
• 4 MB flash in chip package

WiFi
• IEEE 802.11 b/g/n-compliant
• Center frequency range of operating channel: 2412 ~ 2484 MHz
• Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band
• 1T1R mode with data rate up to 150 Mbps
• Wi-Fi Multimedia (WMM)
• TX/RX A-MPDU, TX/RX A-MSDU
• Immediate Block ACK
• Fragmentation and defragmentation
• Transmit opportunity (TXOP)
• Automatic Beacon monitoring (hardware TSF)
• 4 × virtual Wi-Fi interfaces
• Simultaneous support for Infrastructure BSS in Station mode, SoftAP mode, Station + SoftAP mode, and promiscuous mode
• 802.11mc FTM

Bluetooth®
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
• Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

Peripherals
• GPIO, SPI, UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), USB Serial/JTAG controller, temperature sensor, SAR ADC, general-purpose timers, watchdog timers

Integrated Components on Module
• 40 MHz crystal oscillator

Antenna Options
• External antenna via a connector (ESP32-C3-MINI-1U)

Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V
• Operating ambient temperature: –40 ~ 85 °C

مشخصات ماژول وای فای و بلوتوث ESP32-C3-MINI-1U-H4

Part Number

ماژول وای فای و بلوتوث ESP32-C3-MINI-1U-H4
Antenna Connector Type

IPEX
Packaging

Reel
Minimum Operating Temperature

-40C
Dimensions

13.2mm x 16.6mm
Maximum Operating Temperature

+85C
Supply Current Receiving

82mA, 84mA
Supply Current Transmitting

290mA, 295mA, 350mA
Frequency

2.412GHz to 2.484GHz
Output Power

17dBm, 17.5dBm, 18dBm, 18.5dBm, 19dBm, 20.5dBm
Operating Supply Voltage

3V to 3.6V
Product

Wi-Fi & Bluetooth (LE) & MCU Module
Interface Type

درج شده در توضیحات محصول

موجودی محصول	50
وضعیت
موجودی مورد نیاز
