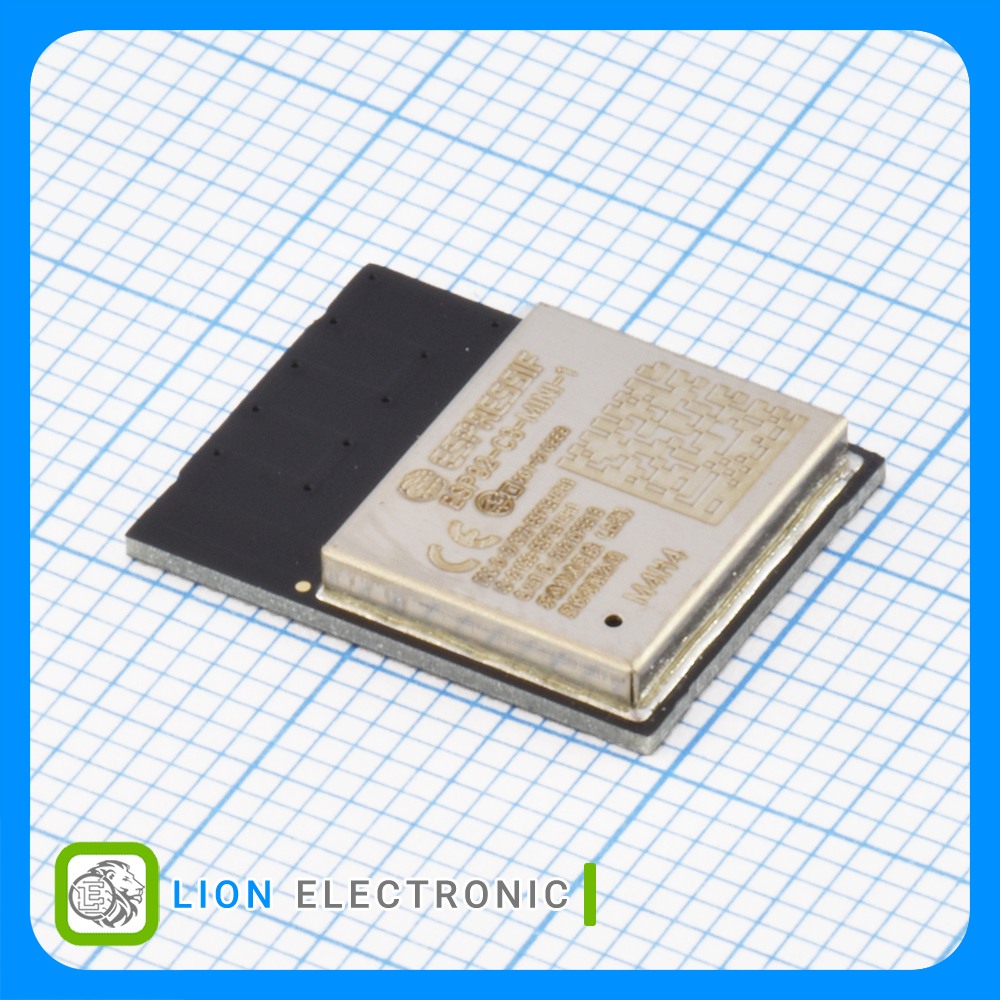

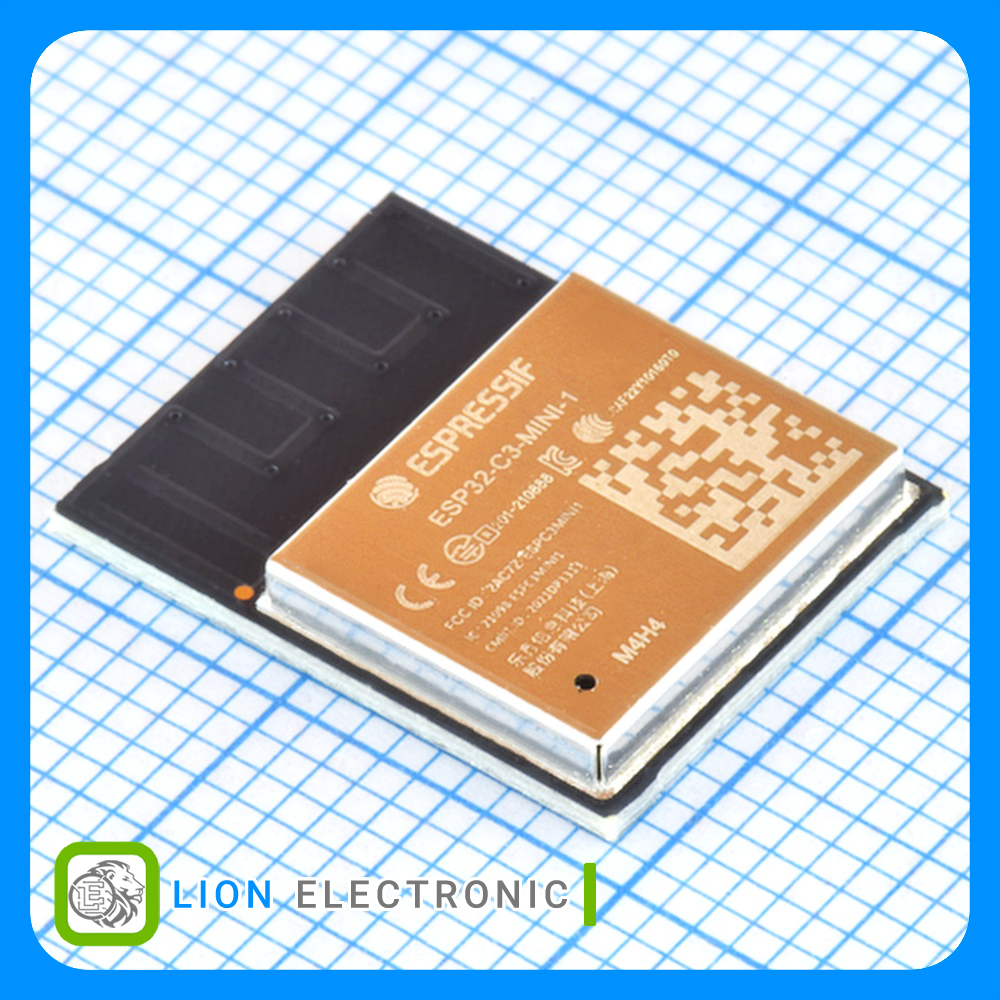

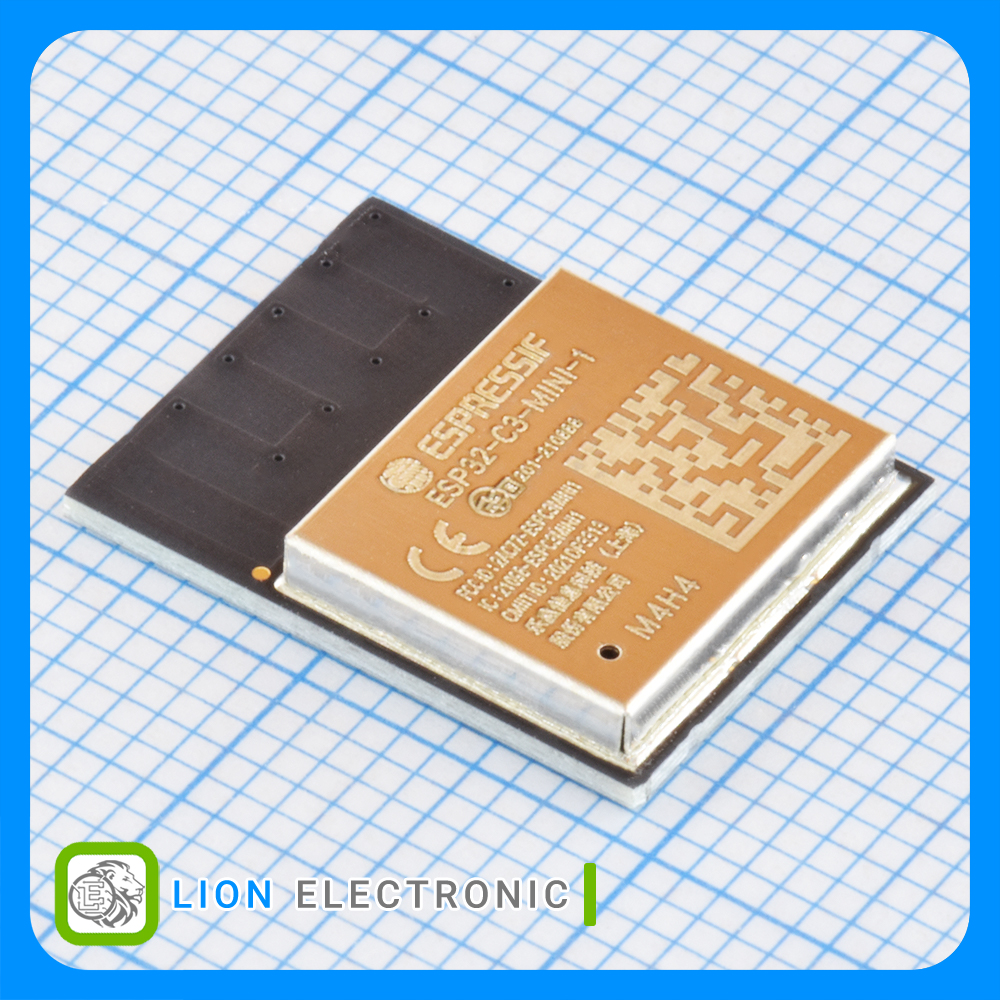

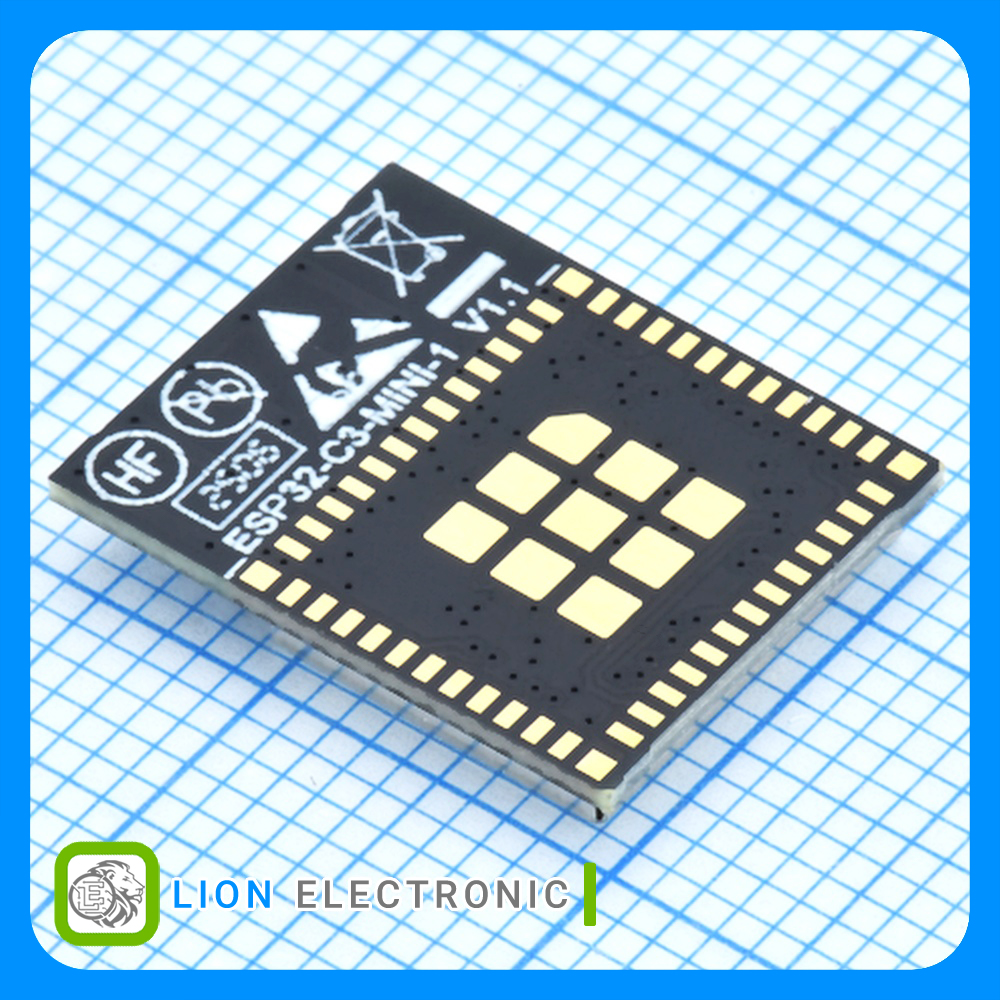

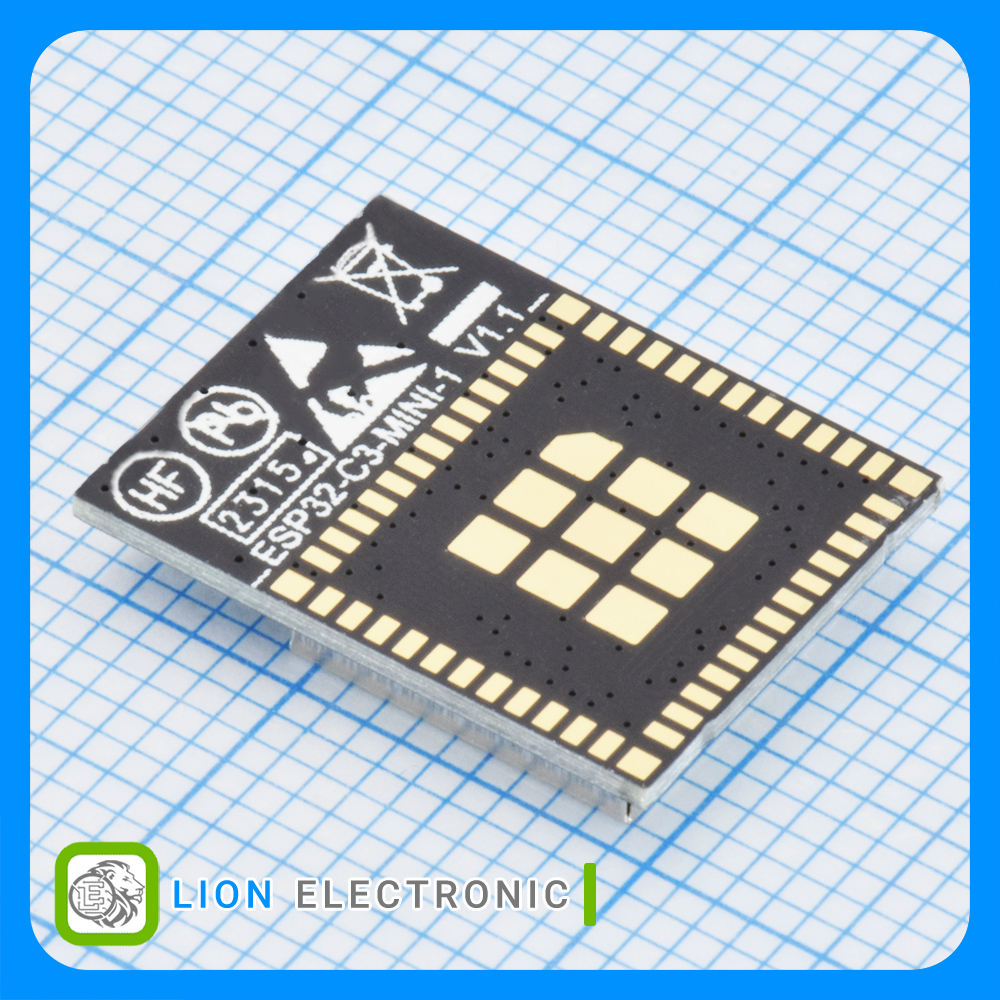

ماژول وای فای و بلوتوث ESP32-C3-MINI-1-H4

ماژول وای فای و بلوتوث ESP32-C3-MINI-1-H4

Part Number
ESP32-C3-MINI-1-H4
Datasheet
Manufacturer
Espressif
Espressif
Description

Small­ Sized 2.4GHz Wi­Fi (802.11 b/g/n) and Bluetooth 5 Module

4MB Flash in Chip Package

On­board PCB Antenna

15GPIOs

موجودی محصول
42

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول
تعداد قیمت
1 1,431,202 ریال
10 1,381,507 ریال
50 1,341,752 ریال
معرفی

CPU and On­Chip Memory

• ESP32-C3FH4 or ESP32-C3FN4 embedded, 32-bit RISC-V single-core processor, up to 160MHz
• 384 KB ROM
• 400 KB SRAM (16 KB for cache)
• 8 KB SRAM in RTC
• 4 MB flash in chip package

Wi­Fi
• IEEE 802.11 b/g/n-compliant
• Center frequency range of operating channel: 2412 ~ 2484 MHz
• Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band
• 1T1R mode with data rate up to 150 Mbps
• Wi-Fi Multimedia (WMM)
• TX/RX A-MPDU, TX/RX A-MSDU
• Immediate Block ACK
• Fragmentation and defragmentation
• Transmit opportunity (TXOP)
• Automatic Beacon monitoring (hardware TSF)
• 4 × virtual Wi-Fi interfaces
• Simultaneous support for Infrastructure BSS in Station mode, SoftAP mode, Station + SoftAP mode, and promiscuous mode
• 802.11mc FTM

Bluetooth
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
• Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna Peripherals
• GPIO, SPI, UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), USB Serial/JTAG controller, temperature sensor, SAR ADC, general-purpose timers, watchdog timers Integrated Components on Module
• 40 MHz crystal oscillator

Antenna Options
• On-board PCB antenna (ESP32-C3-MINI-1)

Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V

• – 85 °C version module: –40 ~ 85 °C



مشخصات ماژول وای فای و بلوتوث ESP32-C3-MINI-1-H4

  • Part Number
    ماژول وای فای و بلوتوث ESP32-C3-MINI-1-H4
  • Packaging
    Reel
  • Minimum Operating Temperature
    -40C
  • Antenna Connector Type
    PCB
  • Dimensions
    13.2mm x 16.6mm x 2.4mm
  • Maximum Operating Temperature
    +105C
  • Supply Current Receiving
    82mA, 84mA
  • Supply Current Transmitting
    290mA, 295mA, 350mA
  • Frequency
    2.4GHz
  • Interface Type
    GPIO, I2C, I2S, SPI, UART
  • Output Power
    20.5dBm
  • Operating Supply Voltage
    3V to 3.6V
  • Product
    Wi-Fi & Bluetooth (LE) & MCU Module
