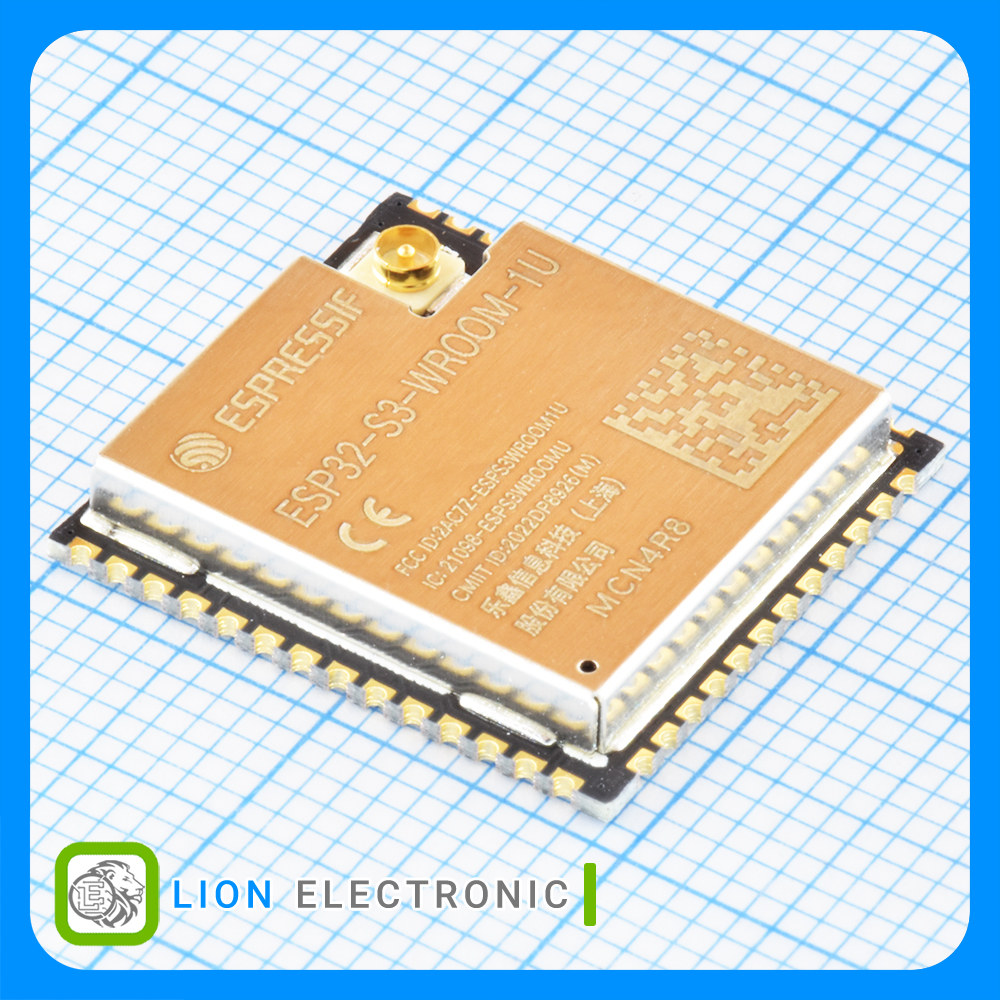

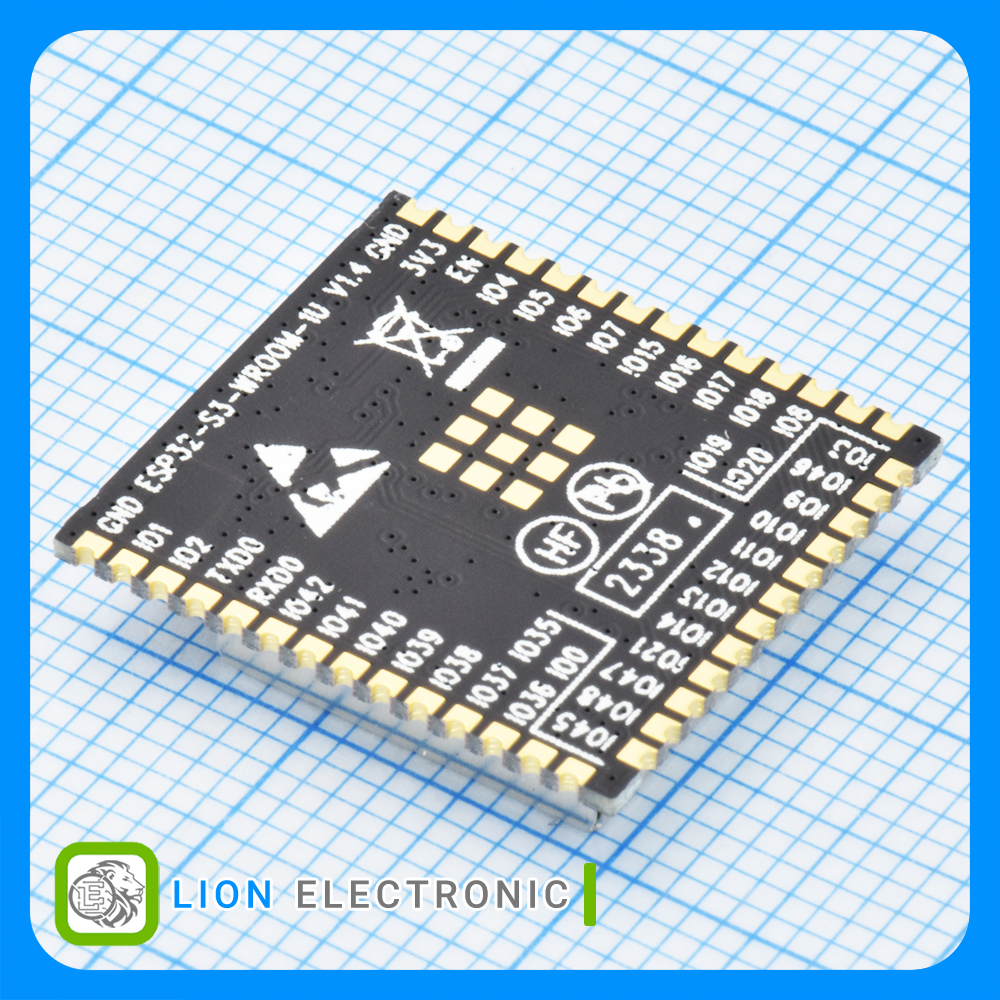

ESP32-S3-WROOM-1U-N4R8

ESP32-S3-WROOM-1U-N4R8

Part Number
ESP32-S3-WROOM-1U-N4R8
Datasheet
Manufacturer
Espressif
Espressif
Description

2.4GHz Wi­Fi  and Bluetooth 5 (LE) Module

4MB Quad SPI Flash

External Antenna Connector

8MB Octal SPI PSRAM

36GPIOs

موجودی محصول
16

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول
تعداد قیمت
1 2,385,382 ریال
10 2,334,629 ریال
50 2,283,876 ریال
معرفی

CPU and On­Chip Memory
• ESP32-S3 series of SoCs embedded, Xtensa® dual-core 32-bit LX7 microprocessor, up to 240MHz
• 384 KB ROM
• 512 KB SRAM
• 16 KB SRAM in RTC
• Up to 8 MB PSRAM

Wi­Fi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150 Mbps
• A-MPDU and A-MSDU aggregation
• 0.4 µs guard interval support
• Center frequency range of operating channel: 2412 ~ 2484 MHz

Bluetooth
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• 2 Mbps PHY
• Long range mode
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2

Peripherals
• GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI® controller (compatible with ISO 11898-1), ADC, touch sensor, temperature sensor, timers and watchdogs

Integrated Components on Module
• 40 MHz crystal oscillator
• 4 MB SPI flash

Antenna Options
• External antenna via a connector (ESP32-S3-WROOM-1U)

Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V
• Operating ambient temperature: -40 ~ 65 °C

مشخصات ESP32-S3-WROOM-1U-N4R8

  • Part Number
    ESP32-S3-WROOM-1U-N4R8
  • Antenna Connector Type
    IPEX
  • Packaging
    Reel
  • Minimum Operating Temperature
    -40C
  • Maximum Operating Temperature
    + 65C
  • Supply Current Transmitting
    285mA, 286mA, 297mA, 355mA
  • Supply Current Receiving
    95mA, 97mA
  • Dimensions
    19.2mm x 18mm x 3.2mm
  • Frequency
    2.4GHz
  • Interface Type
    GPIO, I2C, I2S, SPI, UART
  • Output Power
    20.5dBm
  • Operating Supply Voltage
    3V to 3.6V
  • Product
    Wi-Fi & Bluetooth (LE) & MCU Module
