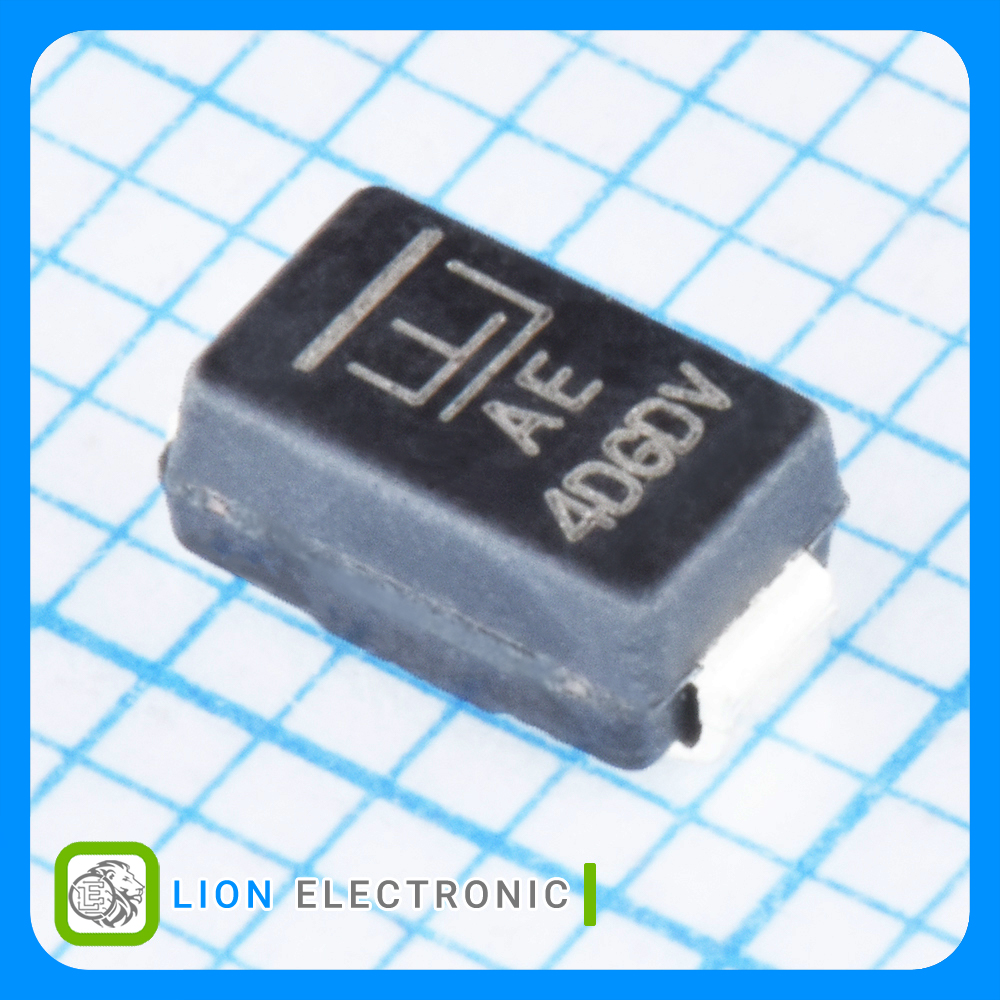

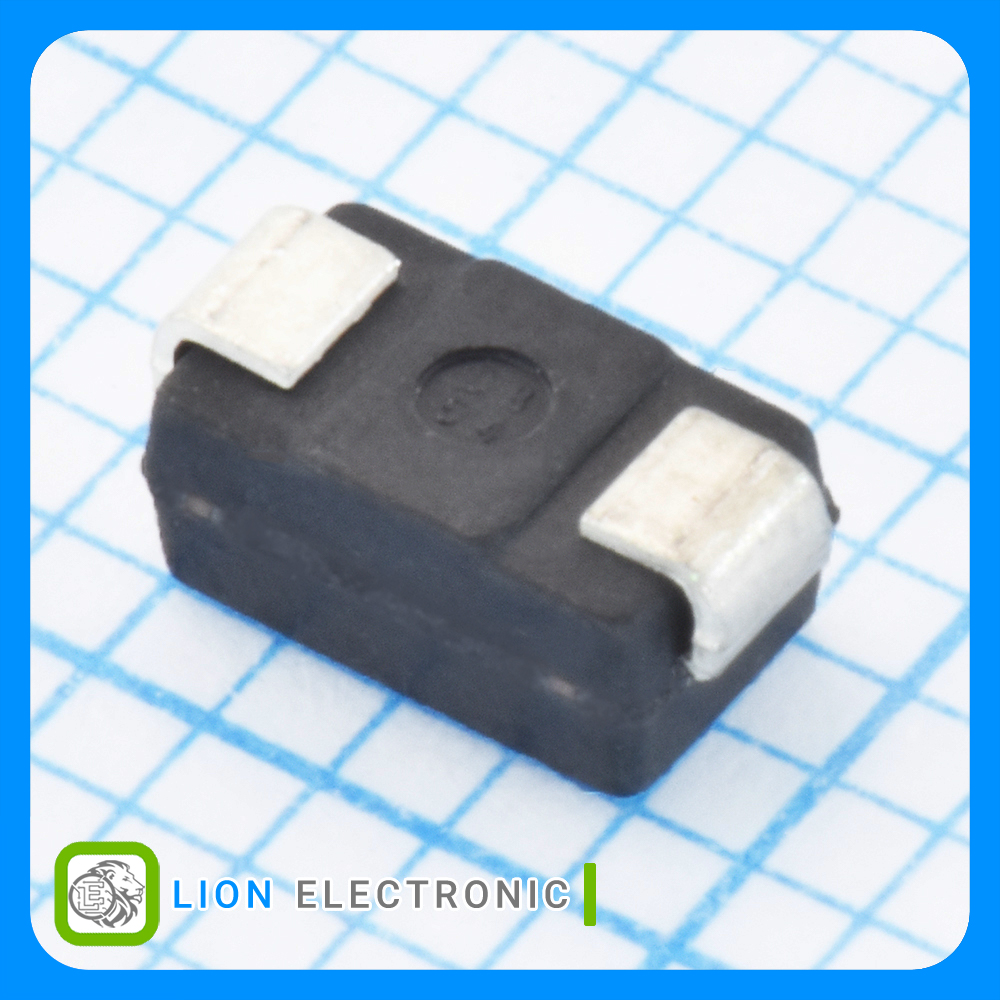

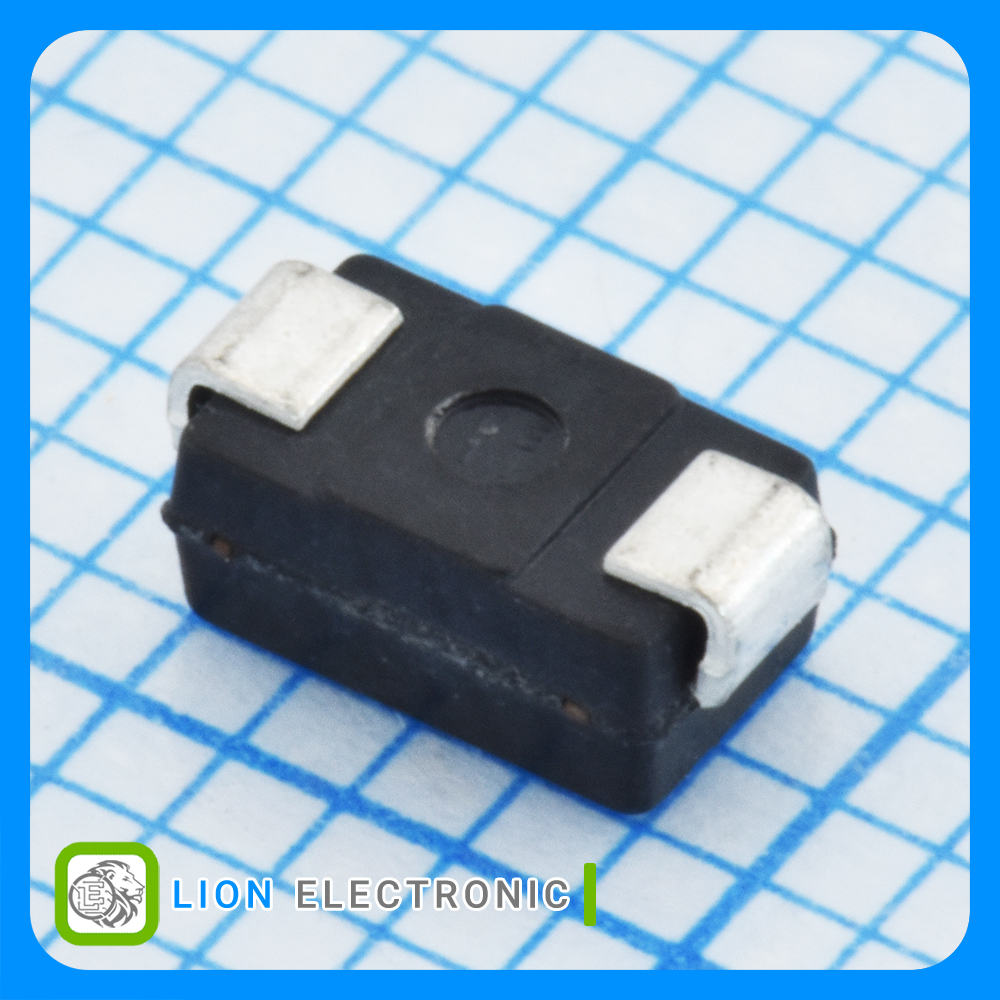

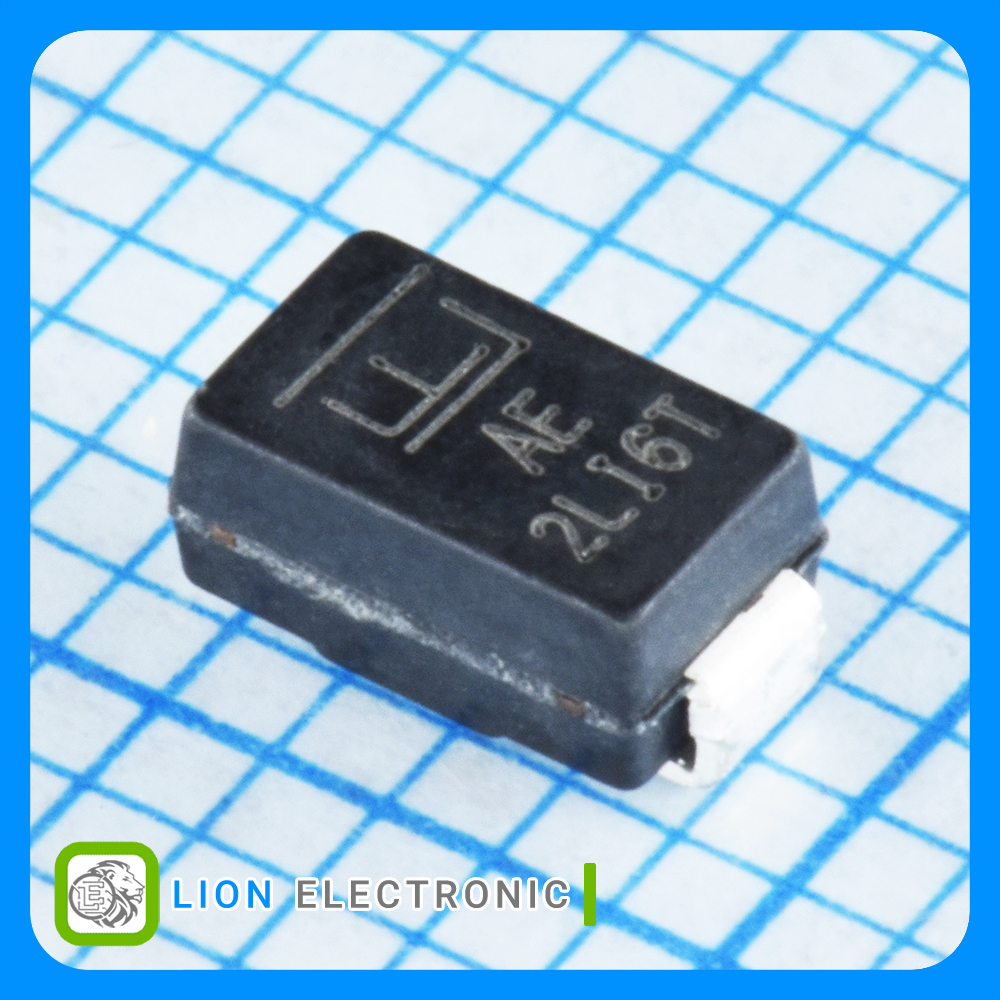

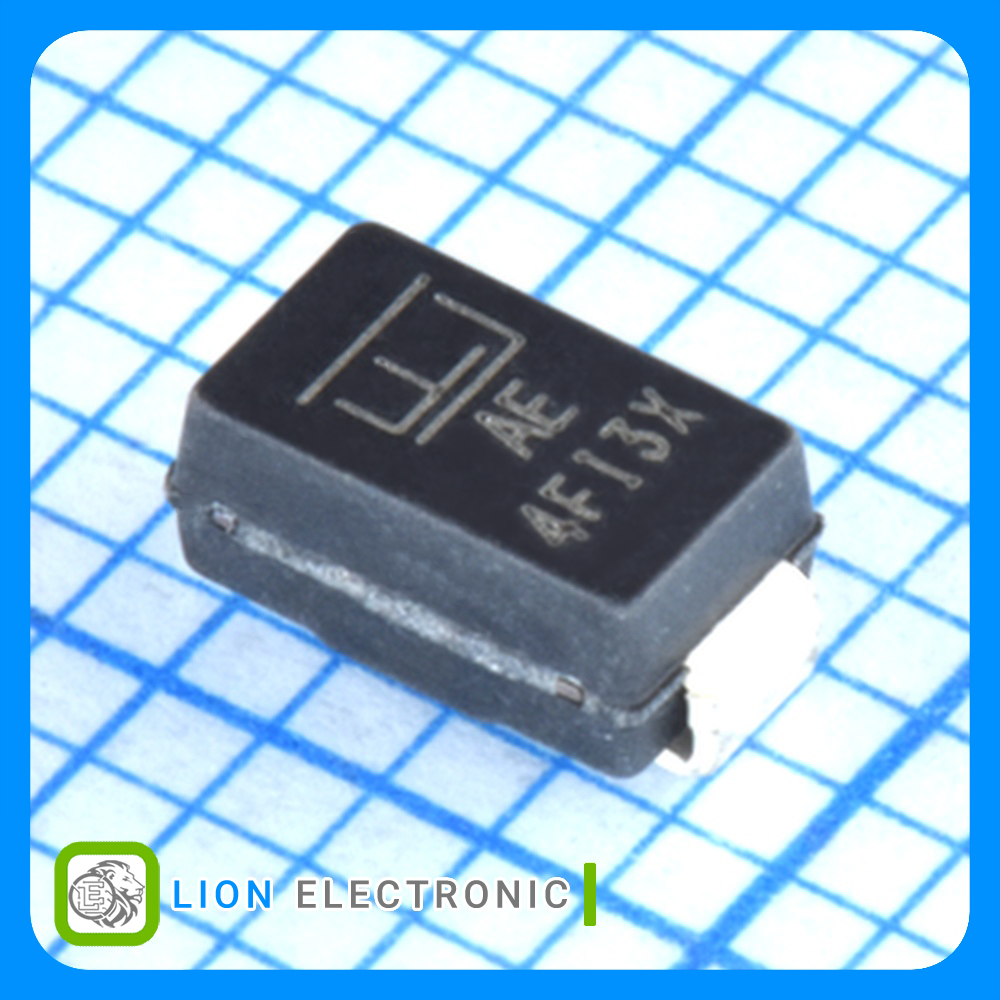

SMAJ5.0A
SMAJ5.0A
Part Number
3590
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یک جهته 5 ولت با بیشنه پالس جریان 43.5 آمپر با پکیج SMA
TVS Diode Uni-directional 5V SMA
مشخصات SMAJ5.0A
SMAJ5.0A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
5V
Working Voltage
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
Unidirectional
Polarity
9.2V
Clamping Voltage
6.4V
Breakdown Voltage
400W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
N/A
Cd - Diode Capacitance
43.5A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AC (SMA)
Package-Case
