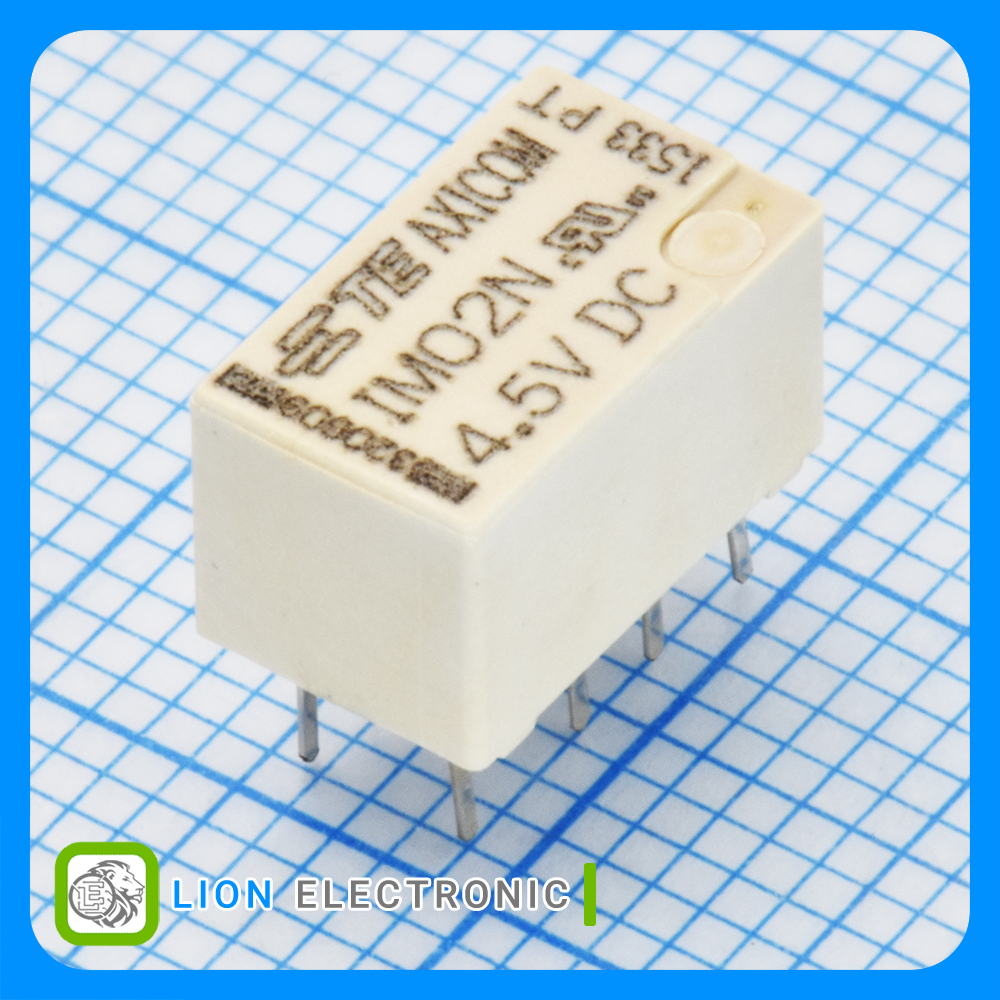

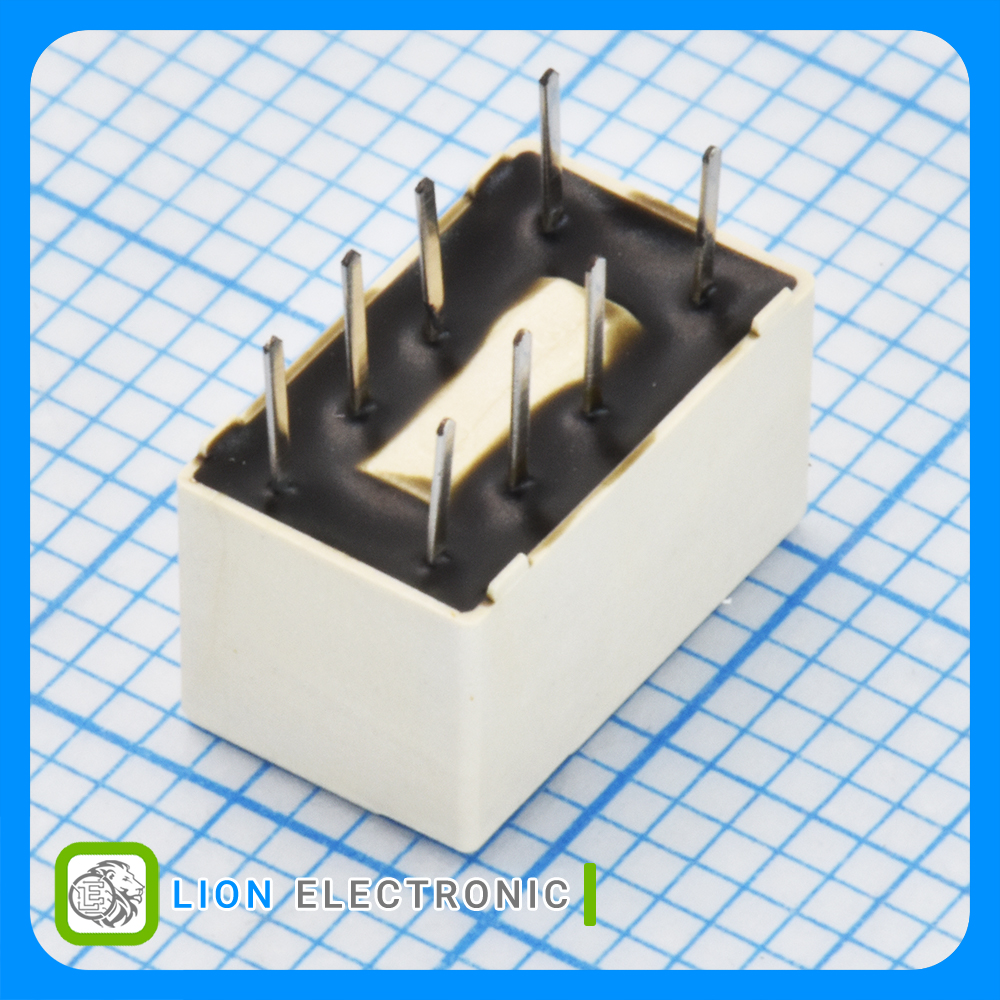

IM02NS
IM02NS
Part Number
1051
Lion Part
Datasheet
TE Connectivity Manufacture
رله فرکانس بالا (RF) با ولتاژ 4.5 ولت و جریان 2 آمپر DPDT (2 Form C) با توان 140 میلیوات
RF Relay/ High Frequency Relay 4.5VDC, 2A DPDT (2 Form C) with 140mW Power Consumption
معرفی
رله فرکانس بالا (RF) با ولتاژ 4.5 ولت و جریان 2 آمپر DPDT (2 Form C) با توان 140 میلیوات
RF Relay/ High Frequency Relay 4.5VDC, 2A DPDT (2 Form C) with 140mW Power Consumption
Specifications
- Relay Contact Form: 2 Form C (DPDT-NO, NC)
- Coil Voltage: 4.5VDC
- Contact Current Rating: 2A
- Maximum Switching Current: 2A
- Power Consumption: 140mW
- Contact Termination: Solder Pin
- Isolation: 37dB
- Height: 5.8mm
- Length: 10mm
- Width: 3.2mm
- Mounting Style: Through Hole
- Insertion Loss: 0.03dB
- Packaging: Tube
مشخصات رله فرکانس بالا IM02NS
رله فرکانس بالا IM02NS
Part Number
0.03dB
Insertion Loss
37dB
Isolation
140mW
Power Consumption
2A
Maximum Switching Current
Solder Pin
Contact Termination
Palladium Ruthenium (PdRu) with Gold Plating
Contact Material
2A
Contact Current Rating
4.5VDC
Coil Voltage
-
Coil Type
2 Form C (DPDT-NO, NC)
Relay Contact Form
145Ω
Coil Resistance
3.2mm
Width
Tube
Packaging
Through Hole
Mounting Style
31.03mA
Coil Current
10mm
Length
High Frequency Relays
Product Type
5.8mm
Height
-
Frequency
