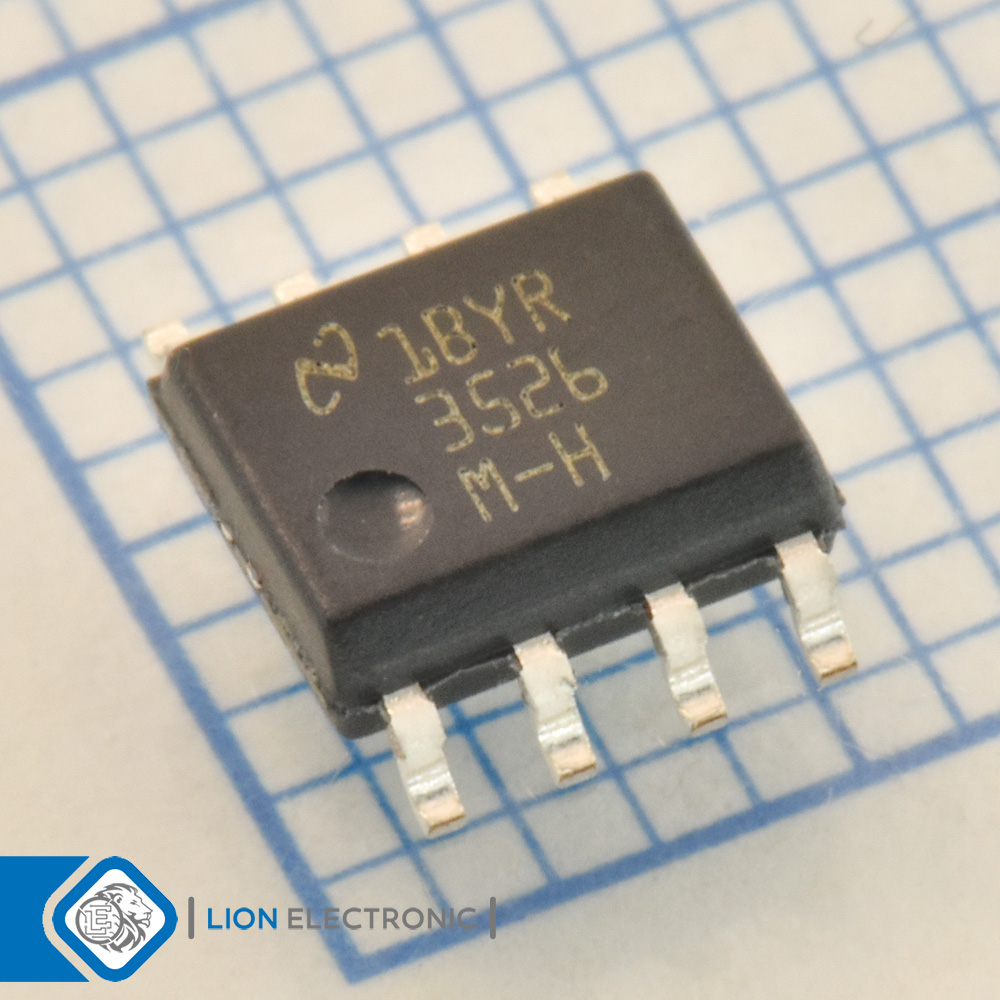

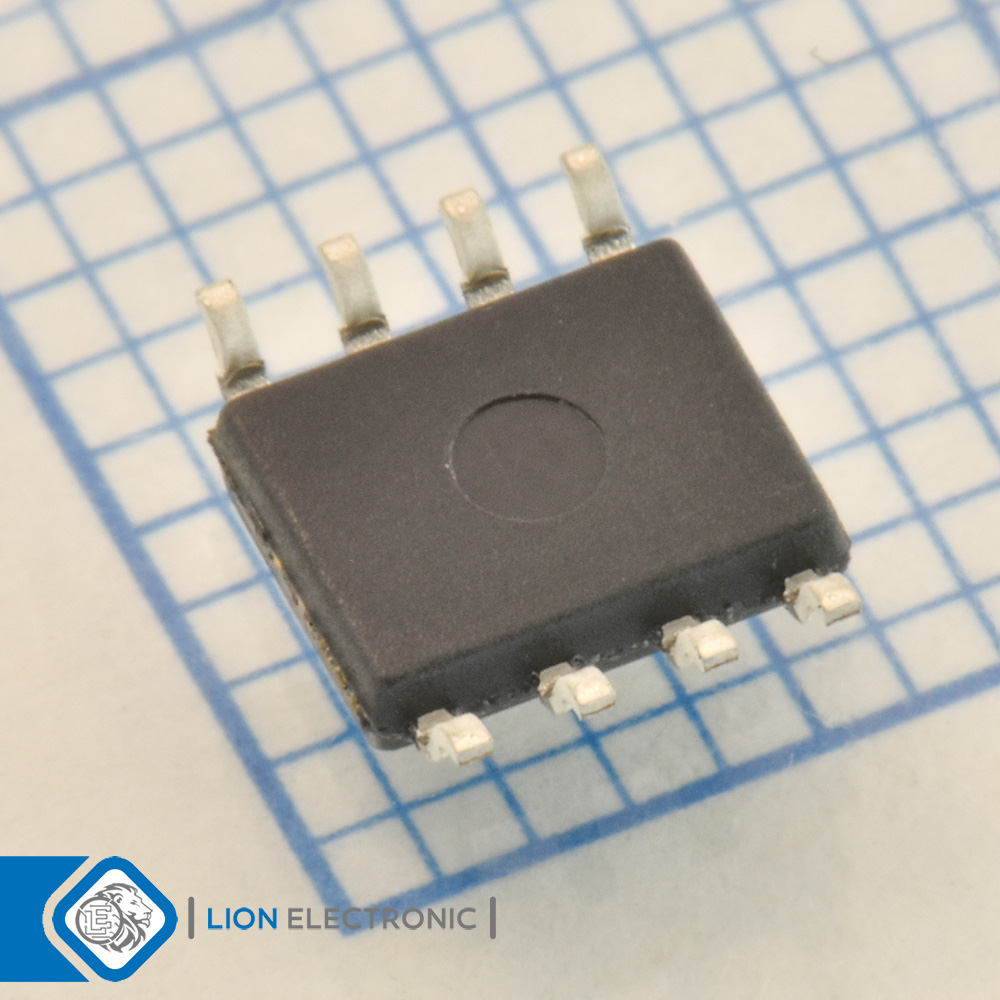

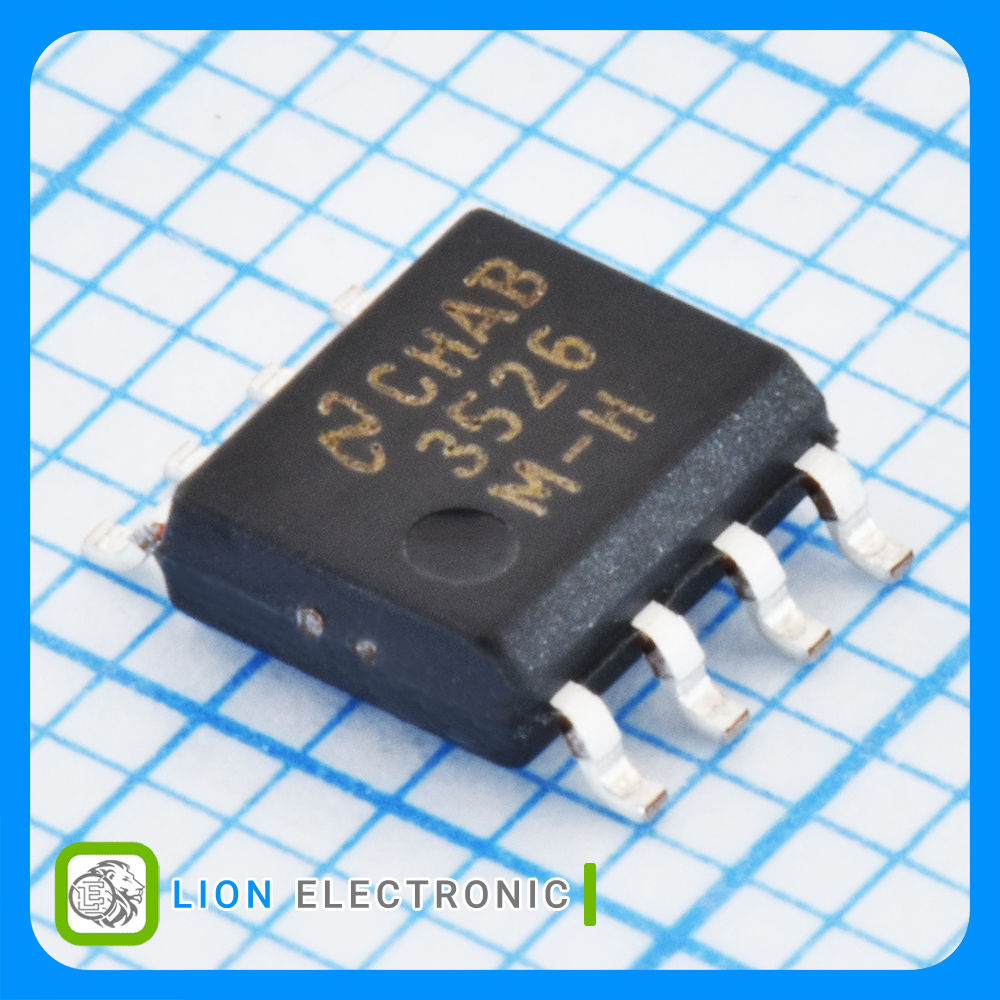

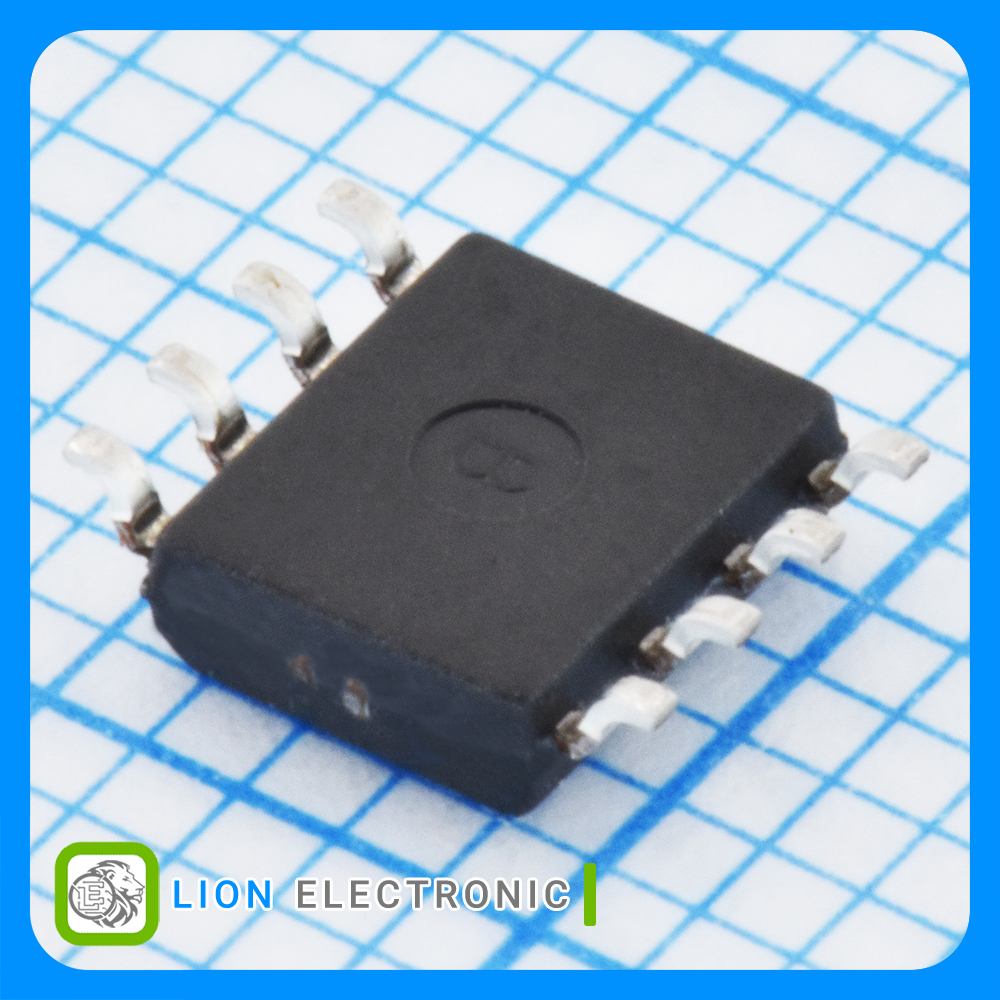

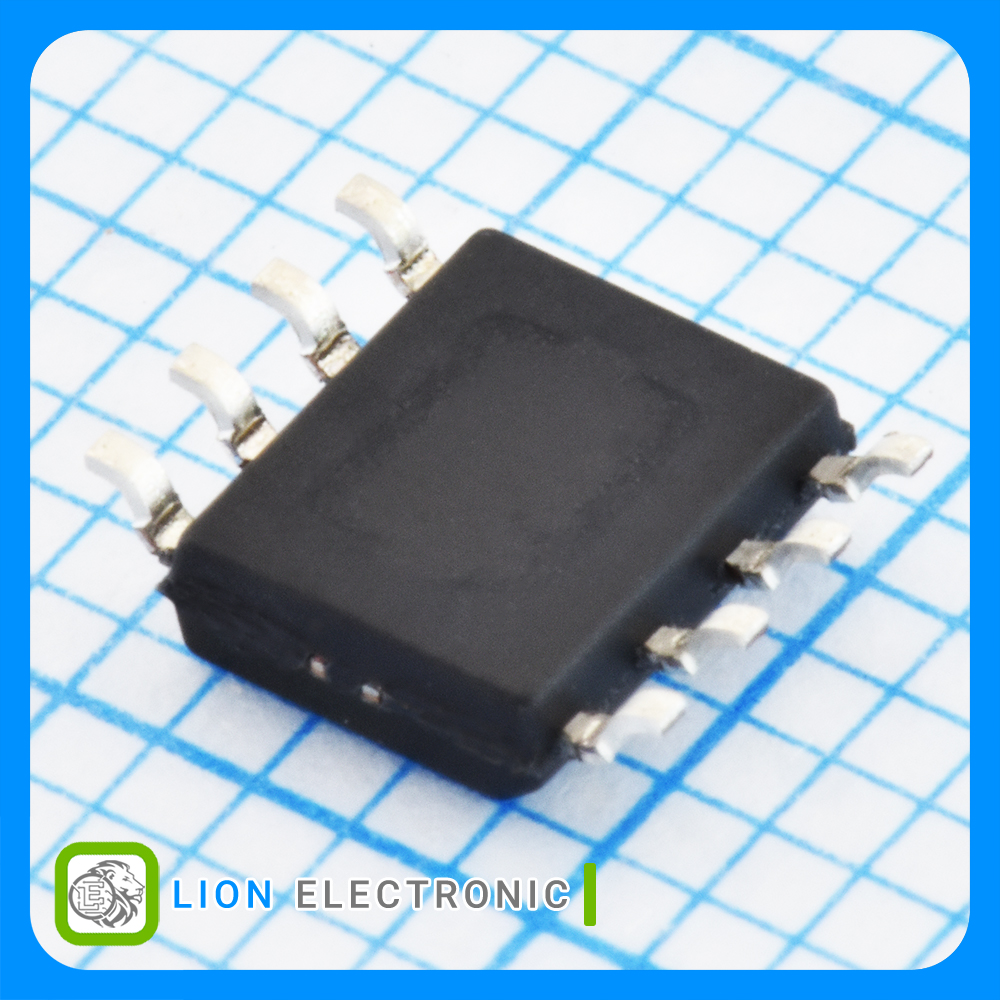

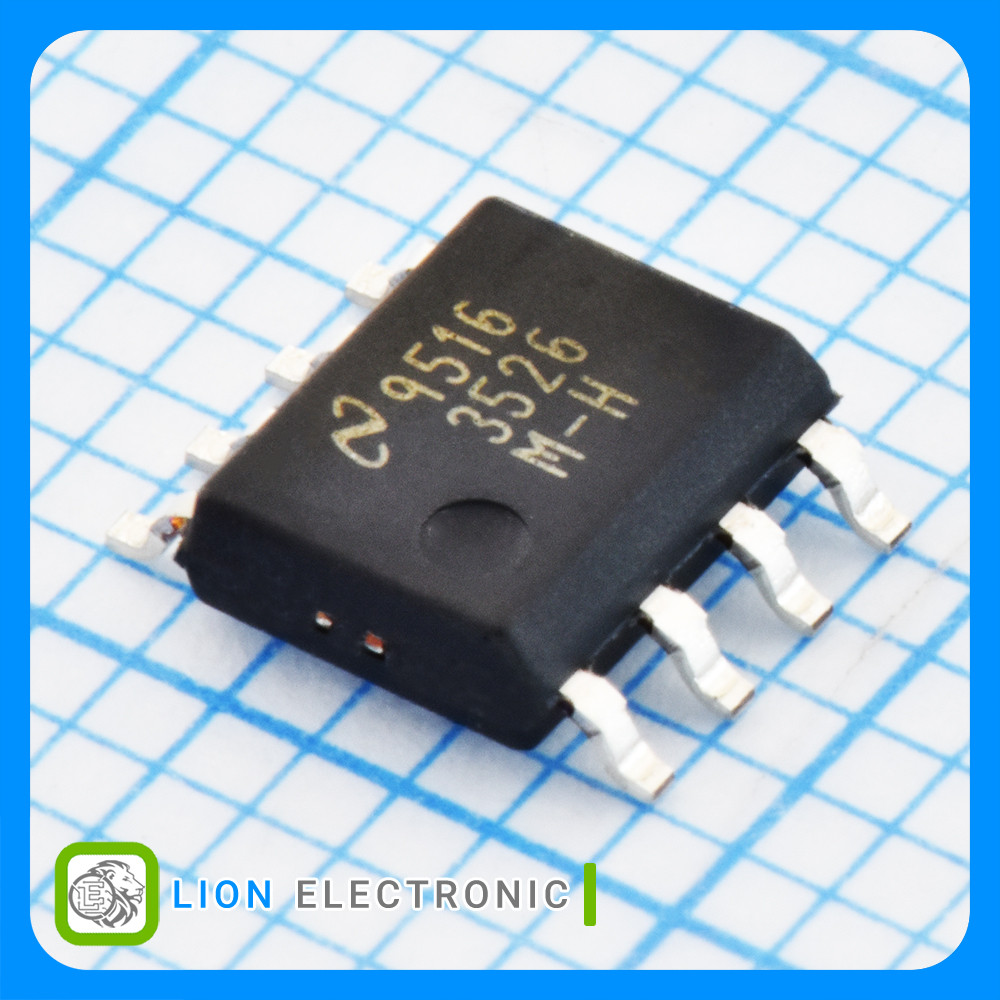

LM3526MX-H
LM3526MX-H
Part Number
1077
Lion Part
Datasheet
National Semiconductor Manufacture
پاور سوئیچ USB سمت بالا محدودکننده جریان دو پورته با حفاظت اضافهجریان 2.7 تا 5.5 ولت جریان 500 میلیآمپر با پکیج SOIC-8
Power Switch USB High Side Current Limit, Dual Port USB Power Switch and Over-Current Protection, 2.7 - 5.5V, 500mA with SOIC-8 Package
معرفی
پاور سوئیچ USB سمت بالا محدودکننده جریان دو پورته با حفاظت اضافهجریان 2.7 تا 5.5 ولت جریان 500 میلیآمپر با پکیج SOIC-8
Power Switch USB High Side Current Limit, Dual Port USB Power Switch and Over-Current Protection, 2.7 - 5.5V, 500mA with SOIC-8 Package
Specifications
- Type: USB High Side Current Limit
- Number of Outputs: 2
- Output Current: 500mA
- Current Limit: 1.2A
- On Resistance - Max: 180mΩ
- On Time - Max: 150µs
- Off Time - Max: 5µs
- Operating Supply Voltage: 2.7 - 5.5V
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات LM3526MX-H
LM3526MX-H
Part Number
2
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
5µs
Off Time - Max
1.2A
Current Limit
+125C
Maximum Operating Temperature
180mΩ
On Resistance - Max
150µs
On Time - Max
5.5V
Supply Voltage - Max
2.7V
Supply Voltage - Min
500mA
Output Current
2.7 - 5.5V
Operating Supply Voltage
USB High Side Current Limit
Type
USB Power Switches
Product
SOIC-8
Package-Case
