Bourns
معرفی
فیوز ریستشونده 13.2 ولت جریان نگهدارنده 500 میلیآمپر سایز 1206

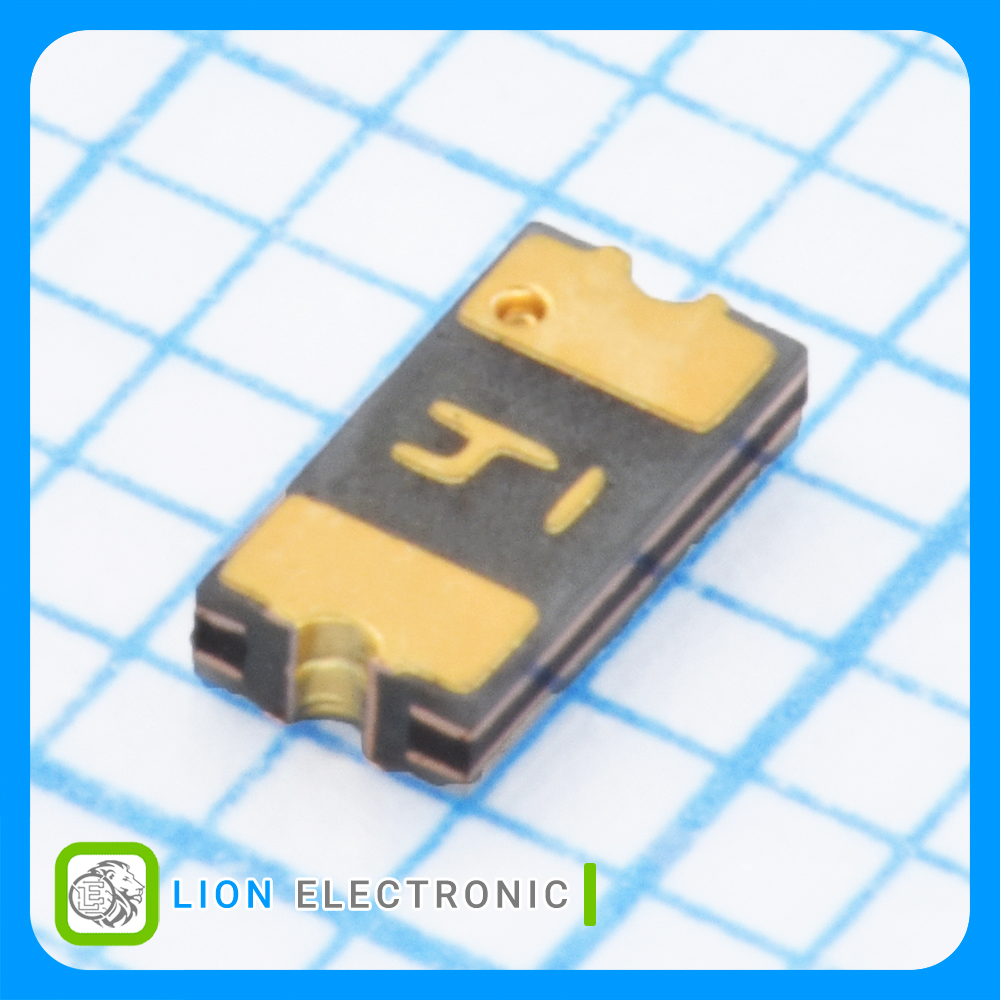

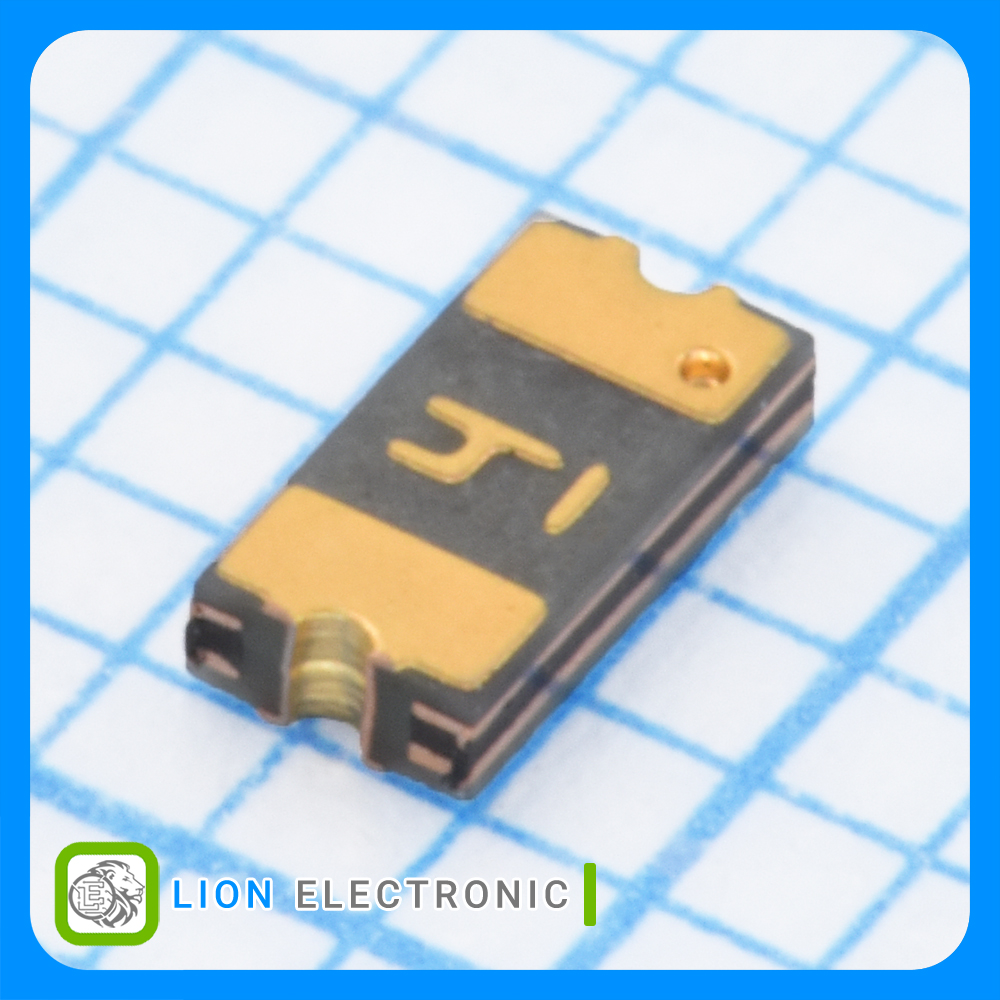

PTC Resettable Fuse 13.2V, 500mA with 1206 Size
Specifications
- Maximum Voltage: 13.2VDC
- Hold Current: 500mA
- Trip Current: 1A
- Current Rating - Max: 100A
- Resistance: 700mΩ
- Package/Case: 1206 (3216 metric)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات MF-NSMF050-2

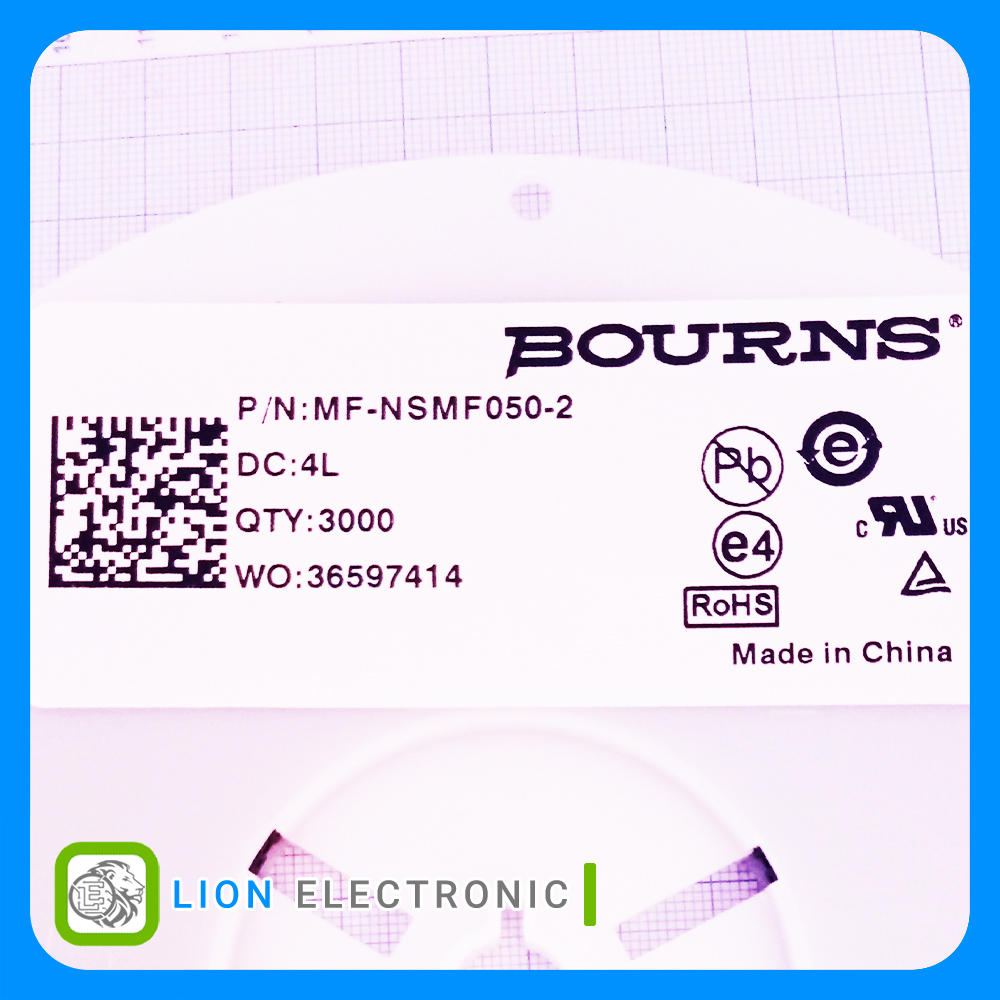

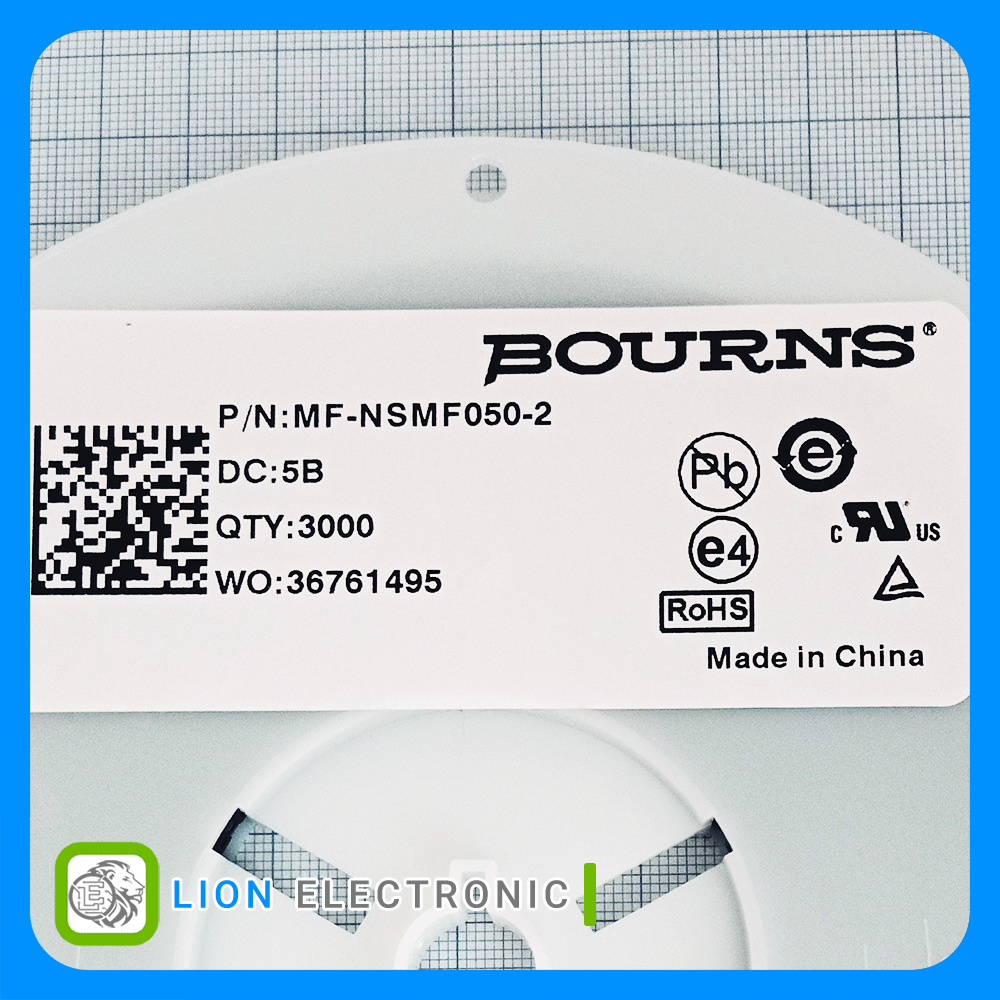

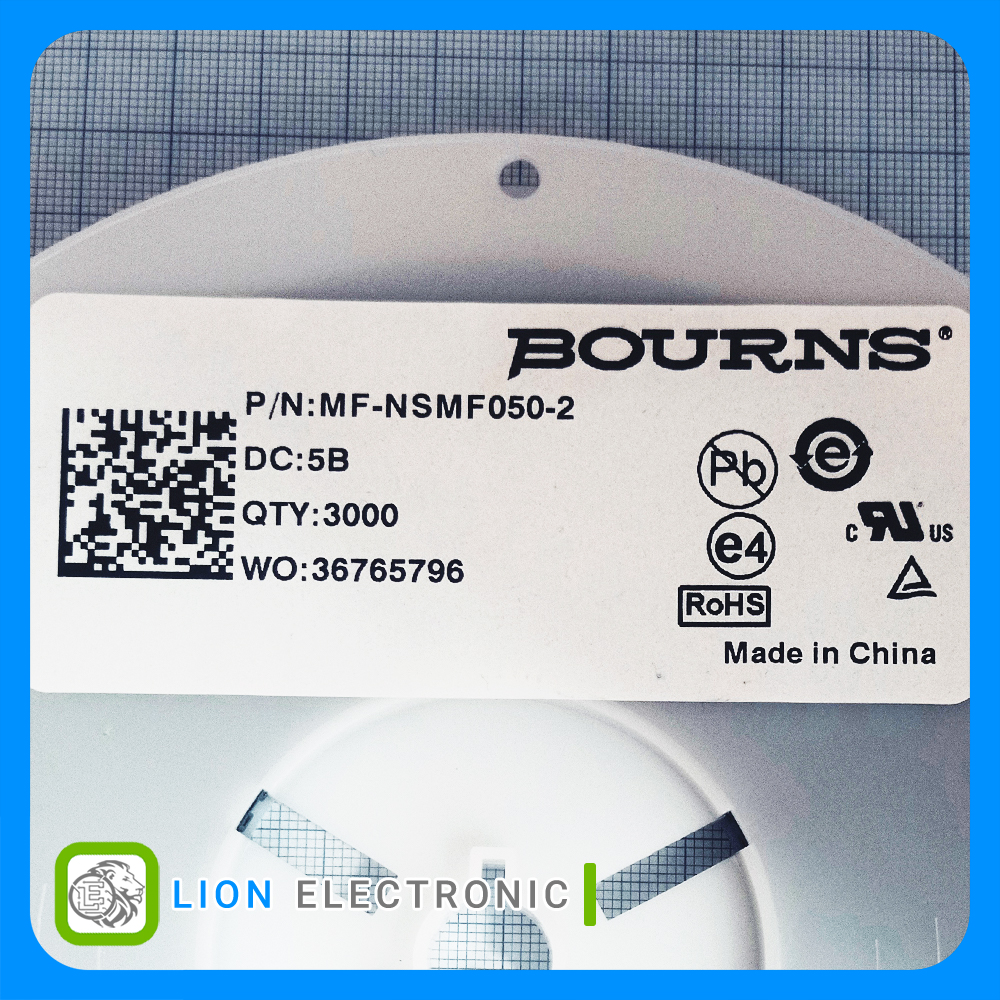

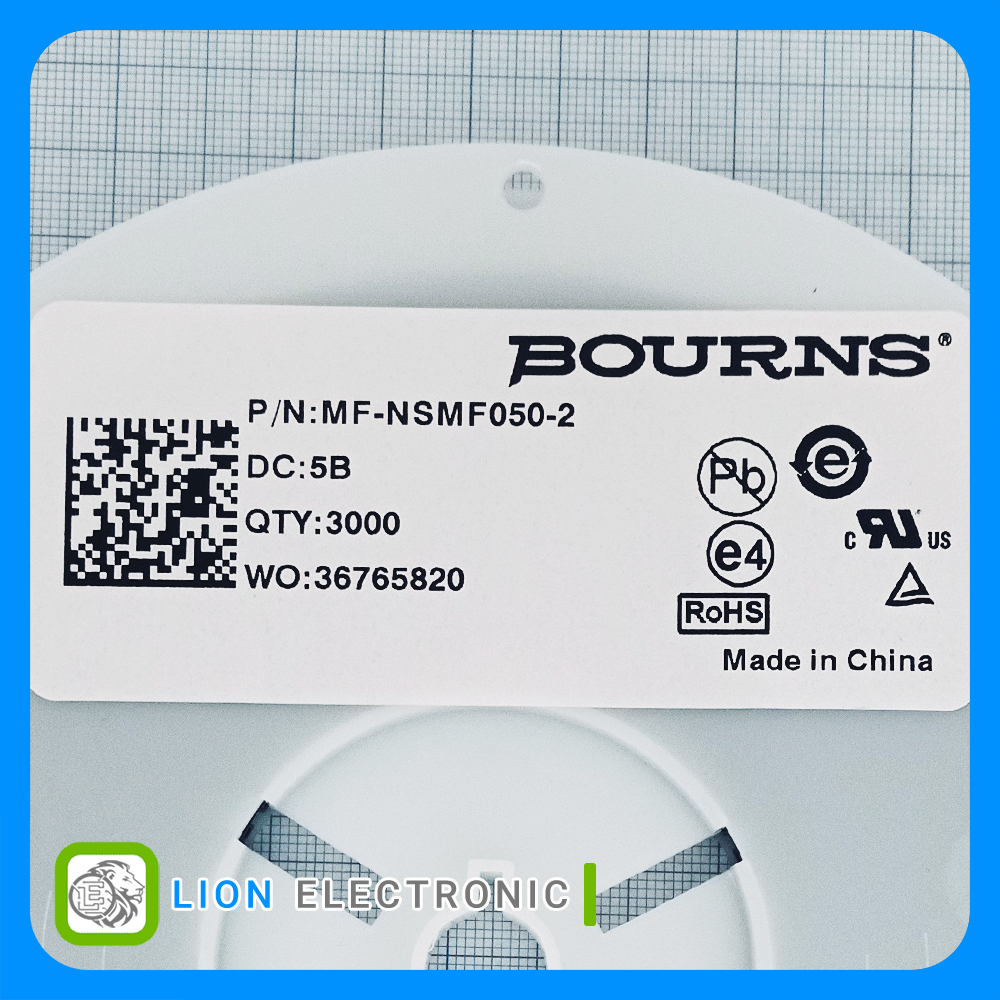

MF-NSMF050-2
Part Number
13.2VDC
Maximum Voltage
500mA
Hold Current
100A
Current Rating - Max
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
1A
Trip Current
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
400mW
Pd - Power Dissipation
1206 (3216 metric)
Package-Case
700mΩ
Resistance
Resetteble Fuses - PPTC
Product Type
