Bourns
معرفی
فیوز ریستشونده 6 ولت جریان نگهدارنده 1.5 آمپر سایز 1206

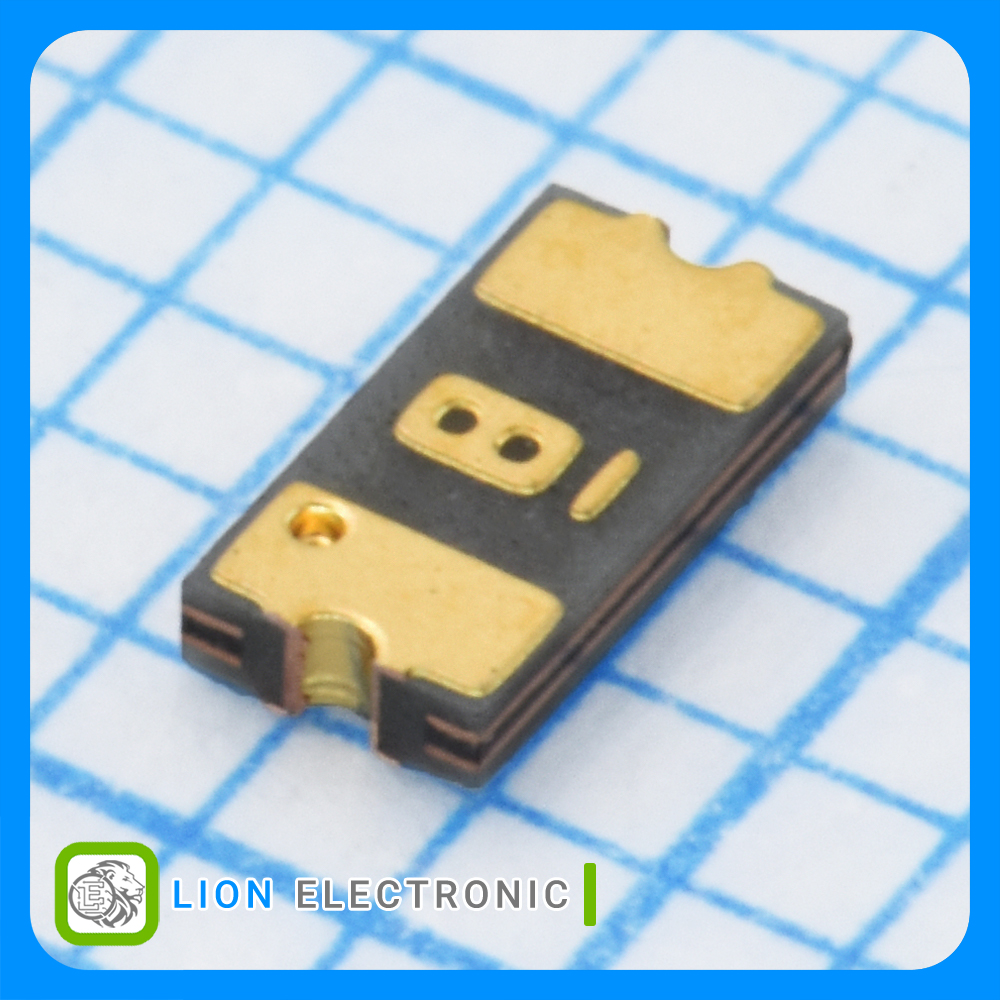

PTC Resettable Fuse 6V, 1.5A with 1206 Size
Specifications
- Maximum Voltage: 6VDC
- Hold Current: 1.5A
- Trip Current: 3A
- Current Rating - Max: 100A
- Resistance: 130mΩ
- Package/Case: 1206 (3216 metric)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات MF-NSMF150-2

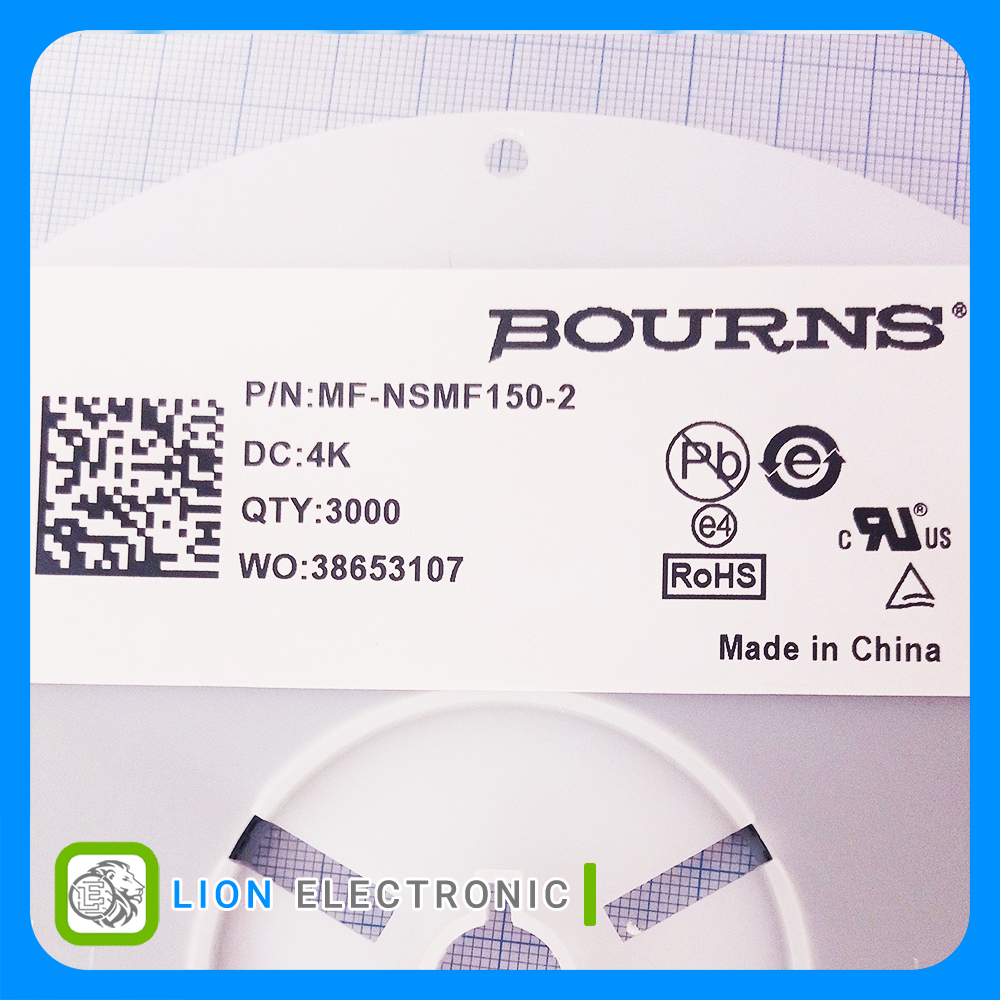

MF-NSMF150-2
Part Number
6VDC
Maximum Voltage
Reel
Packaging
100A
Current Rating - Max
SMD/SMT
Termination style
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
1.5A
Hold Current
+85C
Maximum Operating Temperature
3A
Trip Current
130mΩ
Resistance
600mW
Pd - Power Dissipation
1206 (3216 metric)
Package-Case
Resetteble Fuses - PPTC
Product Type
