Bourns
معرفی
فیوز ریستشونده 6 ولت جریان نگهدارنده 2 آمپر سایز 1206

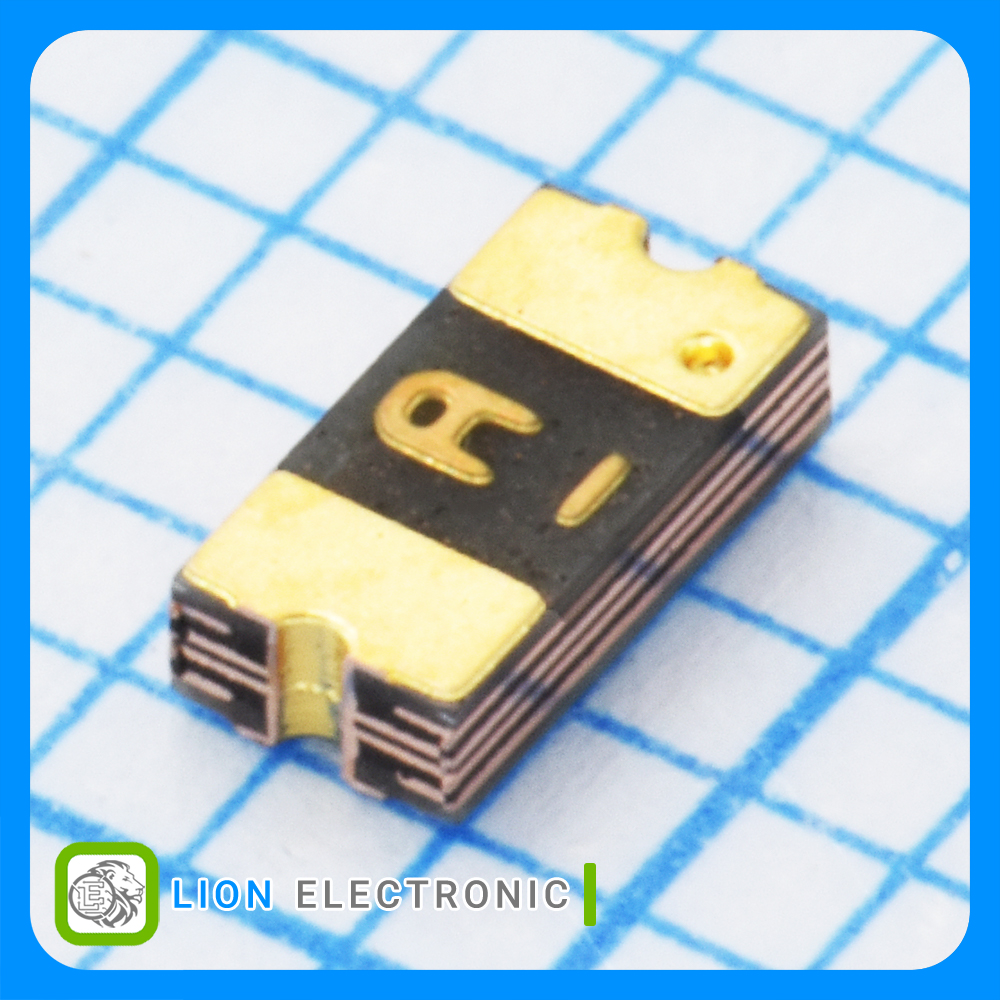

PTC Resettable Fuse 6V, 2A with 1206 Size
Specifications
- Maximum Voltage: 6VDC
- Hold Current: 2A
- Trip Current: 4A
- Current Rating - Max: 100A
- Resistance: 85mΩ
- Package/Case: 1206 (3216 metric)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات MF-NSMF200-2

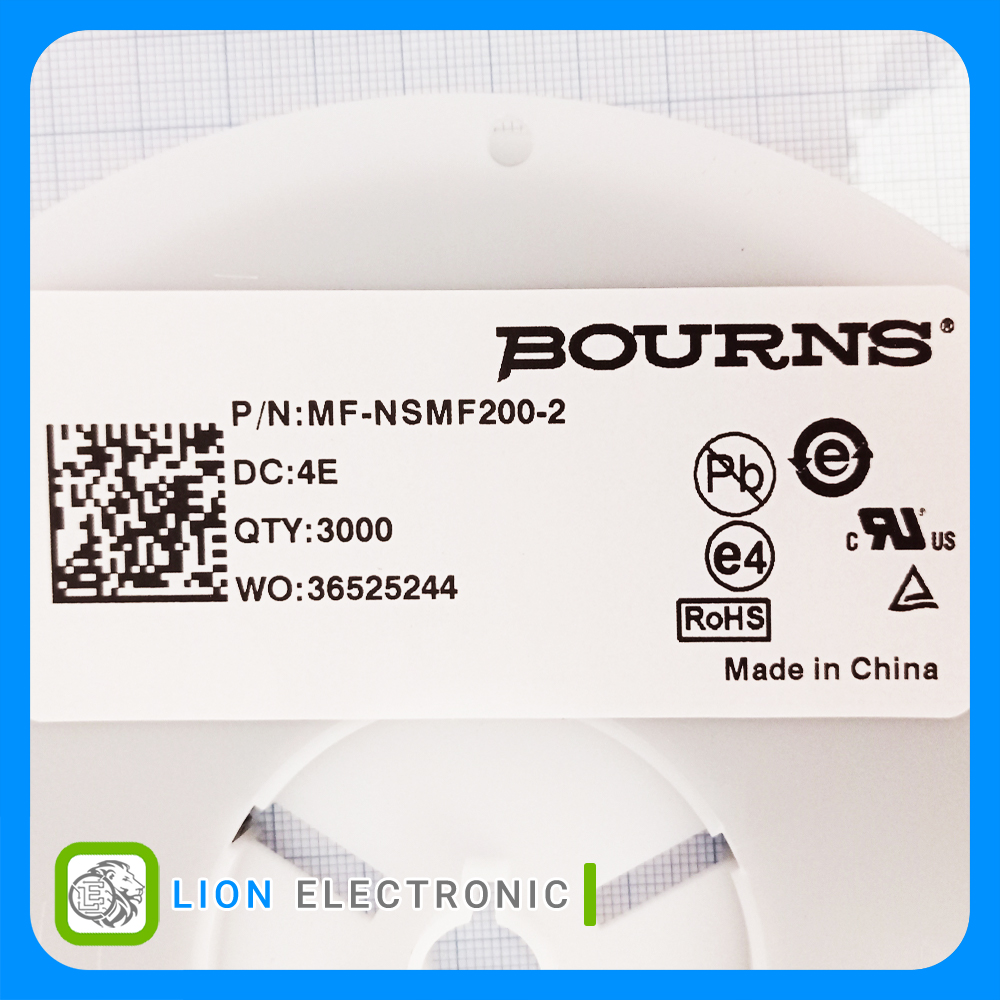

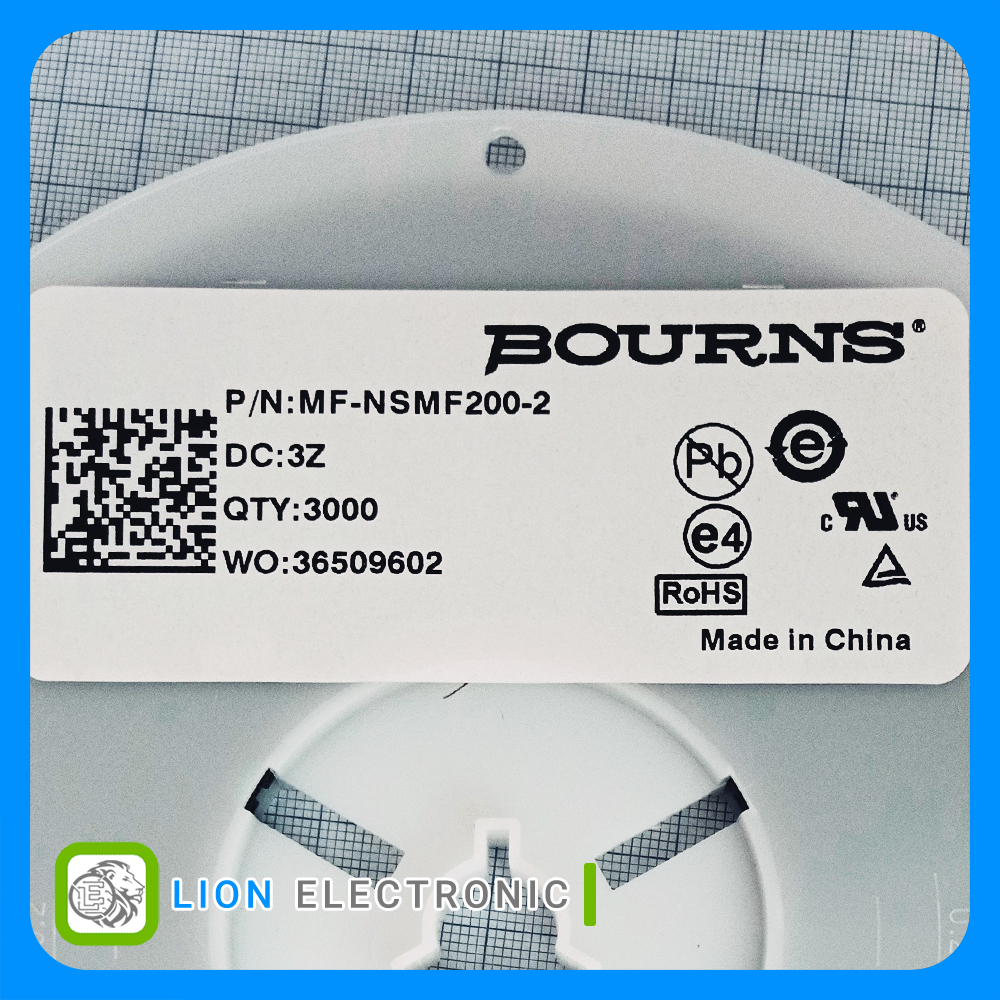

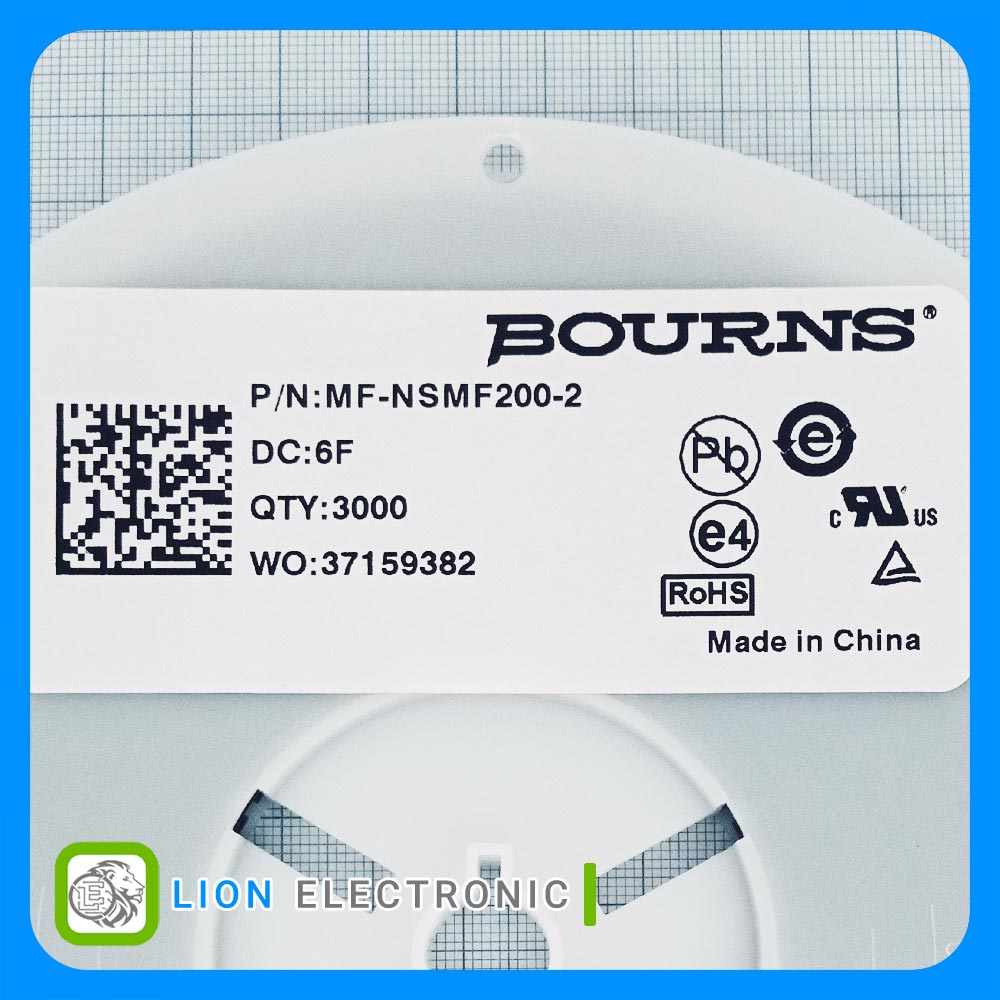

MF-NSMF200-2
Part Number
6VDC
Maximum Voltage
SMD/SMT
Termination style
Reel
Packaging
100A
Current Rating - Max
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
2A
Hold Current
+85C
Maximum Operating Temperature
4A
Trip Current
85mΩ
Resistance
700mW
Pd - Power Dissipation
1206 (3216 metric)
Package-Case
Resetteble Fuses - PPTC
Product Type
