فیوز ریستشونده 13.2 ولت جریان نگهدارنده 500 میلیآمپر سایز 1210

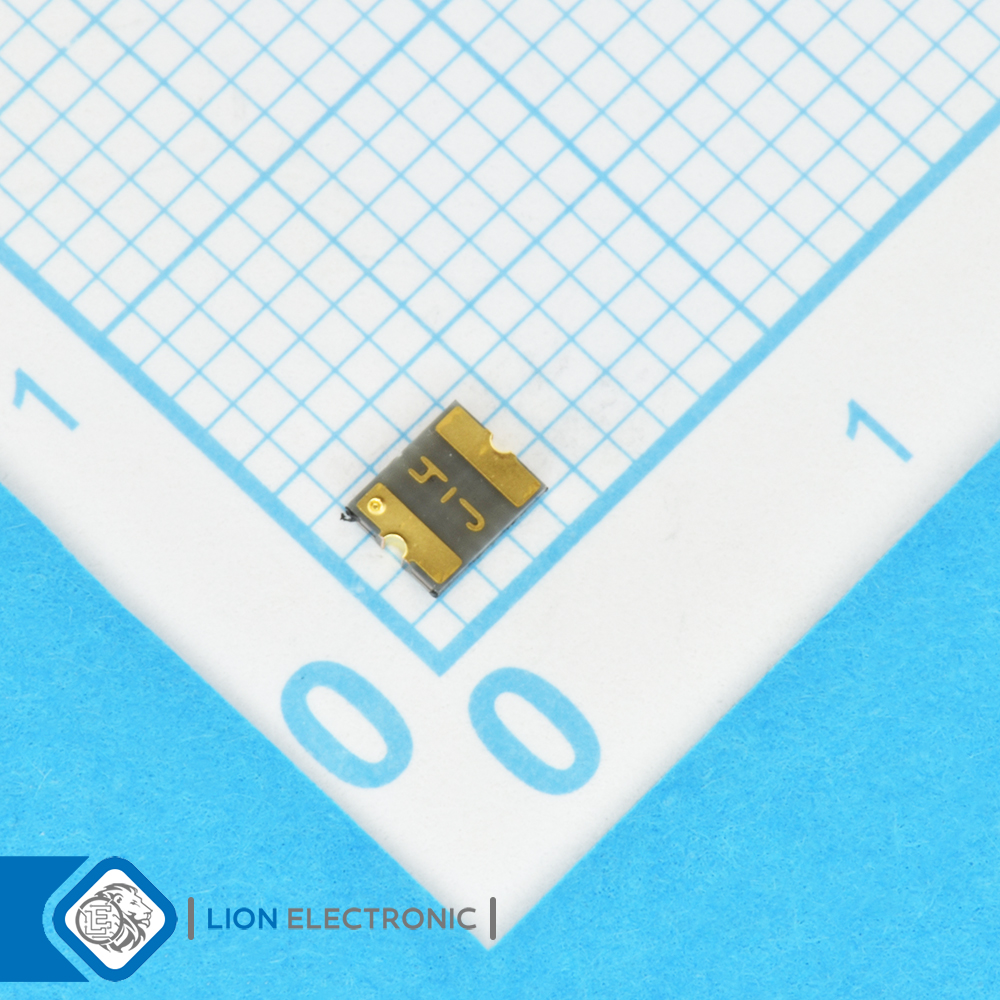

PTC Resettable Fuse 13.2V, 500mA with 1210 Size
Specifications
- Maximum Voltage: 13.2VDC
- Hold Current: 500mA
- Trip Current: 1A
- Current Rating - Max: 40A
- Resistance: 900mΩ
- Package/Case: 1210 (3225 metric)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات MF-USMF050-2
MF-USMF050-2
Part Number
13.2VDC
Maximum Voltage
40A
Current Rating - Max
500mA
Hold Current
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
1A
Trip Current
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
600mW
Pd - Power Dissipation
1210 (3225 metric)
Package-Case
900mΩ
Resistance
Resetteble Fuses - PPTC
Product Type
