Bourns
معرفی
فیوز ریستشونده 24 ولت جریان نگهدارنده 1.1 آمپر سایز 1812

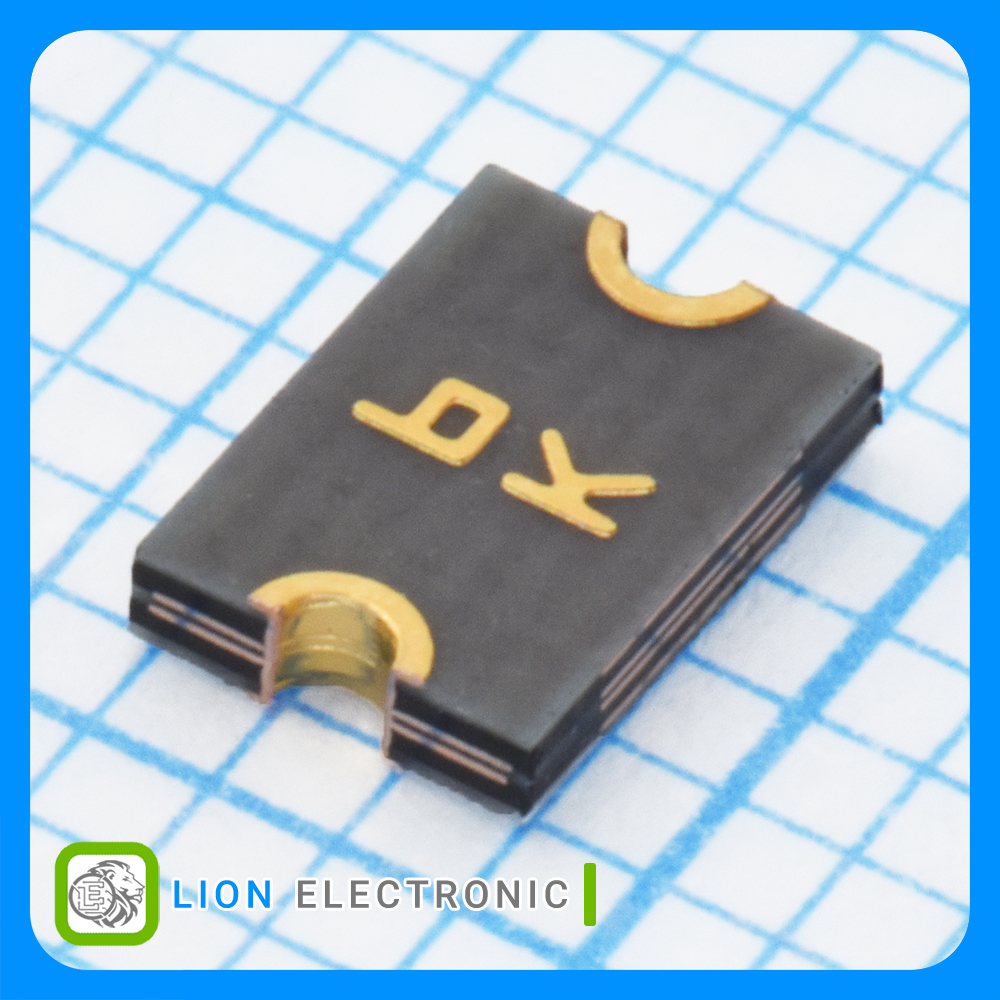

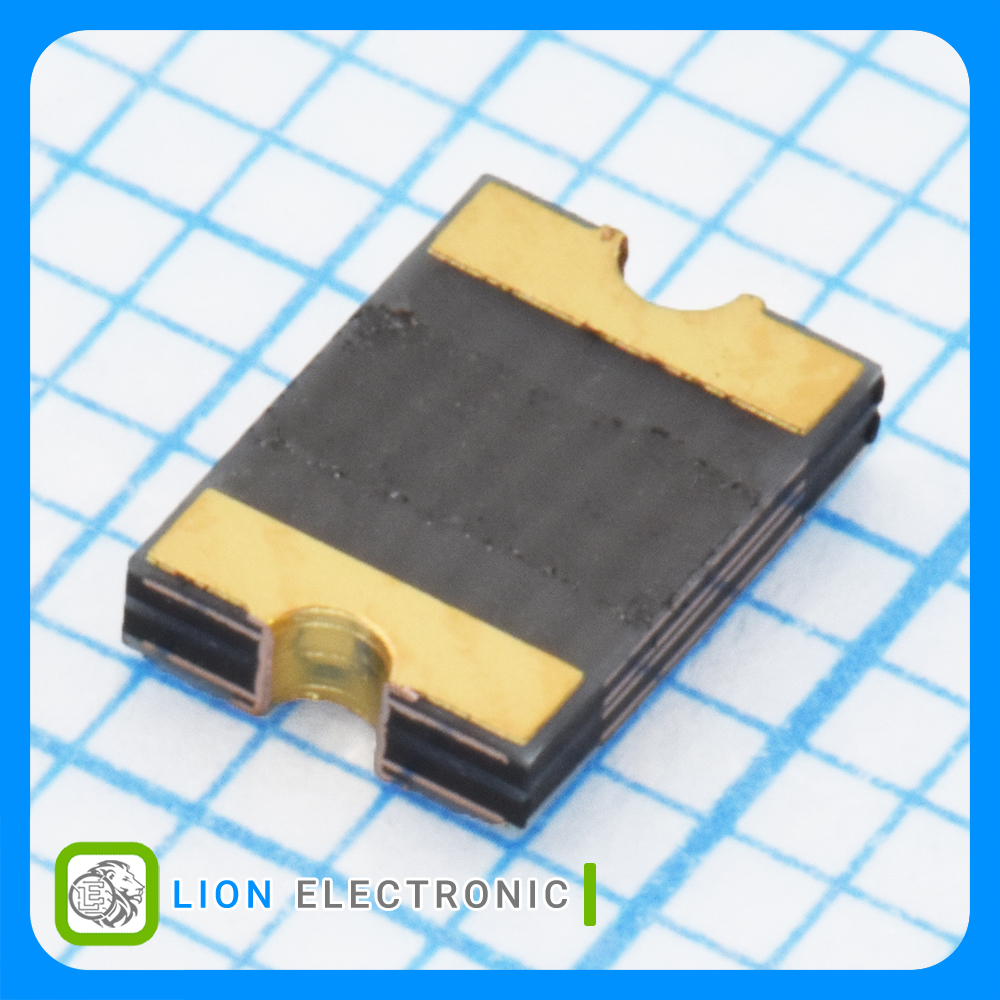

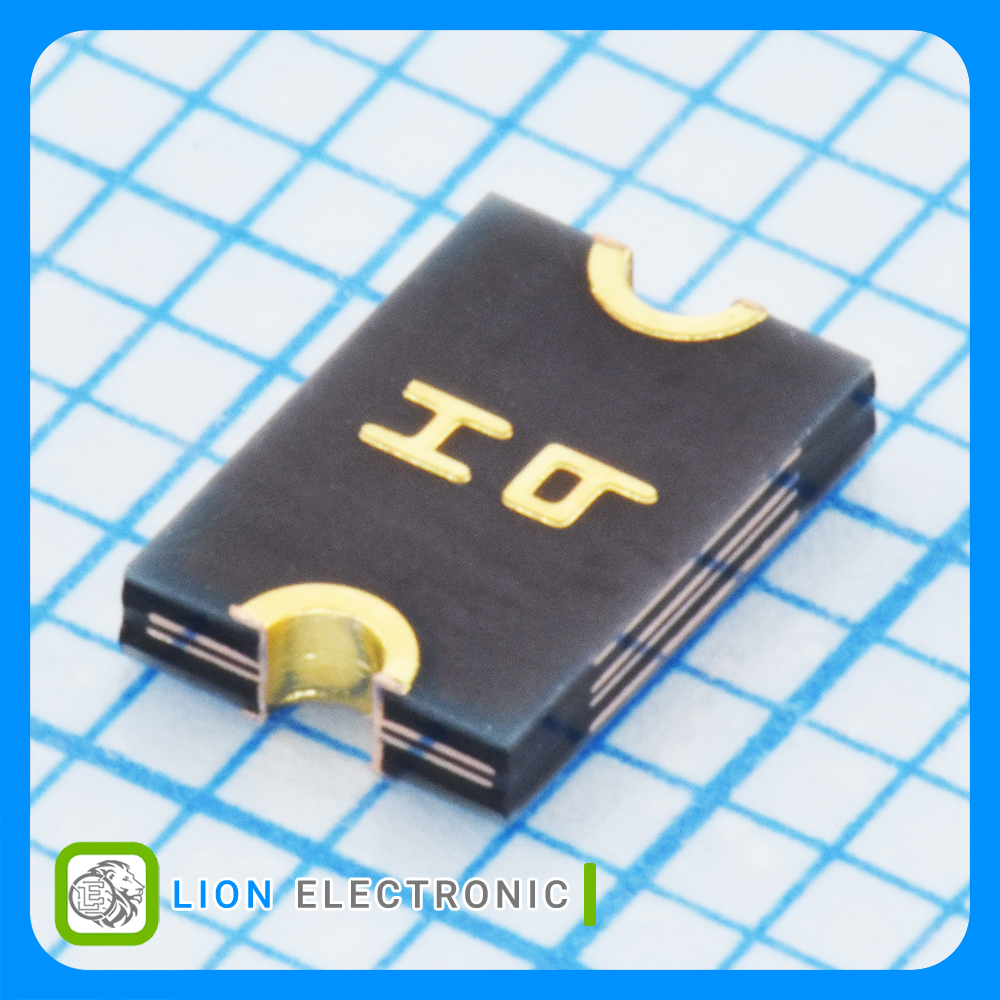

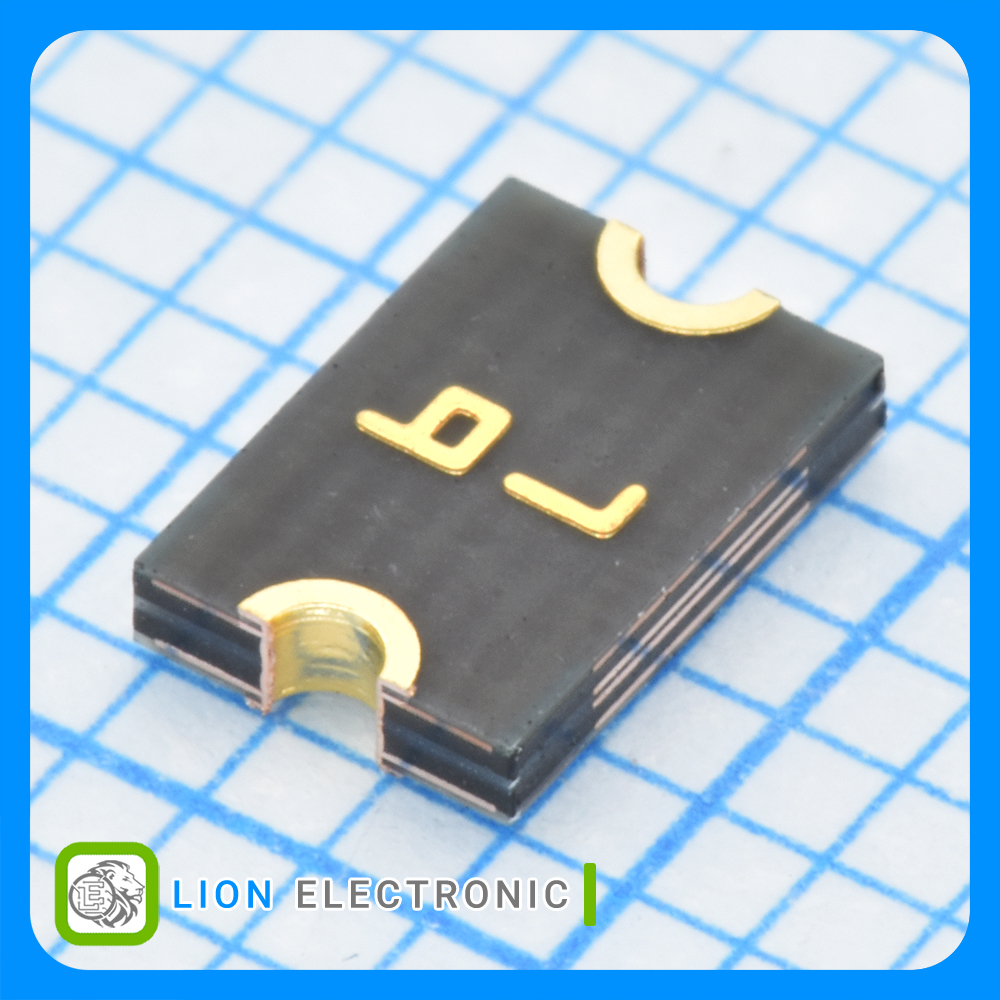

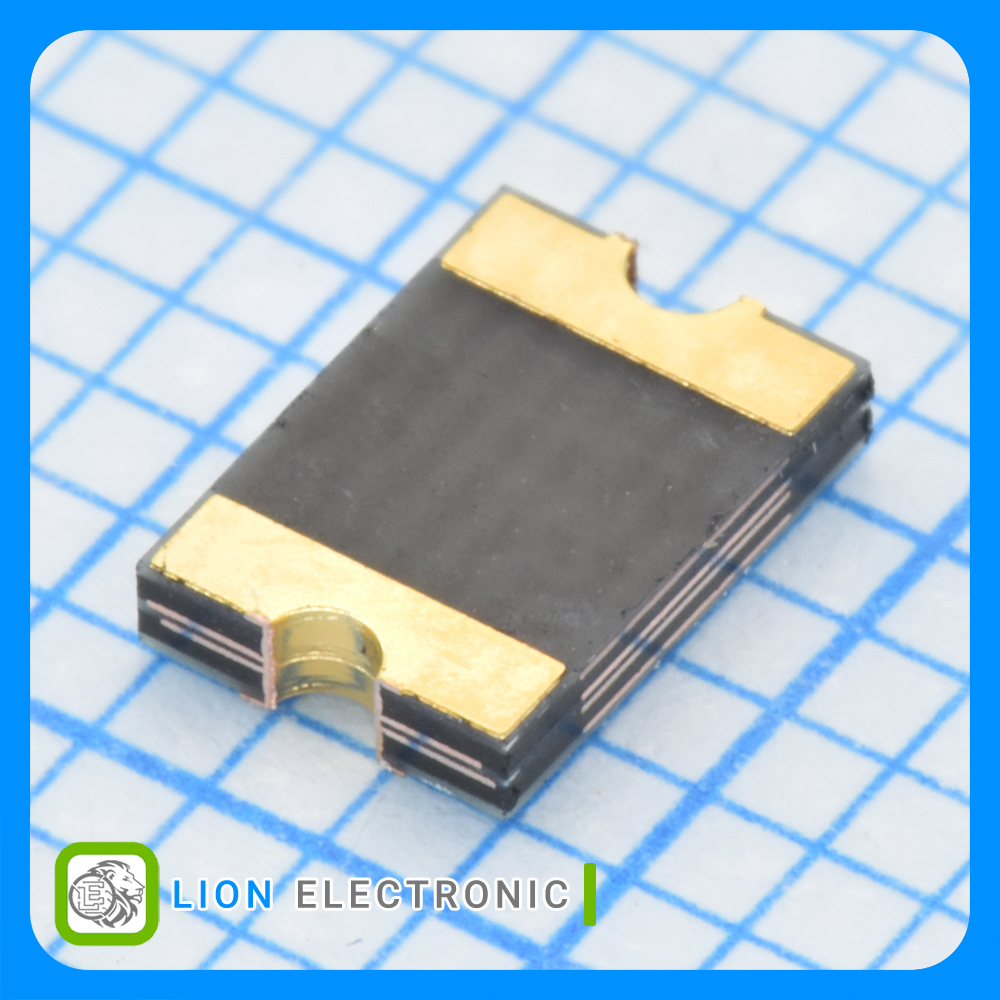

PTC Resettable Fuse 24V, 1.1A with 1812 Size
Specifications
- Maximum Voltage: 24VDC
- Hold Current: 1.1A
- Trip Current: 2.2A
- Current Rating - Max: 20A
- Resistance: 180mΩ
- Package/Case: 1812 (4532 metric)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات MF-MSMF110/24X-2
MF-MSMF110/24X-2
Part Number
20A
Current Rating - Max
Reel
Packaging
SMD/SMT
Termination style
-40C
Minimum Operating Temperature
24VDC
Maximum Voltage
1.1A
Hold Current
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
2.2A
Trip Current
180mΩ
Resistance
800mW
Pd - Power Dissipation
1812 (4532 metric)
Package-Case
Resetteble Fuses - PPTC
Product Type
