Bourns
معرفی
فیوز ریستشونده 6 ولت جریان نگهدارنده 1.5 آمپر سایز 1812

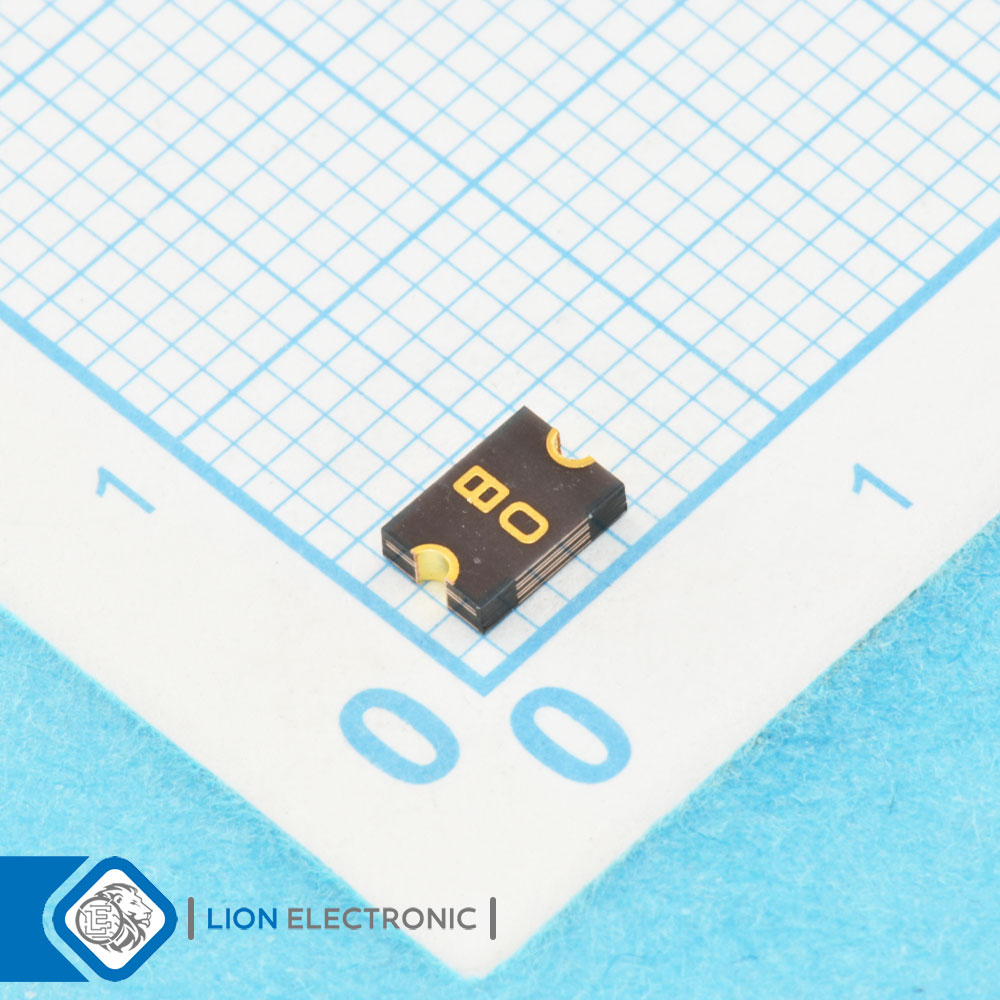

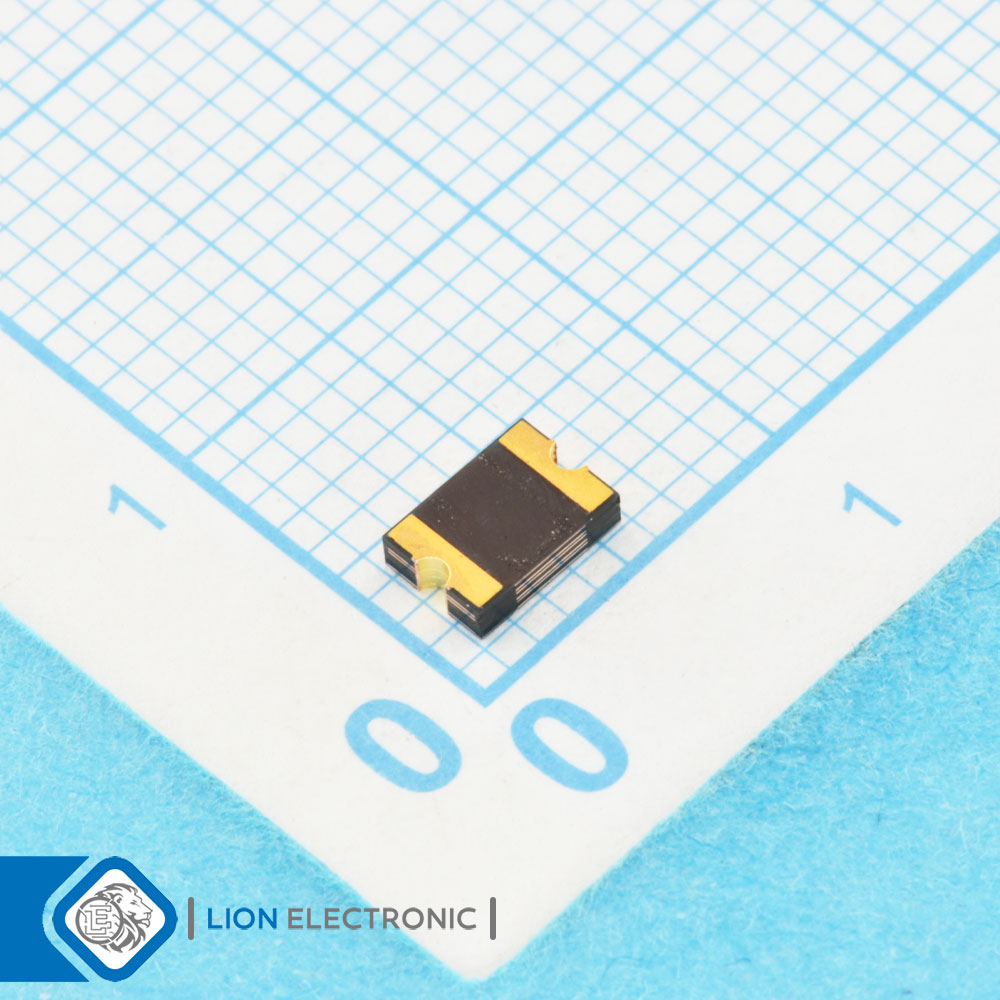

PTC Resettable Fuse 6V, 1.5A with 1812 Size
Specifications
- Maximum Voltage: 6VDC
- Hold Current: 1.5A
- Trip Current: 3A
- Current Rating - Max: 100A
- Resistance: 120mΩ
- Package/Case: 1812 (4532 metric)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات MF-MSMF150-2

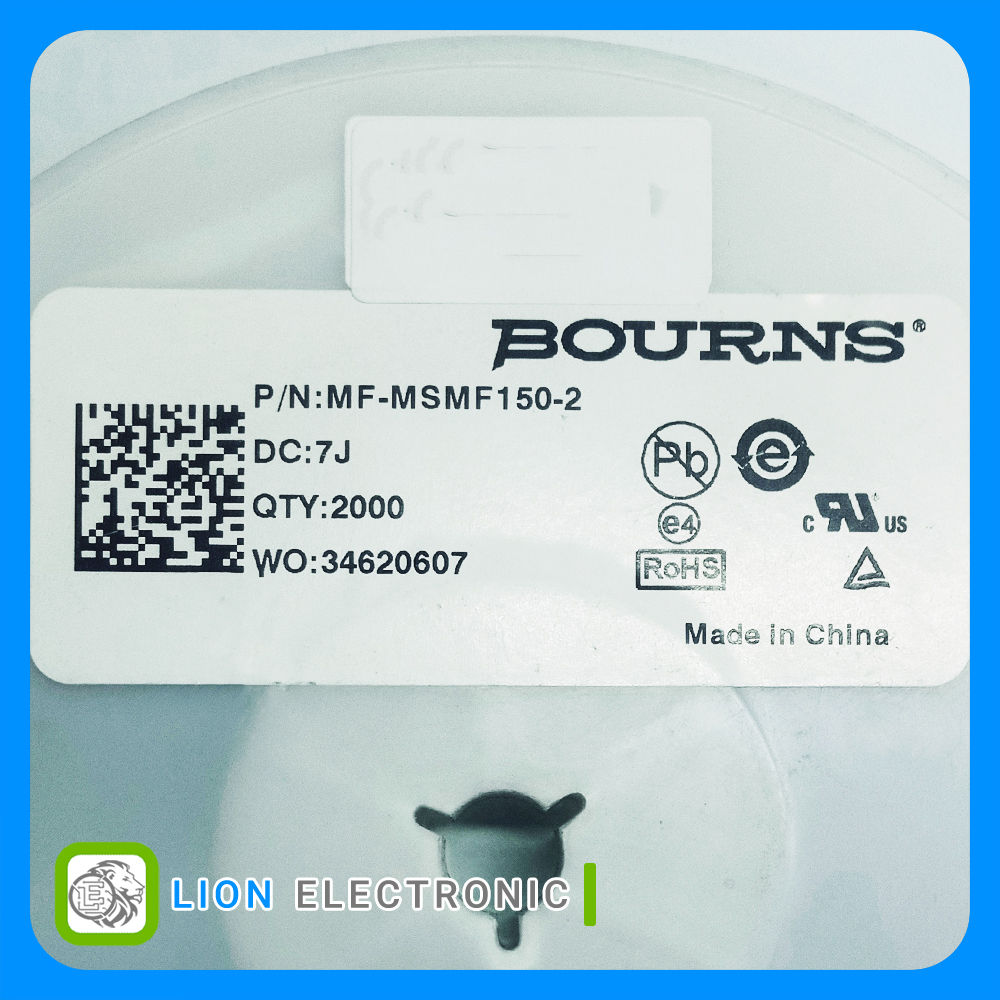

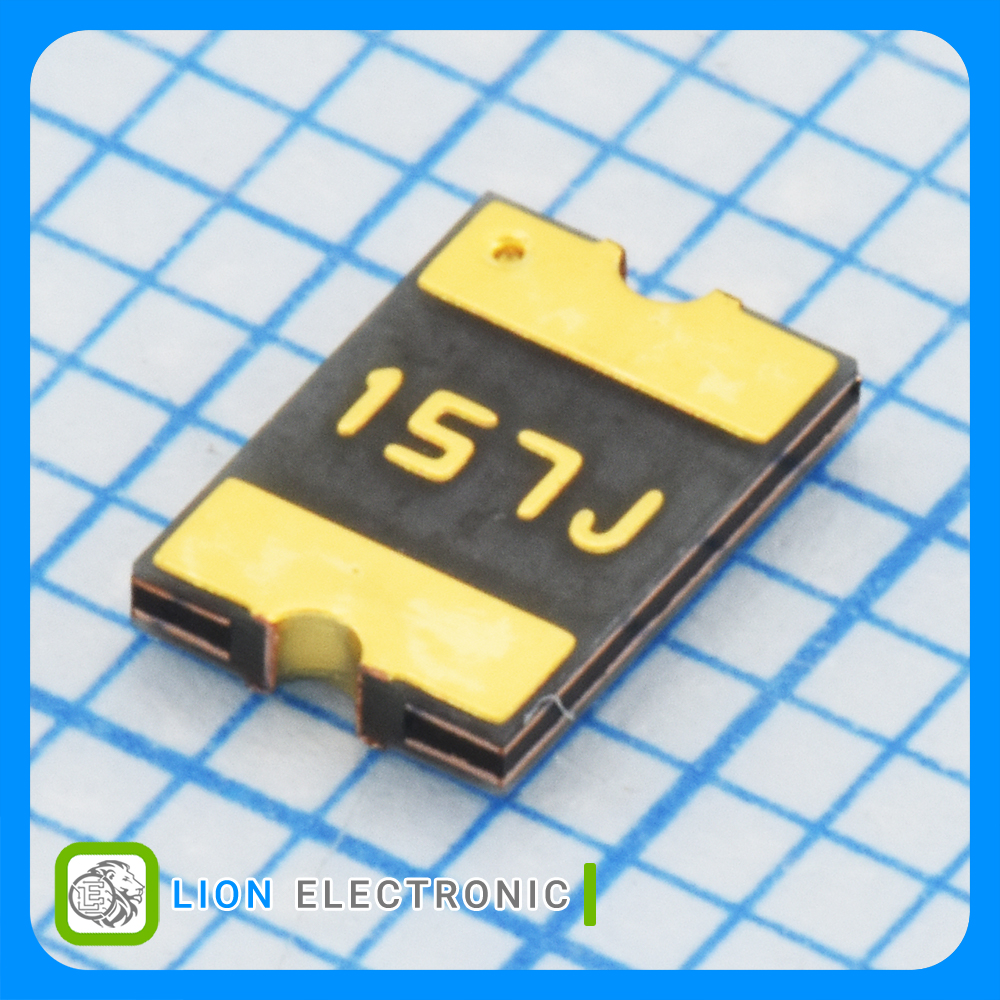

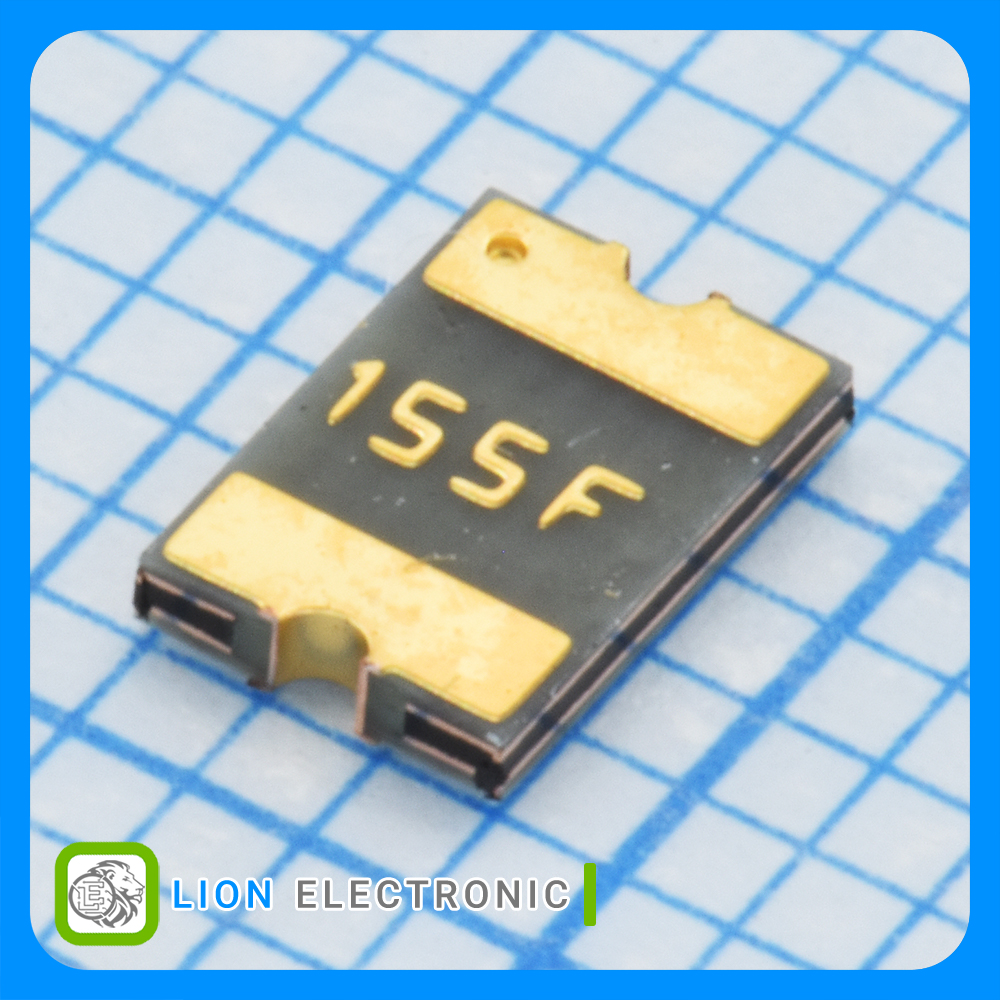

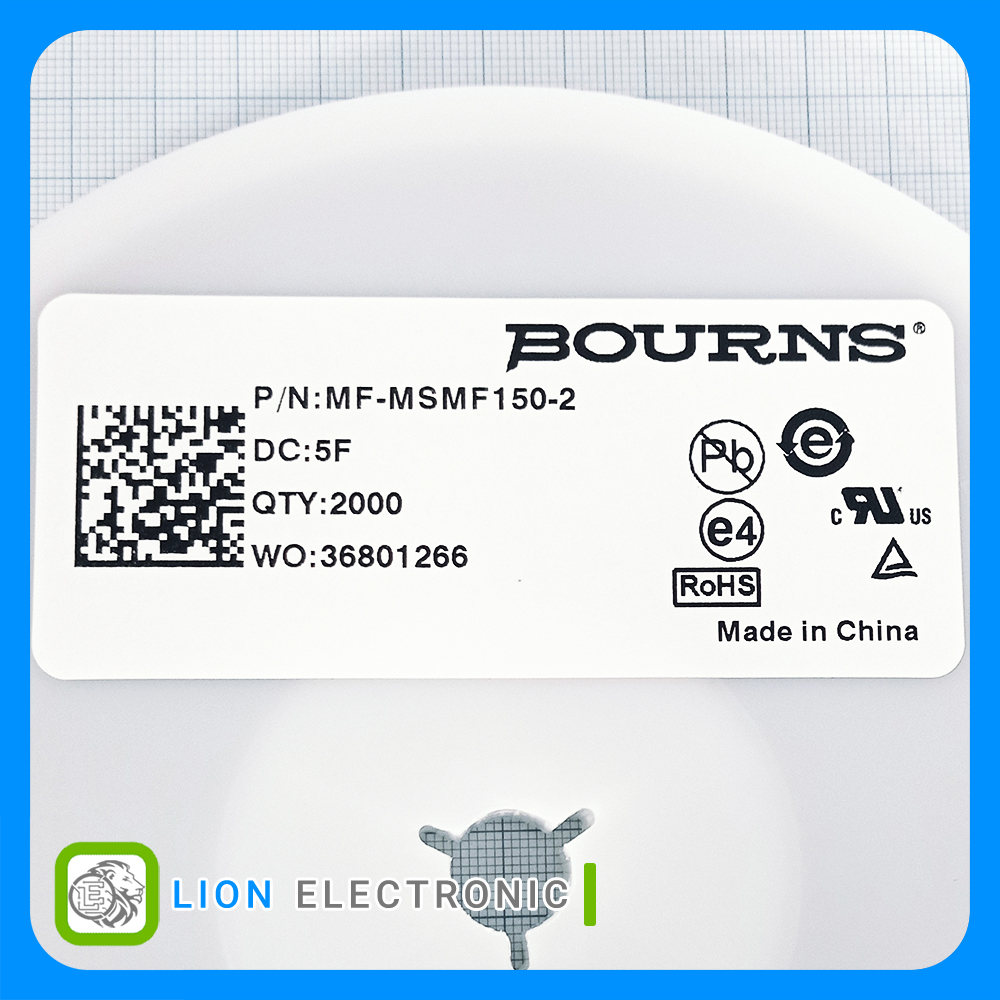

MF-MSMF150-2
Part Number
6VDC
Maximum Voltage
100A
Current Rating - Max
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
1.5A
Hold Current
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
3A
Trip Current
120mΩ
Resistance
800mW
Pd - Power Dissipation
1812 (4532 metric)
Package-Case
Resetteble Fuses - PPTC
Product Type
