ST-LINK/V2 (mini)

Part Number

ST-LINK/V2 (mini)

Datasheet

Manufacturer

Wavesshare

Description

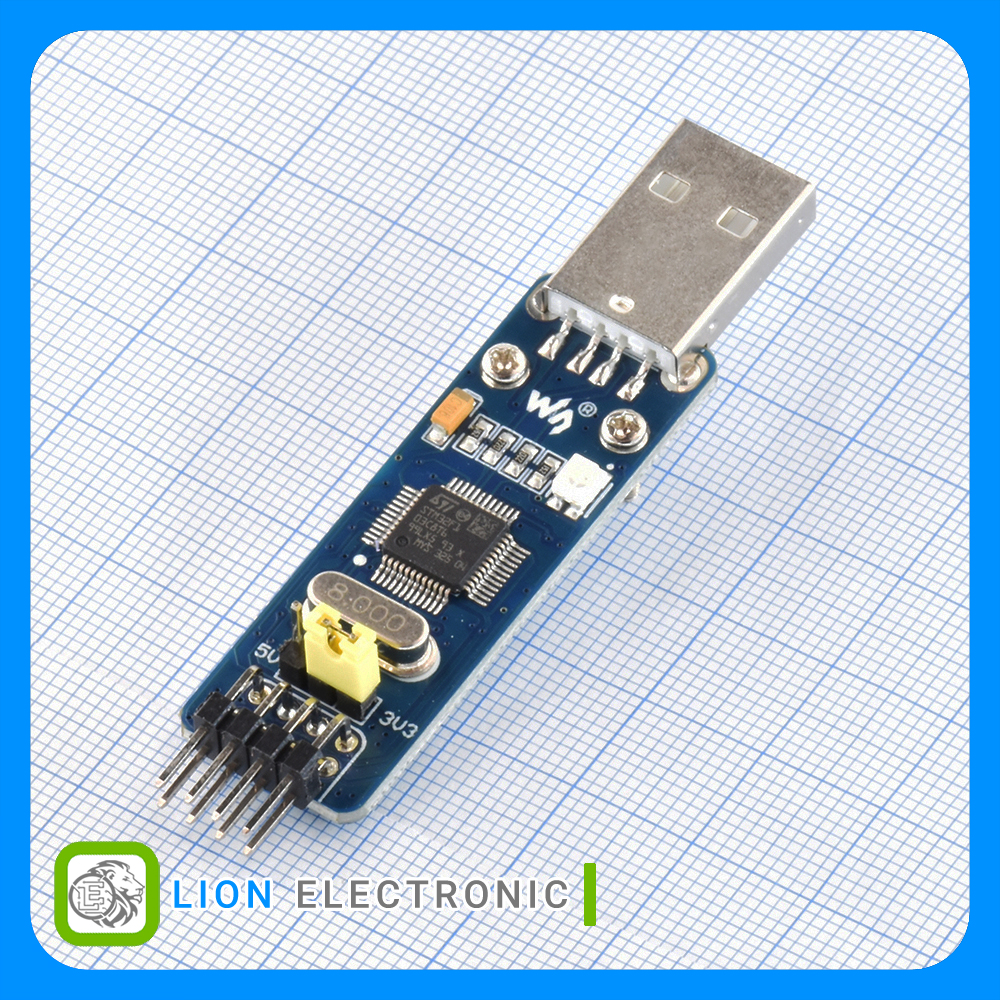

پروگرامر ST-LINK/V2 (mini) محصول شرکت Wavesshare با قابلیت پروگرام کردن میکرو کنترلر های سری STM8 و STM32

موجودی محصول

اتمام موجودی

در صورت ناموجود بودن و یا کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول

تعداد	قیمت
1	5,300,260 ریال

معرفی

Description

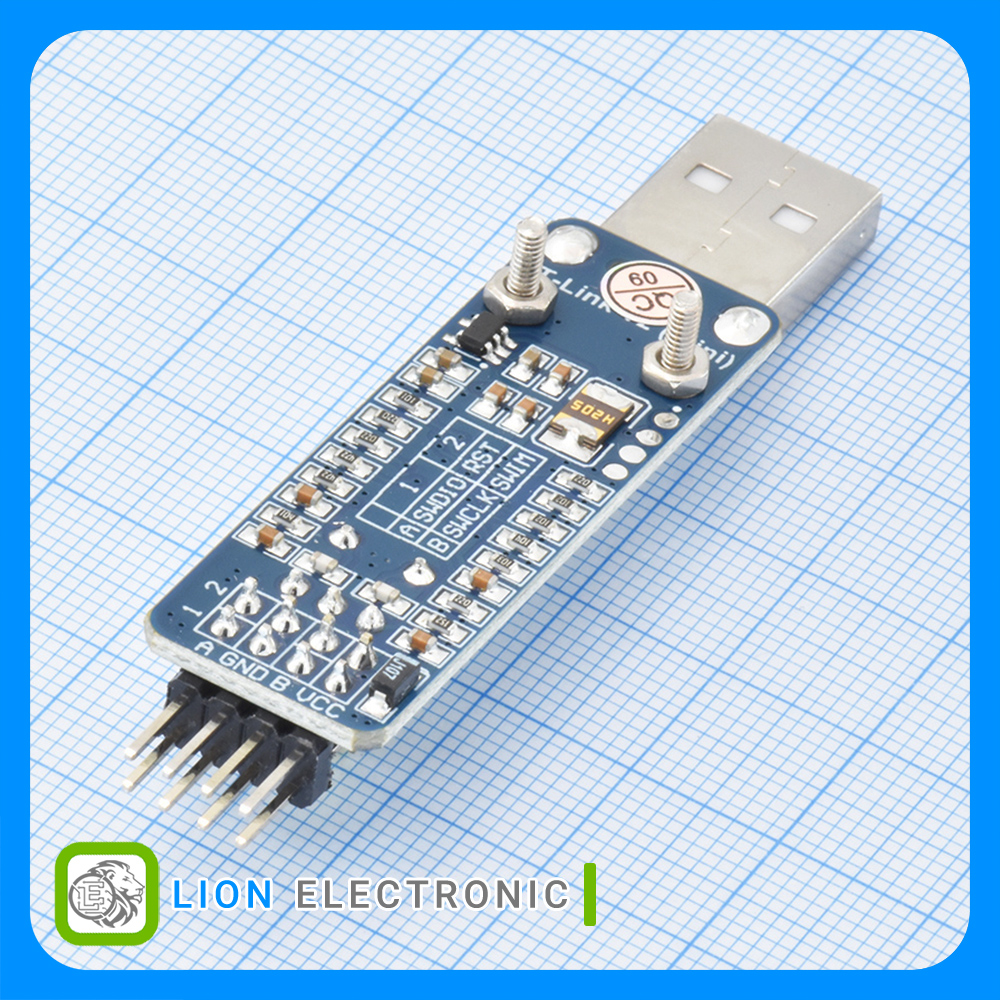

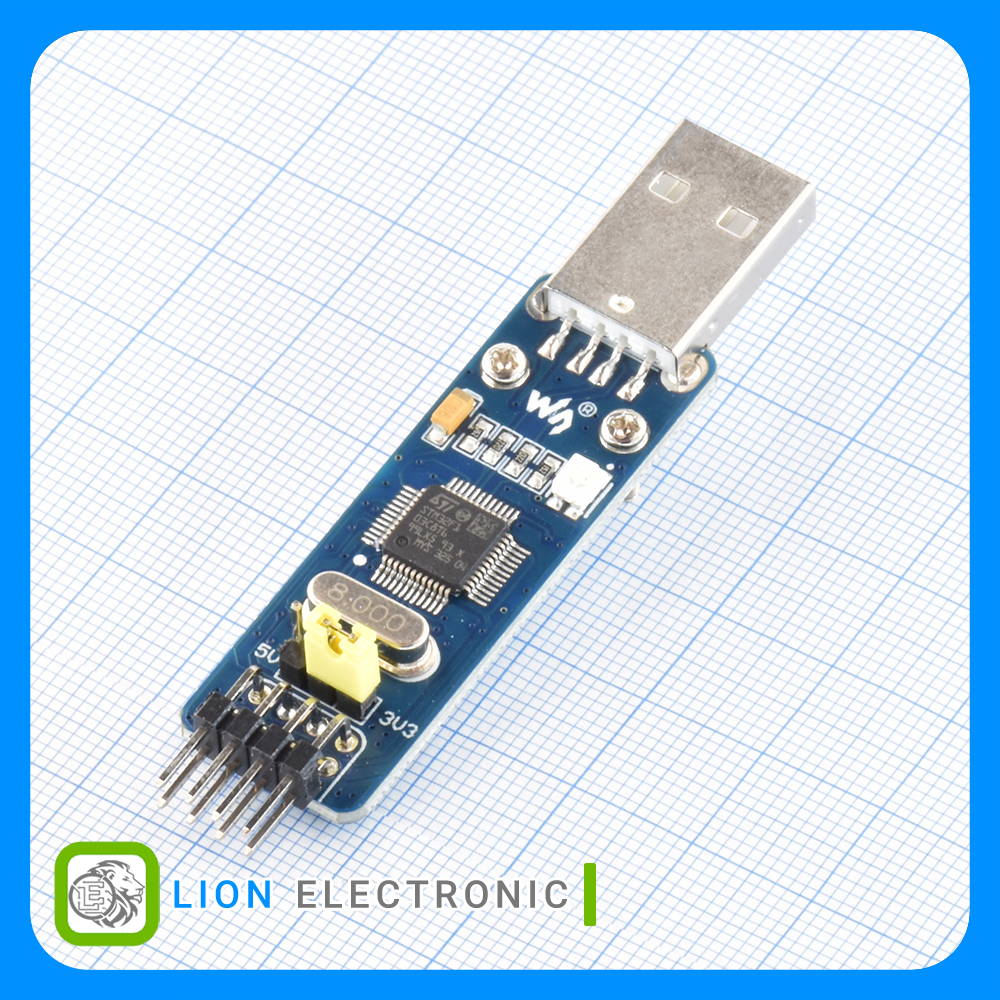

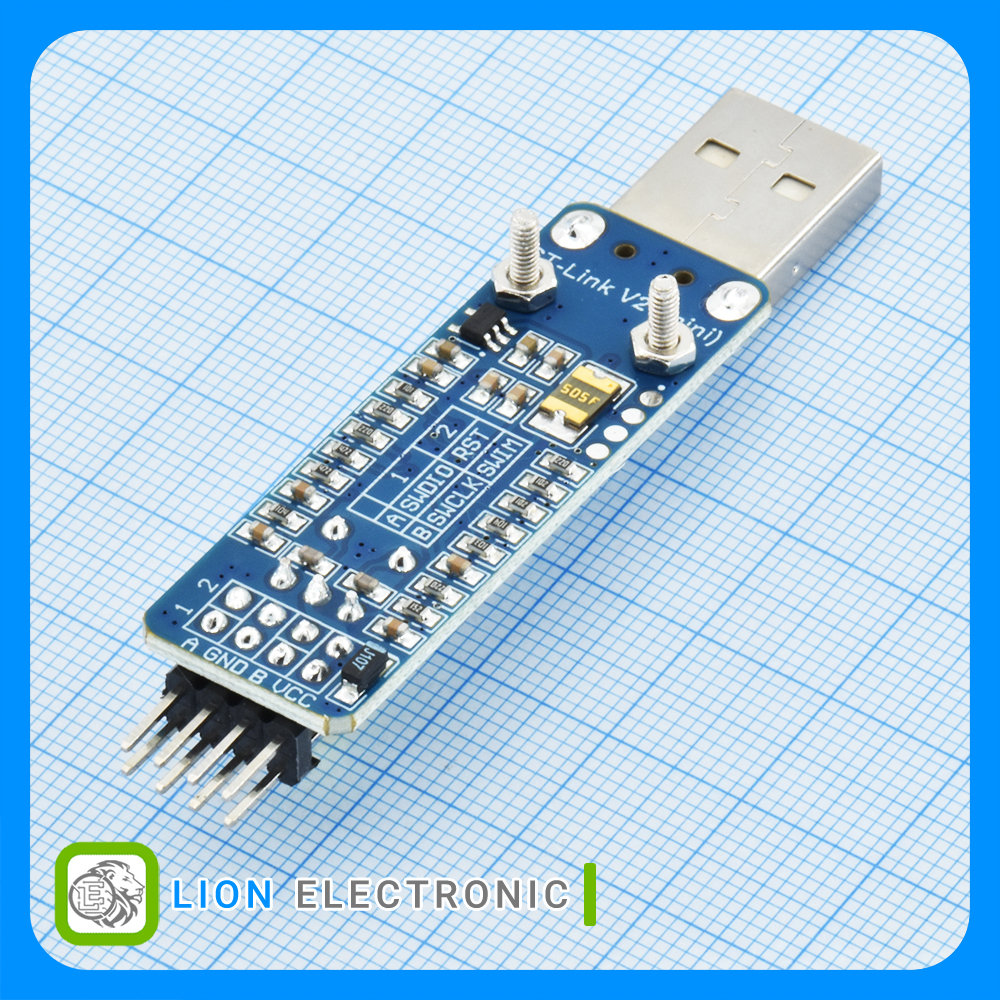

Mini ST-LINK/V2 on a small single board, an extreme low cost solution for in-circuit debugger/programmer for STM8 and STM32

Features

Onboard 500mA self-recovery fuse to avoid harming by short circuit

Dual voltage output (3.3V/5V), easy for debugging/programming

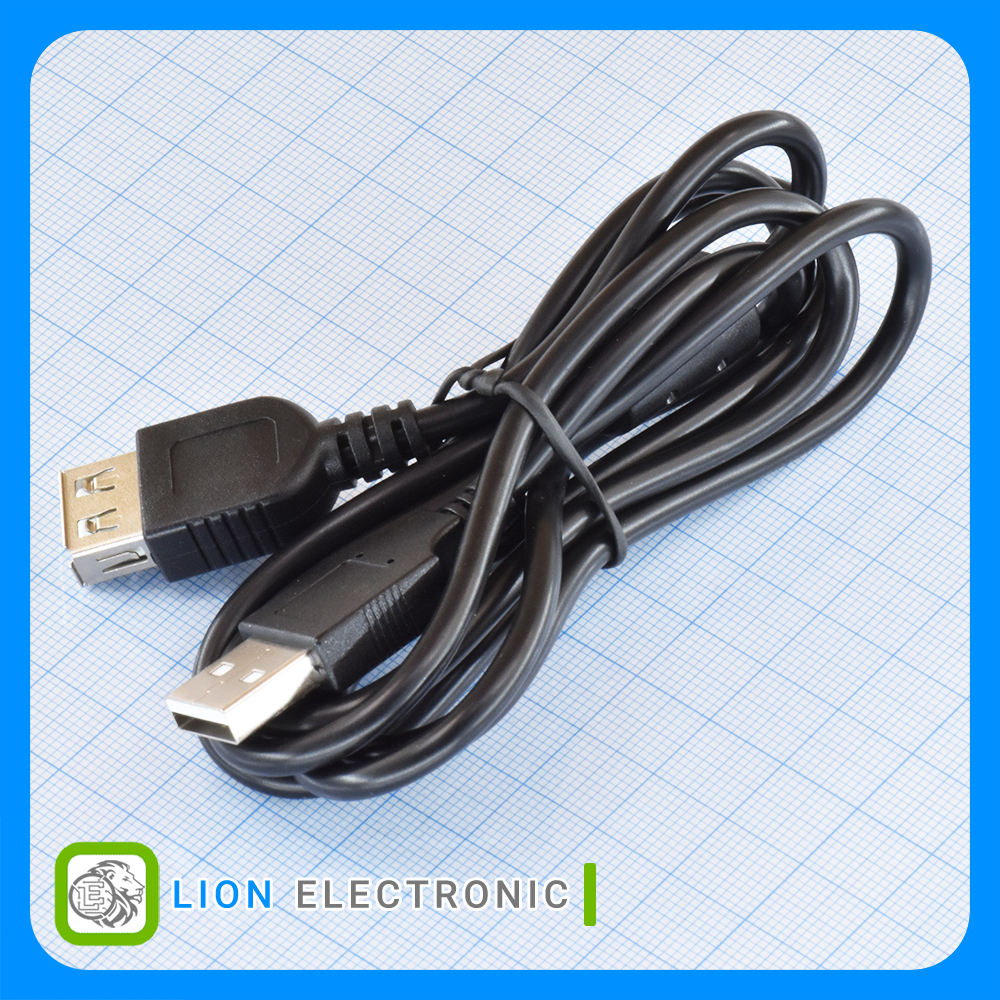

Standard USB interface for direct connection to PC

Debugging/Programing performance

Debugging : run at full-speed, single-stepped, breakpoints, viewing variables and registers, etc.

Programming : supports FLASH ROM, EEPROM, AFR, etc.

USB2.0 combined with SWIM/SWD interfaces : quick response for debugging & fast speed for programming

Upgradable firmware

The firmware is upgradable to support more devices in the future

Automatically upgraded

Supported software

ST-LINK Utility v2.0 (or higher ver.)

STVD Version 4.2.1 (or higher ver.)

STVP Version 3.2.3 (or higher ver.)

IAR EWARM Revision v6.20 (or higher ver.)

IAR EWSTM8 Revision v1.30 (or higher ver.)

KEIL RVMDK Revision v4.21 (or higher ver.)

ATOLLIC

TASKING

Supported devices

All the STM8 devices with SWIM interface

All the STM32 devices with SWD interface

Connecting with PC

While connecting the ST-LINK/V2 (mini) to the computer through USB interface, the USB driver is required and should be installed correctly first

Click on the link to download : ST-LINK/V2 USB driver for Windows 7, Vista and XP

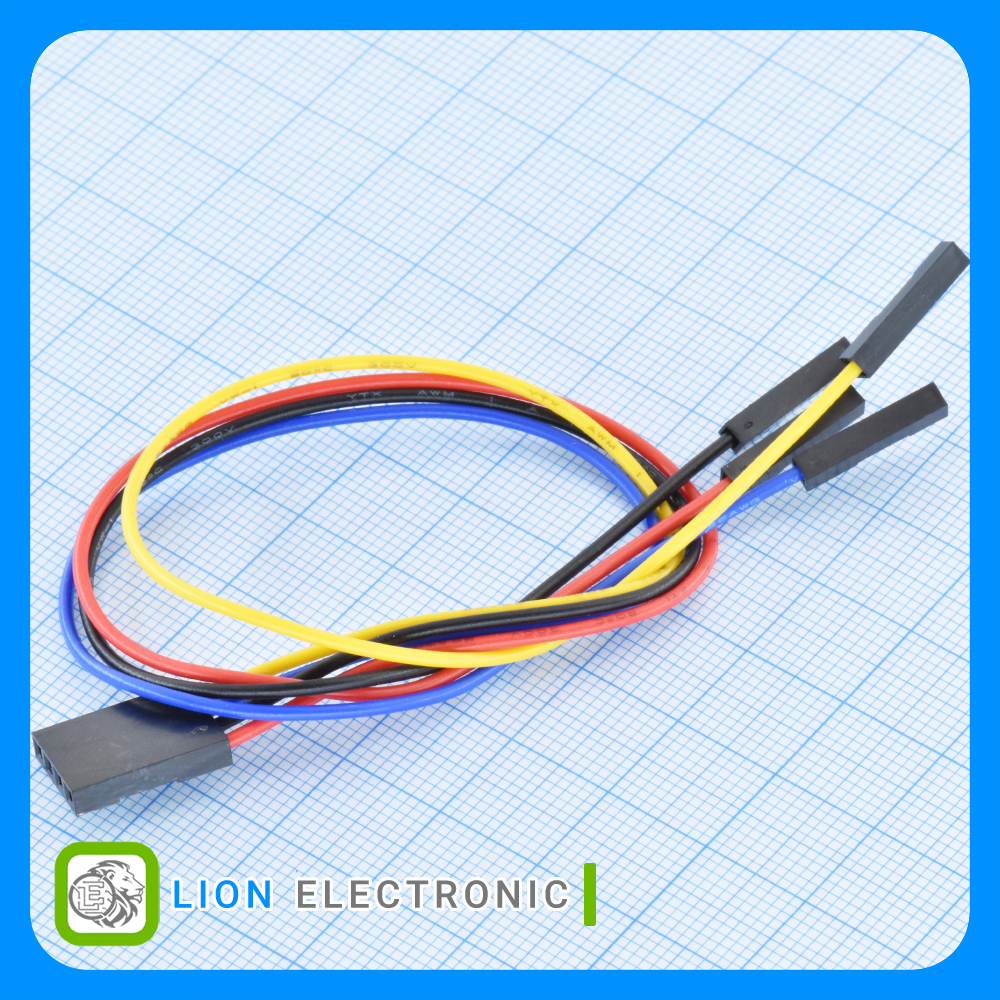

Connection with STM8/STM32 applications

The ST-LINK/V2 (mini) should be connected to the STM8 application via the SWIM interface
