SS16
SS16
Part Number
2387
Lion Part
Datasheet
Jingdao Microelectronics Manufacture
دیود شاتکی 60 ولت 1 آمپر با پکیج DO-214AC (SMA)

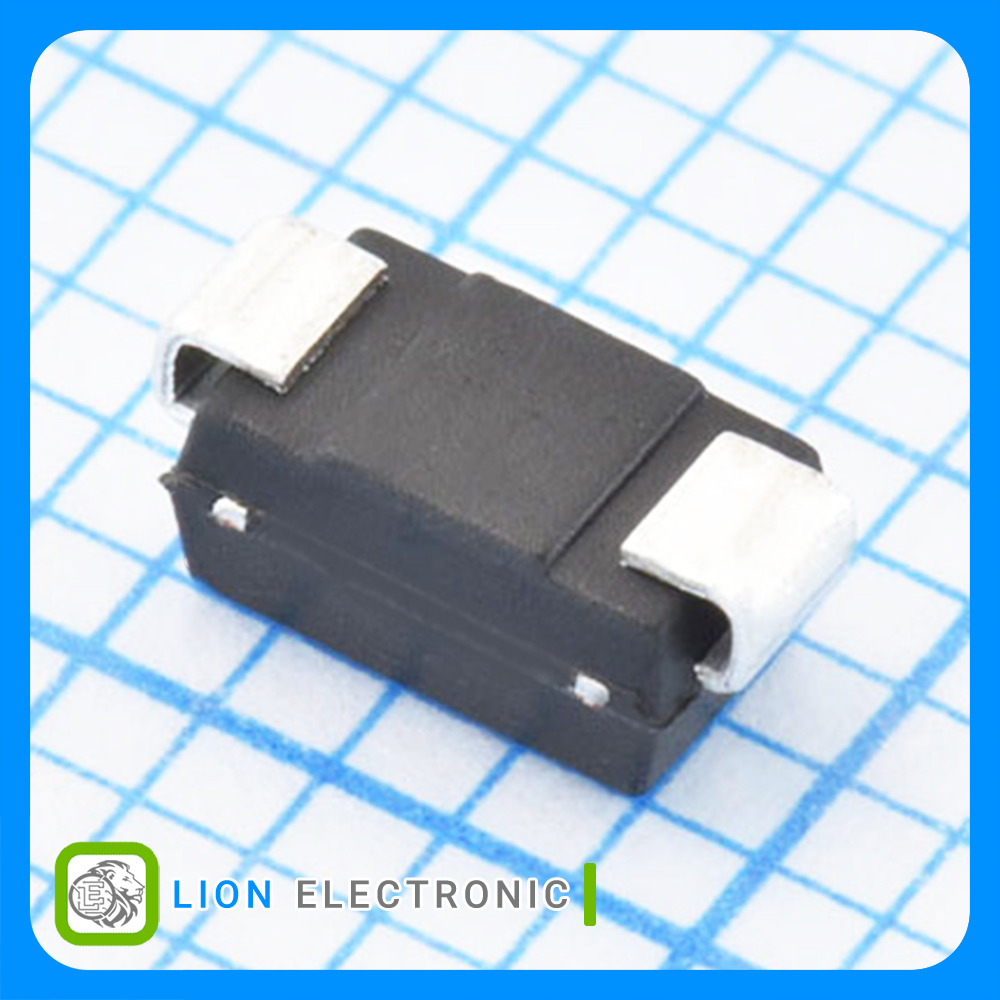

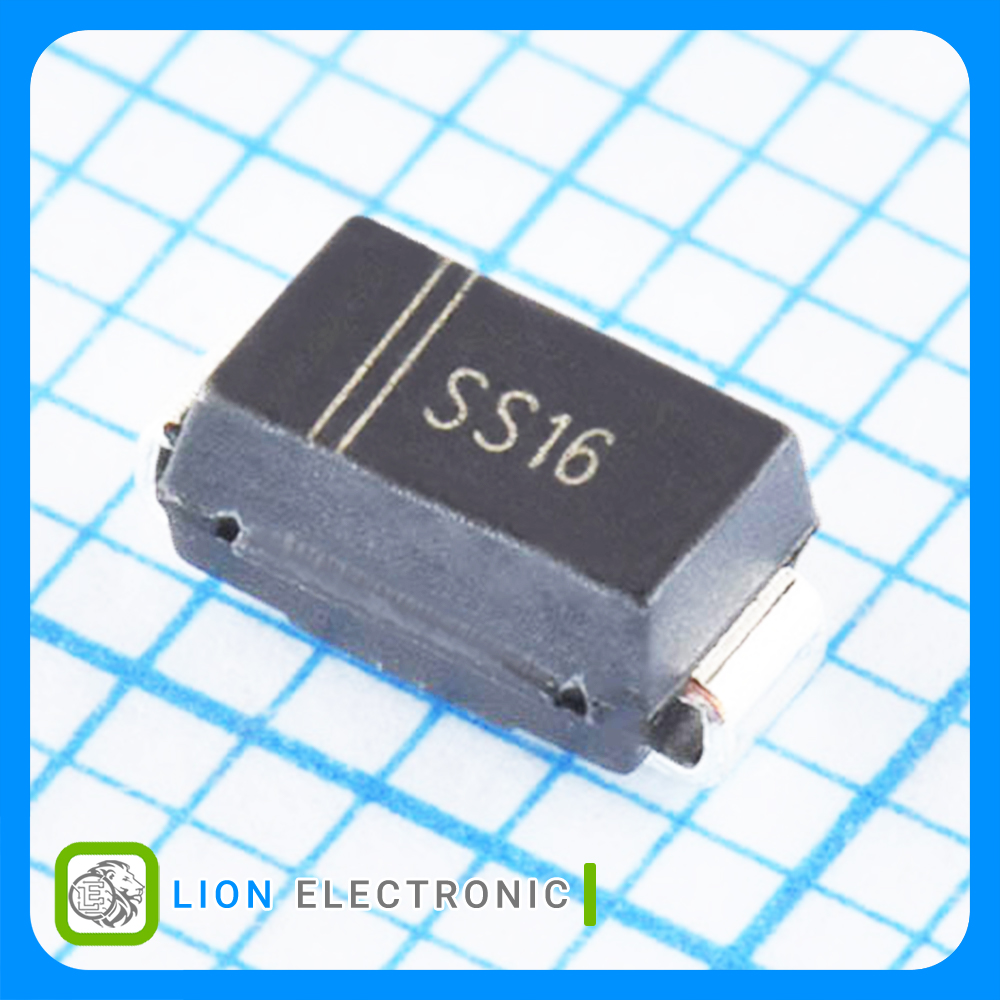

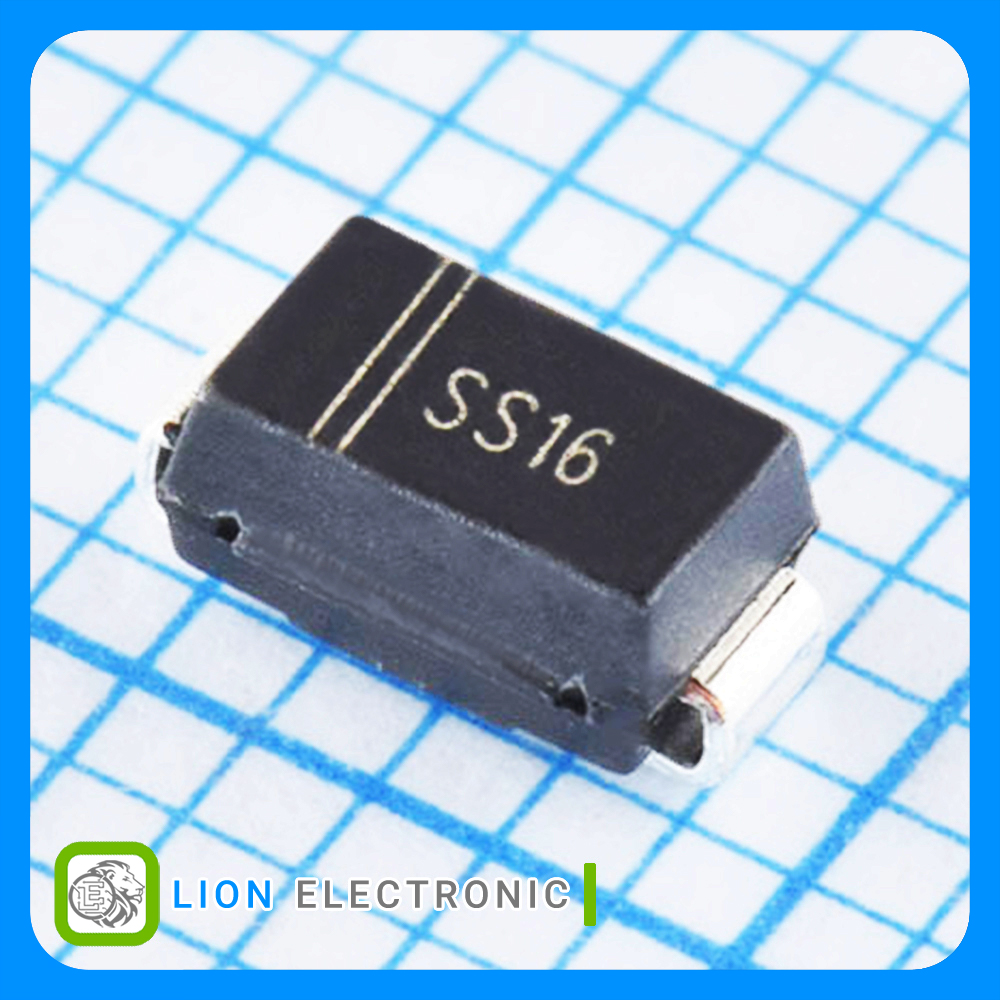

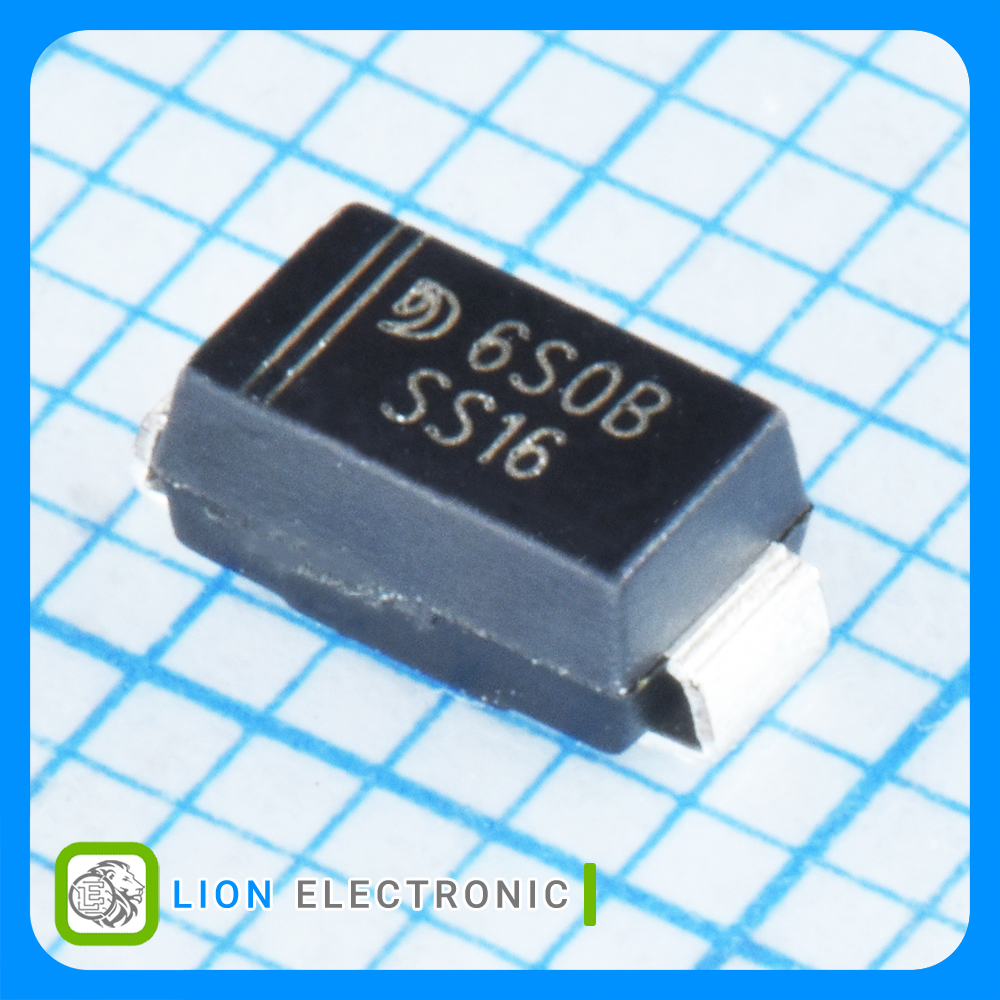

Schottky Diode 60V, 1A with DO-214AC (SMA) Package
معرفی
دیود شاتکی 60 ولت 1 آمپر با پکیج DO-214AC (SMA)
Schottky Diode 60V, 1A with DO-214AC (SMA) Package
Specifications
- Configuration: Single
- Vrrm - Repetitive Reverse Voltage: 60V
- If - Forward Current: 1A
- Ifsm - Forward Surge Current: 30A
- Vf - Forward Voltage: 700mV
- Ir - Reverse Current: 300uA
- Mounting Style: SMD/SMT
- Package/Case: DO-214AC (SMA)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات SS16
SS16
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
60V
Vrrm - Repetitive Reverse Voltage
SMD/SMT
Mounting Style
30A
Ifsm - Forward Surge Current
+125C
Maximum Operating Temperature
700mV
Vf - Forward Voltage
300uA
Ir - Reverse Current
1A
If - Forward Current
Single
Configuration
DO-214AC (SMA)
Package-Case
