SS310C
SS310C
Part Number
2393
Lion Part
Datasheet

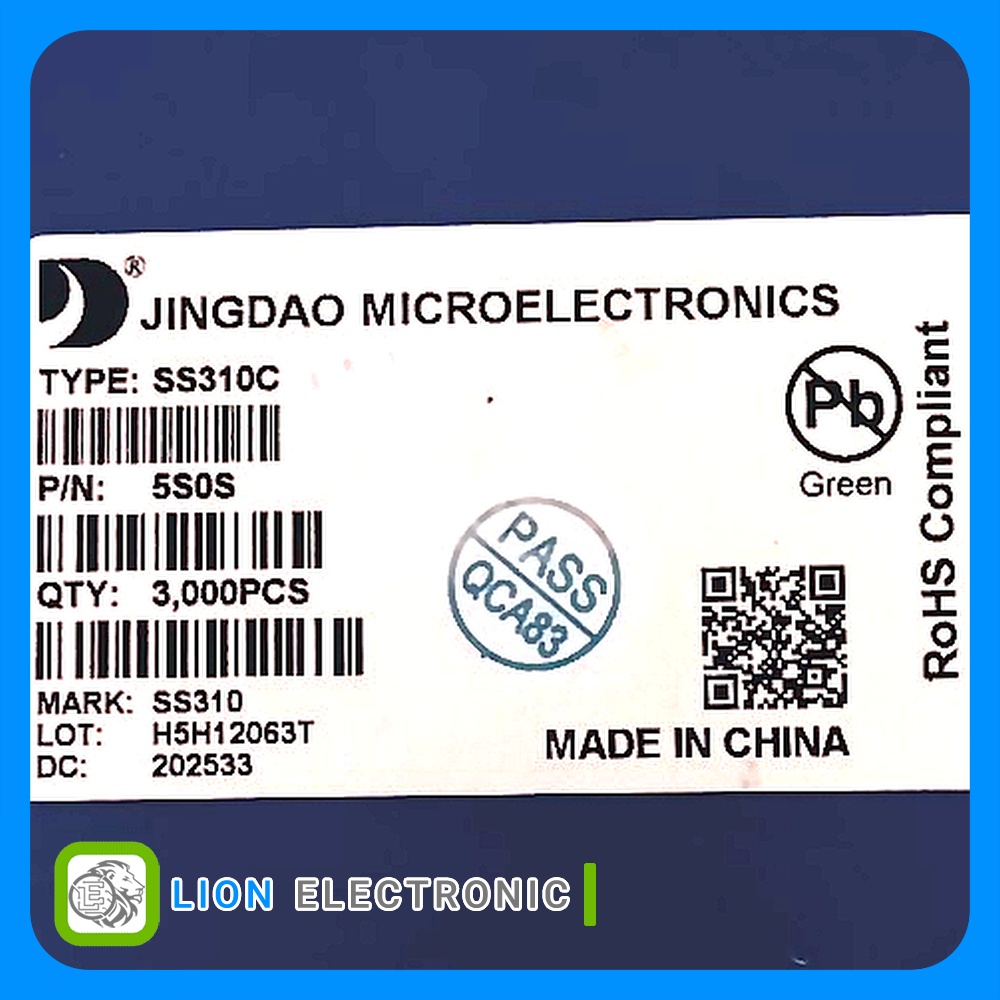

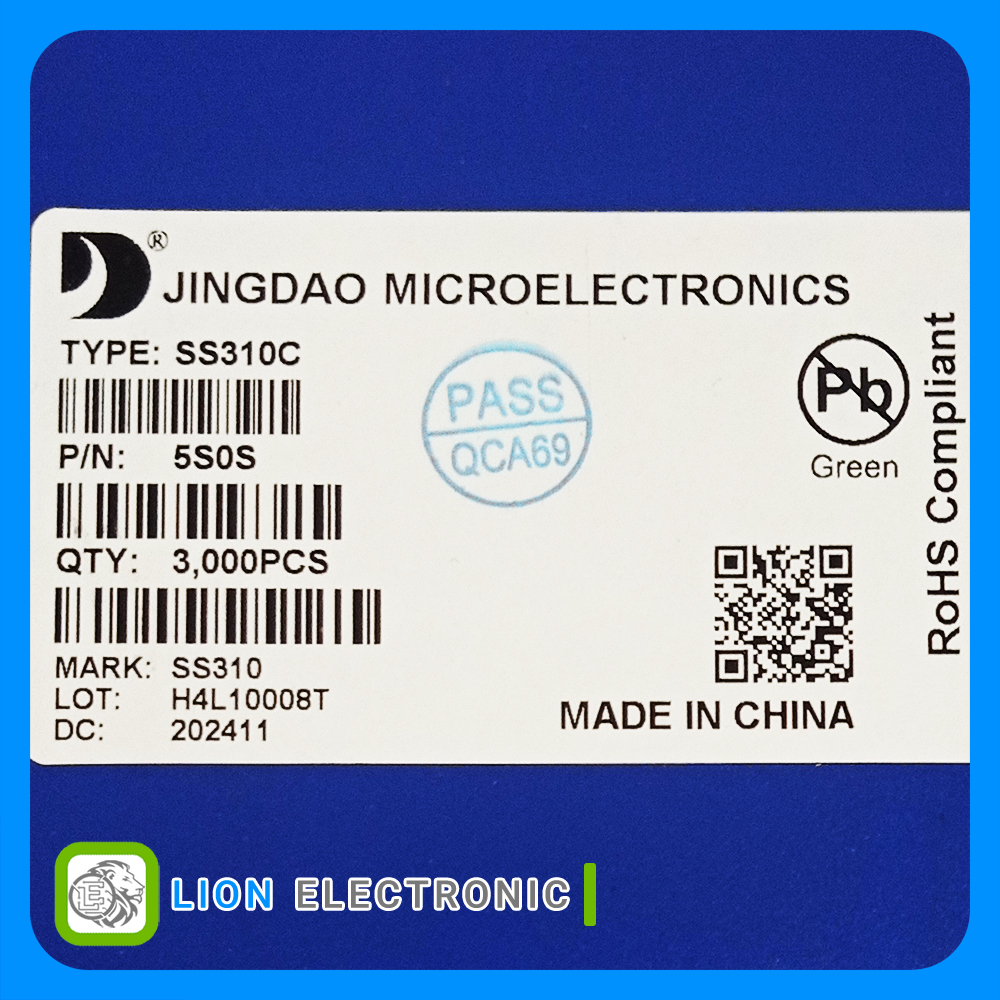

Jingdao Microelectronics Manufacture
دیود شاتکی 100 ولت 3 آمپر با پکیج DO-214AB (SMC)

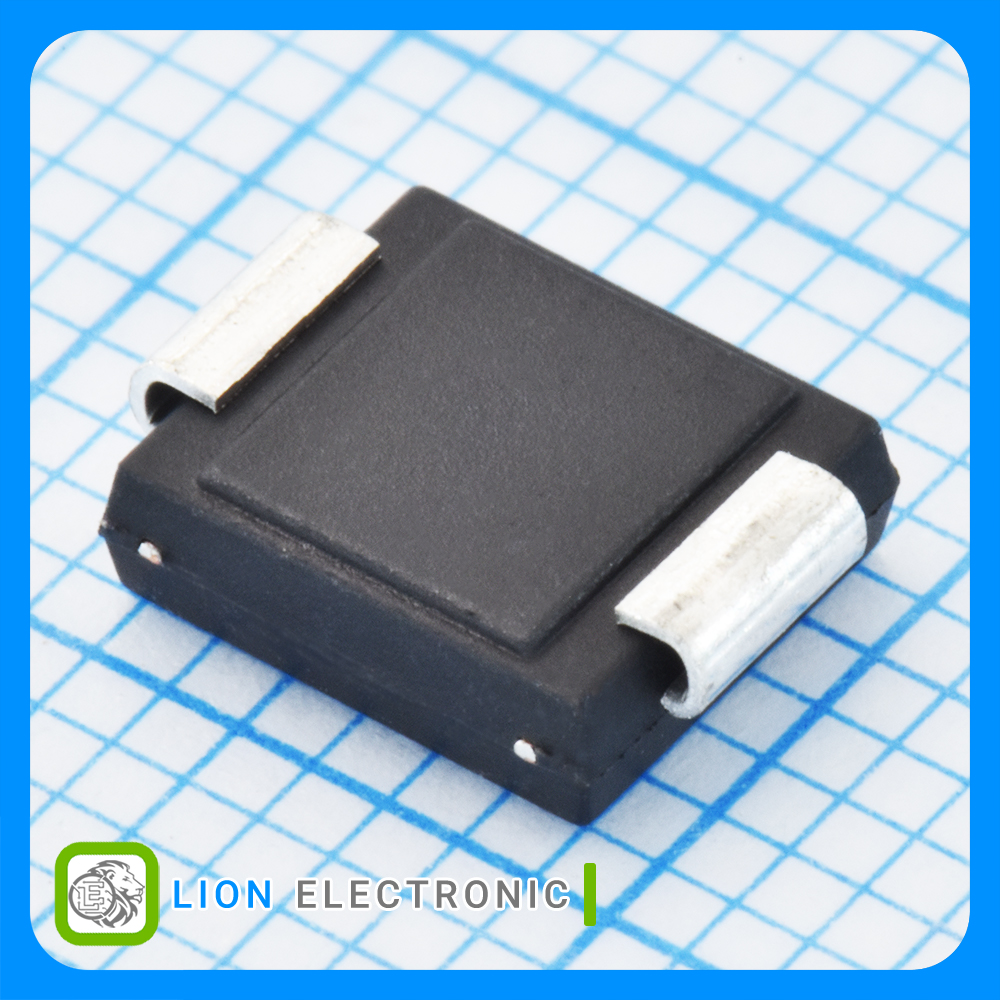

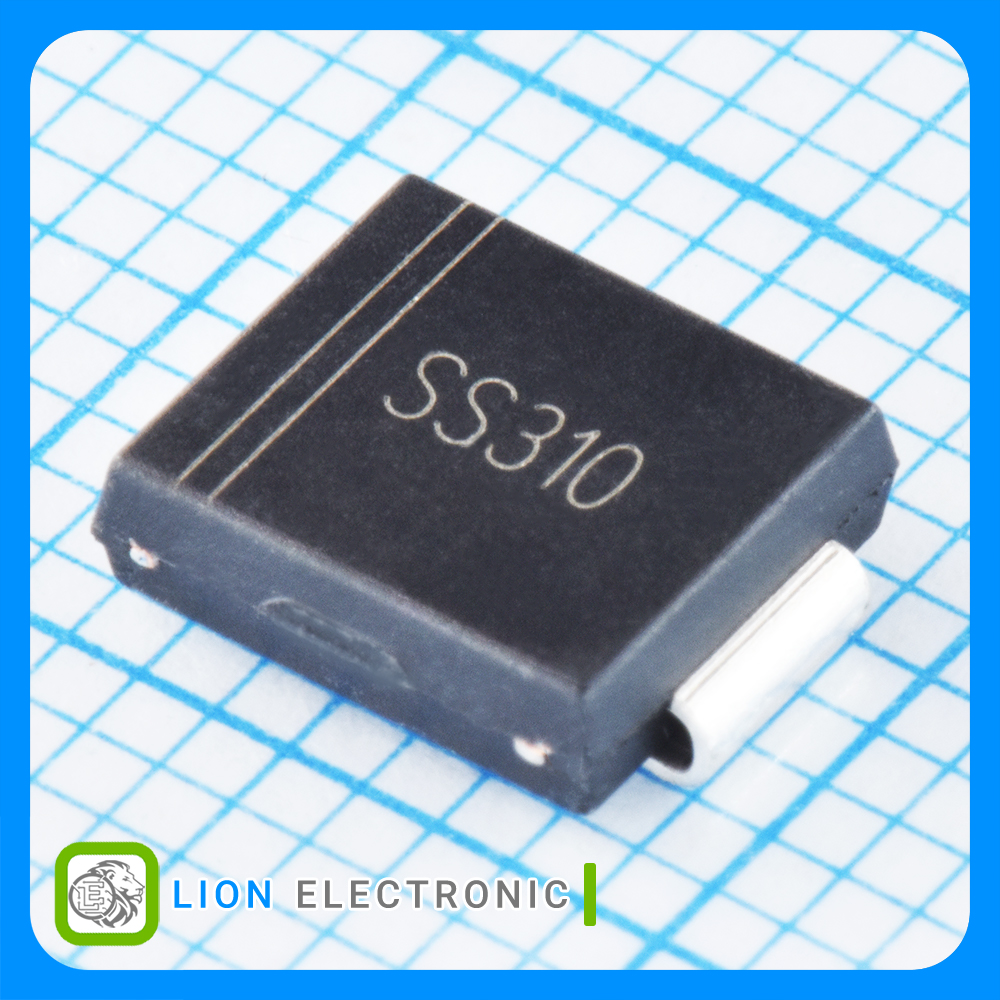

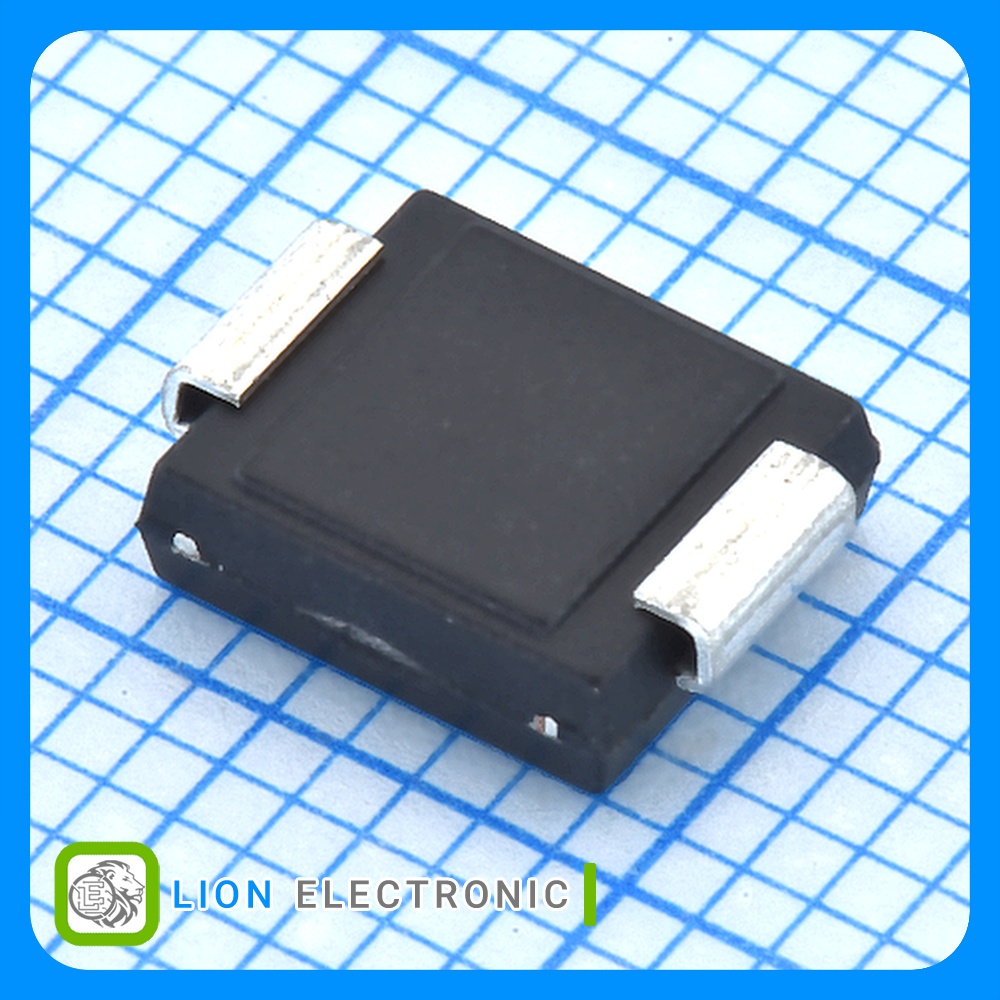

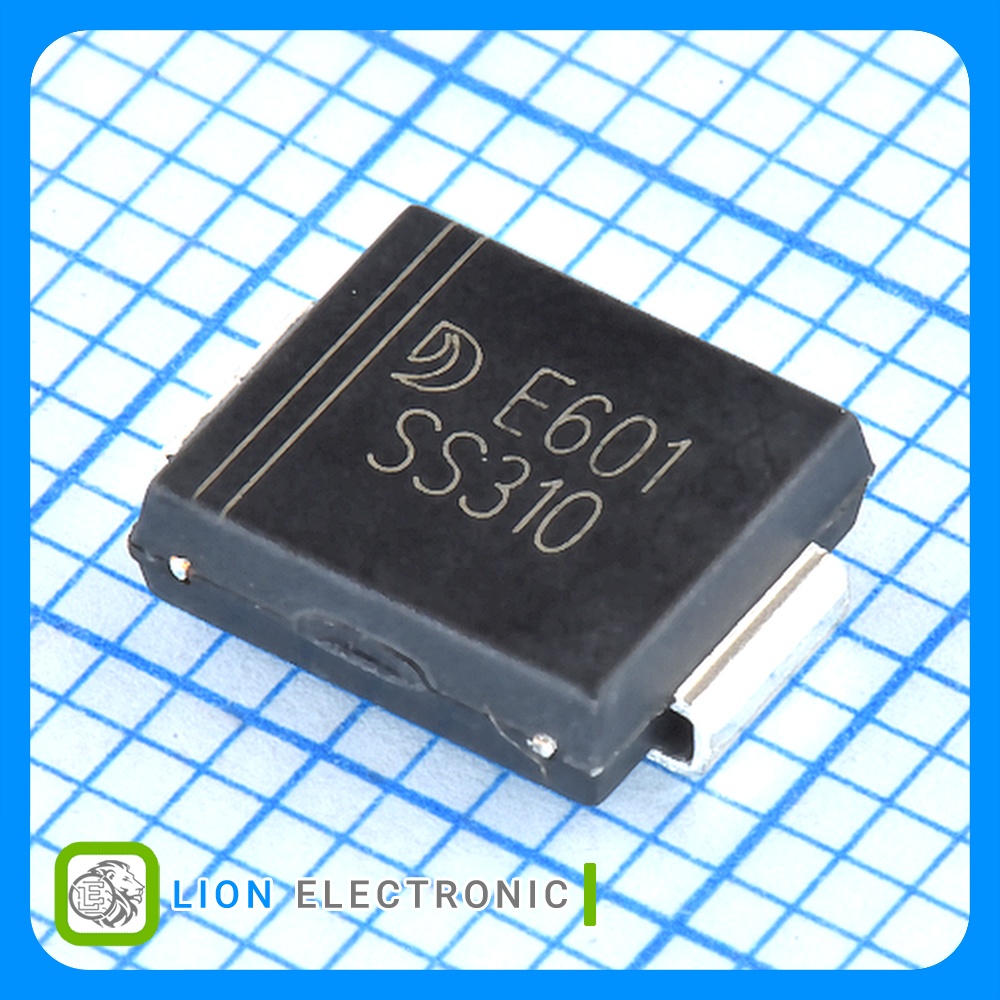

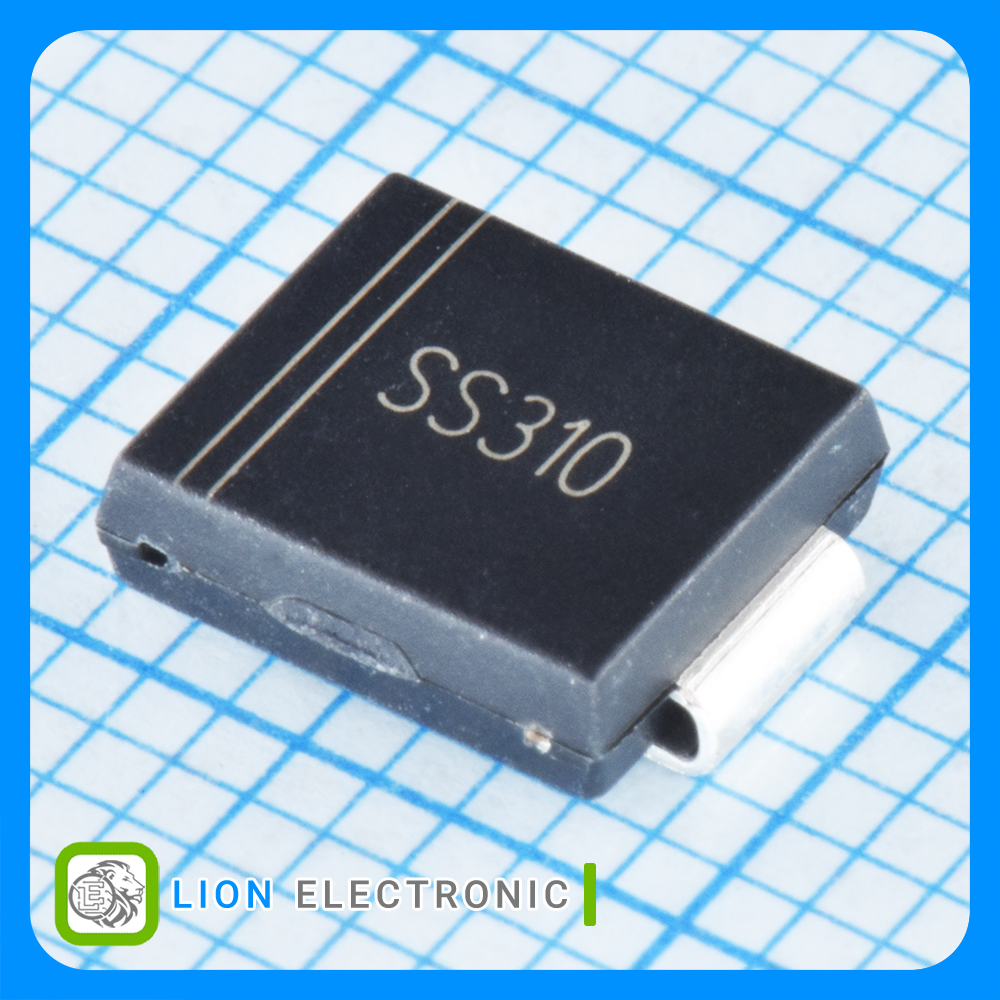

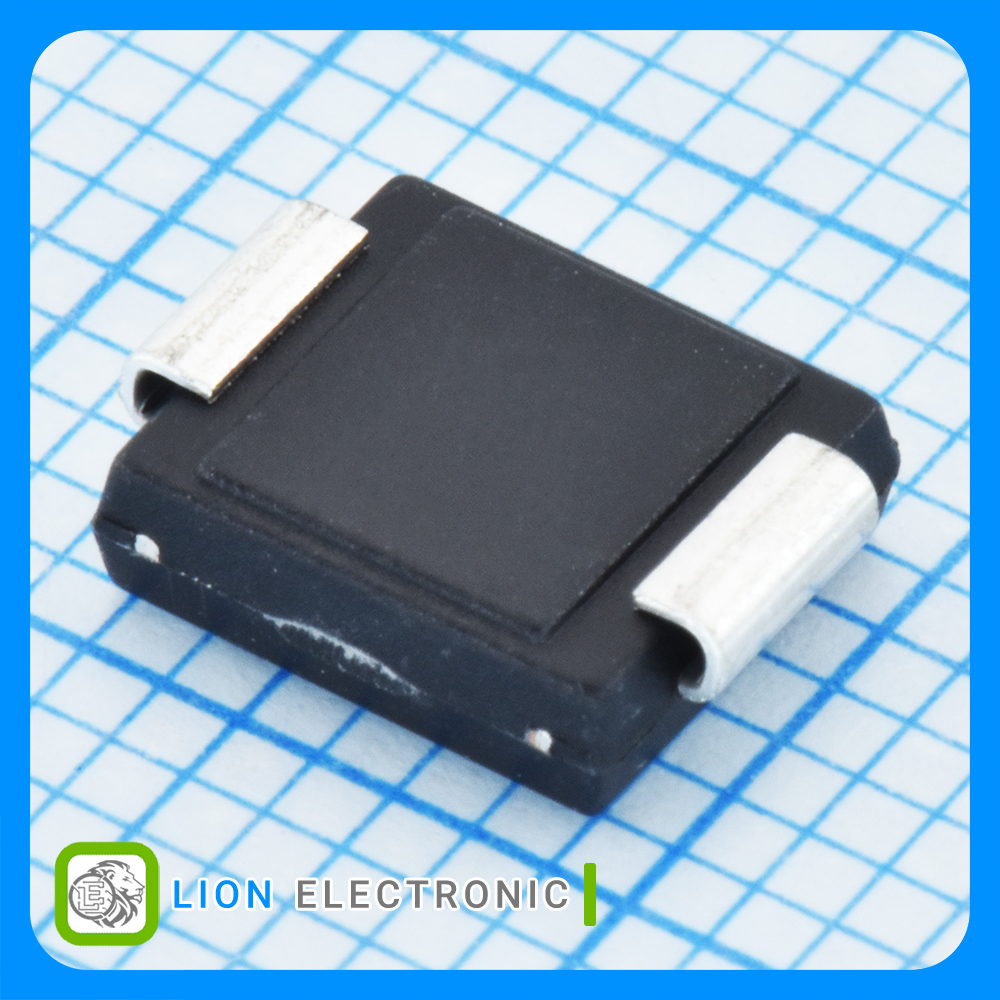

Schottky Diode 100V, 3A with DO-214AB (SMC) Package
معرفی
دیود شاتکی 100 ولت 3 آمپر با پکیج DO-214AB (SMC)
Schottky Diode 100V, 3A with DO-214AB (SMC) Package
Specifications
- Configuration: Single
- Vrrm - Repetitive Reverse Voltage: 100V
- If - Forward Current: 3A
- Ifsm - Forward Surge Current: 80A
- Vf - Forward Voltage: 850mV
- Ir - Reverse Current: 300uA
- Mounting Style: SMD/SMT
- Package/Case: DO-214AB (SMC)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات SS310C
SS310C
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
100V
Vrrm - Repetitive Reverse Voltage
80A
Ifsm - Forward Surge Current
+150C
Maximum Operating Temperature
300uA
Ir - Reverse Current
850mV
Vf - Forward Voltage
Single
Configuration
3A
If - Forward Current
DO-214AB (SMC)
Package-Case
