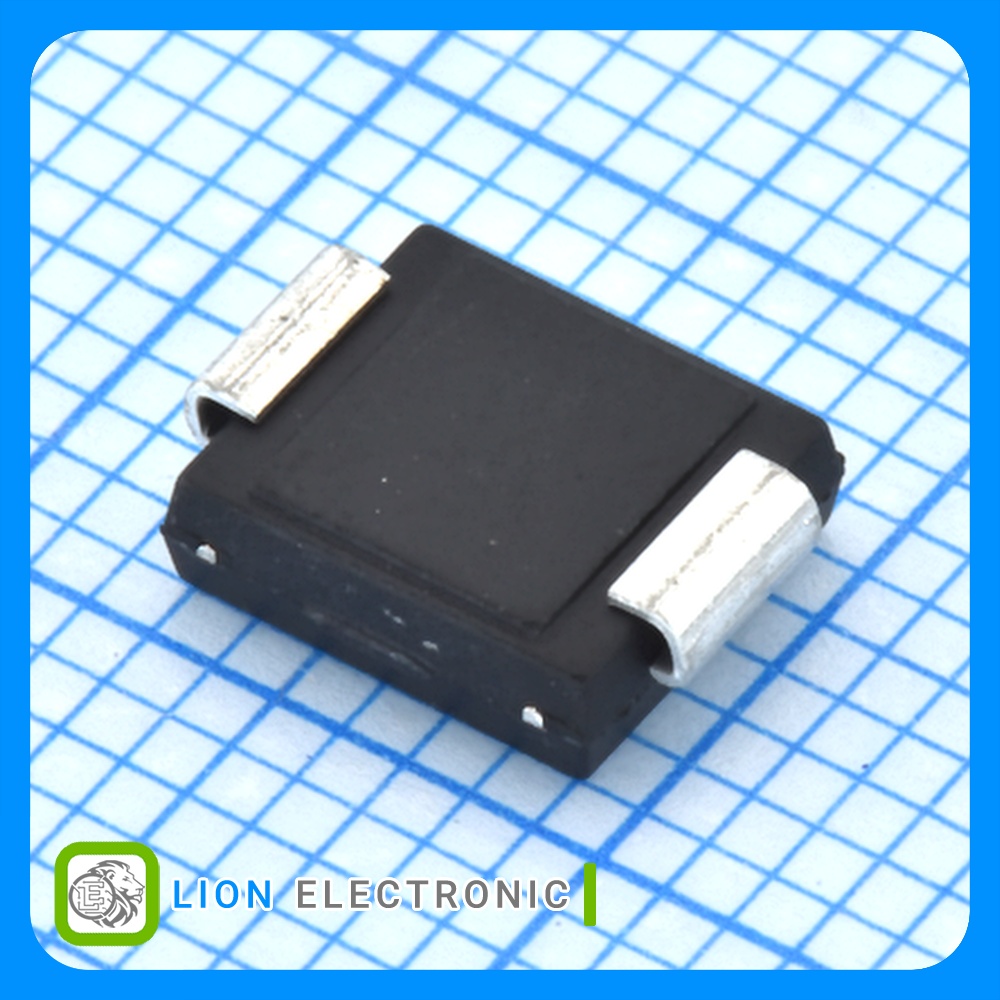

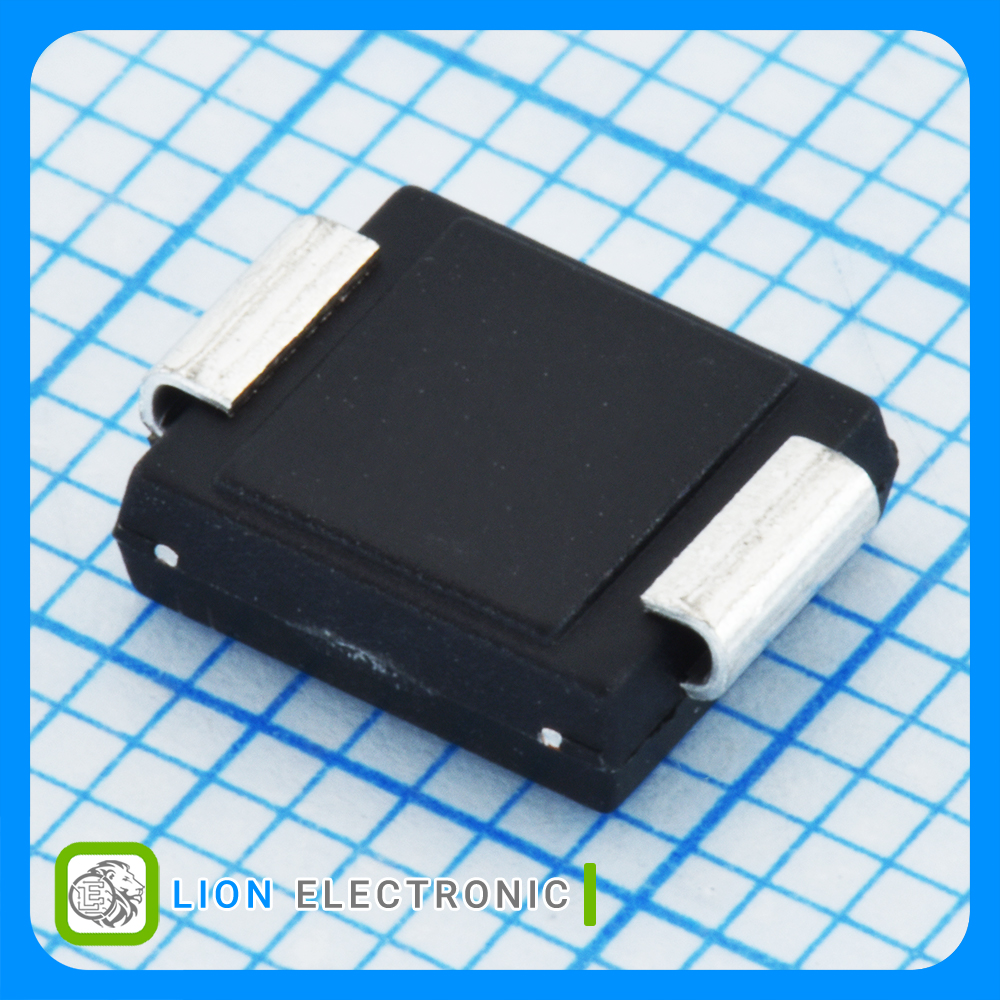

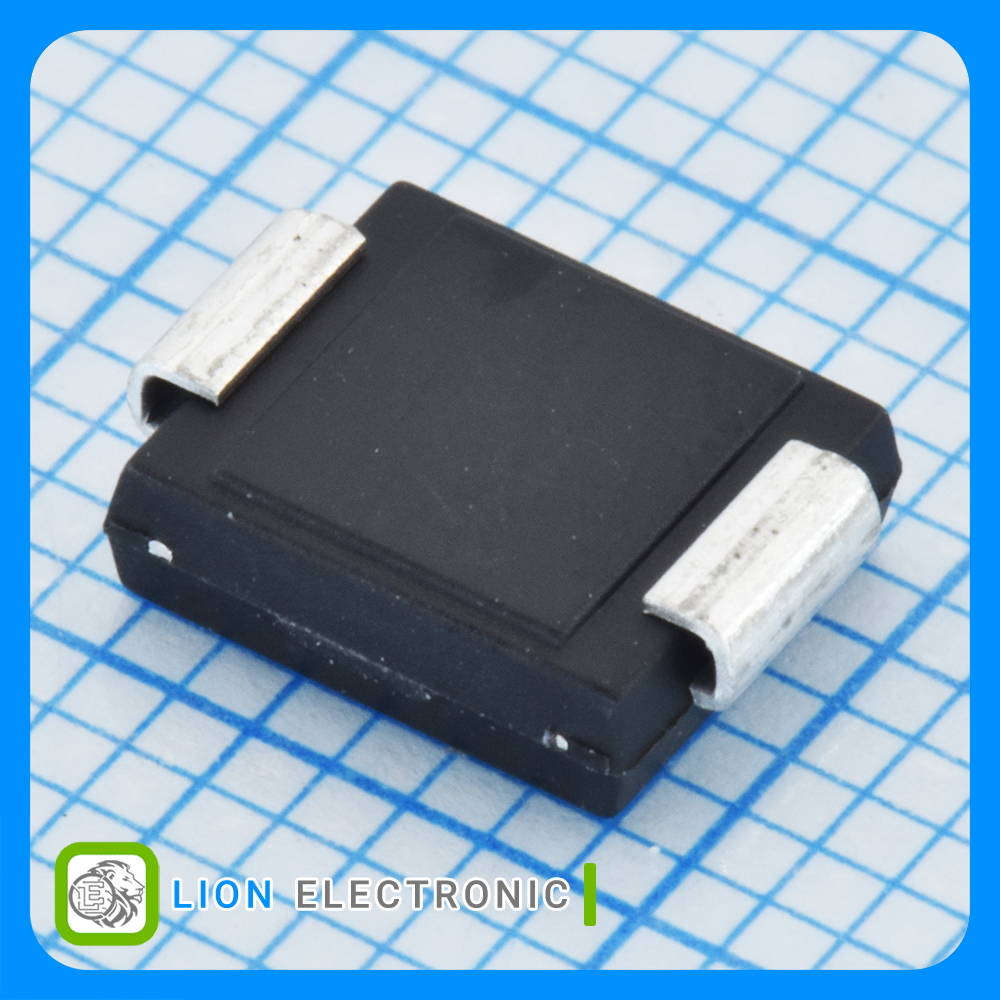

دیود شاتکی 100 ولت 8 آمپر با پکیج DO-214AB (SMC)
Schottky Diode 100V, 8A with DO-214AB (SMC) Package
Specifications
- Configuration: Single
- Vrrm - Repetitive Reverse Voltage: 100V
- If - Forward Current: 8A
- Ifsm - Forward Surge Current: 150A
- Vf - Forward Voltage: 850mV
- Ir - Reverse Current: 1mA
- Mounting Style: SMD/SMT
- Package/Case: DO-214AB (SMC)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود شاتکی SS810CG

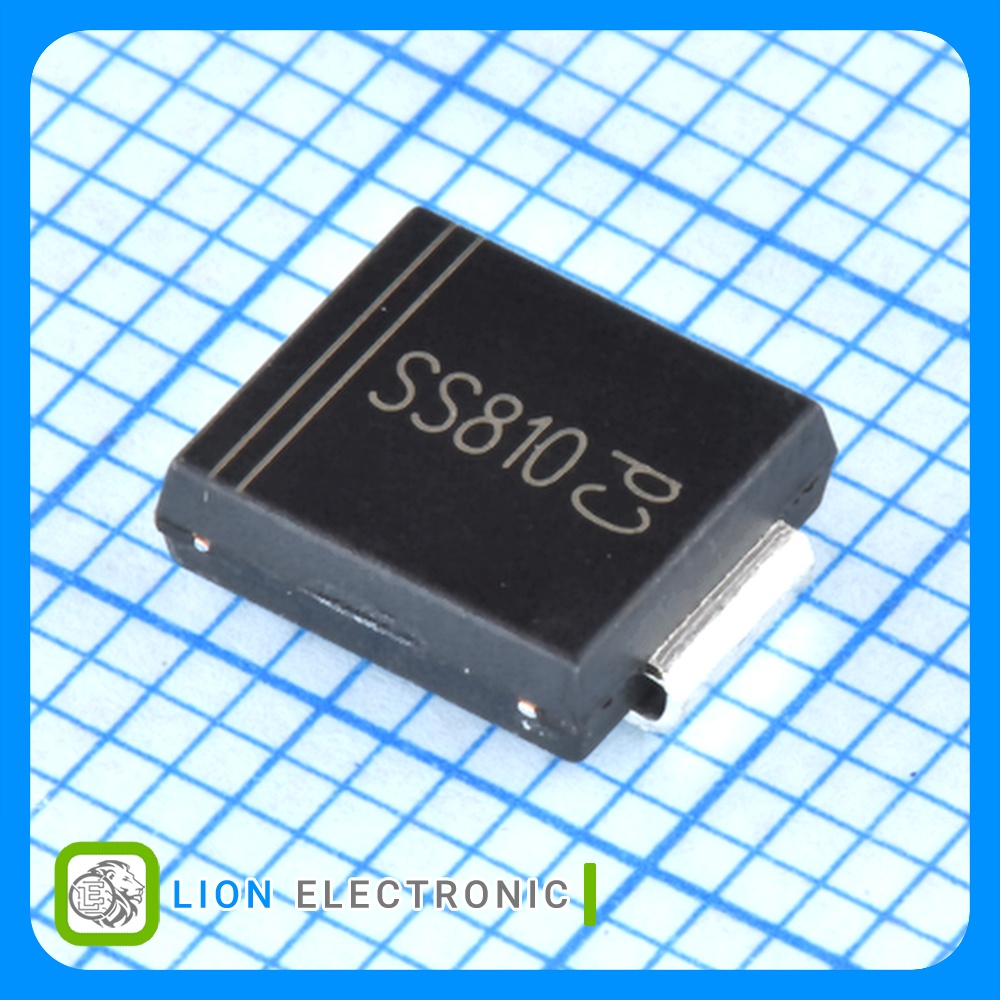

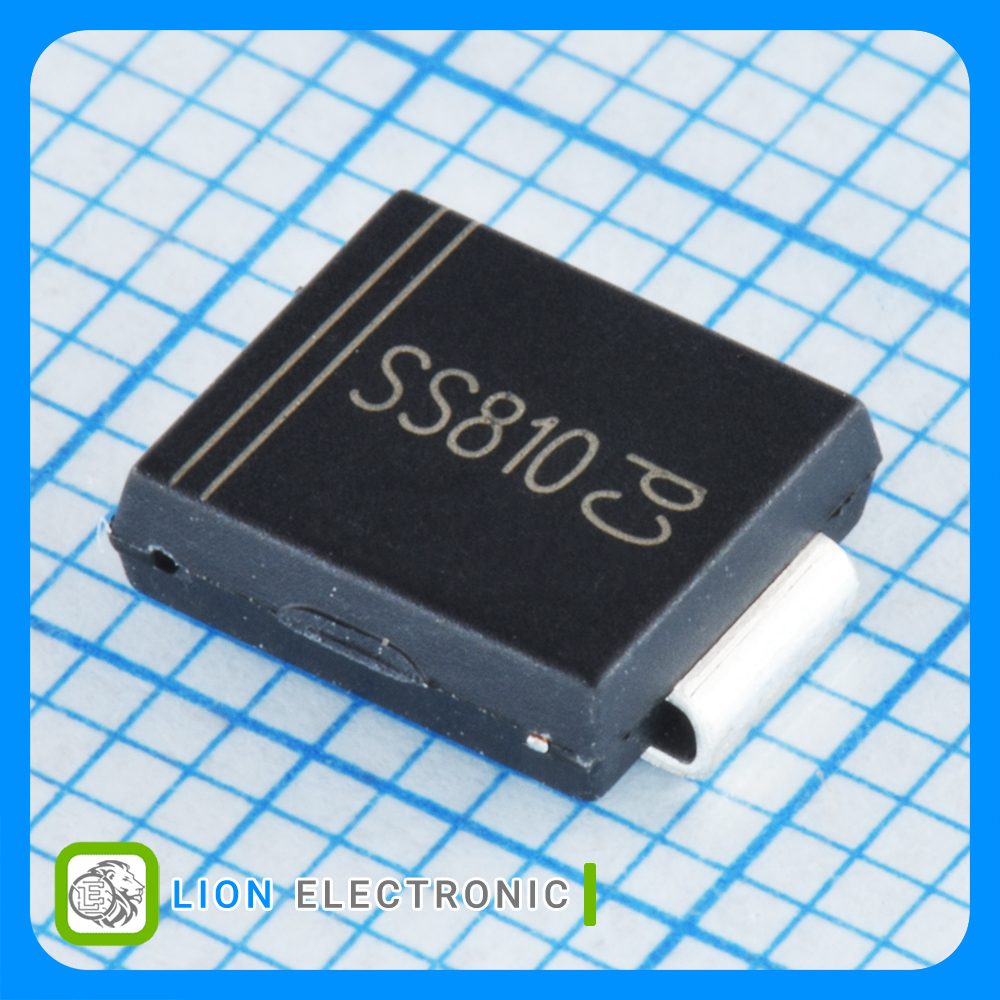

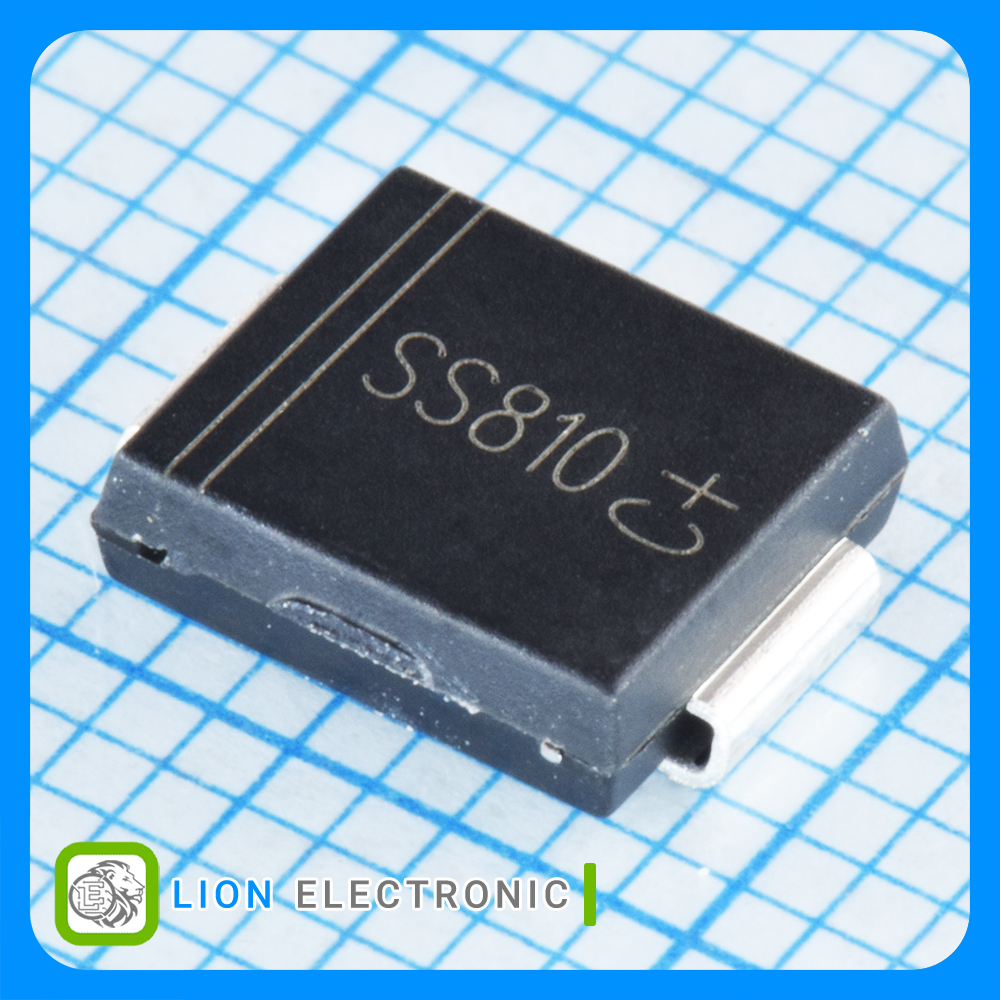

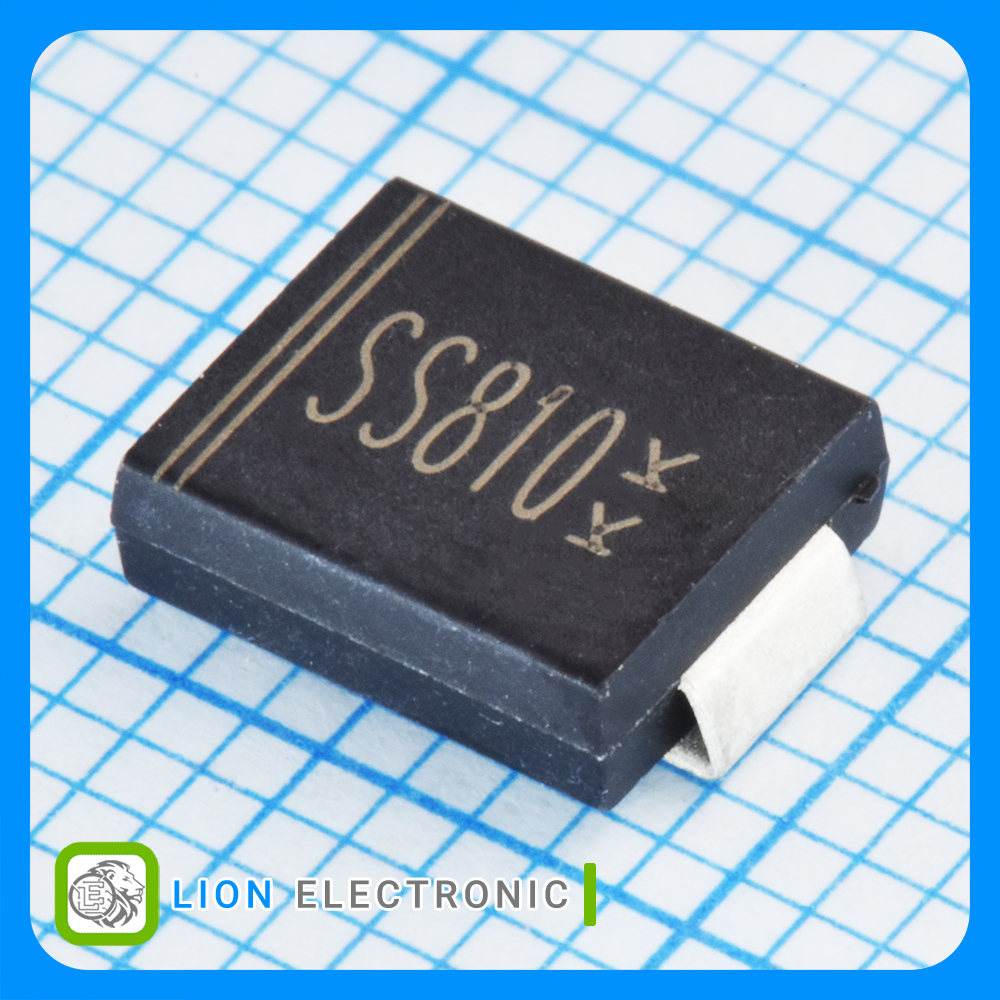

دیود شاتکی SS810CG
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
100V
Vrrm - Repetitive Reverse Voltage
150A
Ifsm - Forward Surge Current
+150C
Maximum Operating Temperature
1mA
Ir - Reverse Current
850mV
Vf - Forward Voltage
Single
Configuration
8A
If - Forward Current
DO-214AB (SMC)
Package-Case
