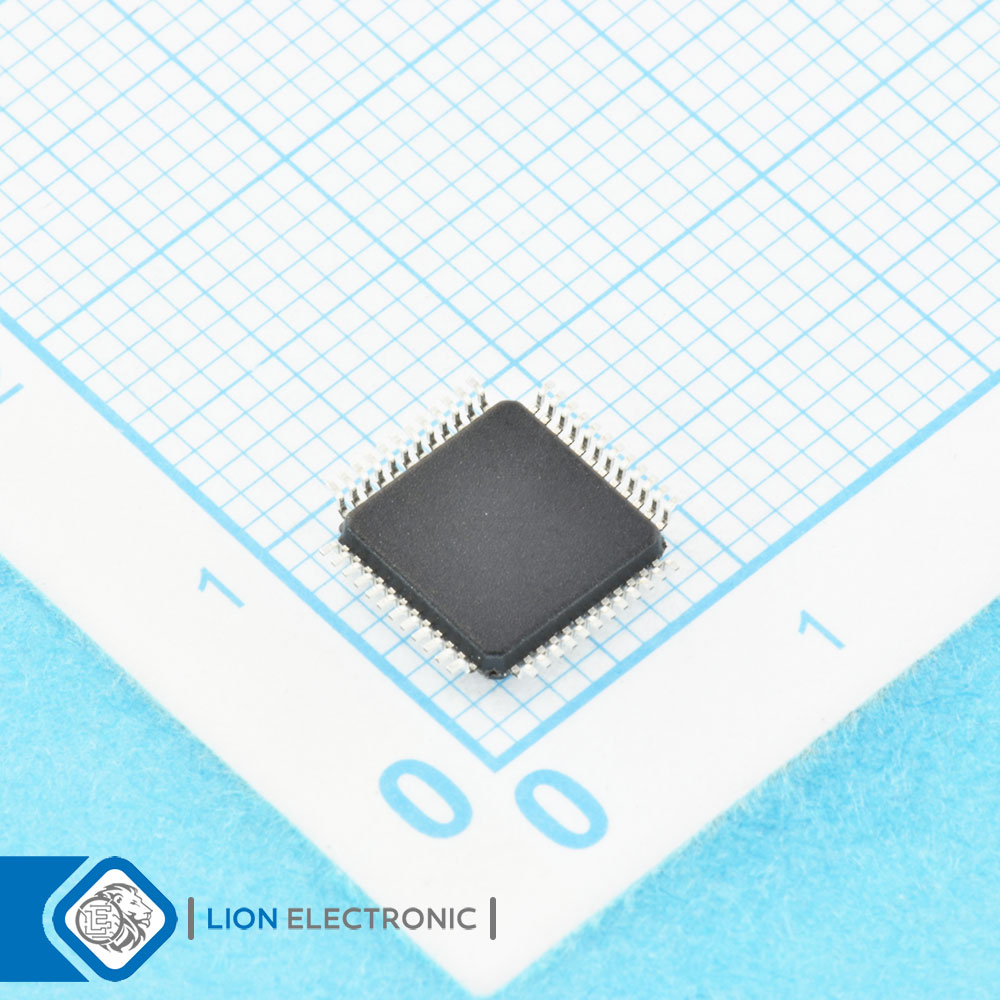

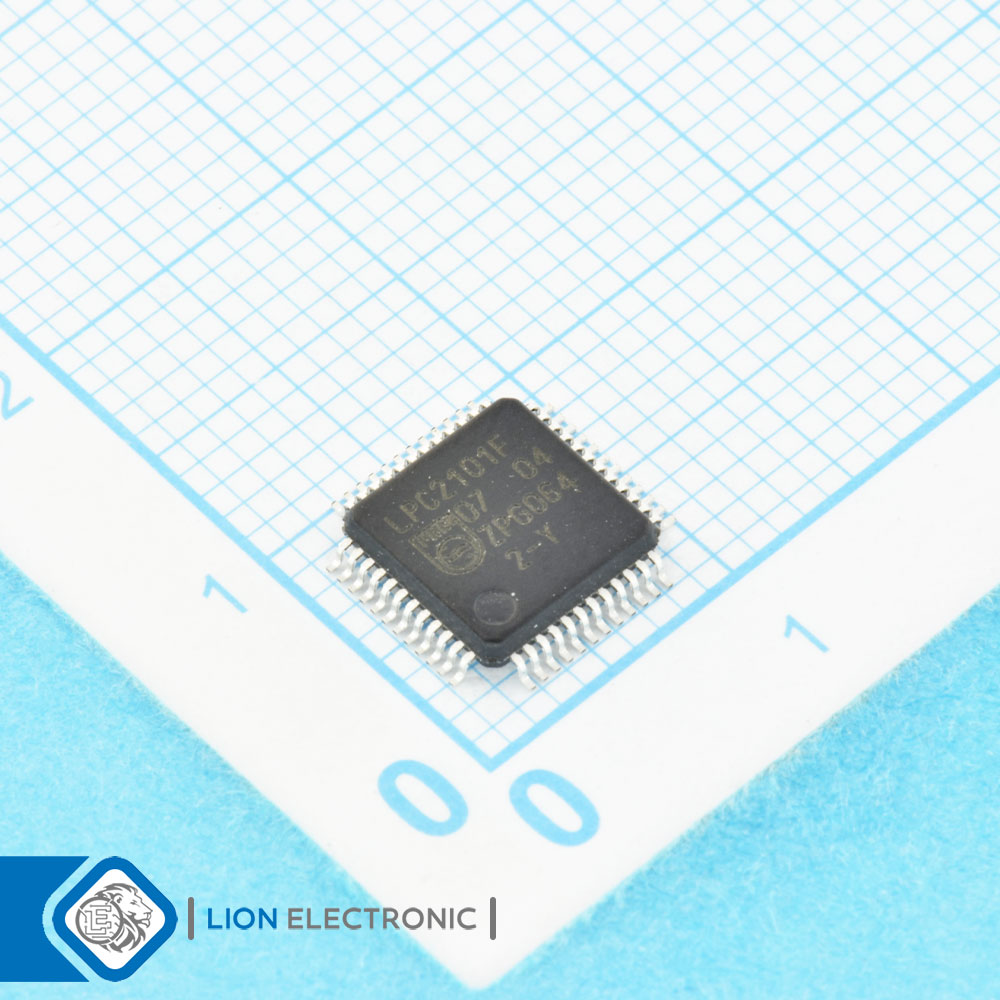

LPC2101FBD48
LPC2101FBD48
Part Number
244
Lion Part
Datasheet
NXP Semiconductors Manufacture
میکروکنترلر تکتراشهای 16/32 بیت ARM7TDMI-S 70 مگاهرتز 8 کیلوبایت فلش 2 کیلوبایت رم با پکیج LQFP-48
Single-chip 16/32bit ARM7TDMI-S Microcontroller 70MHz, 8kB Flash, 2kB RAM with LQFP-48 Package
معرفی
میکروکنترلر تکتراشهای 16/32 بیت ARM7TDMI-S 70 مگاهرتز 8 کیلوبایت فلش 2 کیلوبایت رم با پکیج LQFP-48
Single-chip 16/32bit ARM7TDMI-S Microcontroller 70MHz, 8kB Flash, 2kB RAM with LQFP-48 Package
Specifications
- Series: LPC2100
- Core: ARM7TDMI-S
- Interface Type: I2C, JTAG, SPI, SSP, UART
- Number of I/Os: 32
- ADC Resolution: 10bit
- Program Memory Size: 8kB
- Data RAM Size: 2kB
- Data Bus Width: 32bit/16bit
- Maximum Clock Frequency: 70MHz
- Operating Supply Voltage: 1.8V
- Mounting Style: SMD/SMT
- Package/Case: LQFP-48
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tray
مشخصات میکروکنترلر LPC2101FBD48
میکروکنترلر LPC2101FBD48
Part Number
--- I2C, JTAG, SPI, SSP, UART
Interface Type
ARM7TDMI-S
Core
10bit
ADC Resolution
32bit/16bit
Data Bus Width
-40C
Minimum Operating Temperature
LPC2100
Series
Tray
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
8kB
Program Memory Size
2kB
Data RAM Size
70MHz
Maximum Clock Frequency
32
Number of I-Os
1.8V
Operating Supply Voltage
LQFP-48
Package-Case
