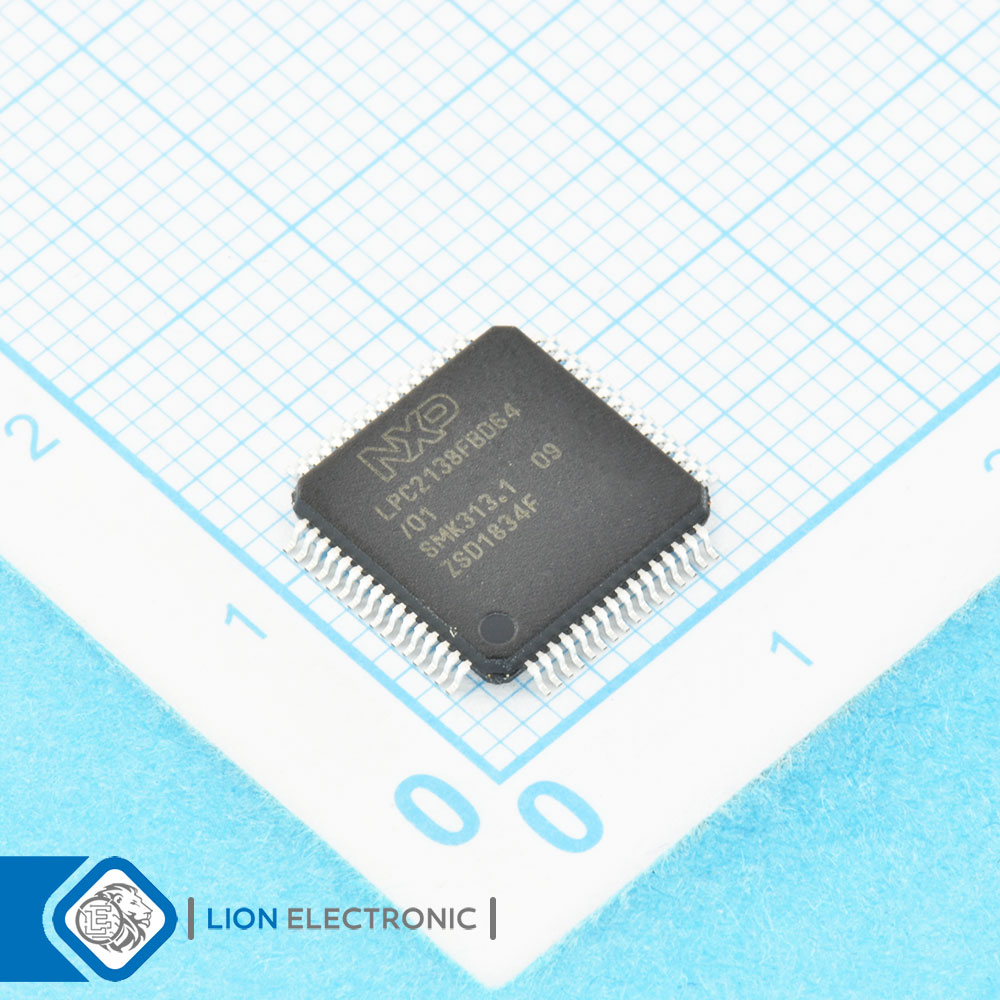

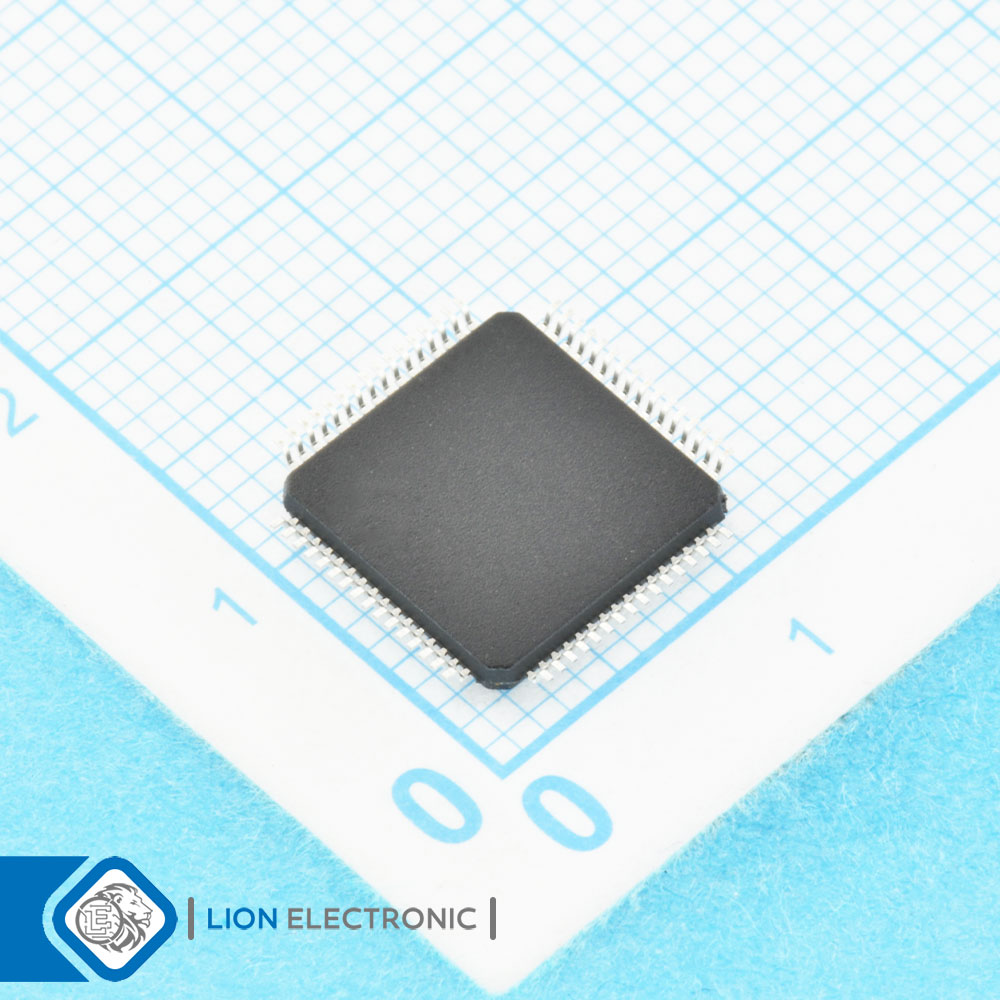

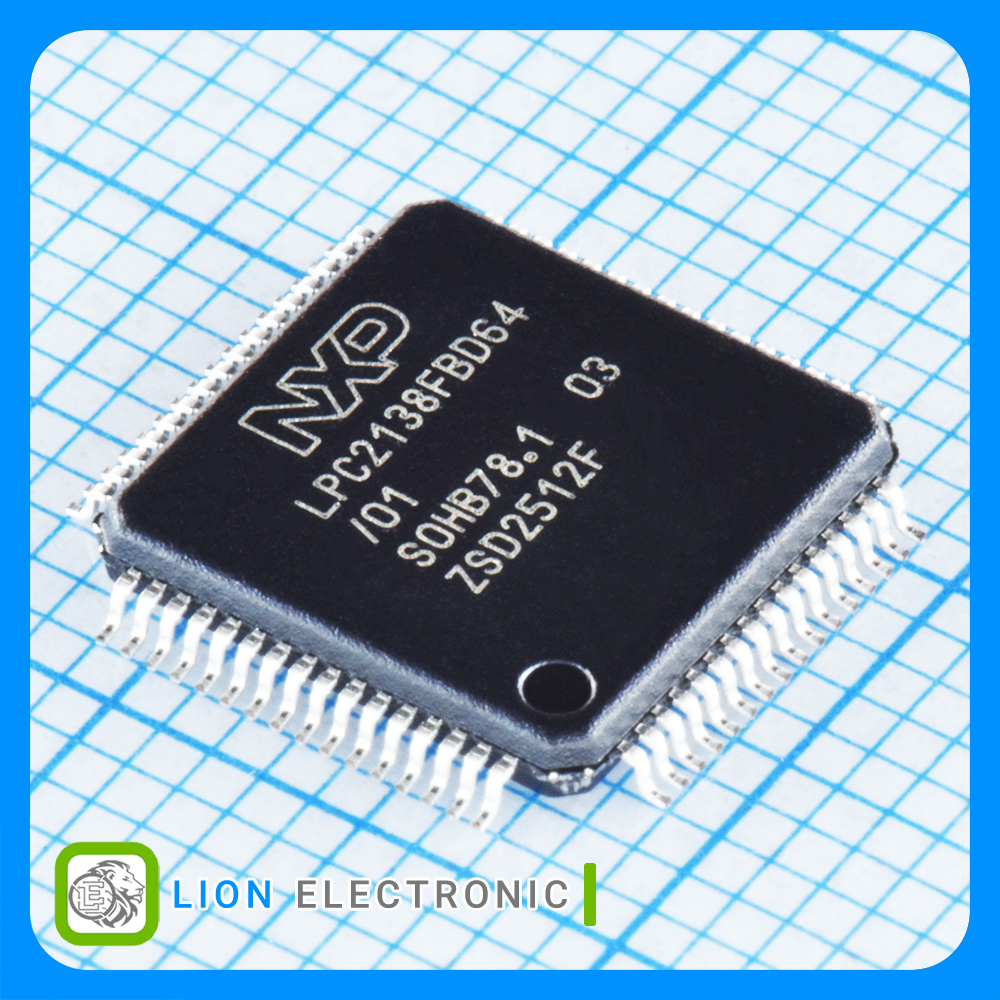

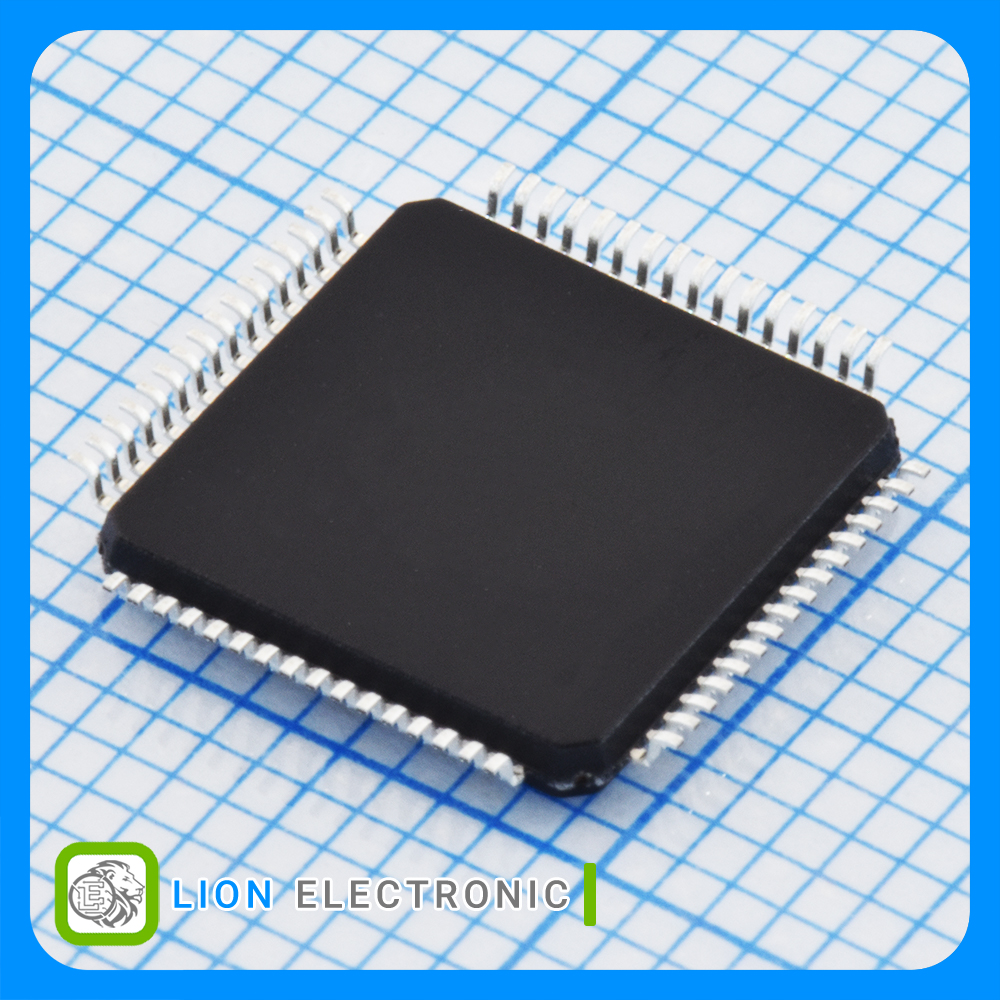

LPC2138FBD64
LPC2138FBD64
Part Number
246
Lion Part
Datasheet
NXP Semiconductors Manufacture
میکروکنترلر تکتراشهای 16/32 بیت ARM7TDMI-S 60 مگاهرتز 512 کیلوبایت فلش 32 کیلوبایت رم با پکیج LQFP-64
Single-Chip 16/32bit ARM7TDMI-S Microcontroller 60MHz, 512kB Flash, 32kB RAM with LQFP-64 Package
معرفی
میکروکنترلر تکتراشهای 16/32 بیت ARM7TDMI-S 60 مگاهرتز 512 کیلوبایت فلش 32 کیلوبایت رم با پکیج LQFP-64
Single-Chip 16/32bit ARM7TDMI-S Microcontroller 60MHz, 512kB Flash, 32kB RAM with LQFP-64 Package
Specifications
- Series: LPC2100
- Core: ARM7TDMI-S
- Interface Type: I2C, SPI, USART
- Number of I/Os: 39
- ADC Resolution: 10bit
- Program Memory Size: 512kB
- Data RAM Size: 32kB
- Data Bus Width: 32bit/16bit
- Maximum Clock Frequency: 60MHz
- Operating Supply Voltage: 3.3V
- Mounting Style: SMD/SMT
- Package/Case: LQFP-64
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات میکروکنترلر LPC2138FBD64
میکروکنترلر LPC2138FBD64
Part Number
--- I2C, SPI, USART
Interface Type
ARM7TDMI-S
Core
10bit
ADC Resolution
Reel
Packaging
-40C
Minimum Operating Temperature
32bit/16bit
Data Bus Width
LPC2100
Series
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
60MHz
Maximum Clock Frequency
512kB
Program Memory Size
32kB
Data RAM Size
39
Number of I-Os
3.3V
Operating Supply Voltage
LQFP-64
Package-Case
