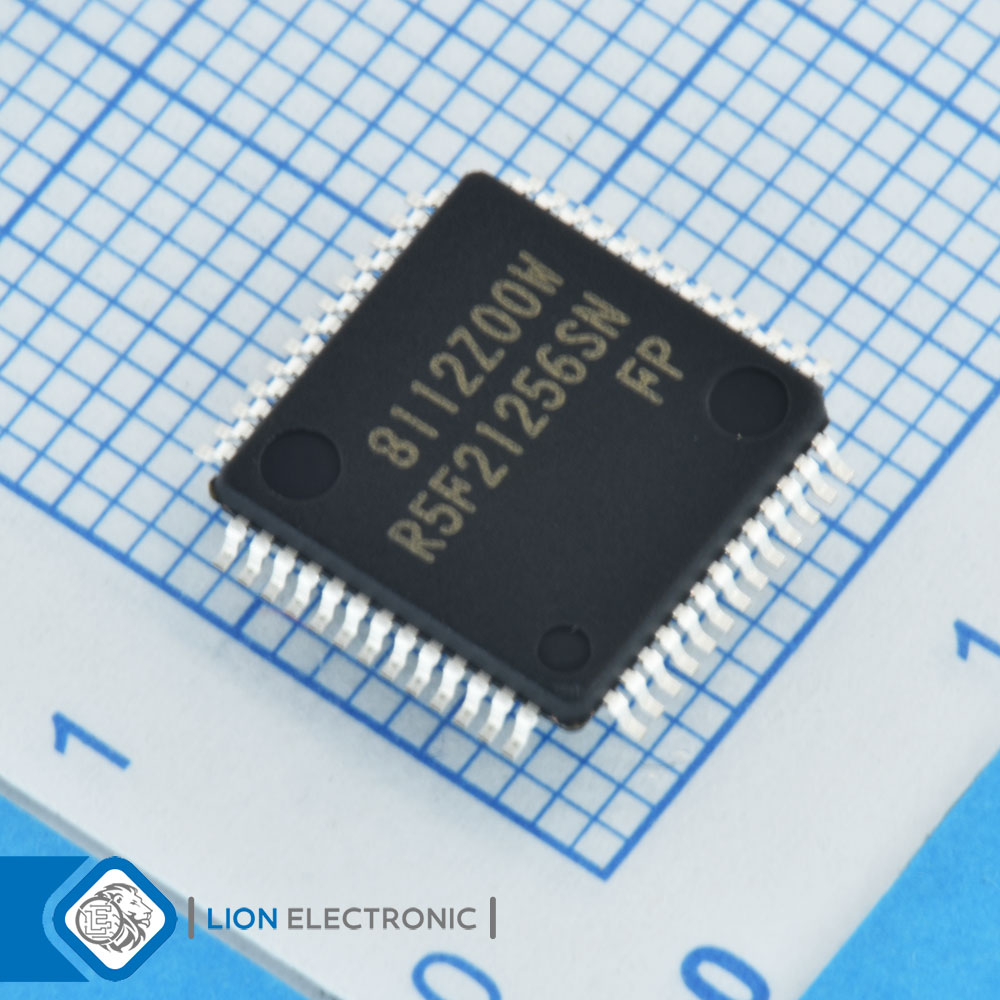

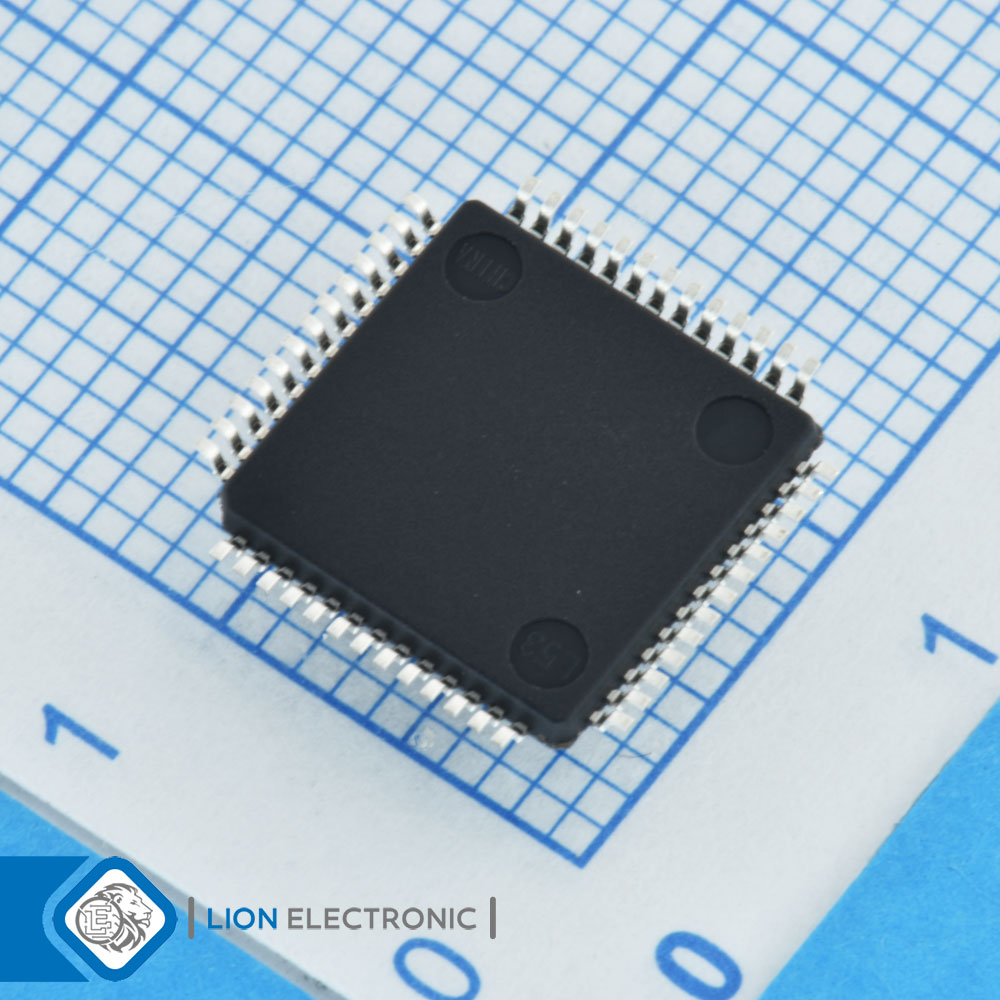

R5F21256SNFP
R5F21256SNFP
Part Number
2515
Lion Part
Datasheet
Renesas Electronics Manufacture
میکروکنترلر هسته R8C/25 حافظه فلش 32 کیلوبایت رم 2 کیلوبایت با پکیج LQFP-52
Microcontroller R8C/25 Core, 32kB Flash, 2kB RAM with LQFP-52 Package
معرفی
میکروکنترلر هسته R8C/25 حافظه فلش 32 کیلوبایت رم 2 کیلوبایت با پکیج LQFP-52
Microcontroller R8C/25 Core, 32kB Flash, 2kB RAM with LQFP-52 Package
Specifications
- Series: R8C
- Core: R8C/25
- Number of I/Os: 41
- ADC Resolution: 10bit
- Program Memory Size: 32kB
- Data RAM Size: 2kB
- Data Bus Width: 16bit
- Maximum Clock Frequency: 20MHz
- Operating Supply Voltage: 2.2 - 5.5V
- Mounting Style: SMD/SMT
- Package/Case: LQFP-52
- Minimum Operating Temperature: -20C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات R5F21256SNFP
R5F21256SNFP
Part Number
10bit
ADC Resolution
16bit
Data Bus Width
Reel
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
-20C
Minimum Operating Temperature
20MHz
Maximum Clock Frequency
32kB
Program Memory Size
2kB
Data RAM Size
5.5V
Supply Voltage - Max
2.2V
Supply Voltage - Min
R8C/25
Core
41
Number of I-Os
2.2 - 5.5V
Operating Supply Voltage
I2C, LIN, UART
Interface Type
LQFP-52
Package-Case
