سنسور مغناطیسی خطی اثر هال تغذیه 3 تا 12 ولت با پکیج TO-92 (SOT-54)

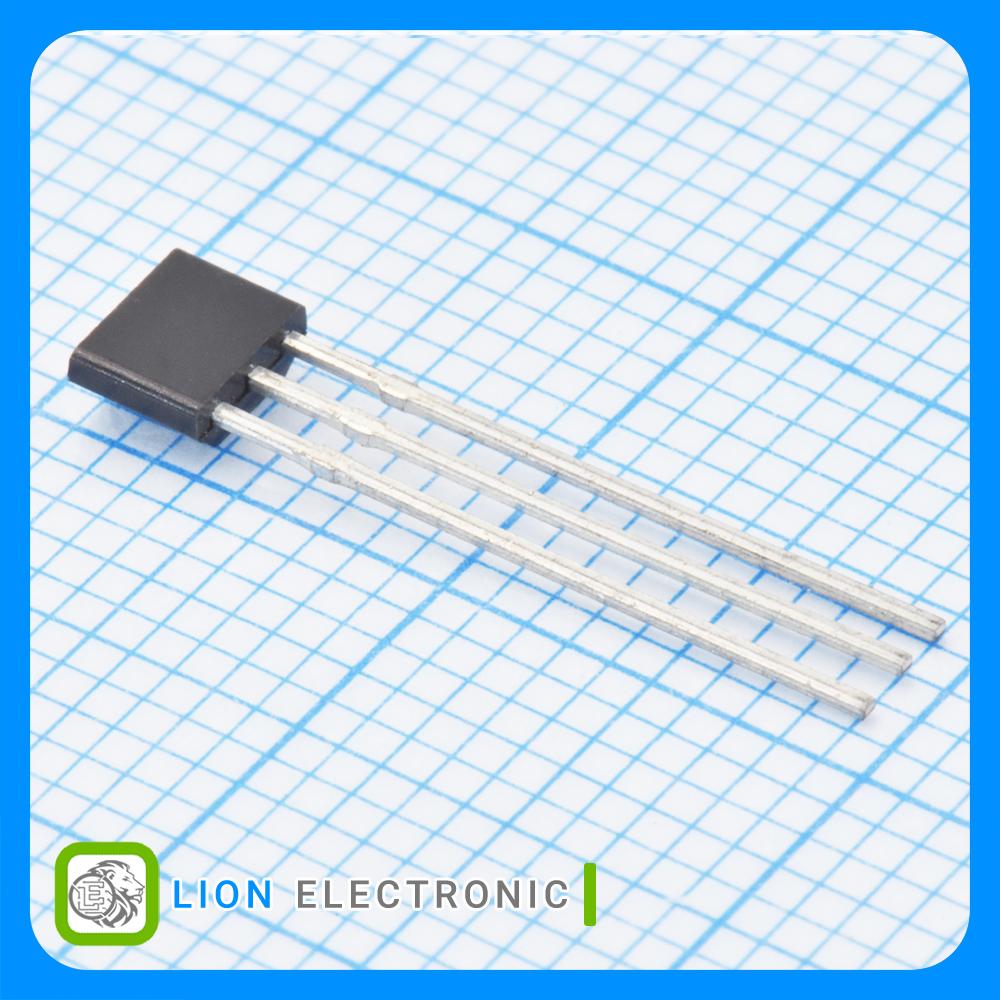

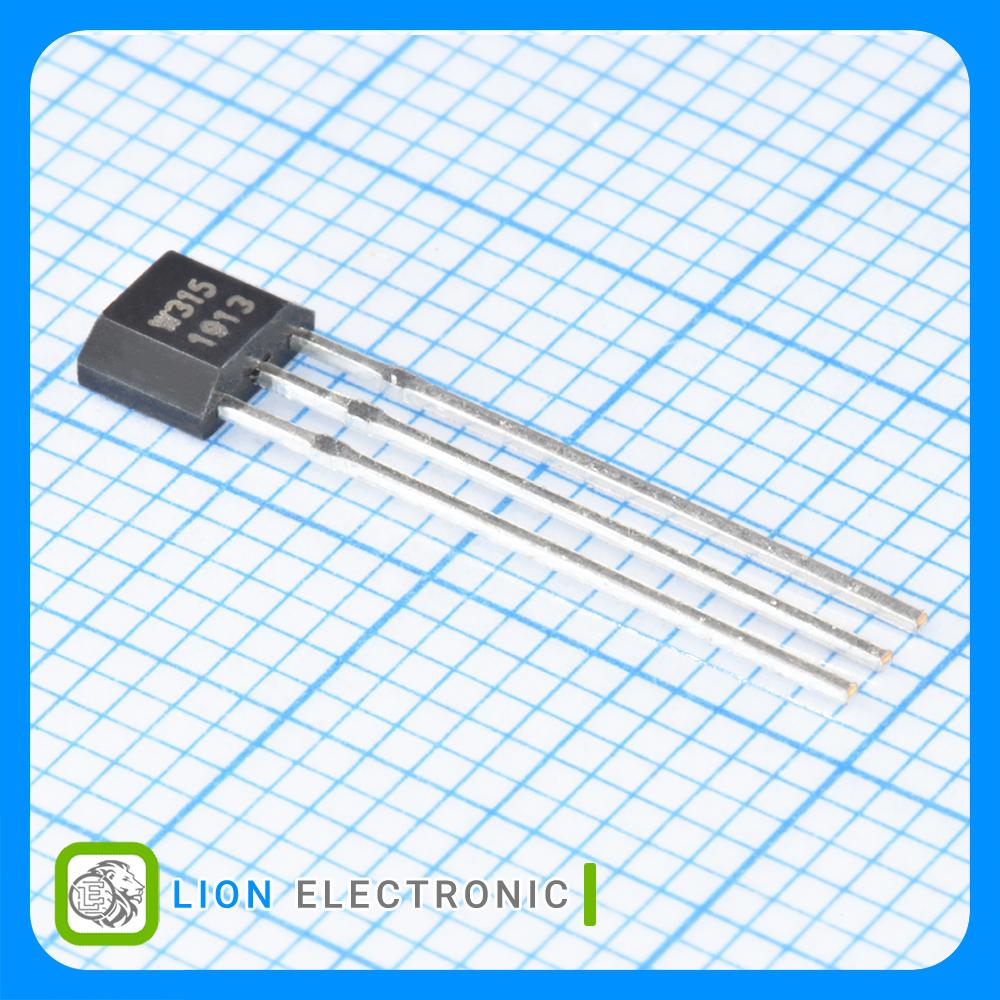

Magnetic Sensor Linear Hall-Effect Sensor, 3 - 12V with TO-92 (SOT-54) Package
Specifications
- Type: Linear Hall-Effect Sensor
- Operating Point Min/Max: 3G to 11G
- Operating Supply Voltage: 3 - 12V
- Operating Supply Current: 20nA
- Mounting Style: Through Hole
- Package/Case: TO-92 (SOT-54)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Bulk
مشخصات WSH315-XPAN1
WSH315-XPAN1
Part Number
20nA
Operating Supply Current
3G to 11G
Operating Point Min-Max
Bulk
Packaging
-40C
Minimum Operating Temperature
Through Hole
Mounting Style
N/A
Maximum Output Current
N/A
Release Point Min-Max (Brp)
+125C
Maximum Operating Temperature
Linear Hall-Effect Sensor
Type
3 - 12V
Operating Supply Voltage
TO-92
Package-Case
