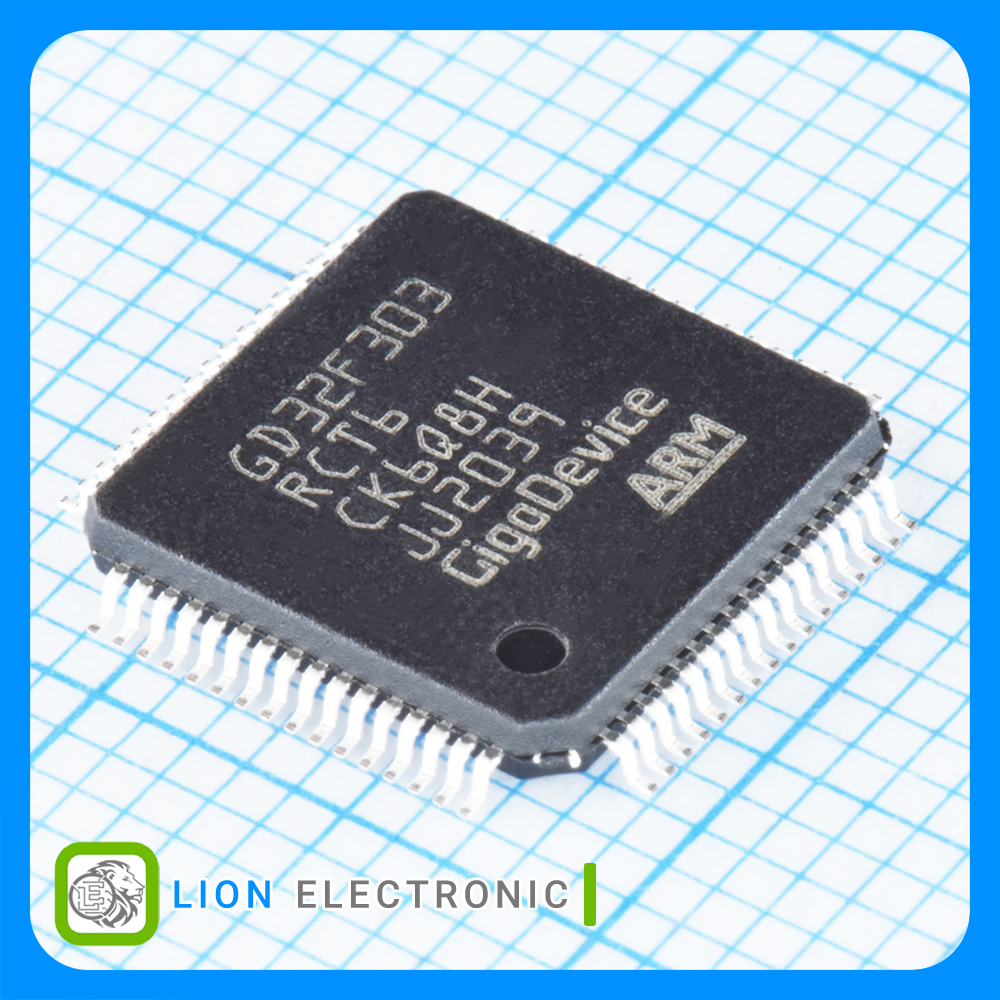

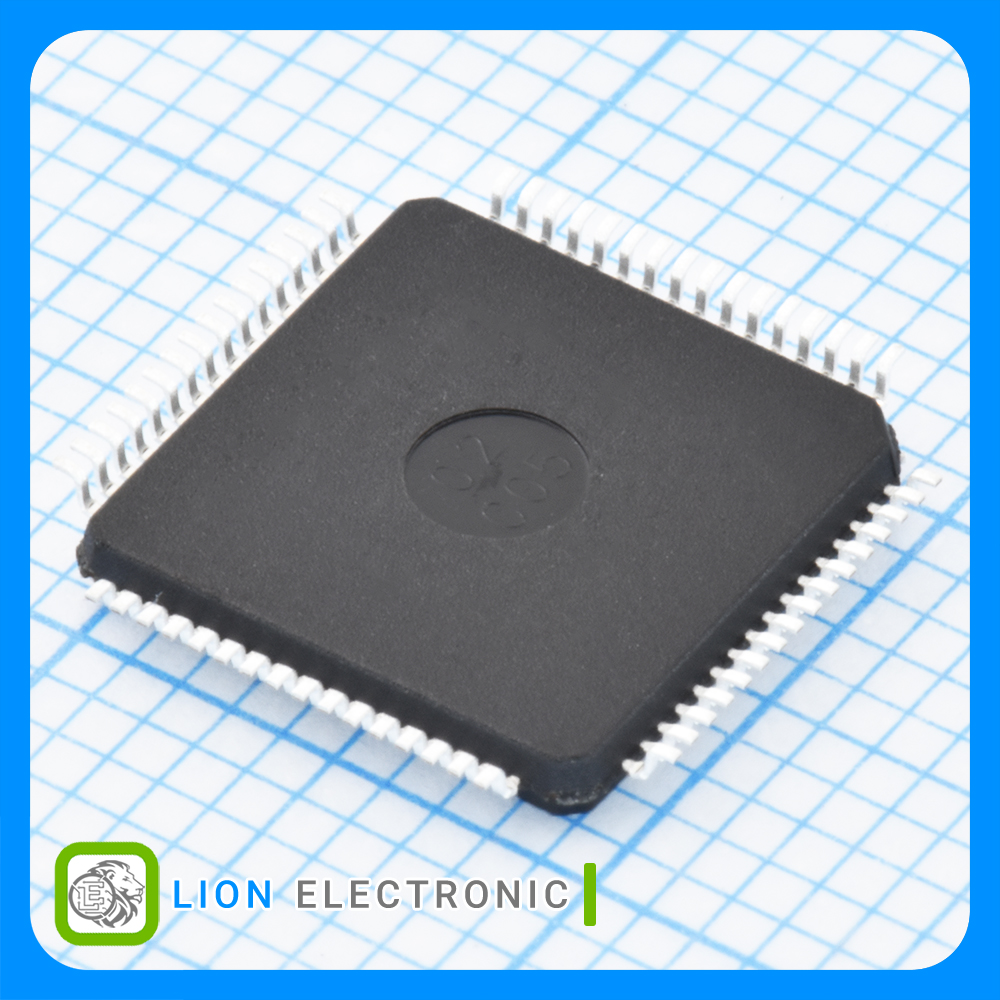

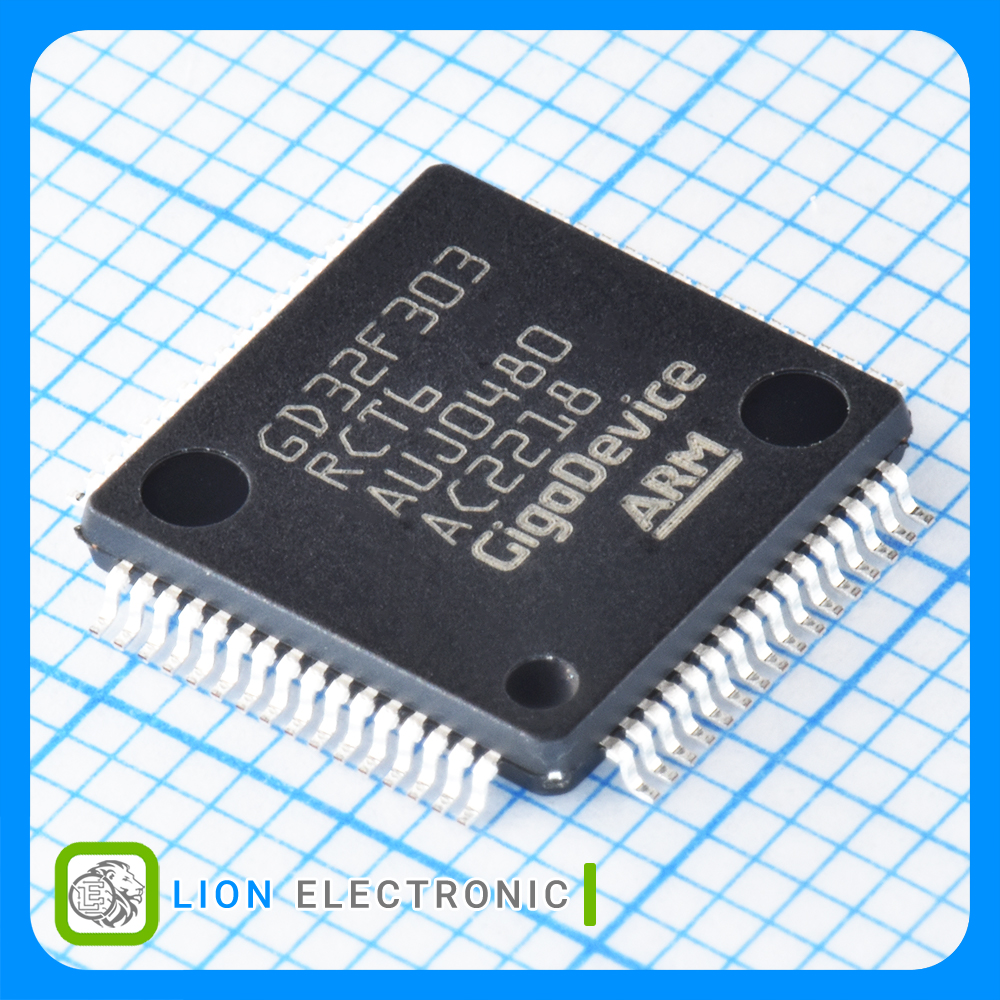

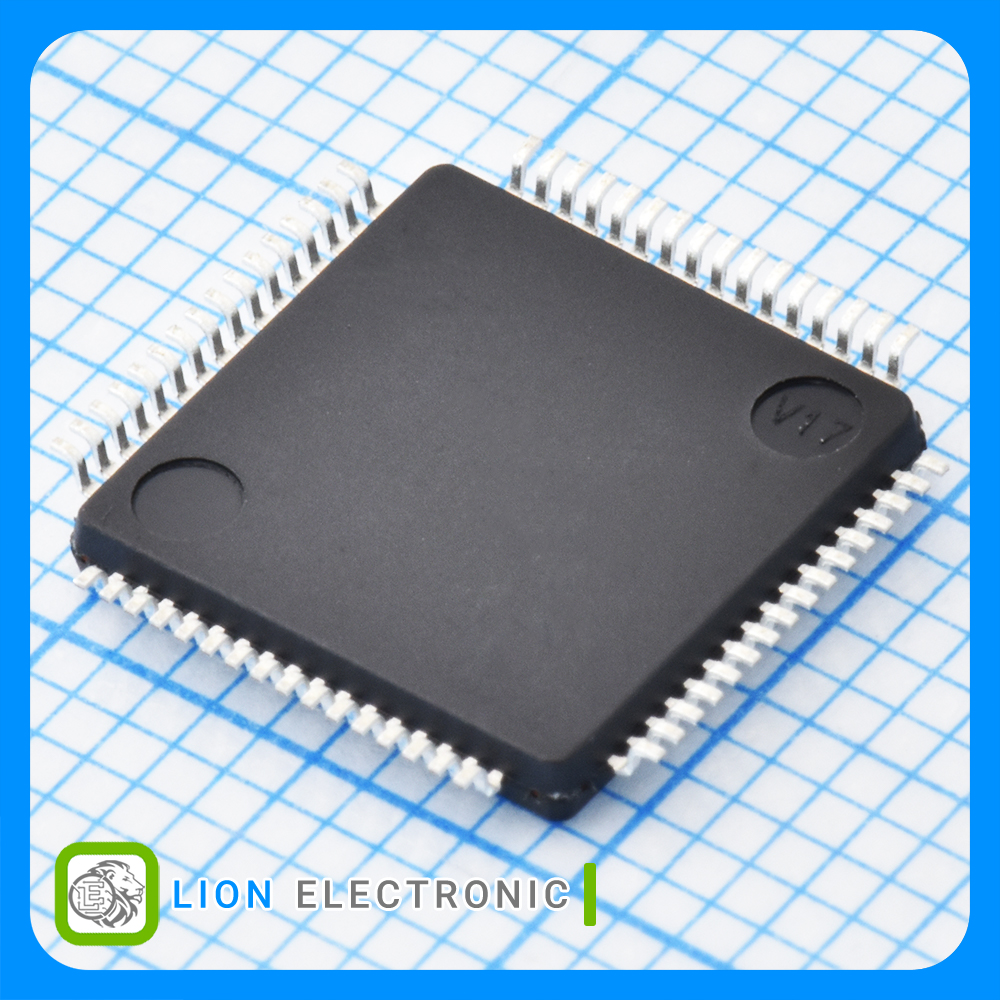

GD32F303RCT6
GD32F303RCT6
Part Number
2555
Lion Part
Datasheet
Giga Device Manufacture
میکروکنترلر ARM Cortex M4 با معماری 32 بیتی 120 مگاهرتز 256 کیلوبایت فلش 48 کیلوبایت رم با پکیج LQFP-64
ARM Cortex M4 32bit Microcontroller 120MHz, 256kB Flash, 48kB RAM with LQFP-64 Package
معرفی
میکروکنترلر ARM Cortex M4 با معماری 32 بیتی 120 مگاهرتز 256 کیلوبایت فلش 48 کیلوبایت رم با پکیج LQFP-64
ARM Cortex M4 32bit Microcontroller 120MHz, 256kB Flash, 48kB RAM with LQFP-64 Package
Specifications
- Series: GD32F3
- Core: ARM Cortex M4
- Interface Type: CAN, I2C, SPI, USART, USB
- Number of I/Os: 52
- ADC Resolution: 3 x 12bit
- Program Memory Size: 256kB
- Data RAM Size: 48kB
- Data Bus Width: 32bit
- Maximum Clock Frequency: 120MHz
- Operating Supply Voltage: 2.6 - 3.6V
- Mounting Style: SMD/SMT
- Package/Case: LQFP-64
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tray
مشخصات GD32F303RCT6
GD32F303RCT6
Part Number
GD32F3
Series
32bit
Data Bus Width
-40C
Minimum Operating Temperature
Tray
Packaging
3 x 12bit
ADC Resolution
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
ARM Cortex M4
Core
256kB
Program Memory Size
120MHz
Maximum Clock Frequency
48kB
Data RAM Size
52
Number of I-Os
CAN, I2C, SPI, USART, USB
Interface Type
2.6 - 3.6V
Operating Supply Voltage
LQFP-64
Package-Case
