Lite-On
معرفی
دیود شاتکی دوبل کاتد مشترک 200 ولت 20 آمپر 2*10 آمپر با پکیج TO-220-3

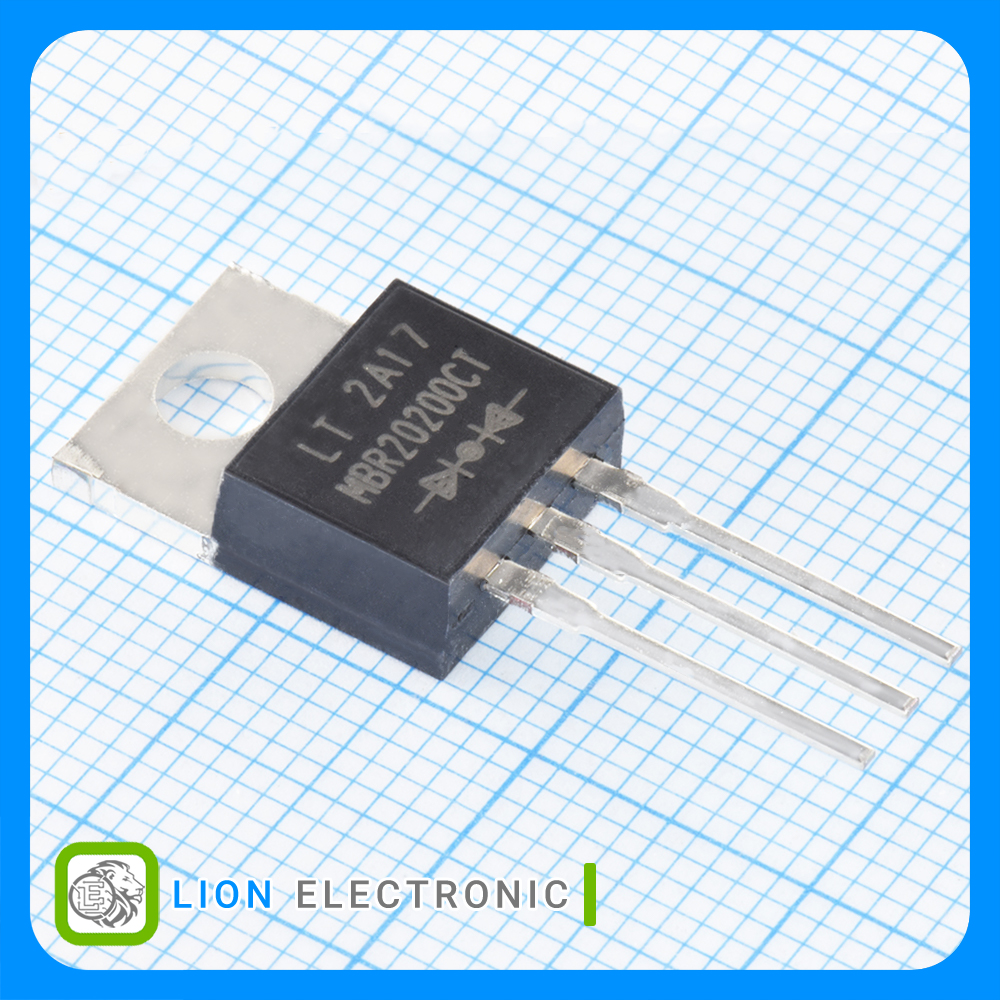

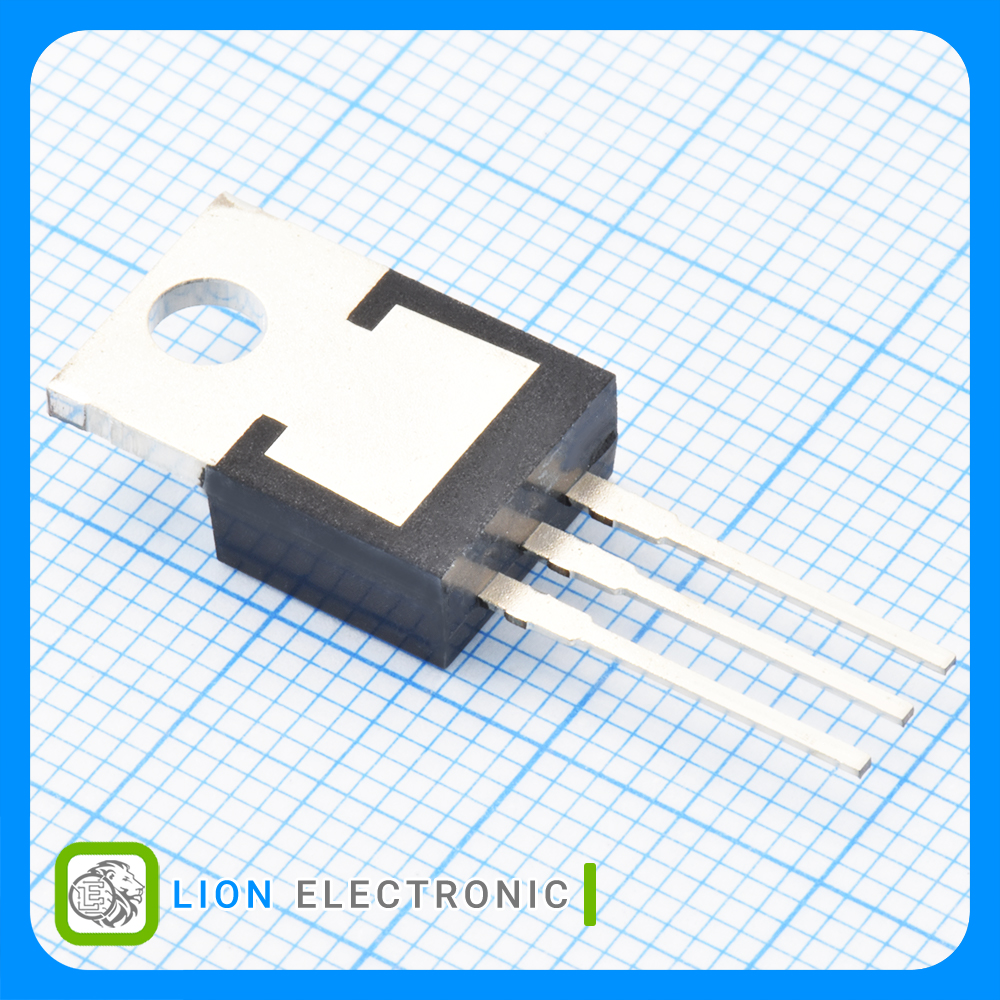

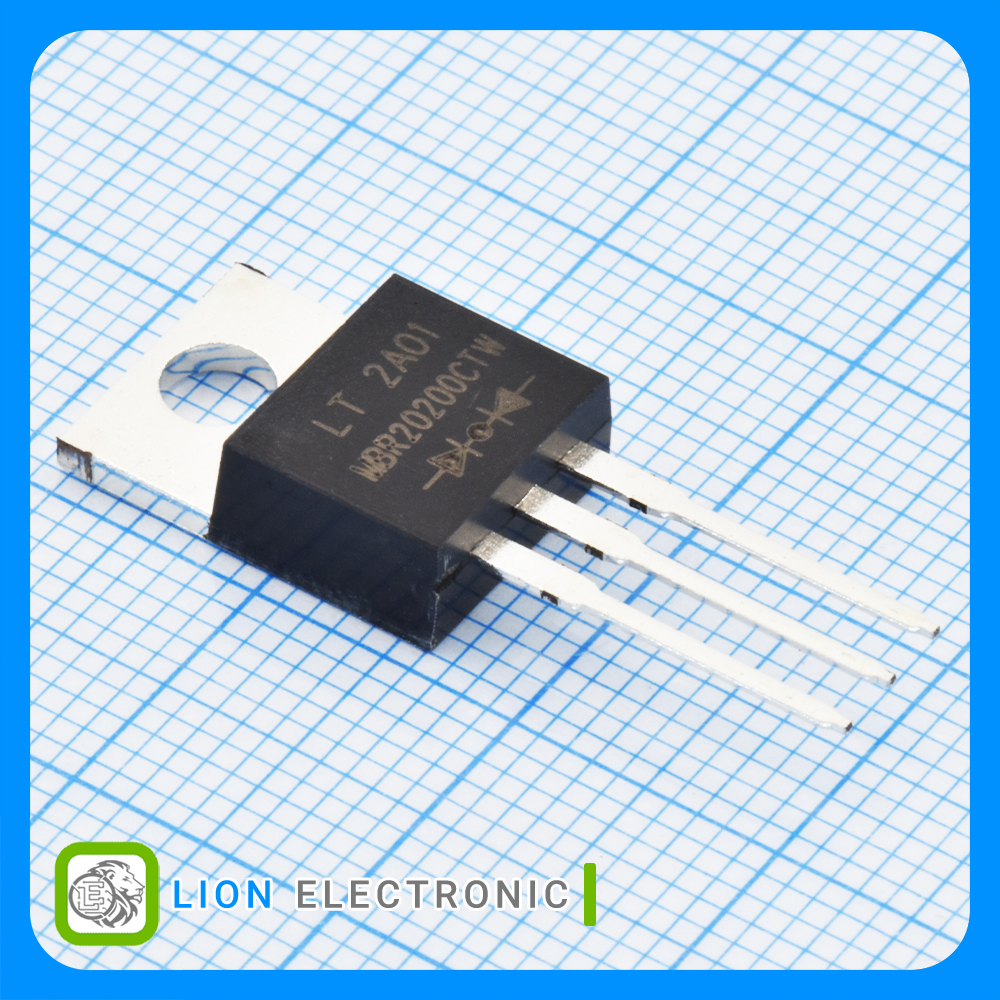

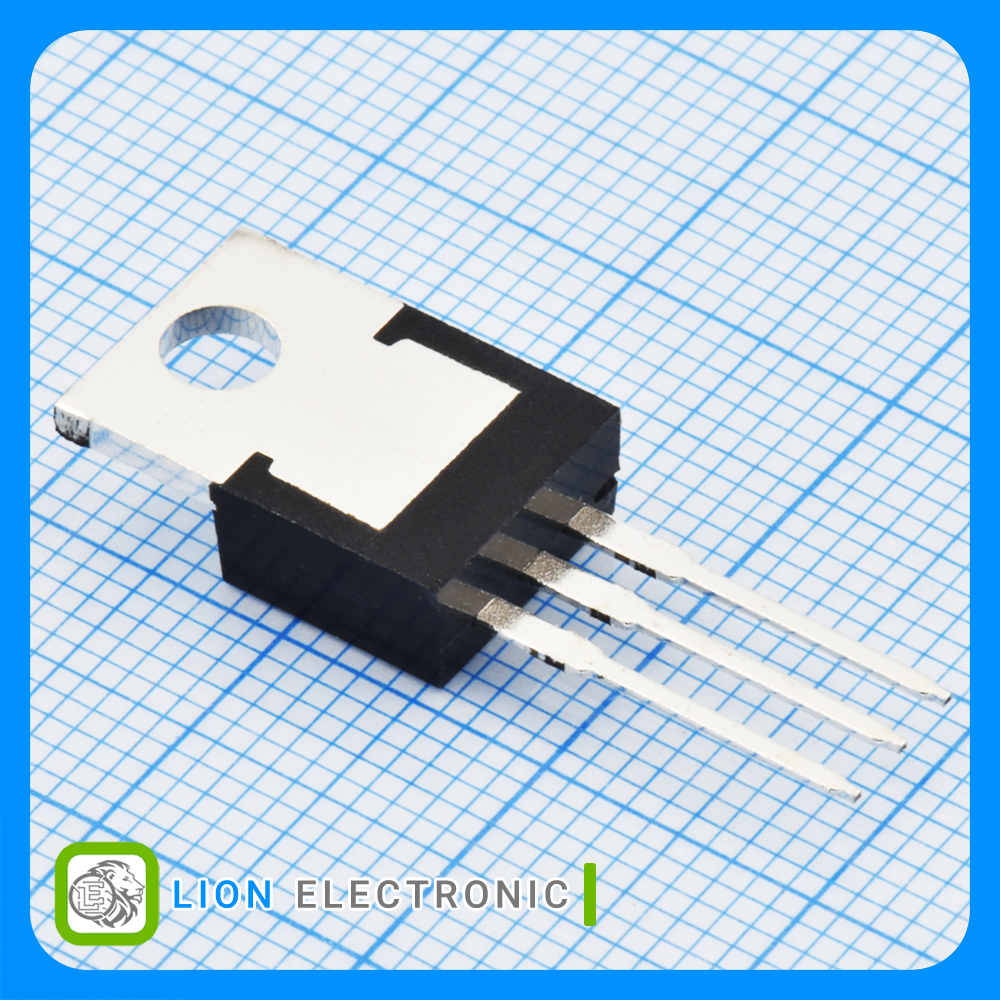

Schottky Diode Dual Common Cathode 200V, 20A, 2*10A with TO-220-3 Package
Specifications
- Configuration: Dual Common Cathode
- Vrrm - Repetitive Reverse Voltage: 200V
- If - Forward Current: 20A
- Ifsm - Forward Surge Current: 130A
- Vf - Forward Voltage: 900mV
- Ir - Reverse Current: 50uA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -50C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات دیود شاتکی MBR20200CT

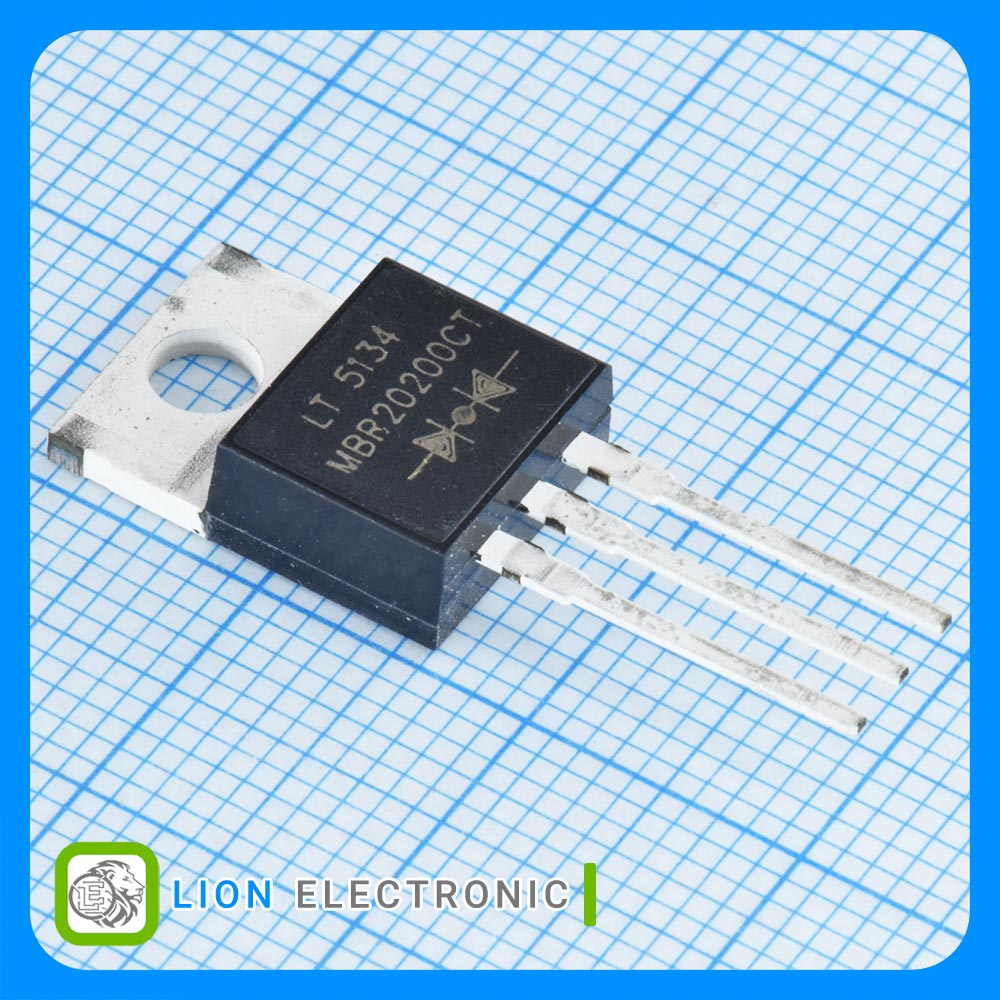

دیود شاتکی MBR20200CT
Part Number
-50C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
200V
Vrrm - Repetitive Reverse Voltage
50uA
Ir - Reverse Current
130A
Ifsm - Forward Surge Current
Dual Common Cathode
Configuration
+175C
Maximum Operating Temperature
900mV
Vf - Forward Voltage
20A
If - Forward Current
TO-220
Package-Case
