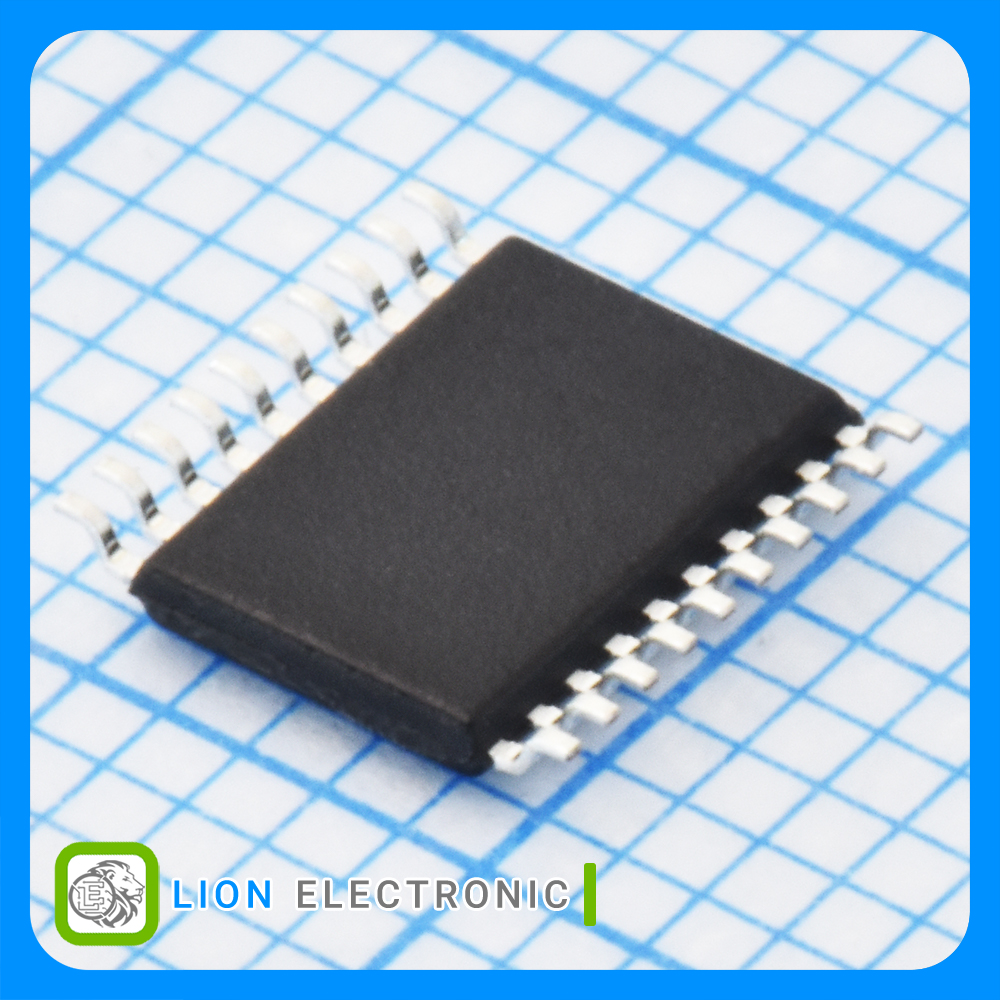

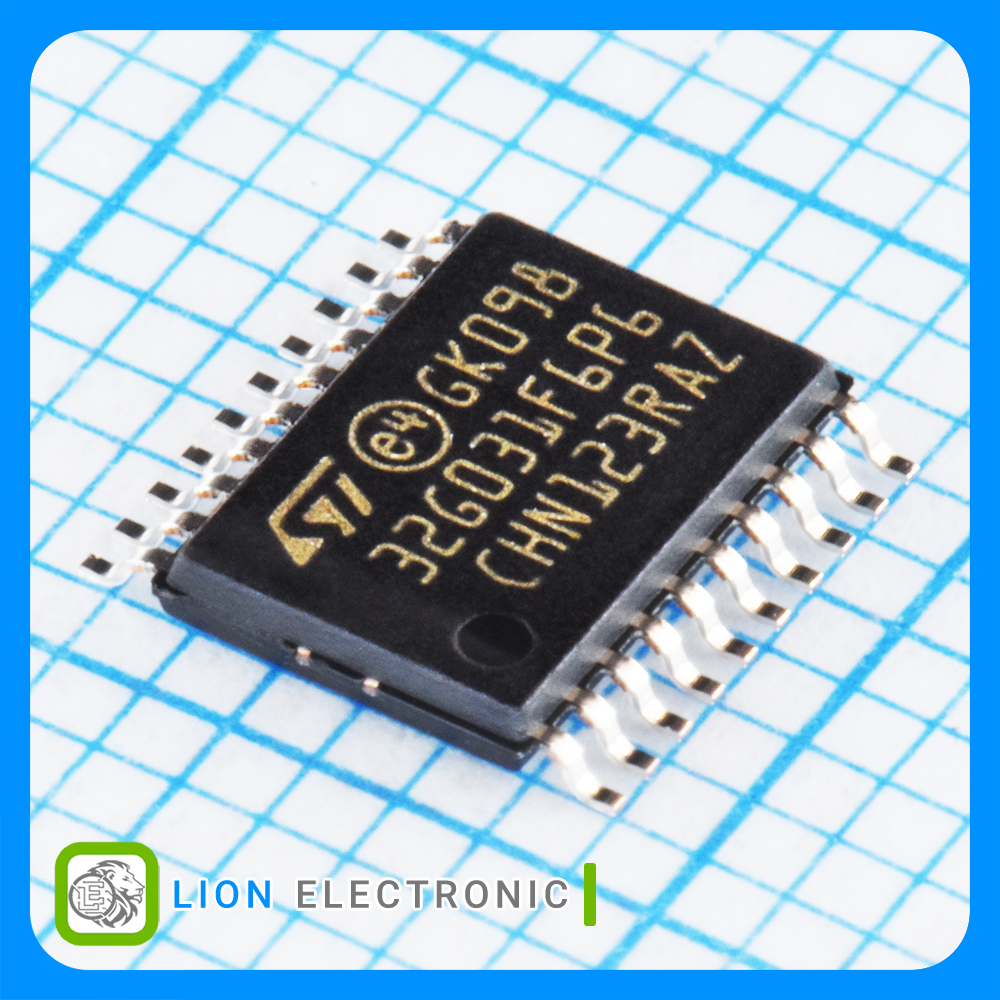

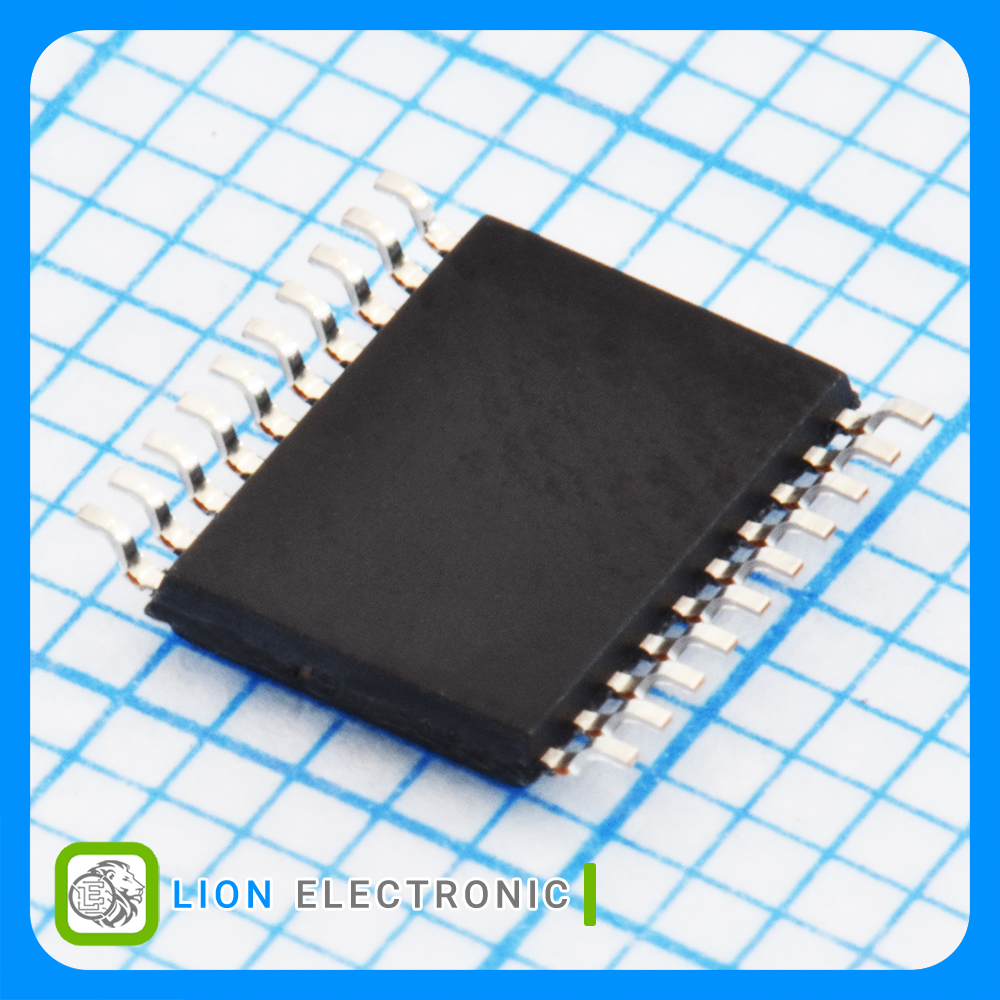

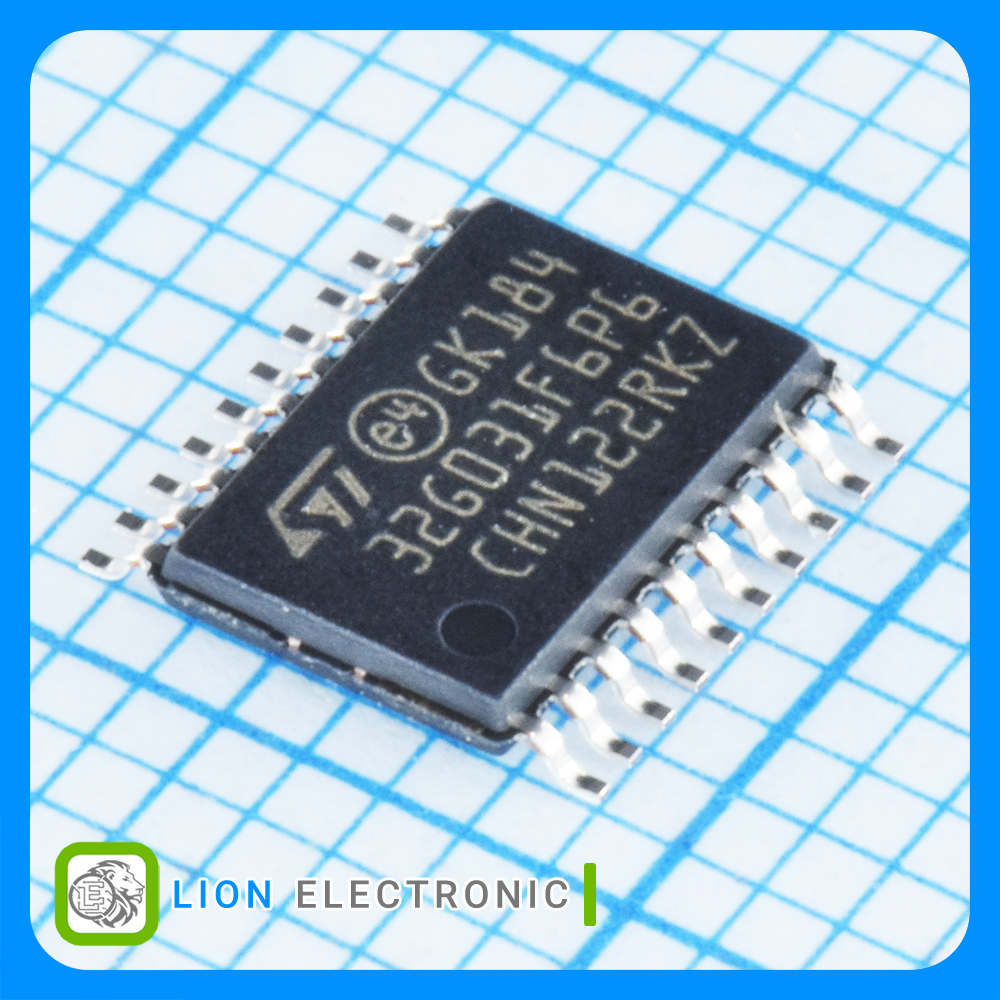

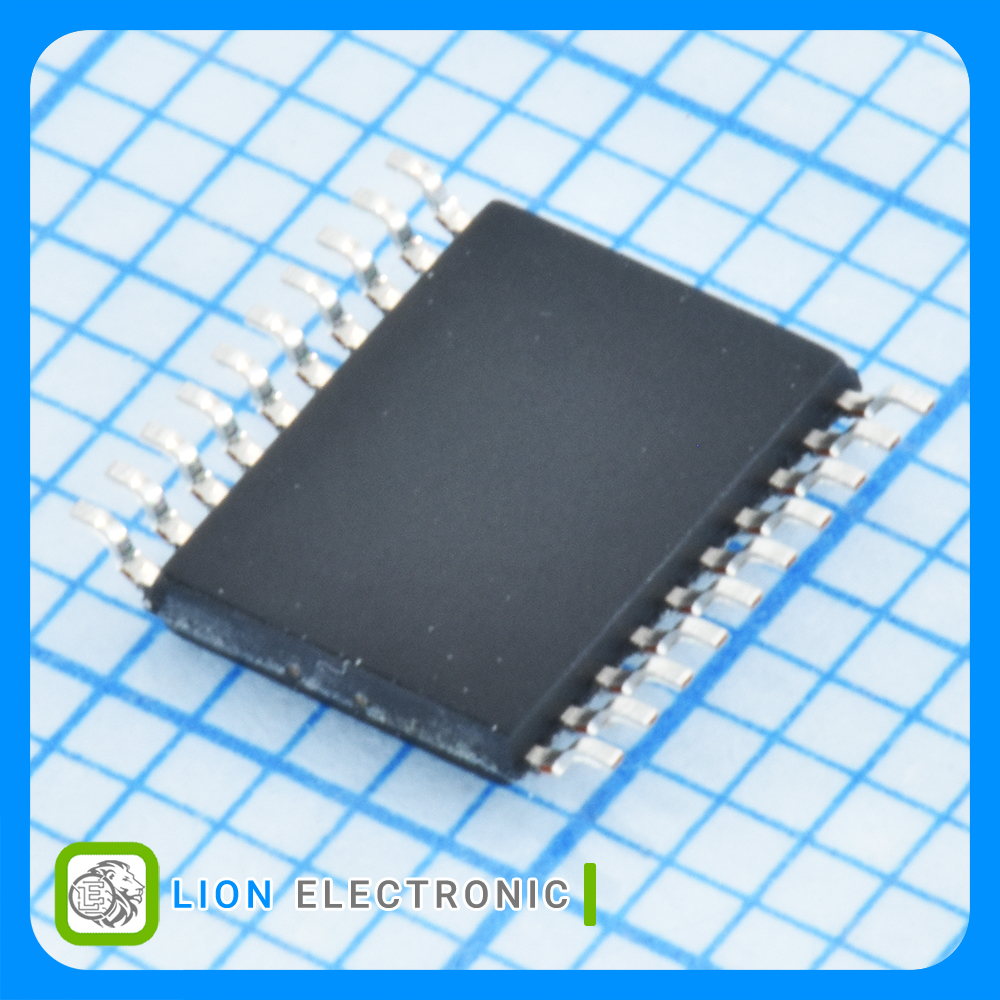

STM32G031F6P6
STM32G031F6P6
Part Number
2856
Lion Part
Datasheet
STMicroelectronics Manufacture
میکروکنترلر ARM Cortex M0+ با معماری 32 بیتی 64 مگاهرتز 64 کیلوبایت فلش 8 کیلوبایت رم با پکیج TSSOP-20
ARM Cortex M0+ 32bit Microcontroller 64MHz, 64kB Flash, 8kB RAM with TSSOP-20 Package
معرفی
میکروکنترلر ARM Cortex M0+ با معماری 32 بیتی 64 مگاهرتز 64 کیلوبایت فلش 8 کیلوبایت رم با پکیج TSSOP-20
ARM Cortex M0+ 32bit Microcontroller 64MHz, 64kB Flash, 8kB RAM with TSSOP-20 Package
Specifications
- Series: STM32G0
- Core: ARM Cortex M0+
- Interface Type: I2C, SPI, UART, USART
- Number of I/Os: 18
- ADC Resolution: 12bit
- Program Memory Size: 64kB
- Data RAM Size: 8kB
- Data Bus Width: 32bit
- Maximum Clock Frequency: 64MHz
- Operating Supply Voltage: 1.7 - 3.6V
- Mounting Style: SMD/SMT
- Package/Case: TSSOP-20
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات میکروکنترلر STM32G031F6P6
میکروکنترلر STM32G031F6P6
Part Number
12bit
ADC Resolution
32bit
Data Bus Width
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Tube
Packaging
+85C
Maximum Operating Temperature
ARM Cortex M0+
Core
18
Number of I-Os
64kB
Program Memory Size
STM32G0
Series
64MHz
Maximum Clock Frequency
8kB
Data RAM Size
1.7 - 3.6V
Operating Supply Voltage
I2C, SPI, UART, USART
Interface Type
TSSOP-20
Package-Case
