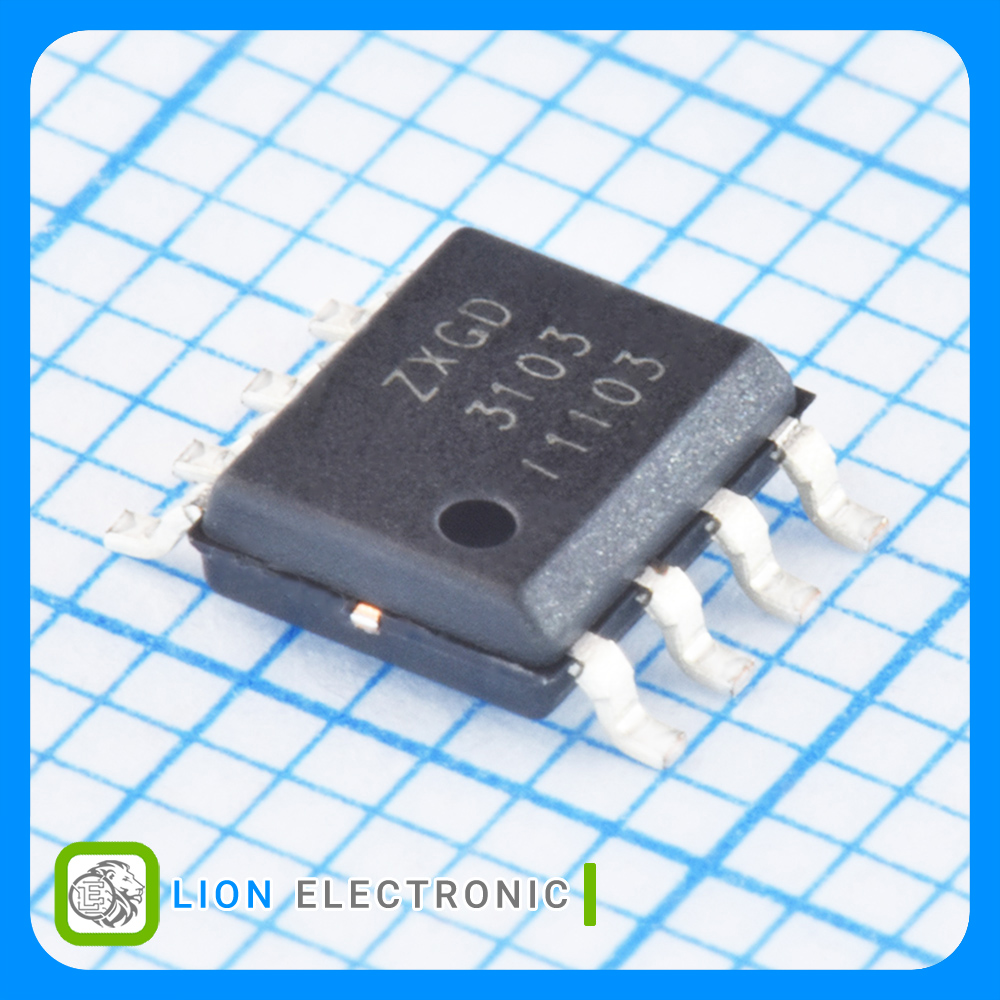

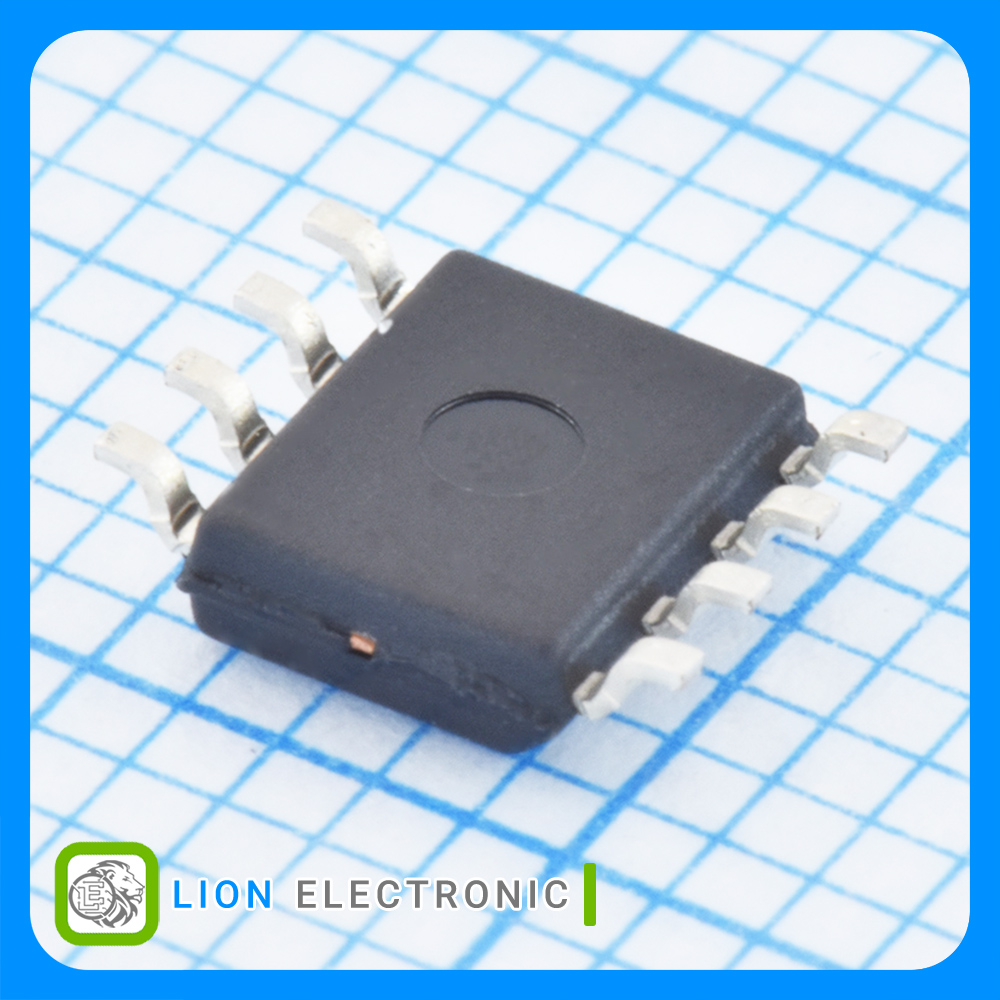

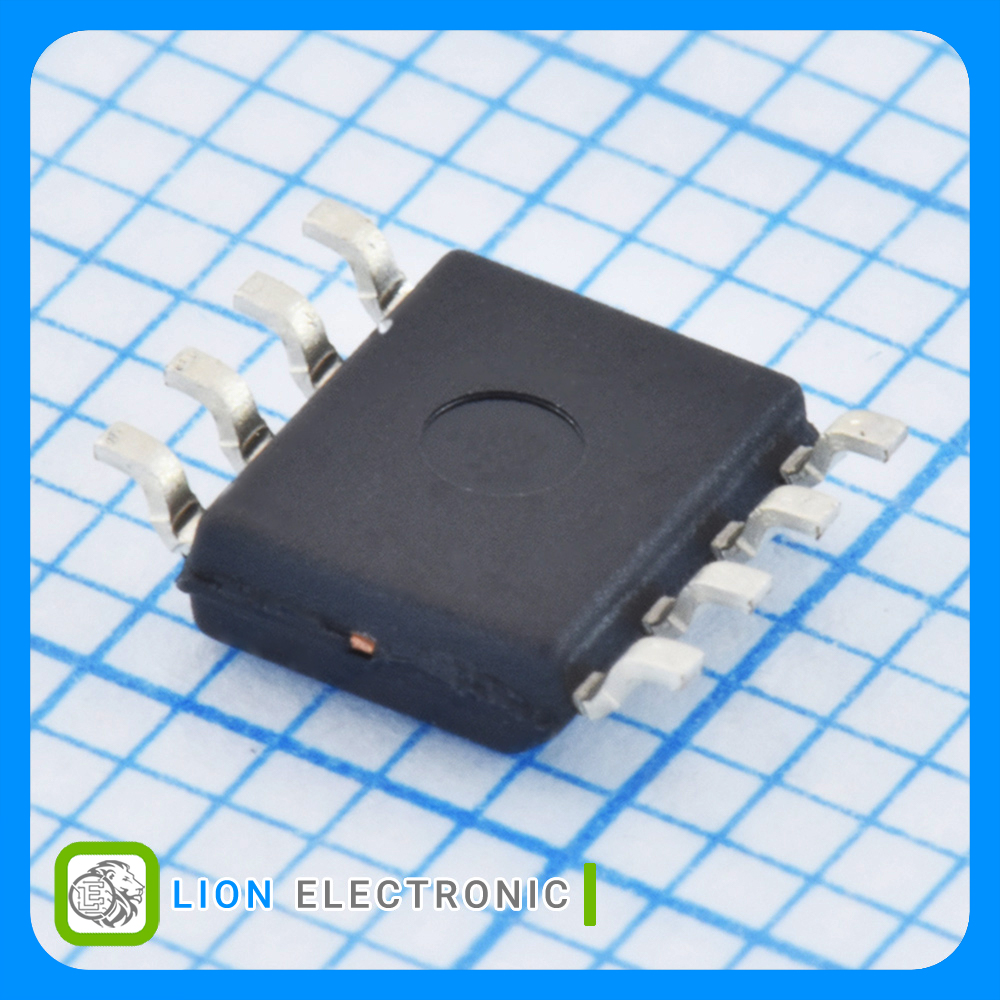

ZXGD3103N8TC
ZXGD3103N8TC
Part Number
2894
Lion Part
Datasheet
Diodes Incorporated Manufacture
کنترلر رکتیفایر سنکرون 5 تا 15 ولت جریان 6 آمپر فرکانس 250 کیلوهرتز مناسب برای منابع تغذیه با پکیج SOIC-8
Synchronous Rectifier Controller 5V-15V, 6A, 250kHz, Intended to Drive Mosfets Configured as Ideal Diode Replacements with SOIC-8 Package
معرفی
کنترلر رکتیفایر سنکرون 5 تا 15 ولت جریان 6 آمپر فرکانس 250 کیلوهرتز مناسب برای منابع تغذیه با پکیج SOIC-8
Synchronous Rectifier Controller 5V-15V, 6A, 250kHz, Intended to Drive Mosfets Configured as Ideal Diode Replacements with SOIC-8 Package
Specifications
- Number of Channels: 1
- Switching Frequency: 250kHz
- Output Current: 6A
- Supply Voltage - Min: 5V
- Supply Voltage - Max: 15V
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات کنترلر ماسفت سنکرون ZXGD3103N8TC
کنترلر ماسفت سنکرون ZXGD3103N8TC
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+150C
Maximum Operating Temperature
21ns
Fall Time
490mW
Pd - Power Dissipation
15V
Supply Voltage - Max
250kHz
Switching Frequency
450ns
Rise Time
5V
Supply Voltage - Min
MOSFET Gate Drivers
Product
6A
Output Current
Synchronous Rectifier
Type
5.16mA
Operating Supply Current
SOIC-8
Package-Case
