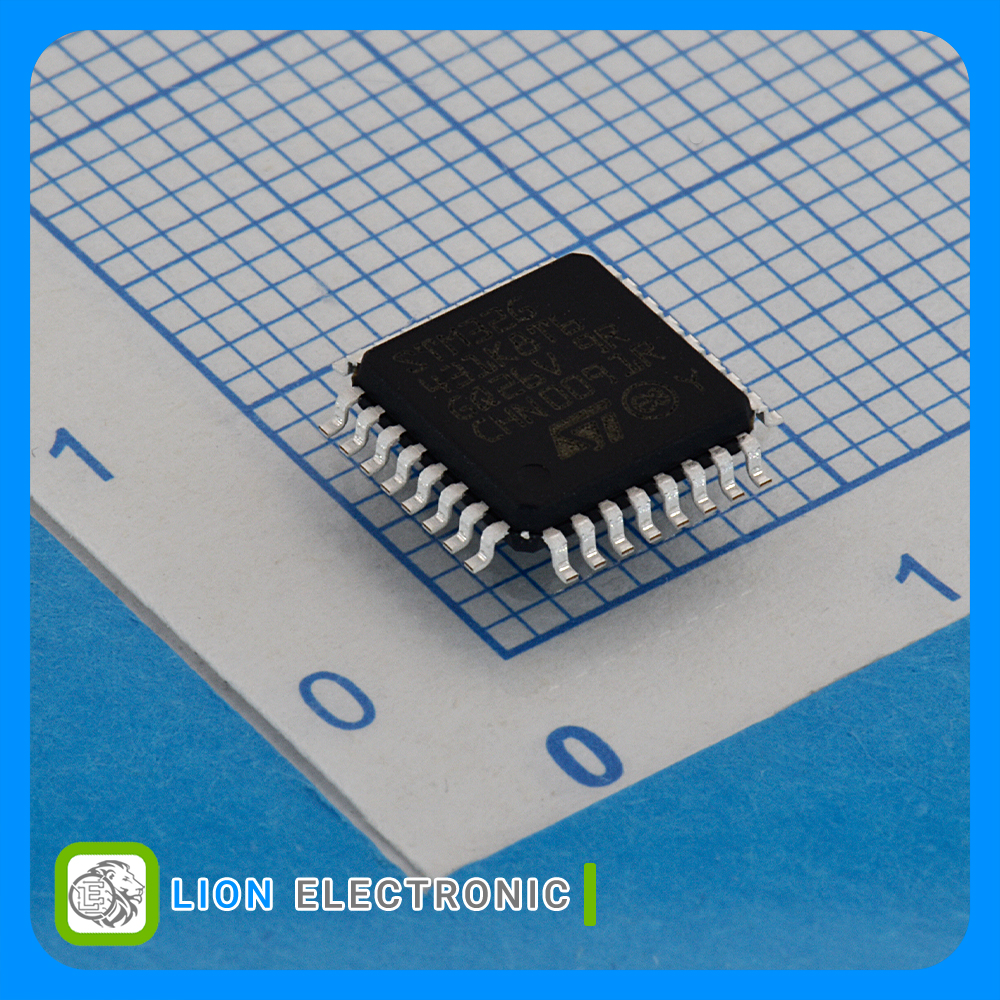

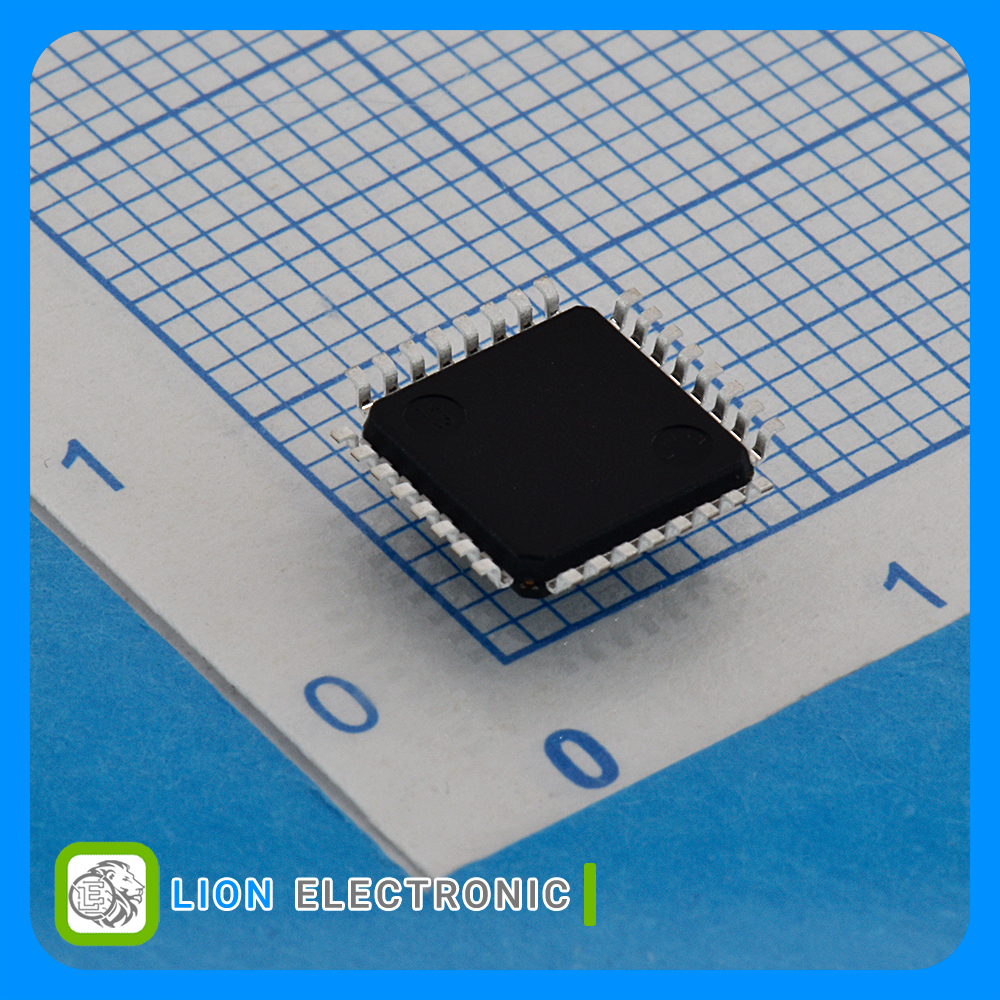

STM32G431K8T6
STM32G431K8T6
Part Number
2910
Lion Part
Datasheet
STMicroelectronics Manufacture
میکروکنترلر ARM Cortex M4 با معماری 32 بیتی 170 مگاهرتز 64 کیلوبایت فلش 32 کیلوبایت SRAM با پکیج LQFP-32
ARM Cortex M4 32bit Microcontroller 170MHz, 64kB Flash, 32kB SRAM with LQFP-32 Package
معرفی
میکروکنترلر ARM Cortex M4 با معماری 32 بیتی 170 مگاهرتز 64 کیلوبایت فلش 32 کیلوبایت SRAM با پکیج LQFP-32
ARM Cortex M4 32bit Microcontroller 170MHz, 64kB Flash, 32kB SRAM with LQFP-32 Package
Specifications
- Series: STM32G4
- Core: ARM Cortex M4
- Interface Type: I2C, SPI, USART, USB
- Number of I/Os: 26
- ADC Resolution: 2 x 12bit
- Program Memory Size: 64kB
- Data RAM Size: 32kB
- Data Bus Width: 32bit
- Maximum Clock Frequency: 170MHz
- Operating Supply Voltage: 1.71 - 3.6V
- Mounting Style: SMD/SMT
- Package/Case: LQFP-32
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tray
مشخصات میکروکنترلر STM32G431K8T6
میکروکنترلر STM32G431K8T6
Part Number
STM32G4
Series
32bit
Data Bus Width
-40C
Minimum Operating Temperature
2 x 12bit
ADC Resolution
Tray
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
ARM Cortex M4
Core
64kB
Program Memory Size
26
Number of I-Os
32kB
Data RAM Size
170MHz
Maximum Clock Frequency
1.71 - 3.6V
Operating Supply Voltage
I2C, SPI, USART, USB
Interface Type
LQFP-32
Package-Case
