Bourns
معرفی
مقاومت تریمر 5 کیلو اهم سایز 3 میلیمتر تلرانس 25% 100 میلیوات قاب باز (Open Frame)

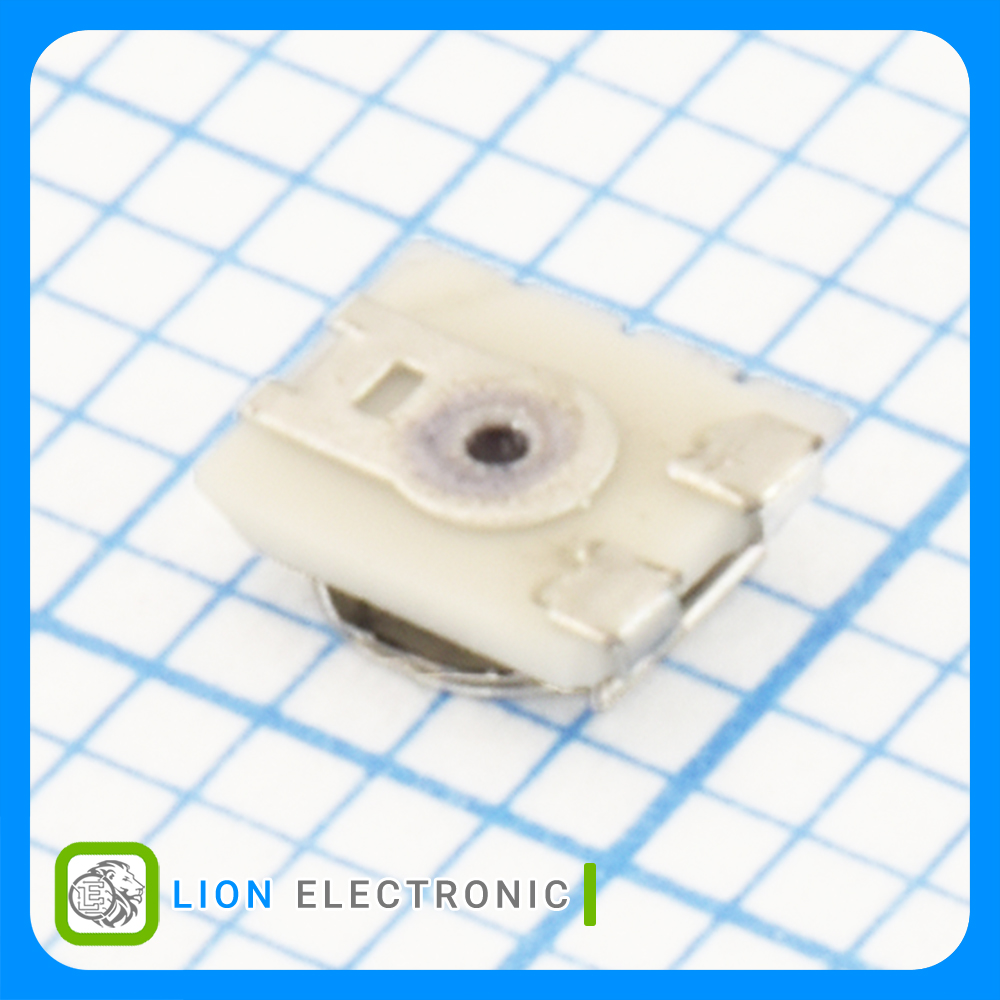

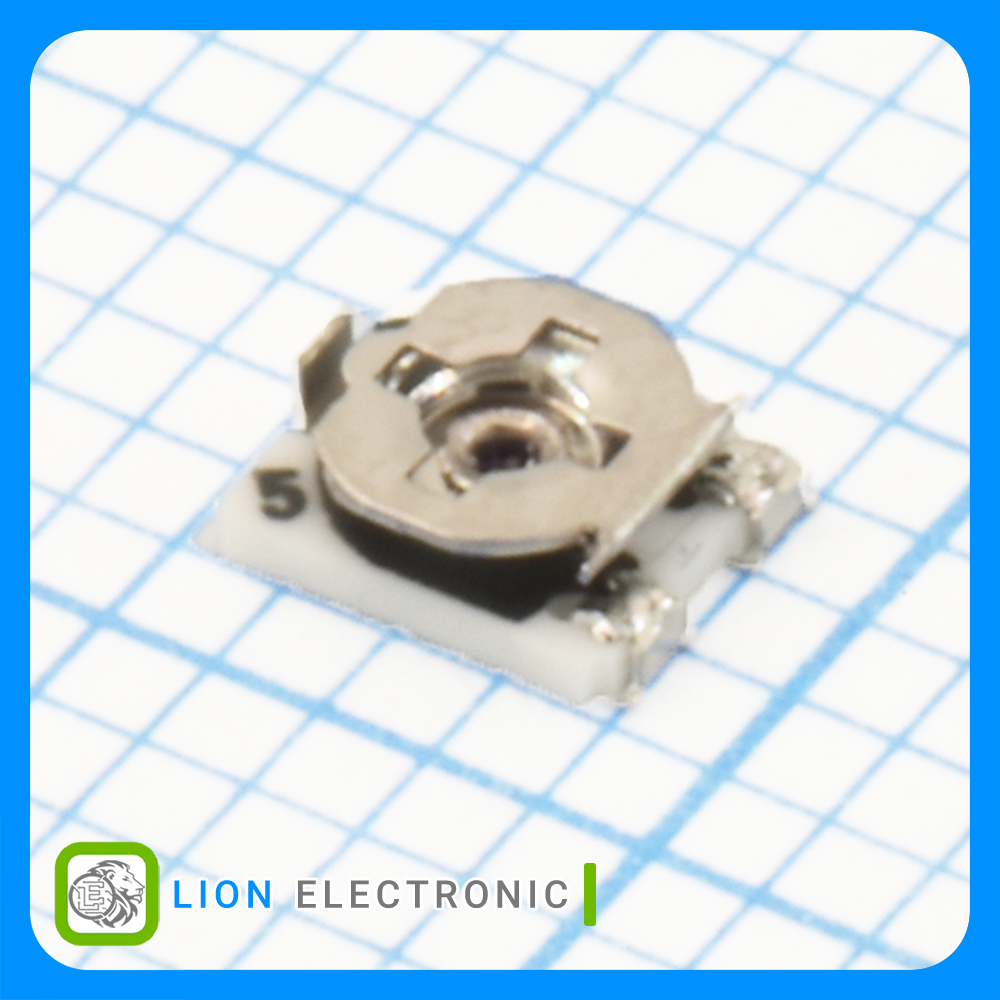

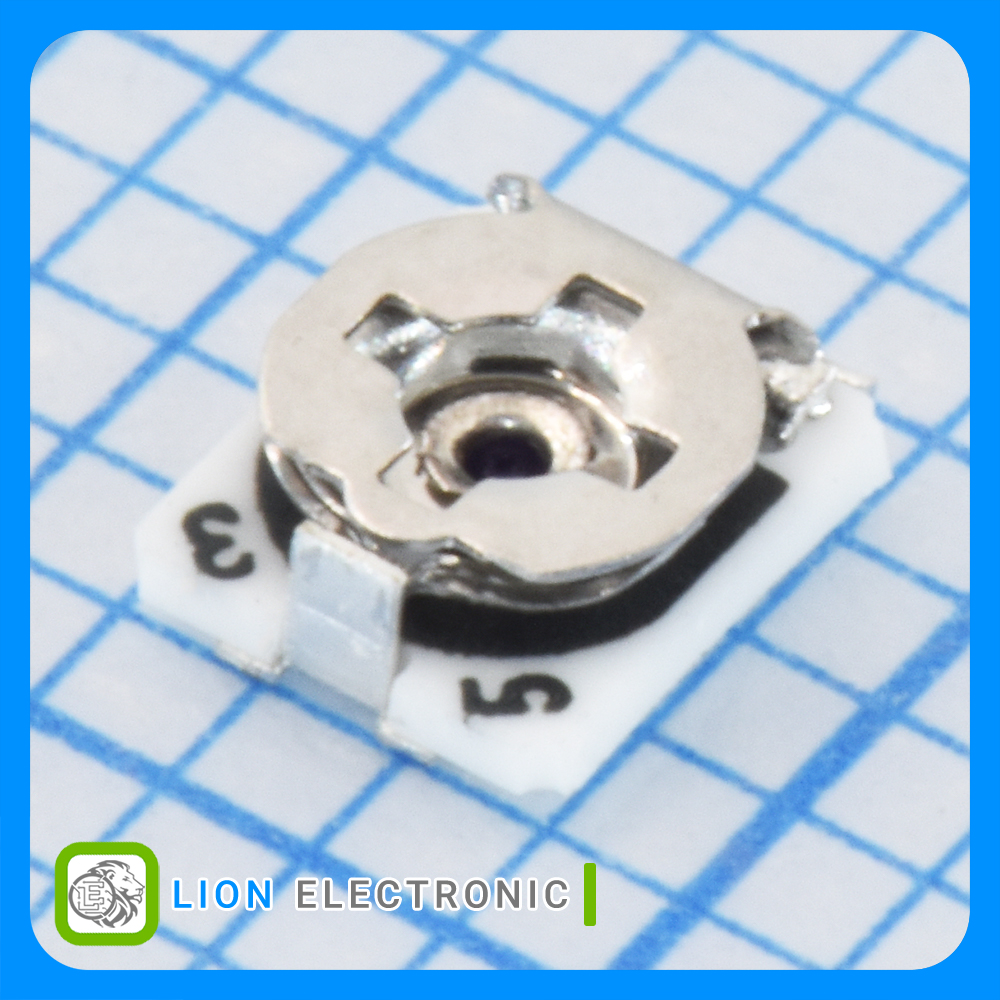

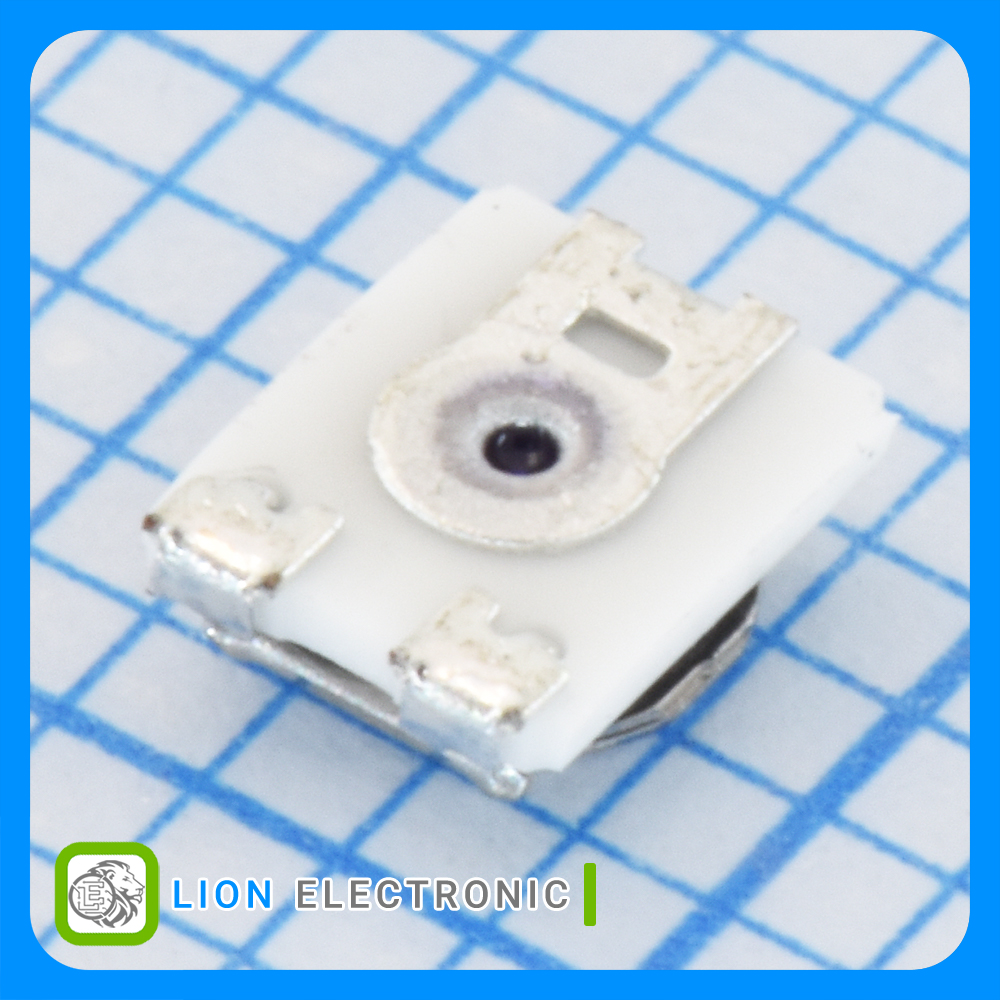

Trimmer Resistor 5kΩ, 25%, 100mW, 3mm SMD Open FRM
Specifications
- Adjustment: Top Cross
- Resistance: 5KΩ
- Power Rating: 100mW
- Tolerance: 25%
- Temperature Coefficient: 250PPM/C
- Orientation: Vertical Adjustment
- Mounting Style: PCB Mount
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +120C
- Packaging: Reel
مشخصات پتانسیومتر TC33X-2-502E
پتانسیومتر TC33X-2-502E
Part Number
Top Cross
Adjustment
-
Element Type
Vertical Adjustment
Orientation
Reel
Packaging
-40C
Minimum Operating Temperature
PCB Mount
Mounting Style
100mW
Power Rating
25%
Tolerance
+120C
Maximum Operating Temperature
250PPM/C
Temperature Coefficient
5KΩ
Resistance
