Bourns
معرفی
پتانسیومتر مولتی ترن 200 اهم 25 ترن 500 میلیوات با تلرانس 10%

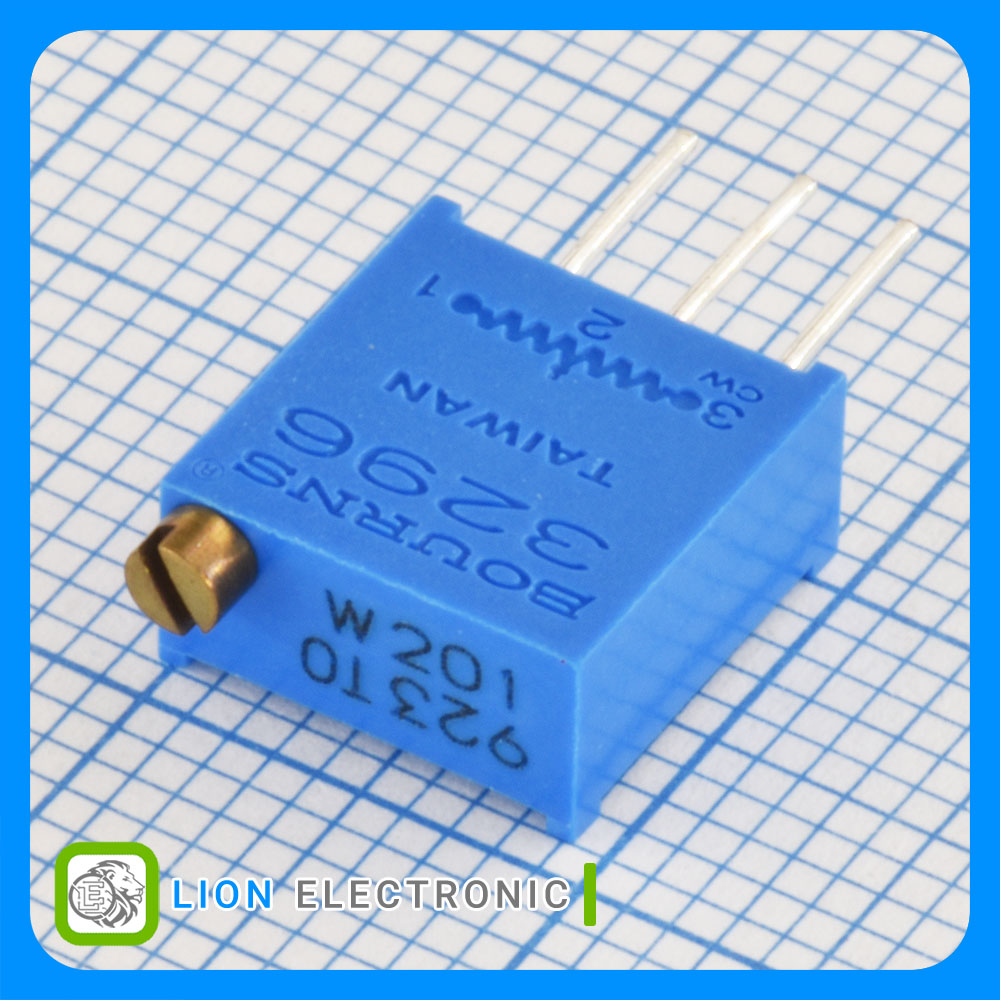

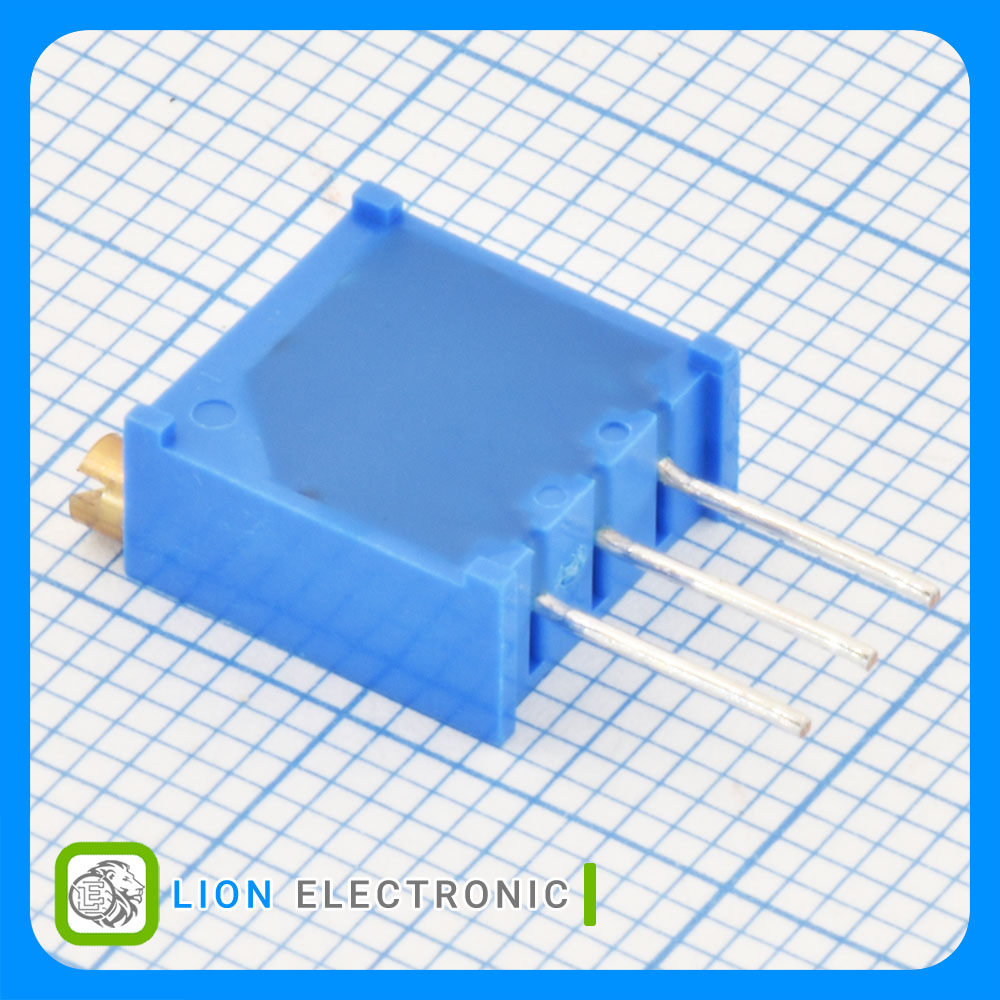

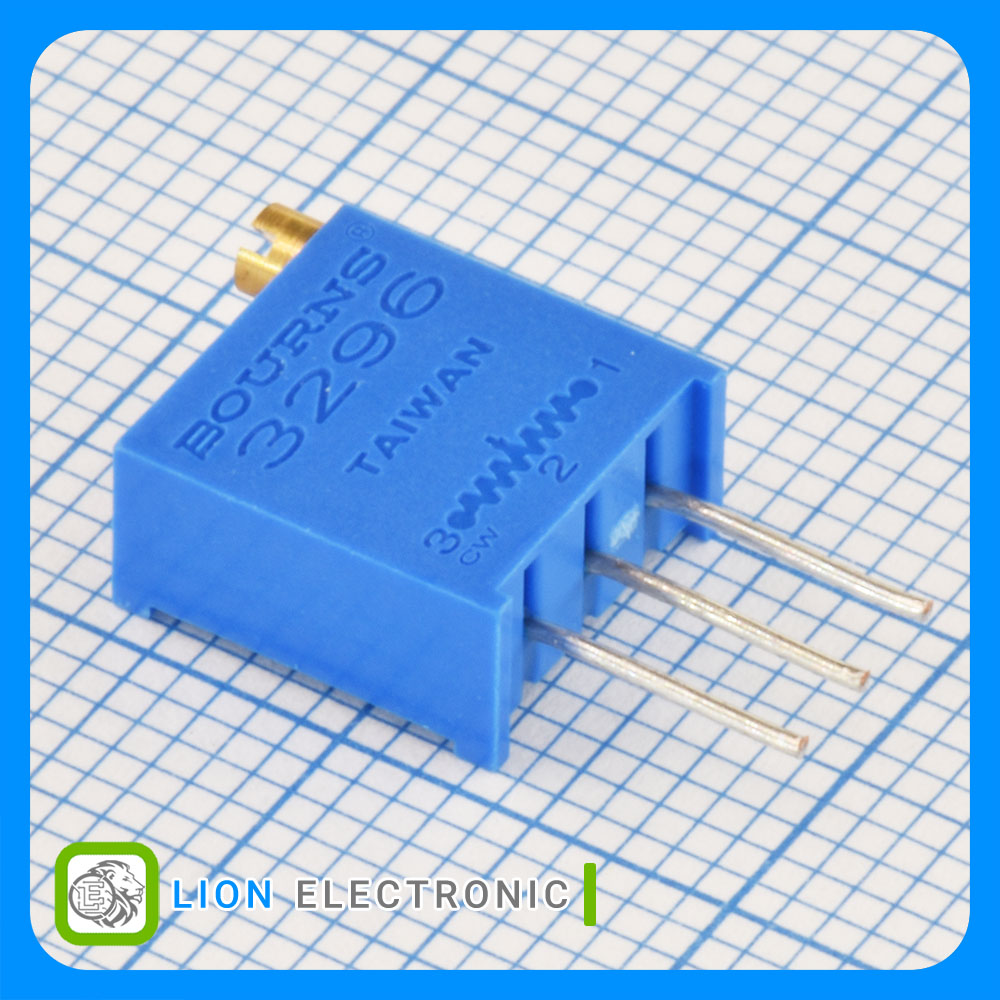

Trimmer Potentiometer 200Ω, 25 Turns, 500mW, 10% with 3296 Package
Specifications
- Adjustment: Top Cross
- Number of Turns: 25
- Resistance: 200Ω
- Voltage Rating: 300V
- Power Rating: 500mW
- Tolerance: 10%
- Temperature Coefficient: 100PPM/C
- Orientation: Vertical Adjustment
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات مولتی ترن 3296W-1-201
مولتی ترن 3296W-1-201
Part Number
Top Cross
Adjustment
25
Number of Turns
-55C
Minimum Operating Temperature
Vertical Adjustment
Orientation
Tube
Packaging
300V
Voltage Rating
10%
Tolerance
500mW
Power Rating
+125C
Maximum Operating Temperature
100PPM/C
Temperature Coefficient
200Ω
Resistance
