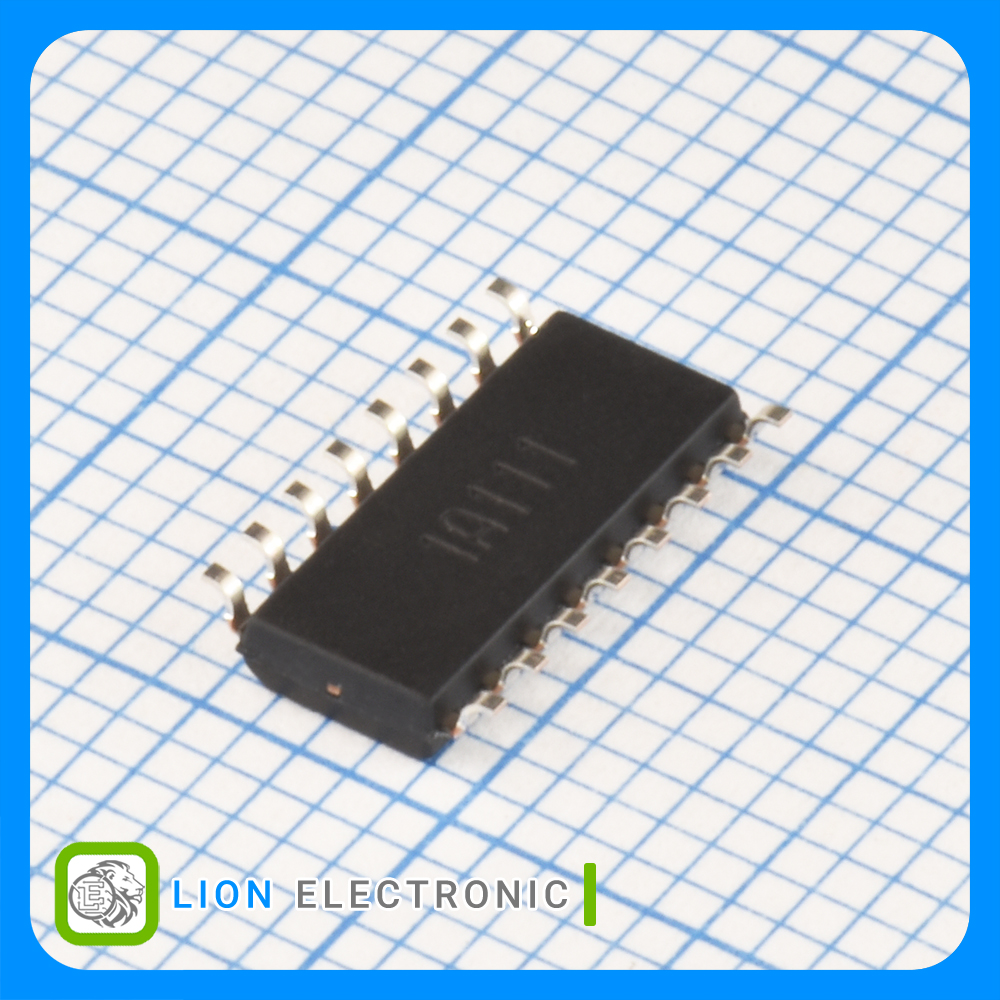

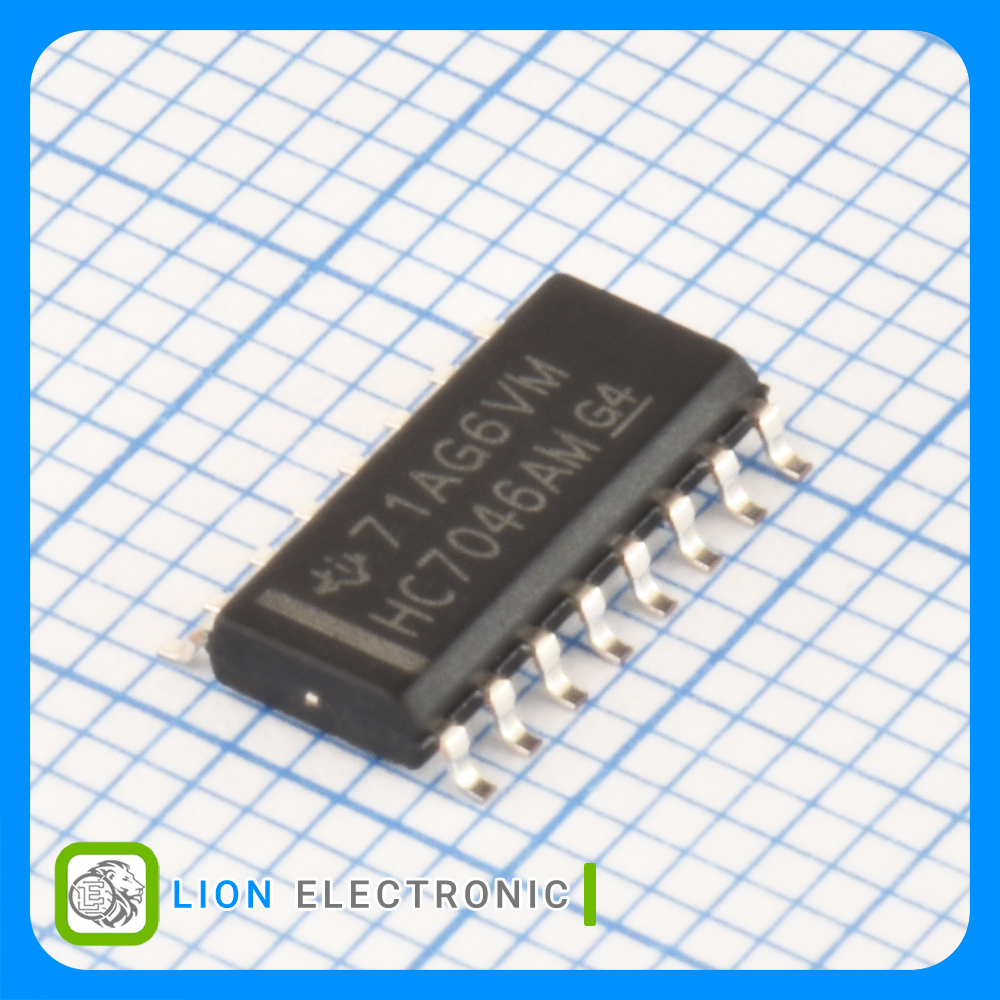

CD74HC7046AM
CD74HC7046AM
Part Number
3274
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی VCO/PLL با بازه ورودی 0 هرتز تا 38 مگاهرتز و خروجی 50 هرتز تا 50 مگاهرتز، ولتاژ 2 تا 6 ولت با پکیج SOIC-16 باریک
Phase Locked Loop with VCO and Lock Detector, input 0Hz to 38MHz with output 50Hz - 50MHz, 2V to 6V supply with SOIC-16 Narrow Package
معرفی
آیسی VCO/PLL با بازه ورودی 0 هرتز تا 38 مگاهرتز و خروجی 50 هرتز تا 50 مگاهرتز، ولتاژ 2 تا 6 ولت با پکیج SOIC-16 باریک
Phase Locked Loop with VCO and Lock Detector, input 0Hz to 38MHz with output 50Hz - 50MHz, 2V to 6V supply with SOIC-16 Narrow Package
Specifications
- Type: PLL
- Minimum Input Frequency: 0Hz
- Maximum Input Frequency: 38MHz
- Output Frequency Range: 50Hz - 50MHz
- Supply Voltage - Max: 6V
- Supply Voltage - Min: 2V
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16 Narrow
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات آیسی(PLL) CD74HC7046AM
آیسی(PLL) CD74HC7046AM
Part Number
50Hz - 50MHz
Output Frequency Range
0Hz
Minimum Input Frequency
38MHz
Maximum Input Frequency
-55C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
2V
Supply Voltage - Min
6V
Supply Voltage - Max
PLL
Type
SOIC-16W
Package-Case
