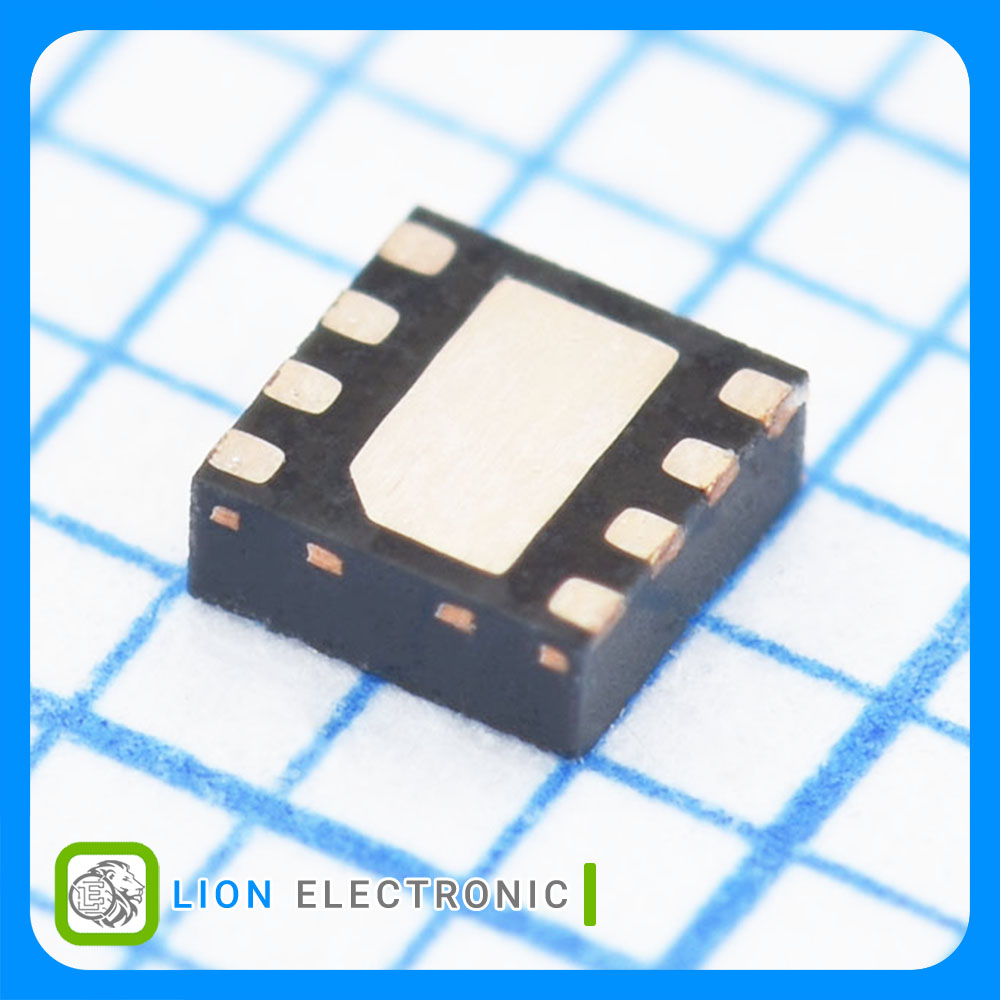

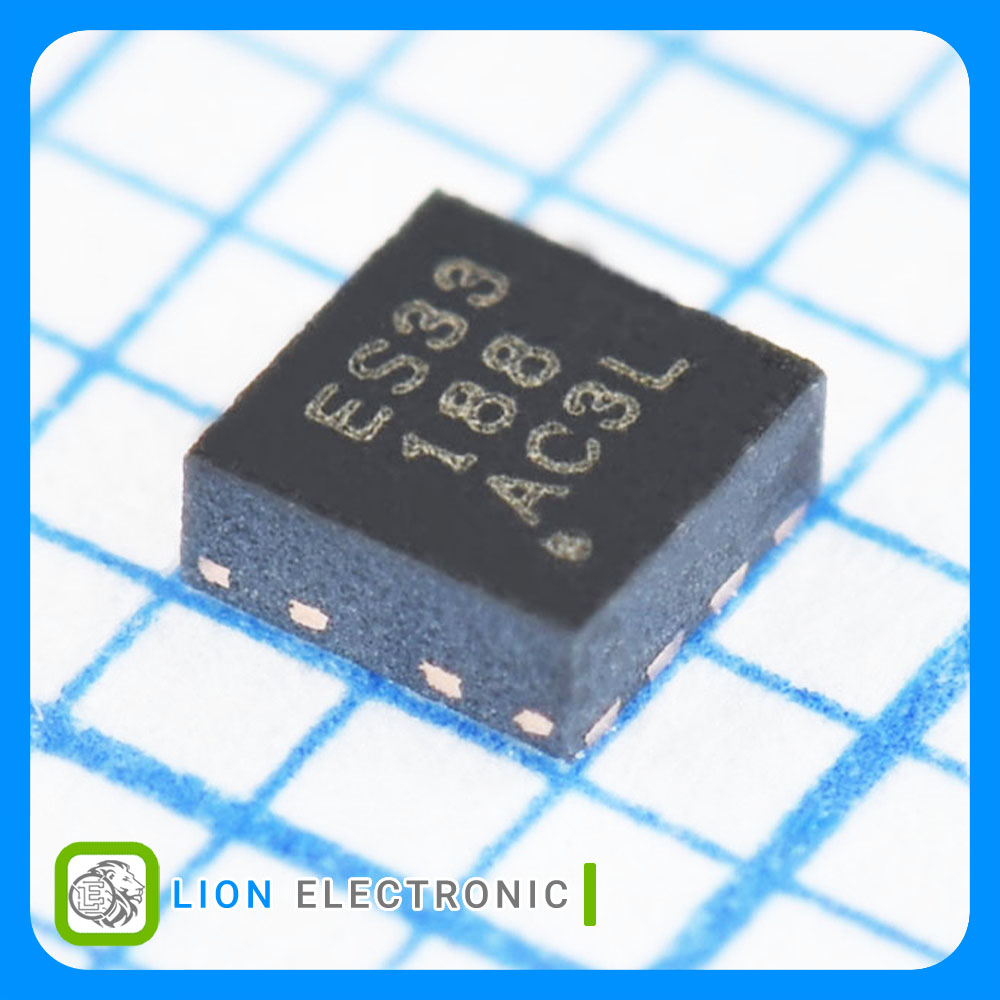

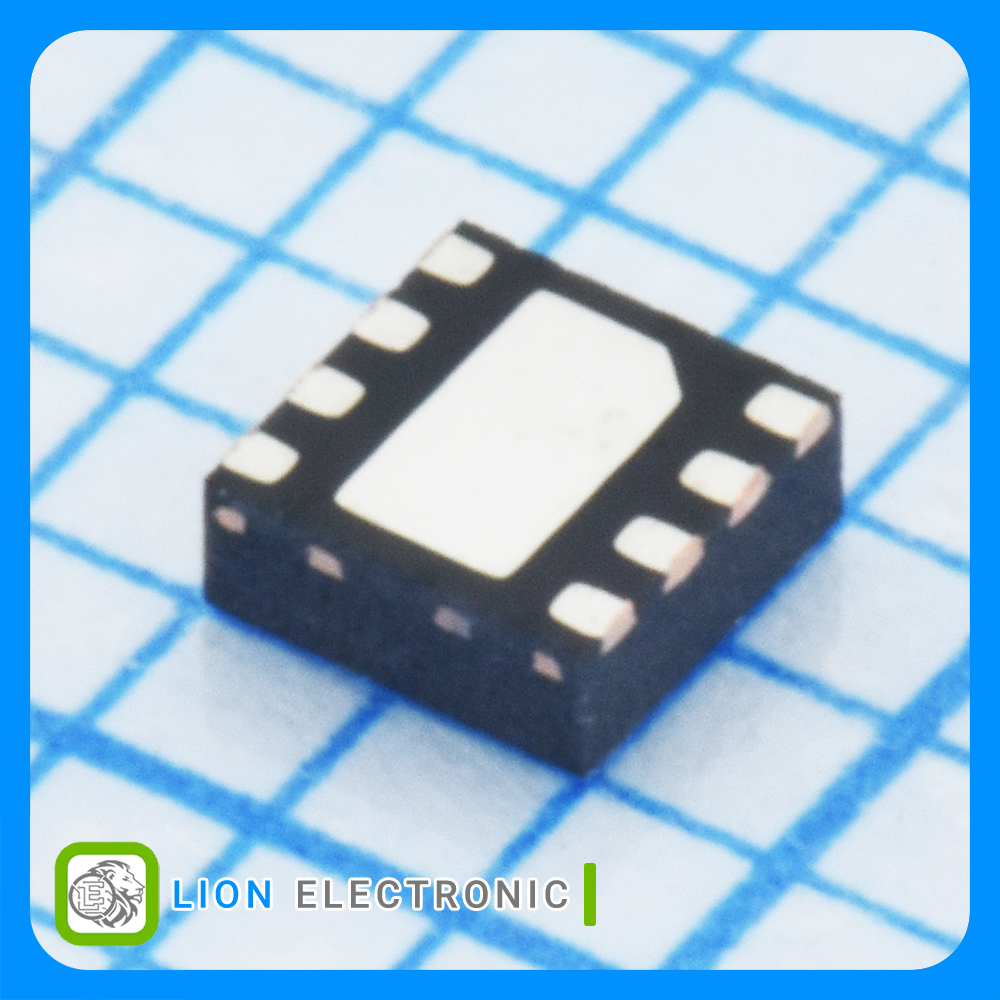

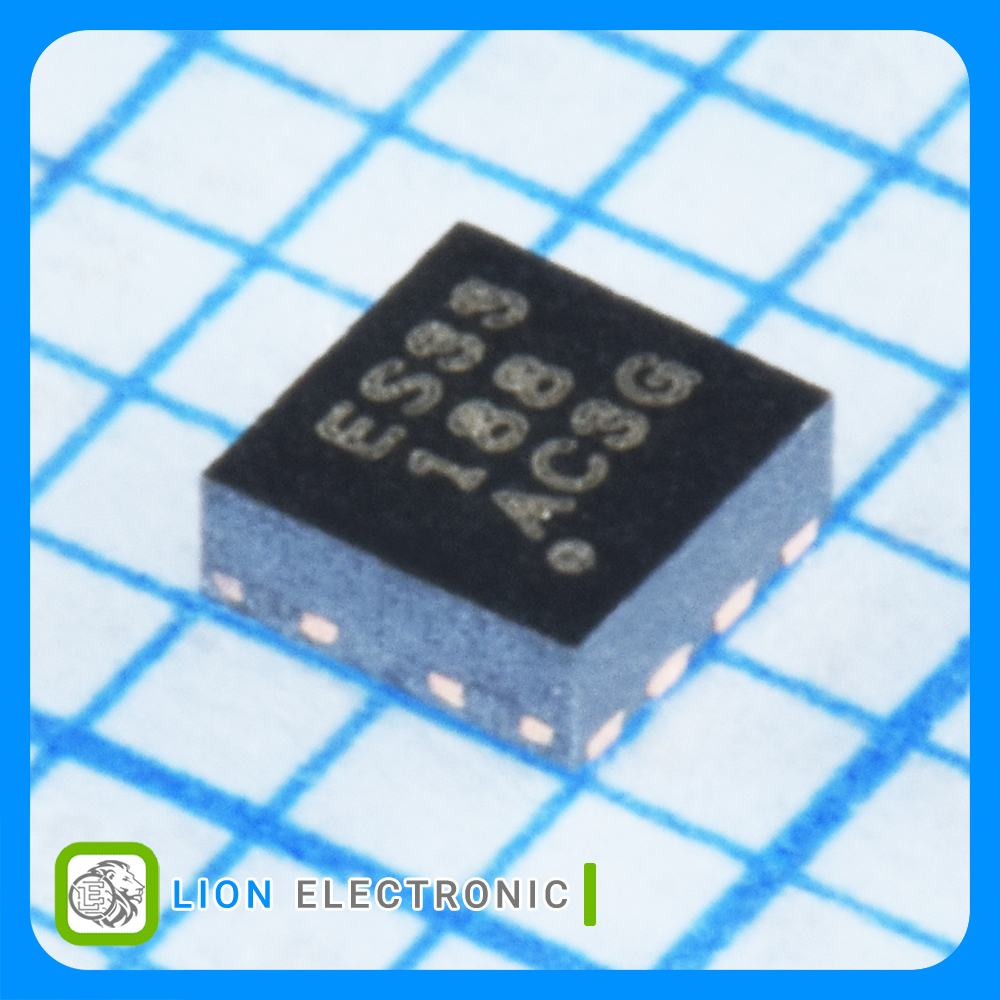

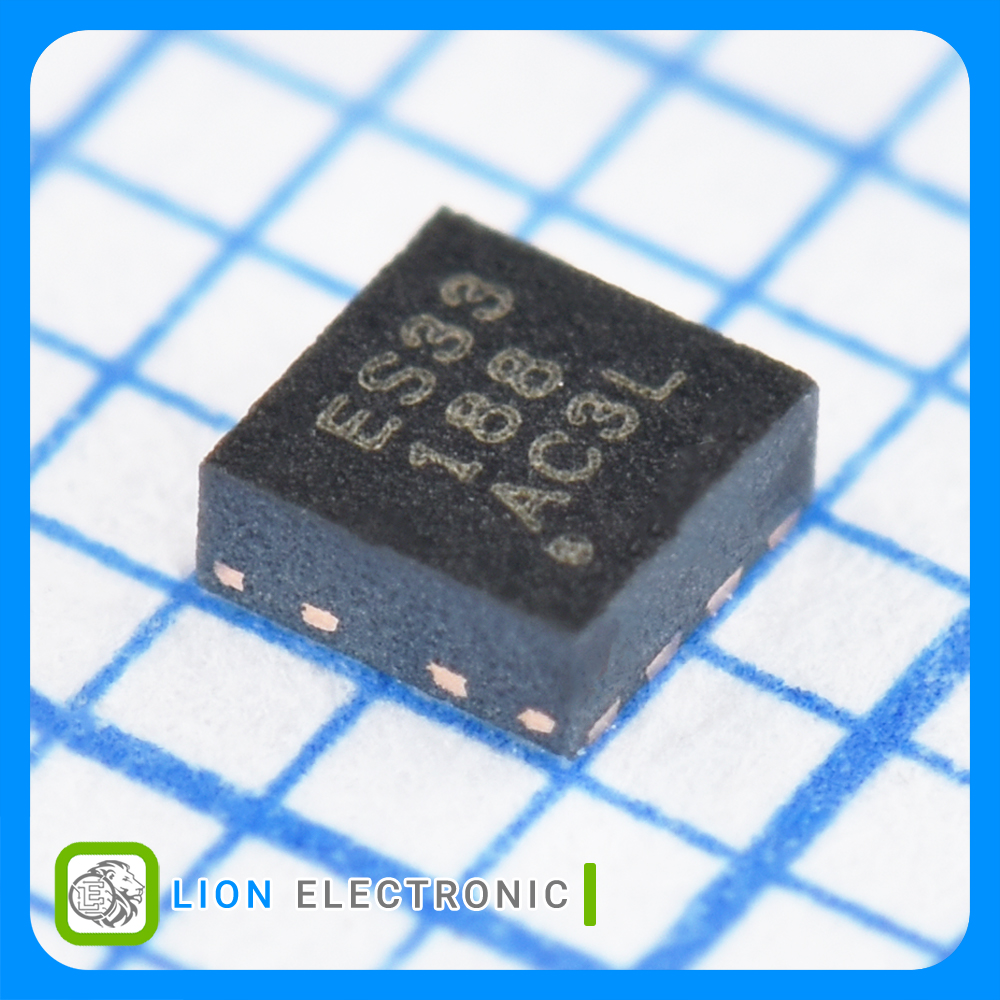

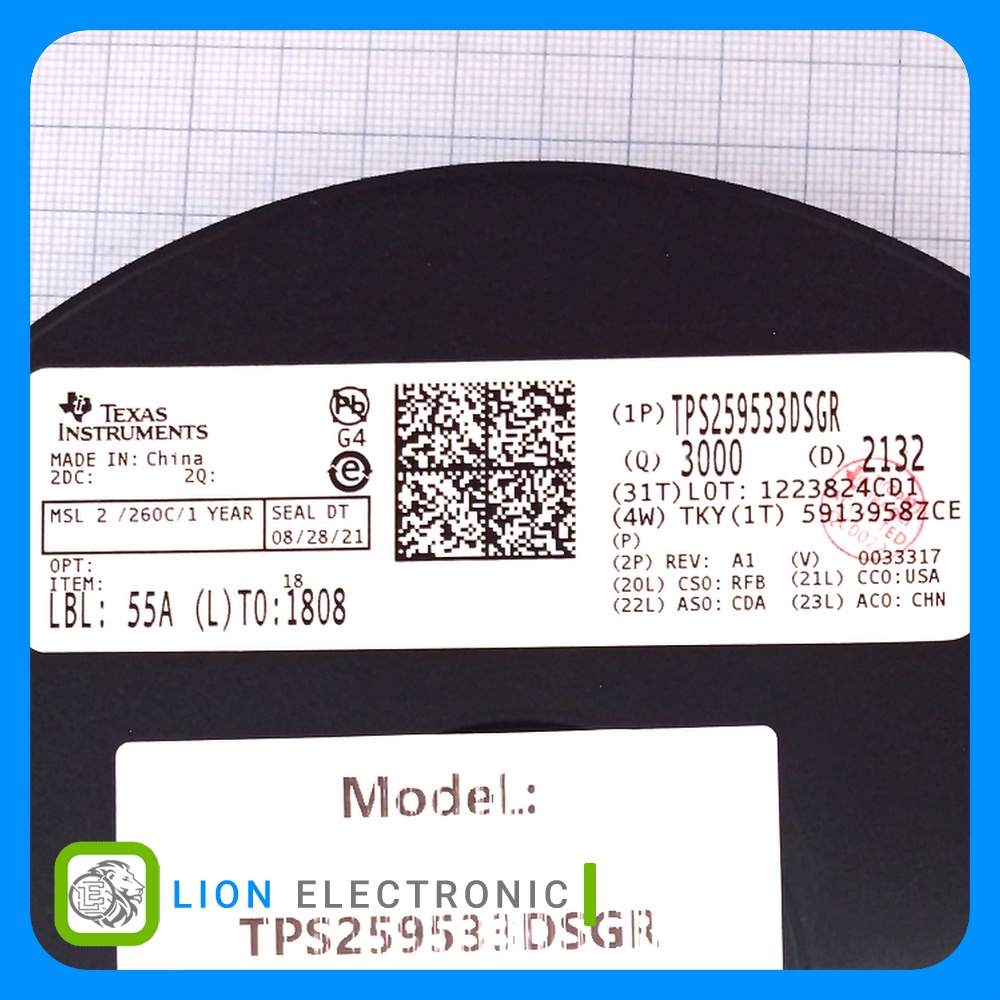

TPS259533DSGR
TPS259533DSGR
Part Number
3540
Lion Part
Datasheet
Texas Instruments Manufacture
پاور سوئیچ eFuse با ولتاژ 2.7 تا 18 ولت جریان 5 آمپر، محافظت جریان و ولتاژ تا 4 آمپر با پکیج WSON-8
Power Switch eFuse 2.7 - 18V, 5A, 4A, 34mΩ with Fast Overvoltage Protection, WSON-8 Package
معرفی
پاور سوئیچ eFuse با ولتاژ 2.7 تا 18 ولت جریان 5 آمپر، محافظت جریان و ولتاژ تا 4 آمپر با پکیج WSON-8
Power Switch eFuse 2.7 - 18V, 5A, 4A, 34mΩ with Fast Overvoltage Protection, WSON-8 Package
Specifications
- Type: eFuse
- Number of Outputs: 1
- Output Current: 5A
- Current Limit: 0.5 - 4A
- On Resistance - Max: 58mΩ
- On Time - Max: 335µs
- Off Time - Max: 11.6µs
- Operating Supply Voltage: 2.7 - 18V
- Mounting Style: SMD/SMT
- Package/Case: WSON-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات TPS259533DSGR
TPS259533DSGR
Part Number
Yes
Power Fail Detection
1
Number of Channels
1
Number of Outputs
58mΩ
On Resistance - Max
Reel
Packaging
0.5 - 4A
Current Limit
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
11.6µs
Off Time - Max
+125C
Maximum Operating Temperature
335µs
On Time - Max
eFuse
Type
2.7V
Supply Voltage - Min
18V
Supply Voltage - Max
175uA
Operating Supply Current
5A
Output Current
2.7 - 18V
Operating Supply Voltage
WSON-8
Package-Case
