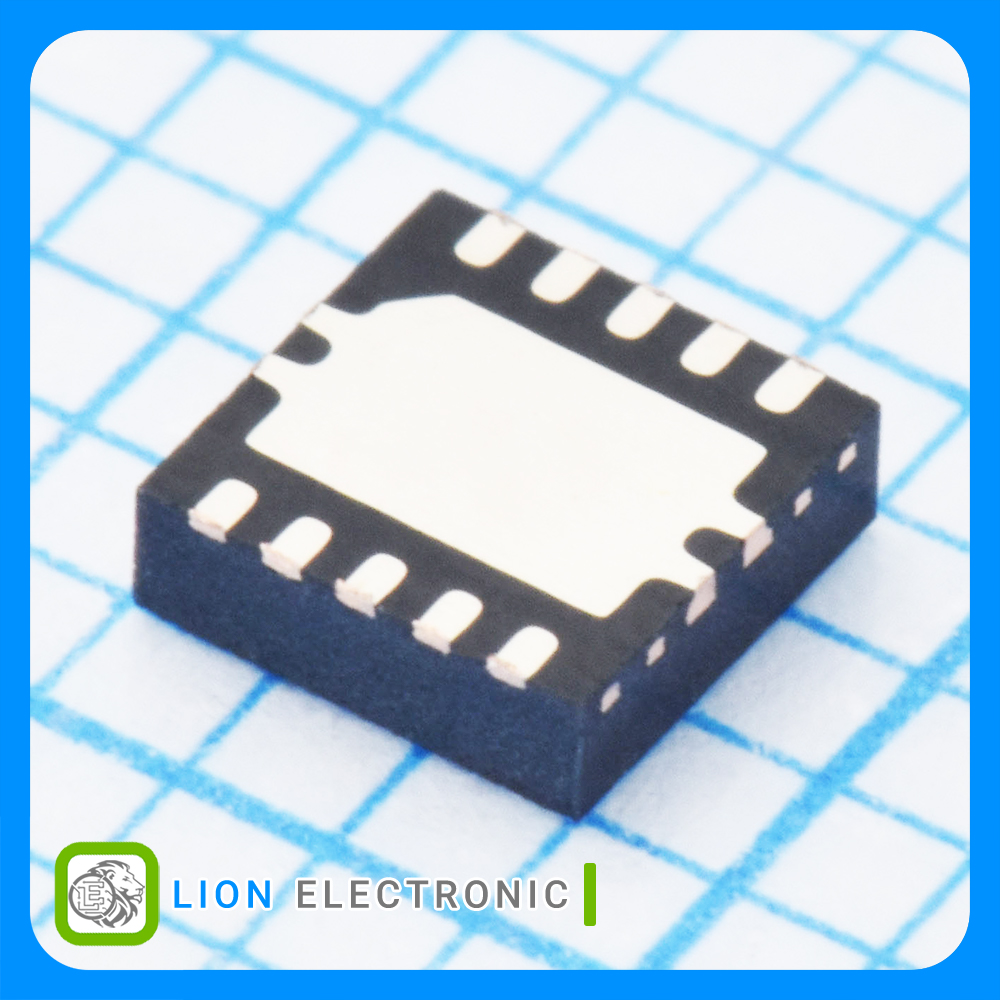

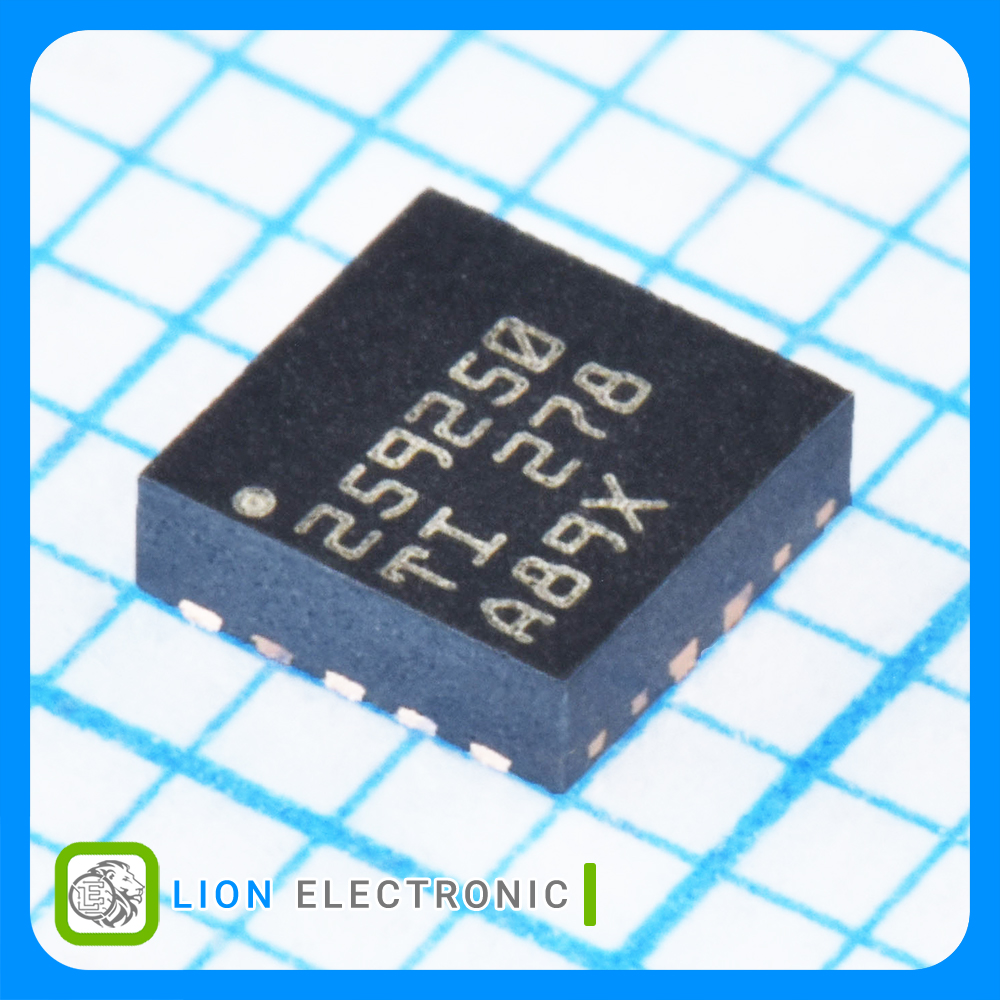

TPS259250DRCR
TPS259250DRCR
Part Number
3541
Lion Part
Datasheet
Texas Instruments Manufacture
پاور سوئیچ eFuse ساده 4.5 تا 5.5 ولت جریان 2 تا 5 آمپر قابل تنظیم با محافظت جریان و ولتاژ با پکیج VSON-10
Simple Power Switch eFuse 4.5V - 5.5V, 2 - 5A Adjustable Current Limit with Protection, VSON-10 Package
معرفی
پاور سوئیچ eFuse ساده 4.5 تا 5.5 ولت جریان 2 تا 5 آمپر قابل تنظیم با محافظت جریان و ولتاژ با پکیج VSON-10
Simple Power Switch eFuse 4.5V - 5.5V, 2 - 5A Adjustable Current Limit with Protection, VSON-10 Package
Specifications
- Type: eFuse
- Number of Outputs: 1
- Output Current: 5A
- Current Limit: 2 - 5A
- On Resistance - Max: 50mΩ
- On Time - Max: 314µs
- Off Time - Max: 12.3µs
- Operating Supply Voltage: 4.5V - 5.5V
- Mounting Style: SMD/SMT
- Package/Case: VSON-10
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات TPS259250DRCR
TPS259250DRCR
Part Number
1
Number of Channels
1
Number of Outputs
Yes
Power Fail Detection
50mΩ
On Resistance - Max
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
12.3µs
Off Time - Max
2 - 5A
Current Limit
314µs
On Time - Max
5.5V
Supply Voltage - Max
eFuse
Type
4.5V
Supply Voltage - Min
420uA
Operating Supply Current
5A
Output Current
4.5V - 5.5V
Operating Supply Voltage
VSON-10
Package-Case
