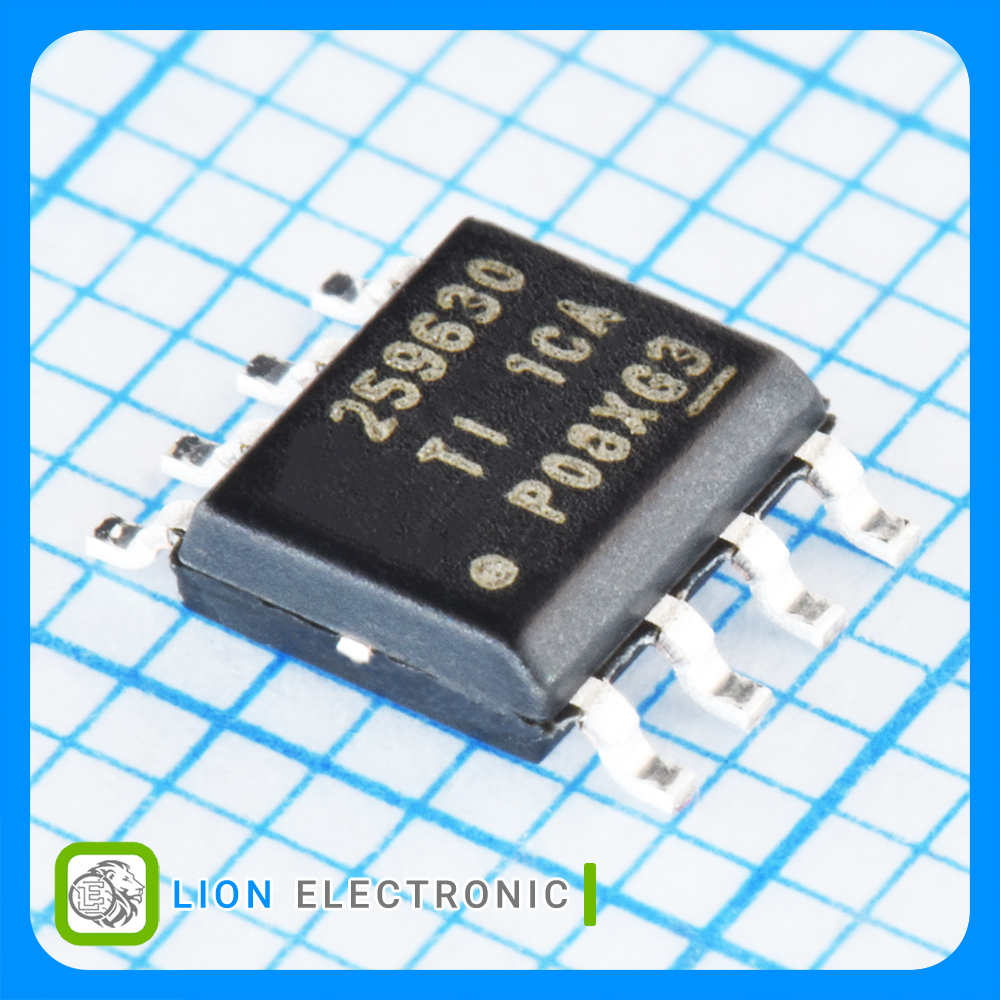

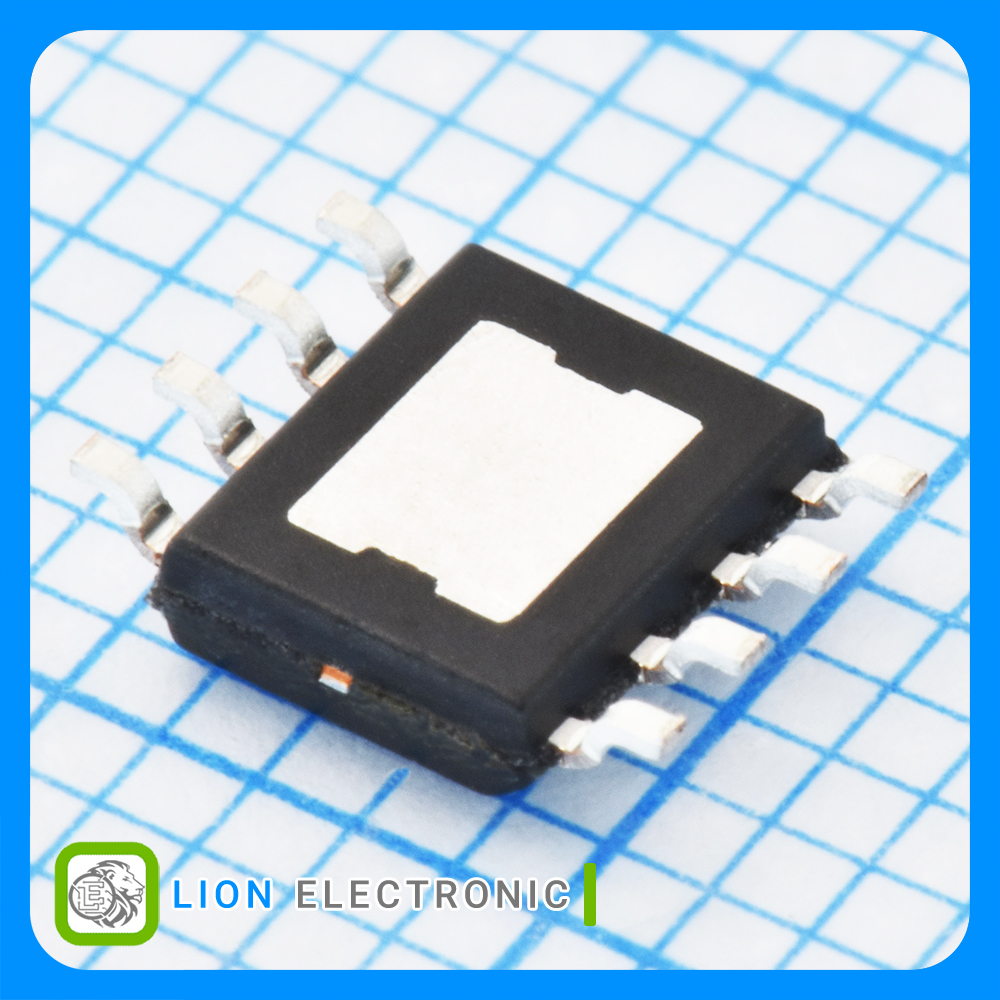

TPS259630DDAR
TPS259630DDAR
Part Number
3542
Lion Part
Datasheet
Texas Instruments Manufacture
پاور سوئیچ eFuse با ولتاژ 2.7 تا 19 ولت جریان 2 آمپر با محافظت جریان و ولتاژ با پکیج SOIC-8
Power Switch eFuse 2.7 - 19V, 125mA to 2A, 89mΩ with Accurate Current Monitor and Fast Overvoltage Protection, SOIC-8 Package
معرفی
پاور سوئیچ eFuse با ولتاژ 2.7 تا 19 ولت جریان 2 آمپر با محافظت جریان و ولتاژ با پکیج SOIC-8
Power Switch eFuse 2.7 - 19V, 125mA to 2A, 89mΩ with Accurate Current Monitor and Fast Overvoltage Protection, SOIC-8 Package
Specifications
- Type: eFuse
- Number of Outputs: 1
- Output Current: 2A
- Current Limit: 0.125 - 2A
- On Resistance - Max: 143.4mΩ
- On Time - Max: 314µs
- Off Time - Max: 12.3µs
- Operating Supply Voltage: 2.7 - 19V
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات TPS259630DDAR
TPS259630DDAR
Part Number
0.125 - 2A
Current Limit
1
Number of Channels
1
Number of Outputs
Yes
Power Fail Detection
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
12.3µs
Off Time - Max
143.4mΩ
On Resistance - Max
+125C
Maximum Operating Temperature
314µs
On Time - Max
2.7V
Supply Voltage - Min
eFuse
Type
19V
Supply Voltage - Max
193uA
Operating Supply Current
2A
Output Current
2.7 - 19V
Operating Supply Voltage
SOIC-8
Package-Case
