F280025CPMSR
F280025CPMSR
Part Number
3672
Lion Part
Datasheet
Texas Instruments Manufacture
میکروکنترلر بلادرنگ هسته C28x حافظه فلش 128 کیلوبایت رم 24 کیلوبایت با پکیج LQFP-64

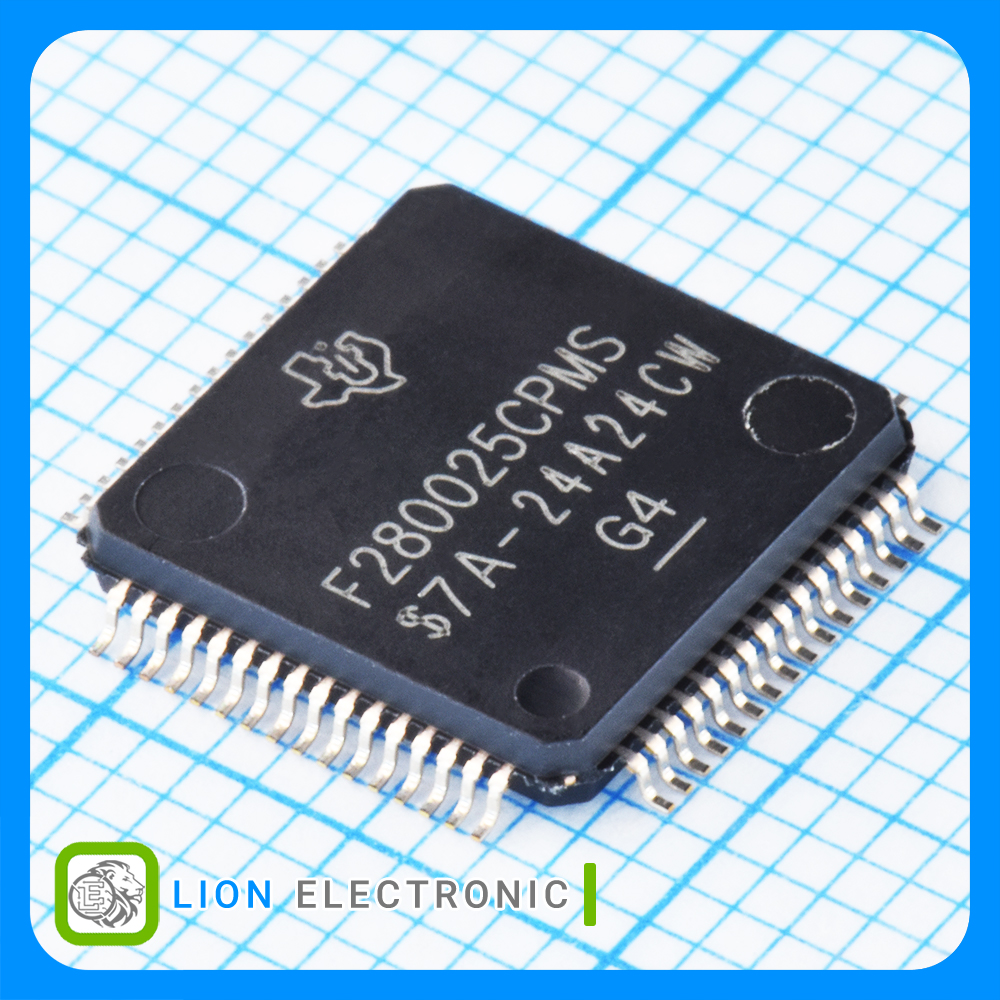

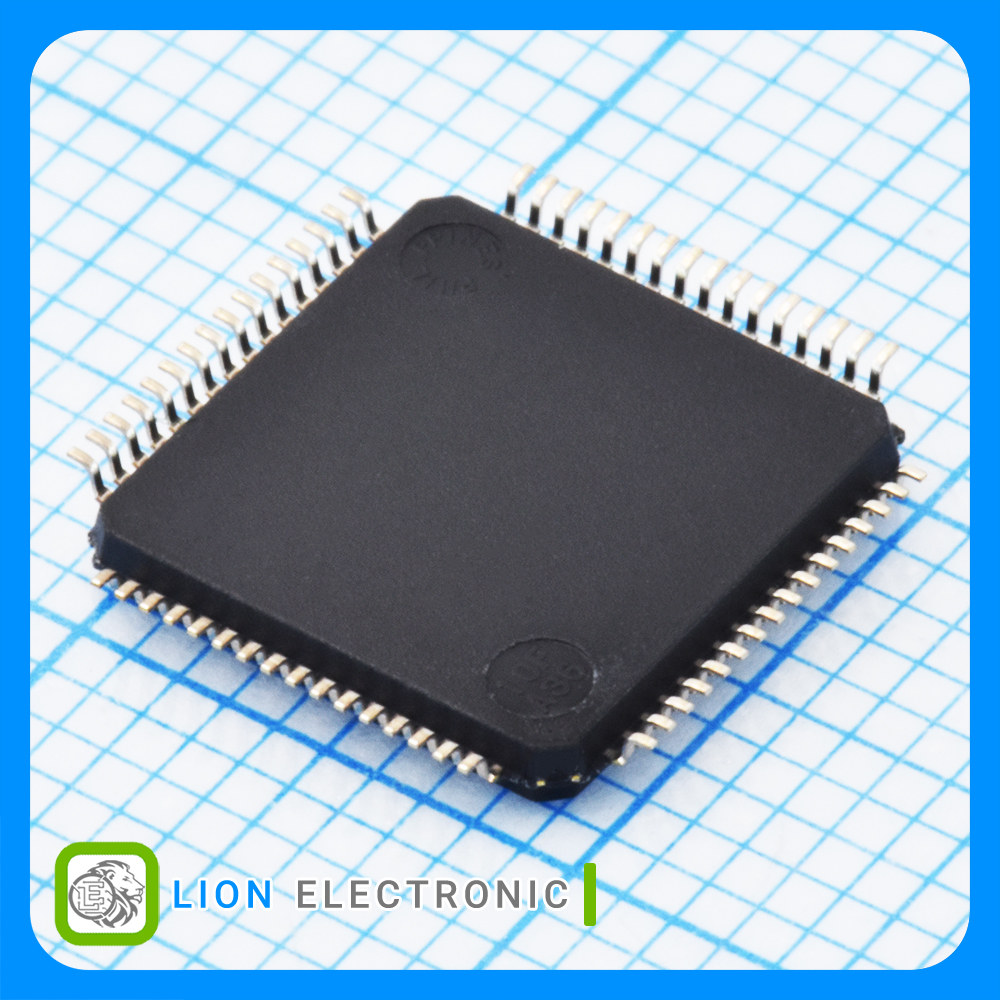

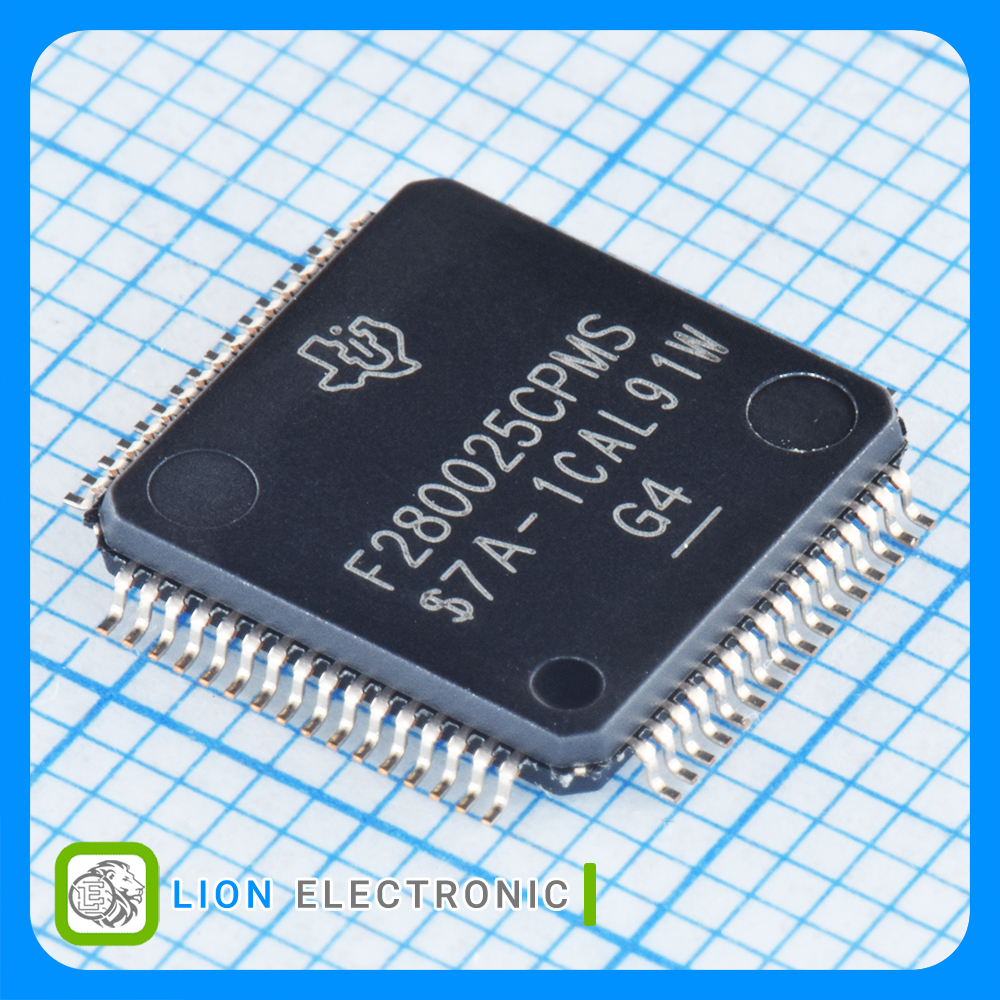

Real-Time Microcontroller C28x Core, 128kB Flash, 24kB RAM with LQFP-64 Package
معرفی
میکروکنترلر بلادرنگ هسته C28x حافظه فلش 128 کیلوبایت رم 24 کیلوبایت با پکیج LQFP-64
Real-Time Microcontroller C28x Core, 128kB Flash, 24kB RAM with LQFP-64 Package
Specifications
- Series: TMS320F280025C
- Core: C28x
- Number of I/Os: 26
- ADC Resolution: 2 x 12bit
- Program Memory Size: 128kB
- Data RAM Size: 24kB
- Data Bus Width: 32bit
- Maximum Clock Frequency: 100MHz
- Operating Supply Voltage: 3.3V
- Mounting Style: SMD/SMT
- Package/Case: LQFP-64
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tray
مشخصات F280025CPMSR
F280025CPMSR
Part Number
32bit
Data Bus Width
2 x 12bit
ADC Resolution
-40C
Minimum Operating Temperature
Tray
Packaging
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
C28x
Core
128kB
Program Memory Size
26
Number of I-Os
100MHz
Maximum Clock Frequency
24kB
Data RAM Size
3.3V
Operating Supply Voltage
LQFP-64
Package-Case
