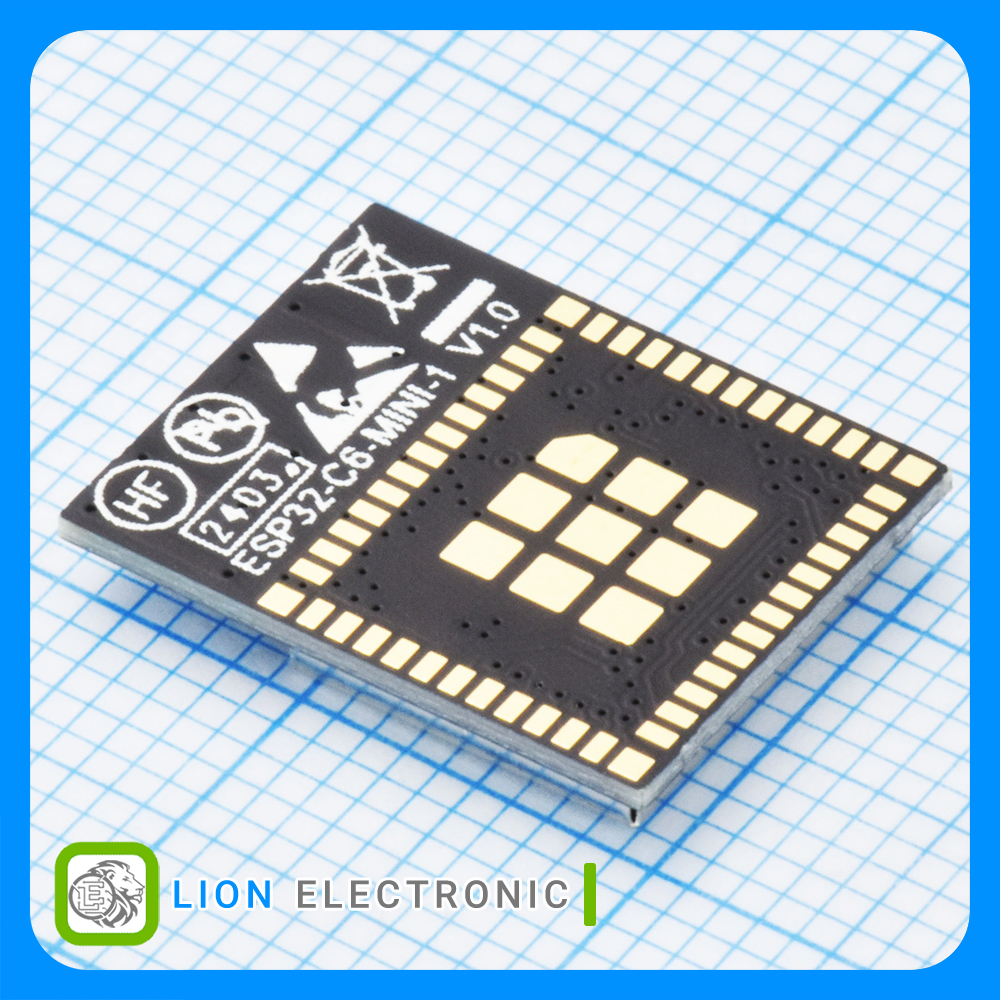

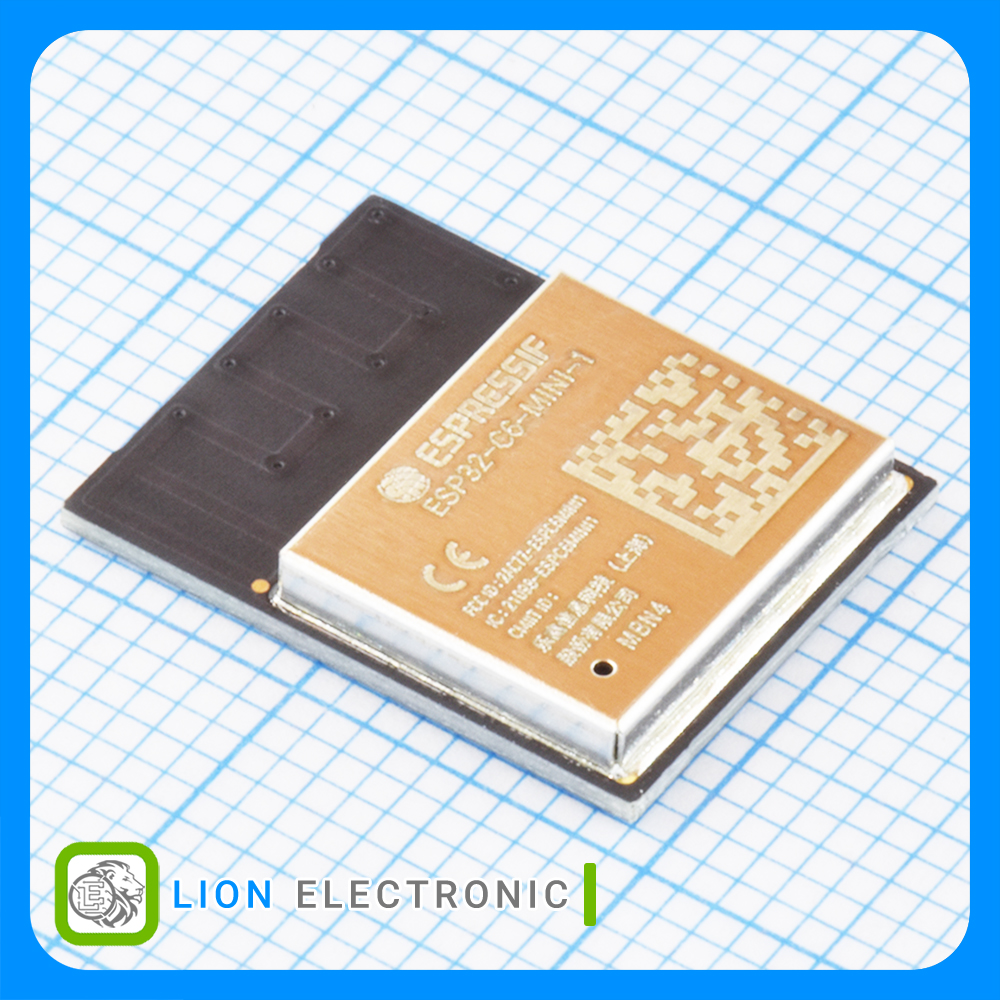

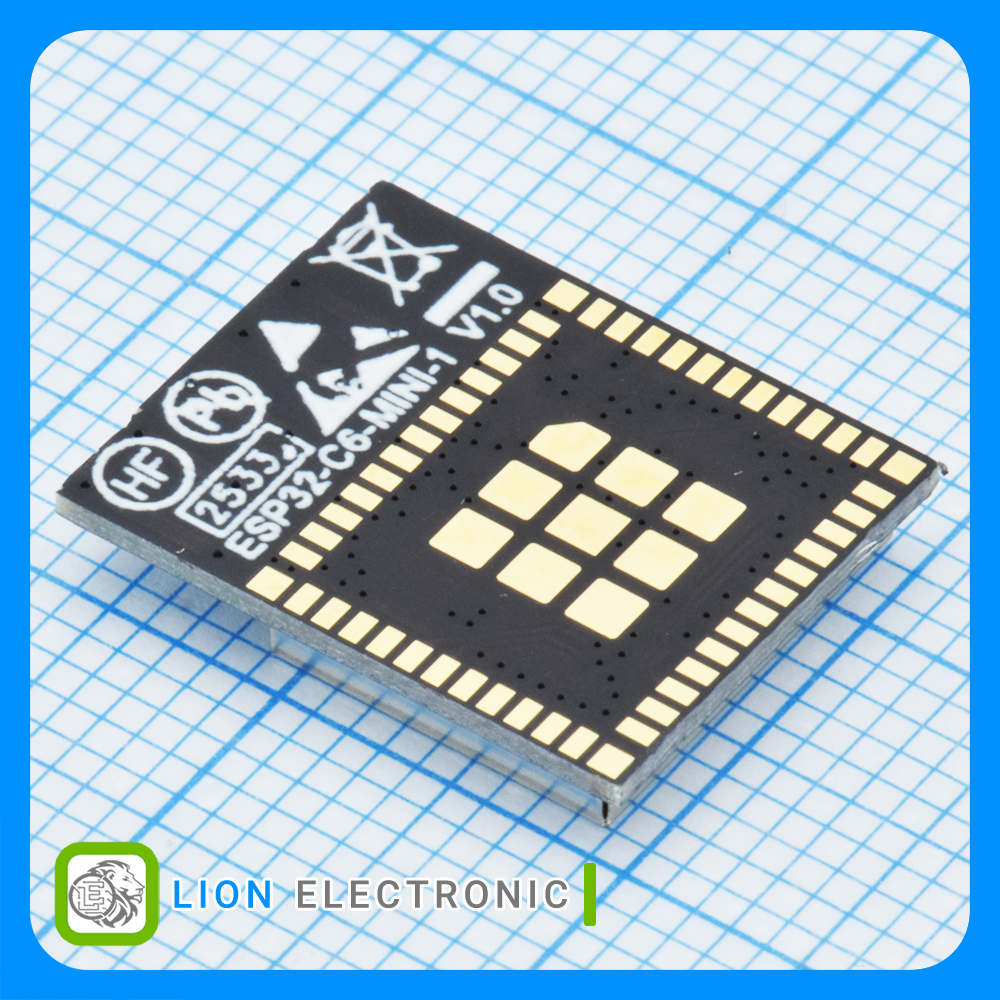

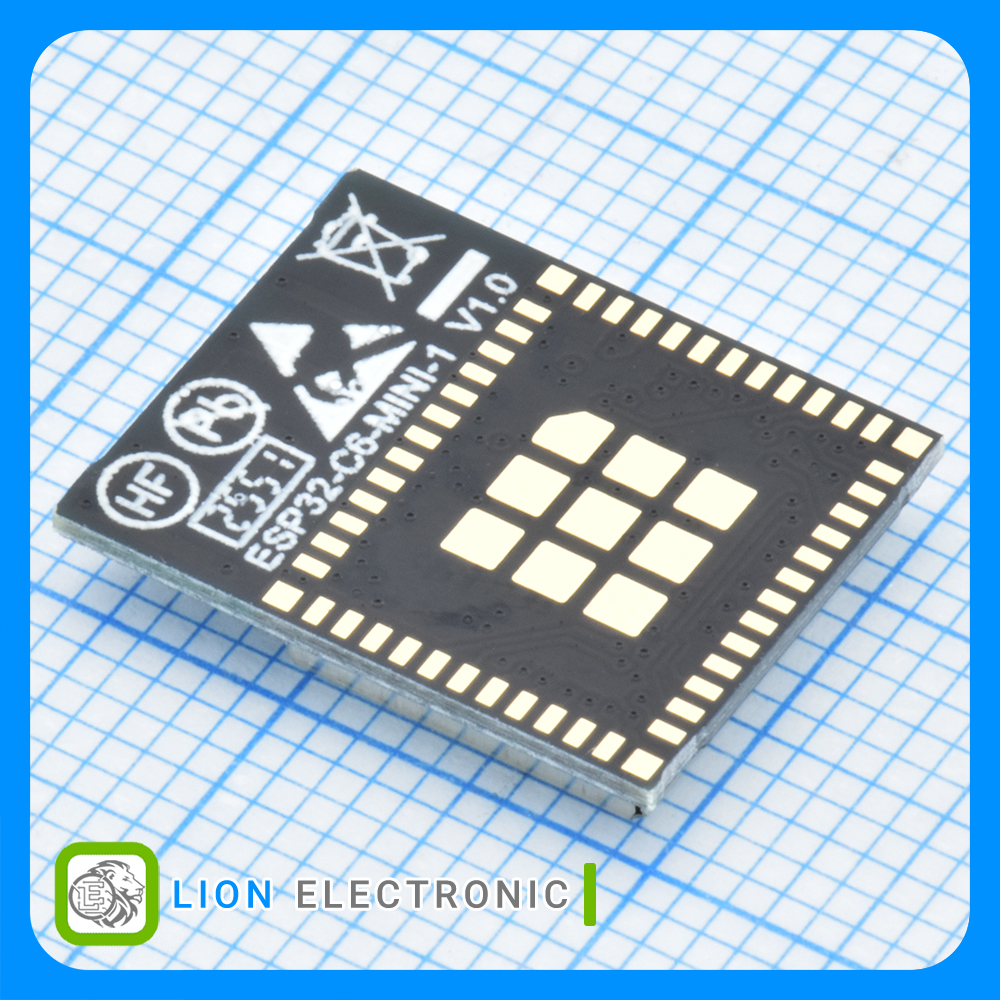

ماژول وای فای و بلوتوث ESP32-C6-MINI-1-N4

Part Number
ESP32-C6-MINI-1-N4
Lion Part
3778
Manufacturer
Description

General-Purpose Wi-Fi 4/Wi-Fi 6 and Bluetooth LE Module

موجودی محصول
52
Full Reel: 650

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول
تعداد قیمت
1 3,619,284 ریال
10 3,494,481 ریال
50 3,369,678 ریال
معرفی

ESP32-C6-MINI-1-N4 is a general-purpose Wi-Fi 4/Wi-Fi 6 and Bluetooth LE module. This module features a rich set of peripherals and a small size, which makes it an ideal choice for smart home, industrial automation, health care, consumer electronics, etc

ESP32-C6-MINI-1-N4 is based on ESP32-C6, It has 22 GPIOs, and supports UART, SPI, I2C, LED OWM, RMT, etc.



Features:

  • Core: 32-bit RISC-V single-core processor, frequency up to 160MHz
  • Memories:
    • 320 KB of ROM
    • 512 KB of SRAM
    • 4 MB of Flash memory
  • Working Voltage: 3 V to 3.6 V
  • Up to 22 GPIOs
    • 5 strapping GPIOs
  • 1*12-bit ADC (up to 7 channels)
  • Communication interfaces
    • 1 I2C and 1 Low-power I2C interfaces
    • 1 SPI interfaces
    • 2 UART and 1 Low-power UART interfaces
  • Security:
    • 1024 bit OTP
    • AES, SHA, RSA, RNG
    • Secure_Boot,Flash_Encryption,Digital_signature,HMAC_module
  • Extended temperature range: -40 to 85 °C

مشخصات ماژول وای فای و بلوتوث ESP32-C6-MINI-1-N4

  • Part Number
    ماژول وای فای و بلوتوث ESP32-C6-MINI-1-N4
  • Packaging
    Reel
  • Minimum Operating Temperature
    -40C
  • Antenna Connector Type
    PCB
  • Number of I-Os
    22
  • Maximum Operating Temperature
    +85C
  • Dimensions
    13.2mm x 16.6mm x 2.4mm
  • Supply Current Transmitting
    251mA, 280mA, 295mA, 316mA, 382mA
  • Supply Current Receiving
    78mA, 82mA
  • Frequency
    160MHz
  • Output Power
    -
  • Operating Supply Voltage
    3 - 3.6V
  • Product
    Wi-Fi & Bluetooth (LE) & 802.15.4 & MCU Module
  • Interface Type
    SPI
