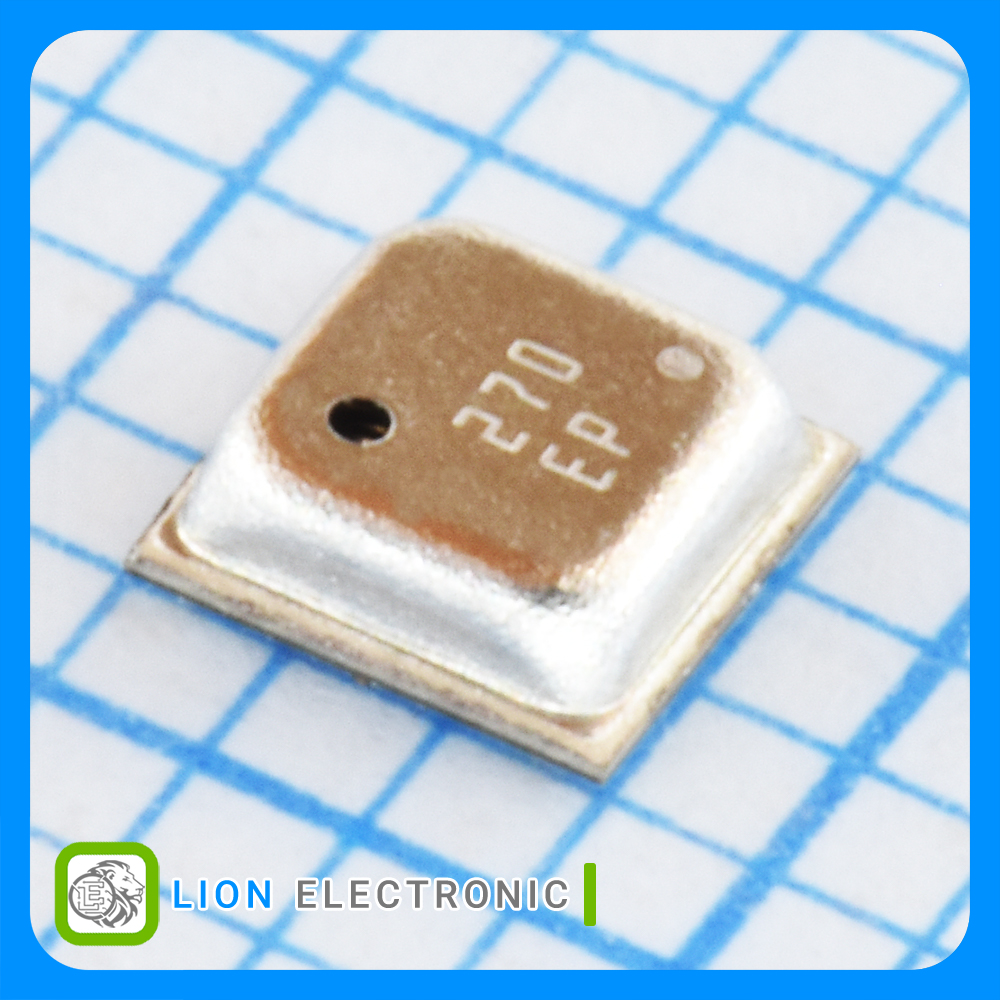

سنسور گاز فشار دما و رطوبت BME680
BME680
Part Number
4213
Lion Part
Datasheet
Bosch Sensortec Manufacture
سنسور کیفیت هوا نوع MEMS با قابلیت اندازهگیری گاز، رطوبت، فشار و دما
Air Quality Sensors MEMS Gas, Humidity, Pressure and Temperature Sensor LGA
معرفی
Features
• Package 3.0 mm x 3.0 mm x 0.93 mm metal lid LGA
• Digital interface I²C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
• Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V , VDDIO interface voltage range: 1.2 V to 3.6 V
• Current consumption 2.1 µA at 1 Hz humidity and temperature , 3.1 µA at 1 Hz pressure and temperature , 3.7 µA at 1 Hz humidity, pressure and temperature 0.09‒12 mA for p/h/T/gas depending on operation mode 0.15 µA in sleep mode
• Operating range -40‒+85 °C, 0‒100% r.H., 300‒1100 hPa
مشخصات سنسور گاز فشار دما و رطوبت BME680
سنسور گاز فشار دما و رطوبت BME680
Part Number
Air Quality Sensor
Sensor Type
SMD/SMT
Mounting Style
Volatile organic compound gases
Target Gas
