JHD096B011S01(BLUE)
JHLCD
معرفی

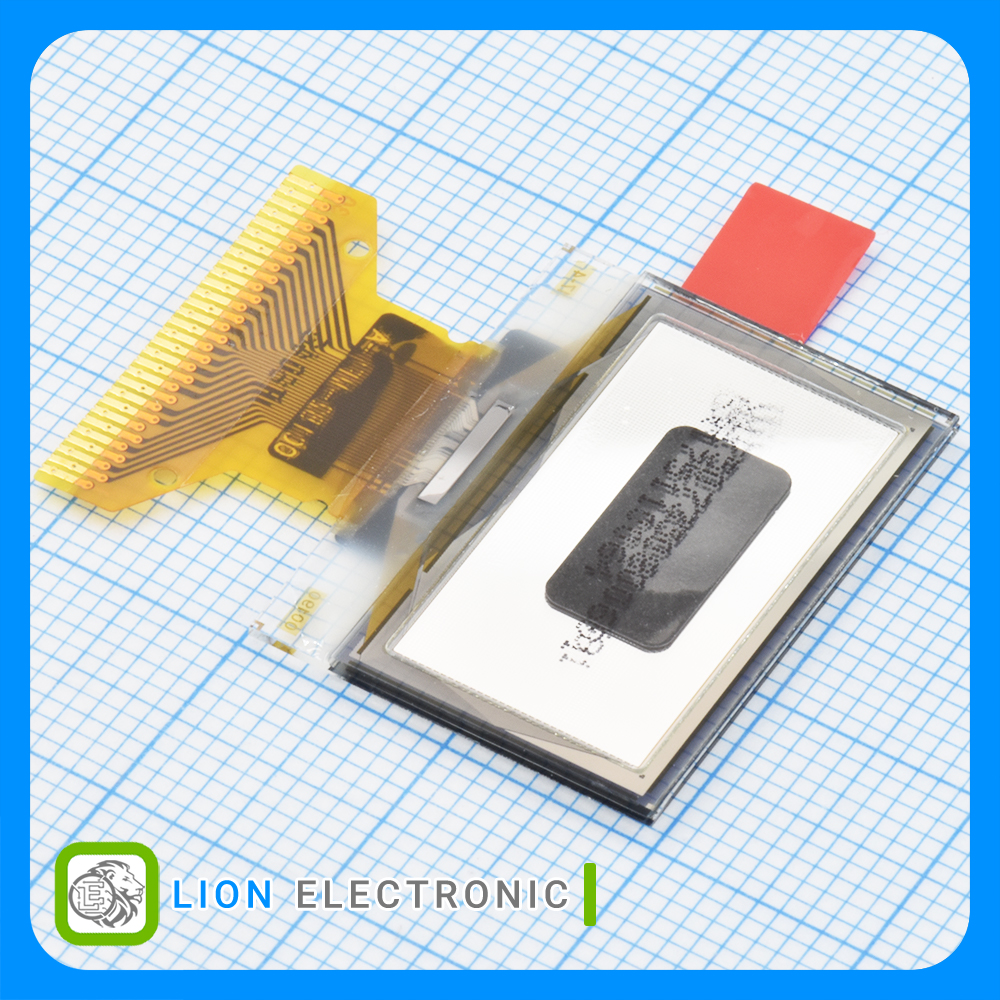

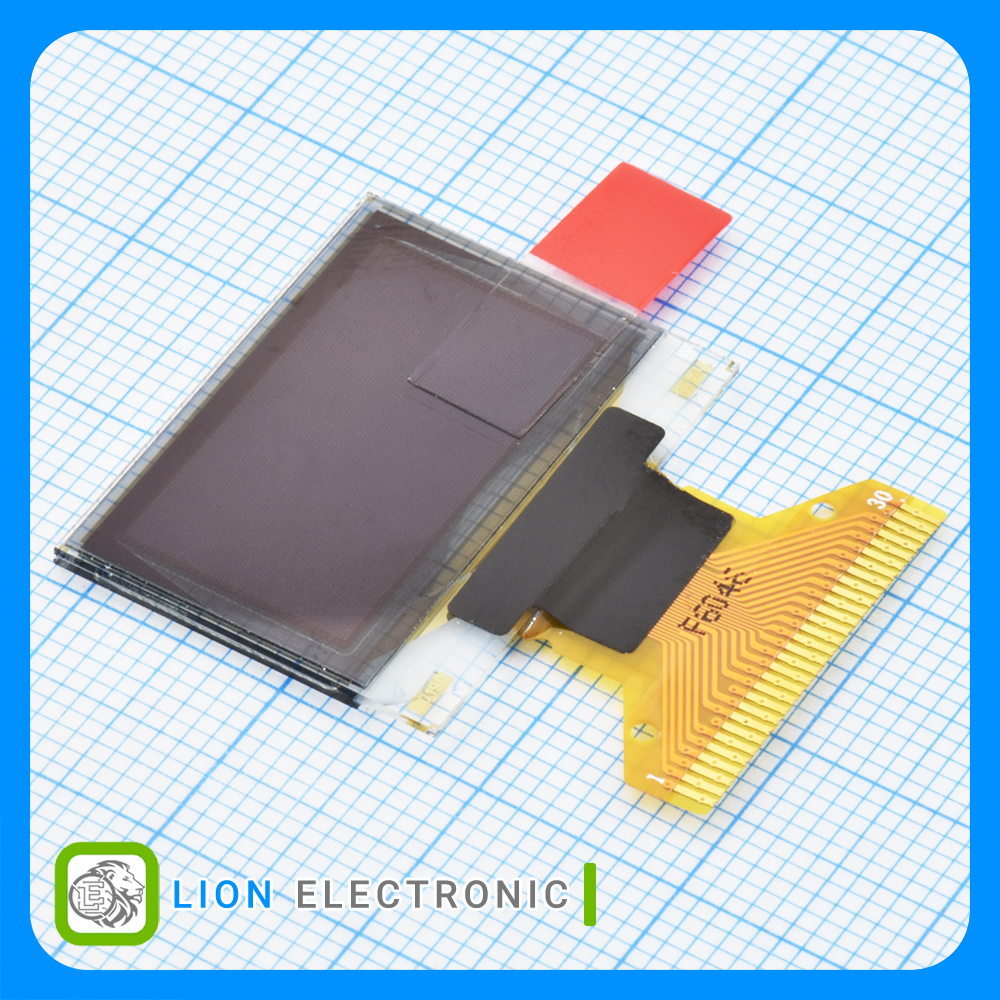

نمایشگر OLED با اندازه 0.96 اینچ تک رنگ آبی رزولوشن 128x64 با رابط 8 بیت موازی و I2C، درایور SSD1315
OLED Display 0.96 inch, Blue Color, Panel Resolution 128x64, Driver IC SSD1315, with 8bit Parallel, I2C Interface
Specifications
- Interface Type: 8bit Parallel, I2C
- Display Size - inch: 0.96
- Viewing Area - W x H: 21.738mm x 10.858mm
- Resolution: 128 x 64
- Operating Supply Voltage: 1.65 - 3.3V
- Operating Supply Current: 29mA
- Touch Panel: No
- Illumination Color: Blue
- Display Panel Size - W x H: 26.7(W) mm x 19.26(H) mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +70C
- Packaging: Tray
مشخصات نمایشگر اولِد JHD096B011S01(BLUE)
نمایشگر اولِد JHD096B011S01(BLUE)
Part Number
No
Touch Panel
Blue
Illumination Color
26.7(W) mm x 19.26(H) mm
Display Panel Size - W x H
0.96
Display Size - inch
+70C
Maximum Operating Temperature
21.738mm x 10.858mm
Viewing Area - W x H
-40C
Minimum Operating Temperature
Tray
Packaging
128 x 64
Resolution
8bit Parallel, I2C
Interface Type
N/A
Modules Size - W x H x T
1.65 - 3.3V
Operating Supply Voltage
29mA
Operating Supply Current
