MHCXHM
معرفی

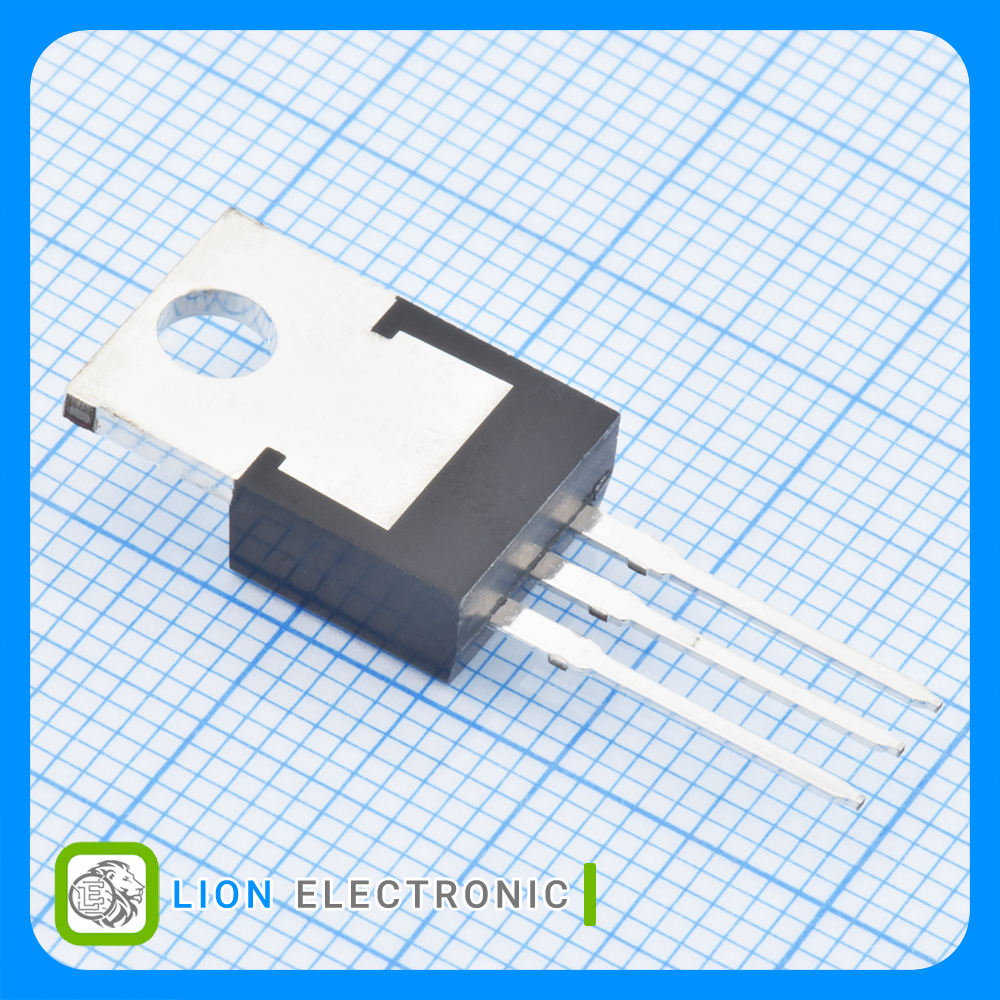

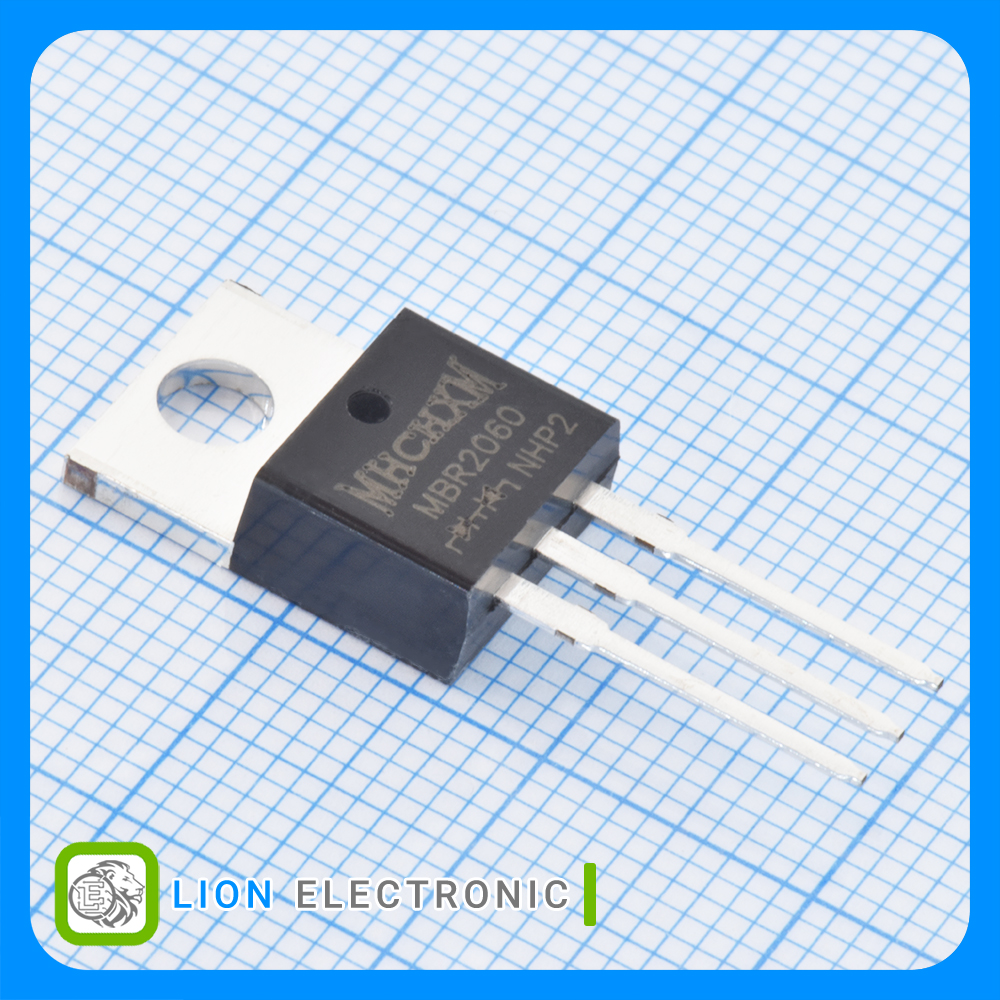

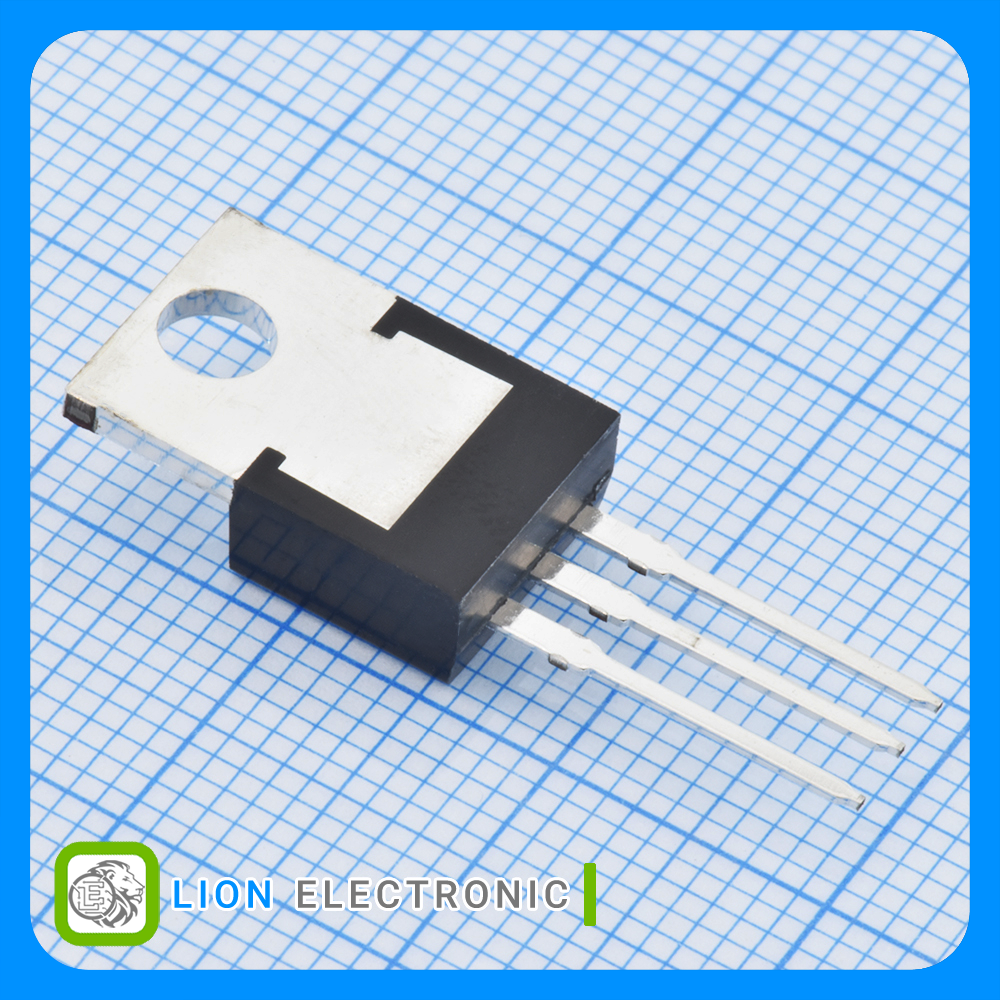

دیود شاتکی دوبل کاتد مشترک 60 ولت 20 آمپر (2x با جریان 10 آمپر رکتیفایر) با پکیج TO-220-3
Schottky Diode Dual Common Cathode 60V, 20A, 2x 10A Rectifier with TO-220-3 Package
Specifications
- Configuration: Dual Common Cathode
- Vrrm - Repetitive Reverse Voltage: 60V
- If - Forward Current: 20A
- Ifsm - Forward Surge Current: 150A
- Vf - Forward Voltage: 800mV
- Ir - Reverse Current: 50uA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -50C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات دیود شاتکی MBR2060CT

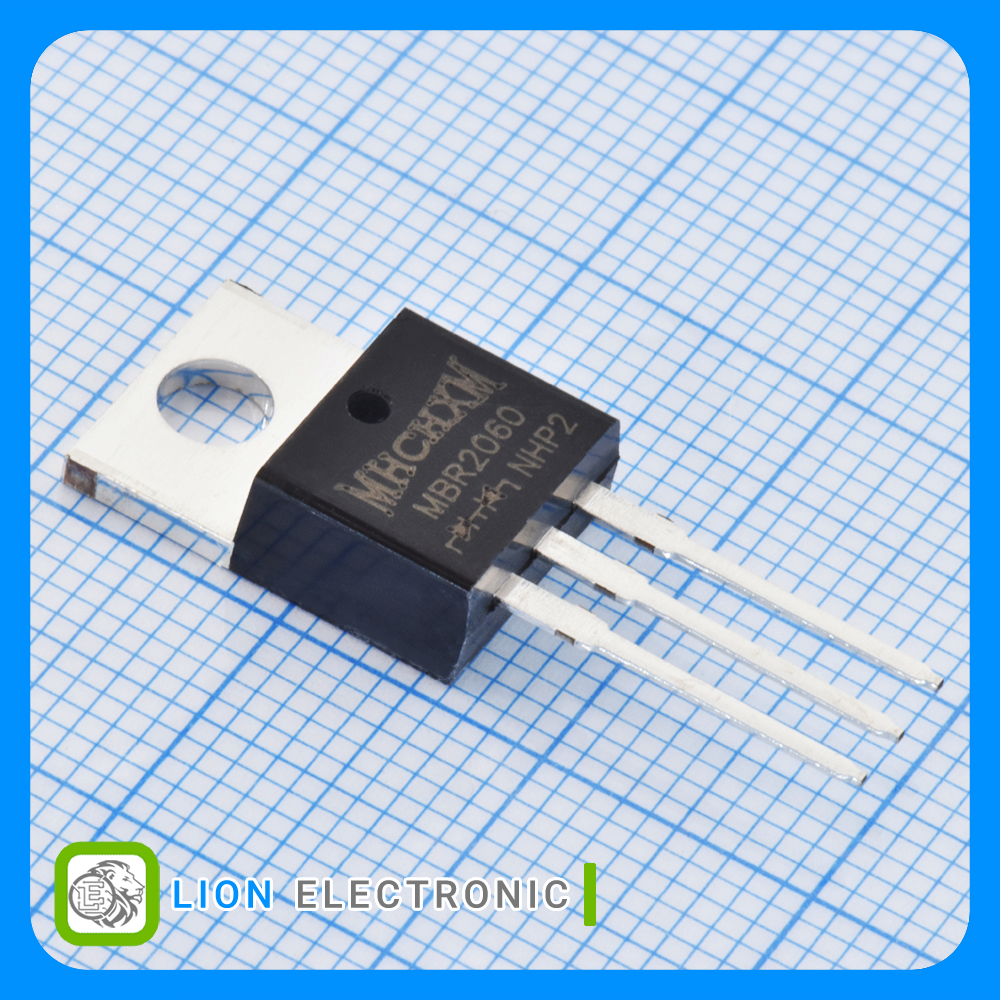

دیود شاتکی MBR2060CT
Part Number
-50C
Minimum Operating Temperature
60V
Vrrm - Repetitive Reverse Voltage
Tube
Packaging
Through Hole
Mounting Style
50uA
Ir - Reverse Current
150A
Ifsm - Forward Surge Current
+150C
Maximum Operating Temperature
800mV
Vf - Forward Voltage
Dual Common Cathode
Configuration
20A
If - Forward Current
TO-220
Package-Case
