SDT20B100D1-13
SDT20B100D1-13
Part Number
4416
Lion Part
Datasheet
Diodes Incorporated Manufacture
دیود شاتکی 100 ولت 20 آمپر با پکیج TO-252-3

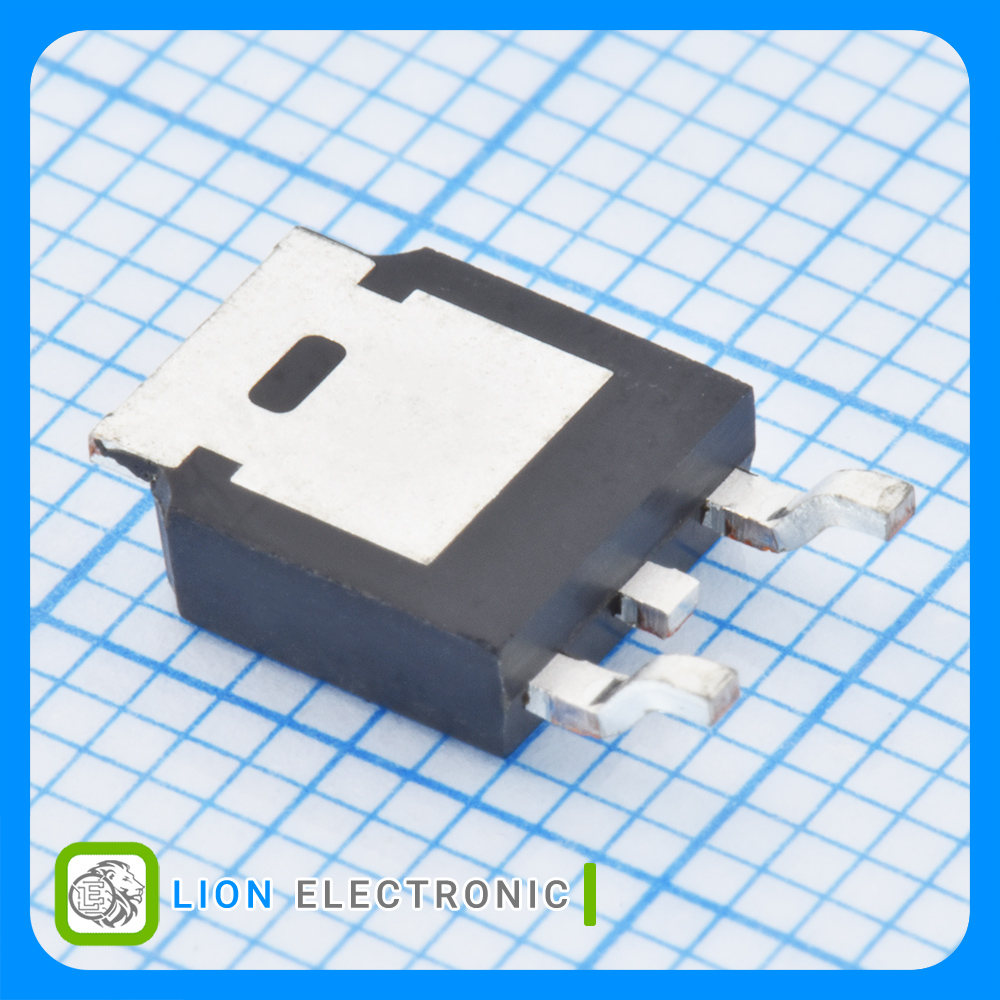

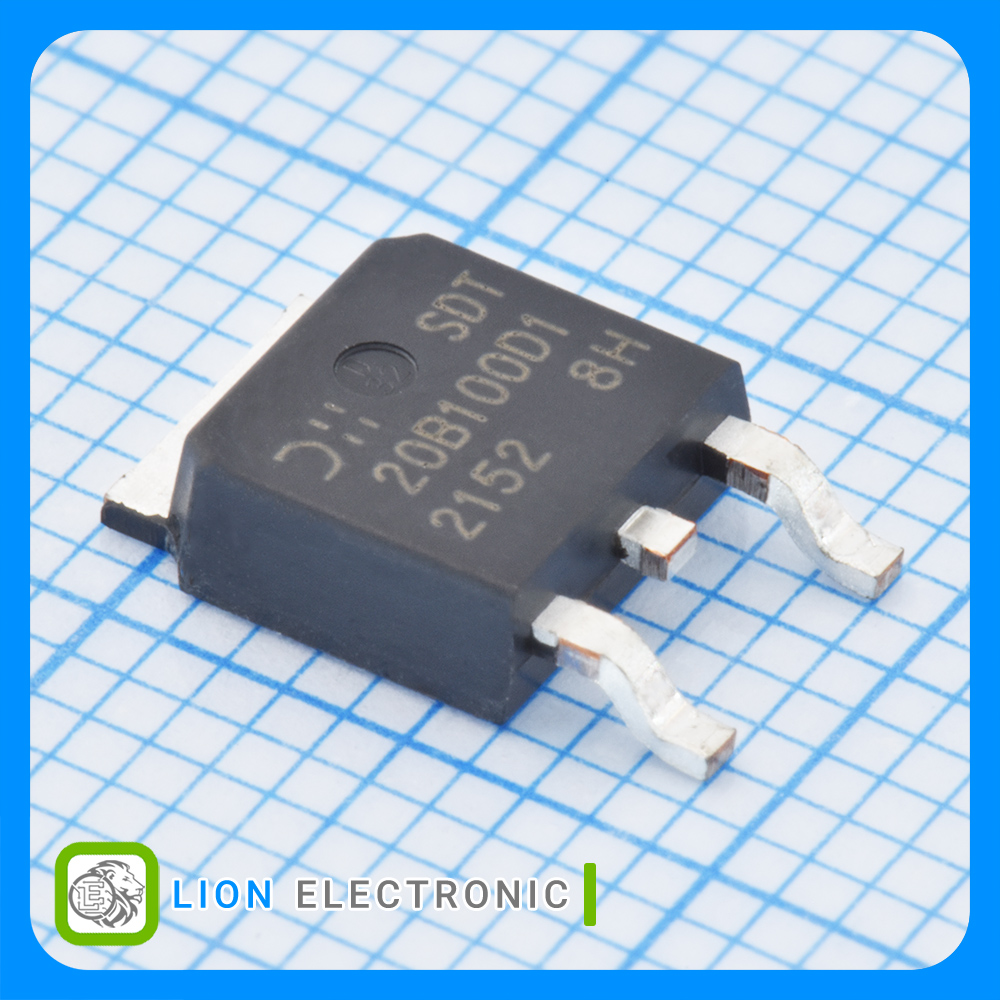

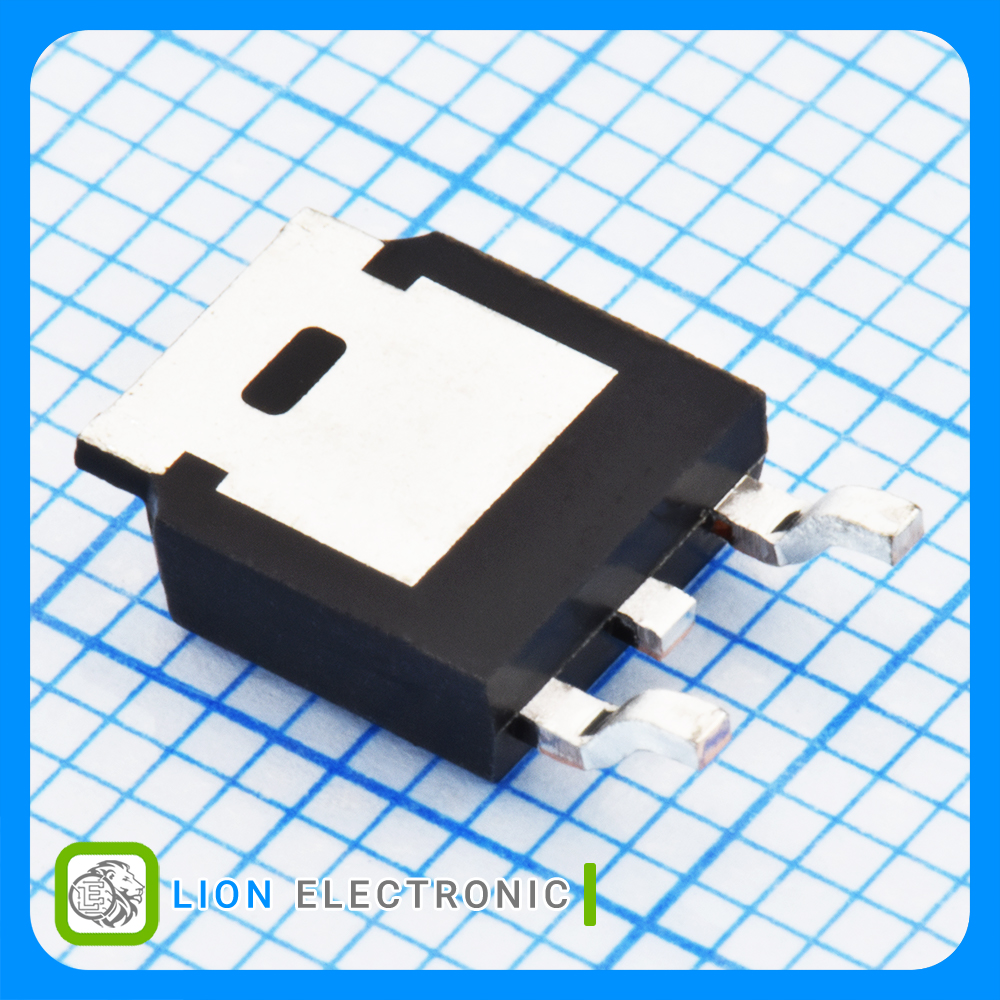

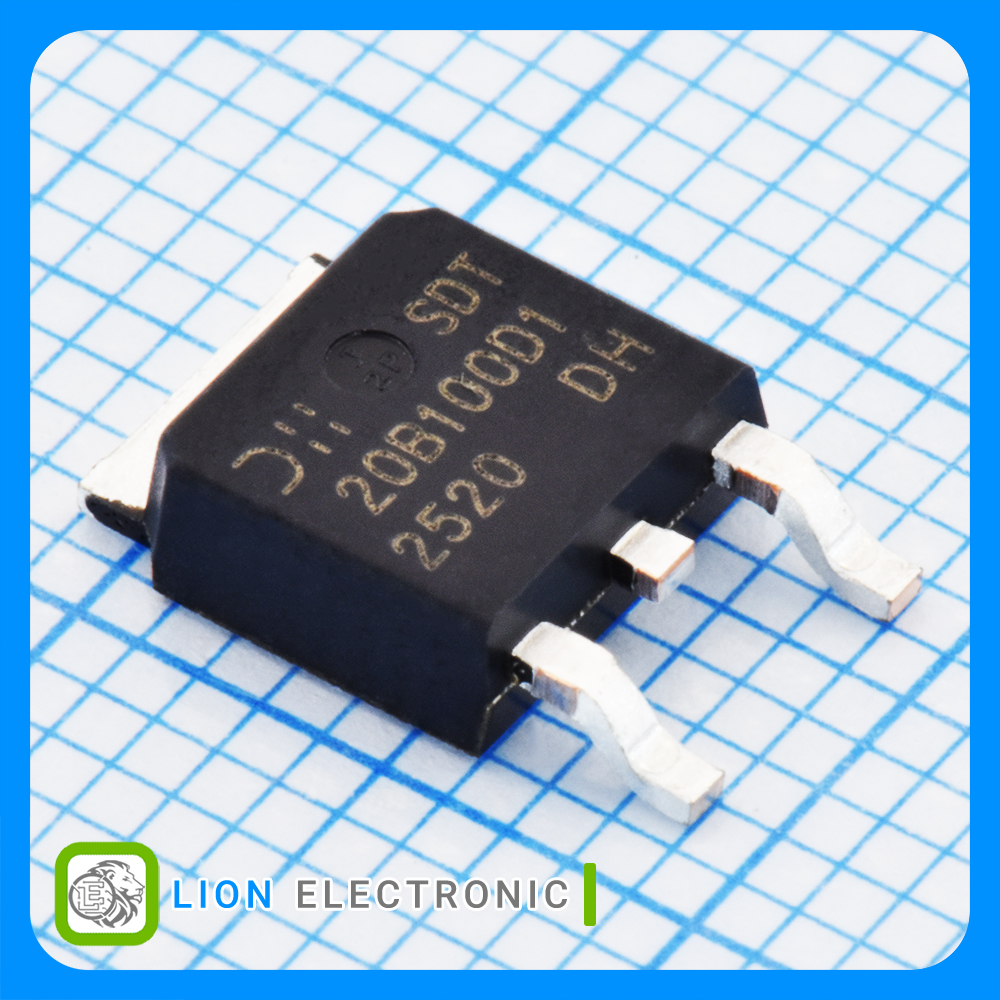

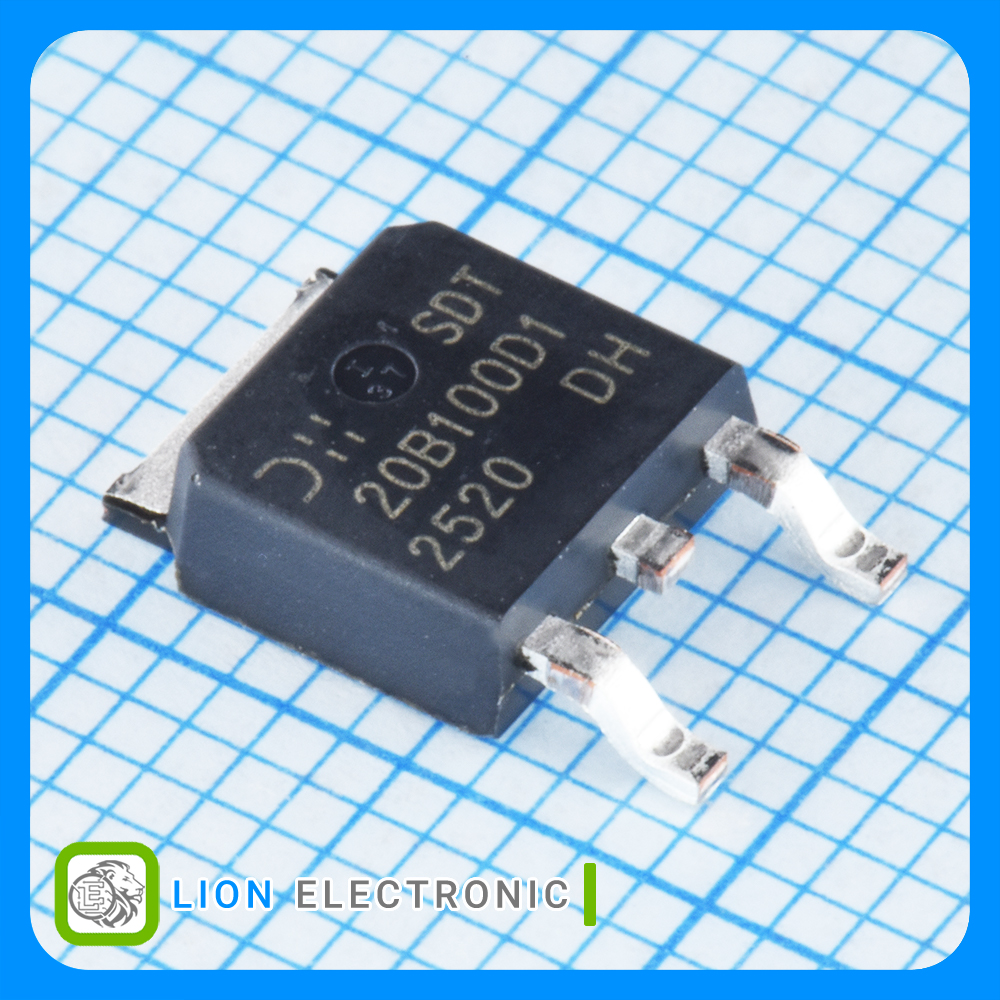

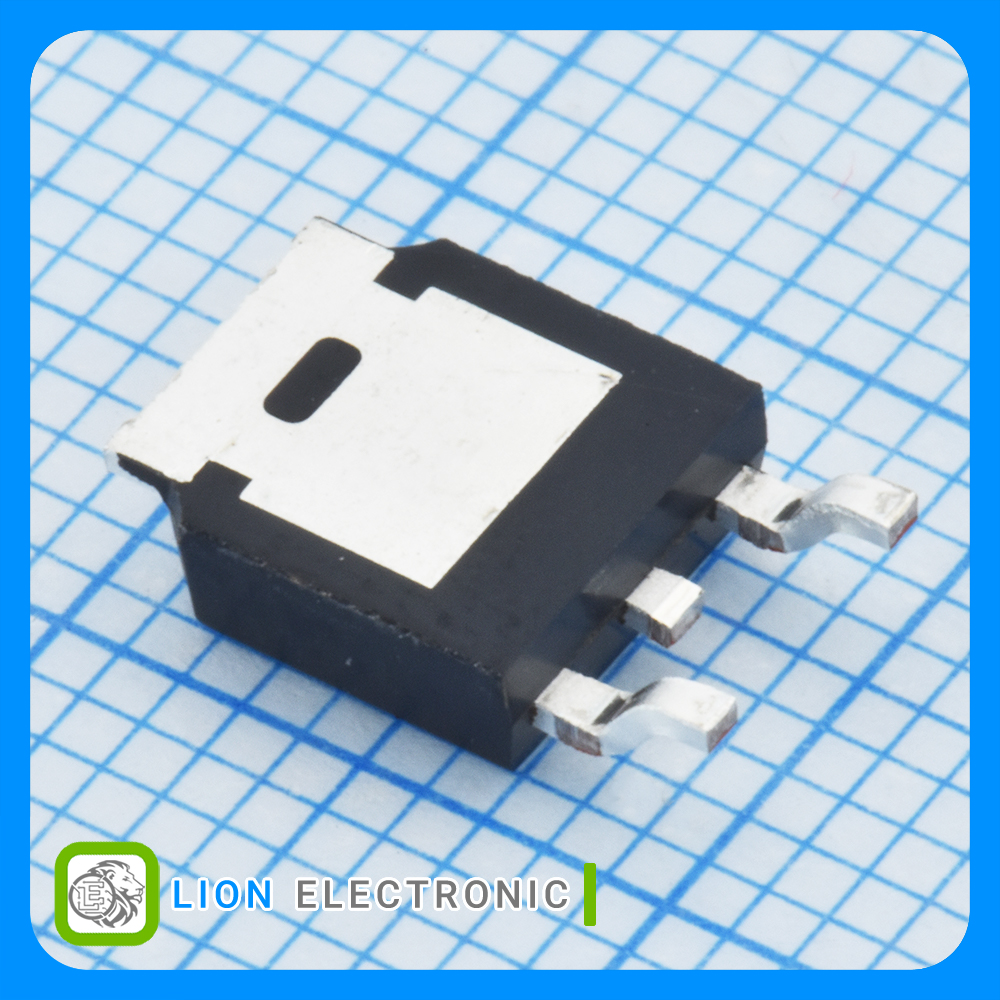

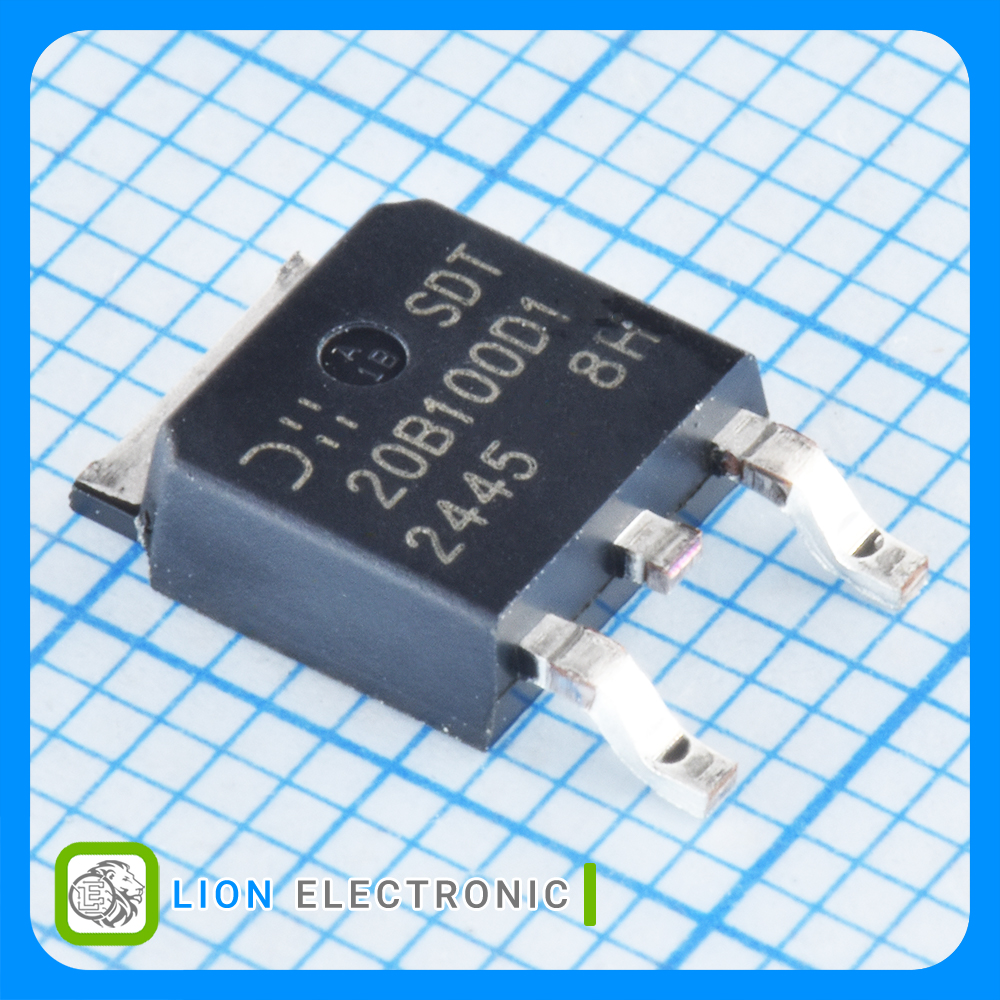

Schottky Diode 100V, 20A with TO-252-3 Package
معرفی
دیود شاتکی 100 ولت 20 آمپر با پکیج TO-252-3
Schottky Diode 100V, 20A with TO-252-3 Package
Specifications
- Configuration: Single Dual Anode
- Vrrm - Repetitive Reverse Voltage: 100V
- If - Forward Current: 20A
- Ifsm - Forward Surge Current: 100A
- Vf - Forward Voltage: 750mV
- Ir - Reverse Current: 6uA
- Mounting Style: SMD/SMT
- Package/Case: DPAK
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات دیود شاتکی SDT20B100D1-13
دیود شاتکی SDT20B100D1-13
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
6uA
Ir - Reverse Current
100V
Vrrm - Repetitive Reverse Voltage
100A
Ifsm - Forward Surge Current
750mV
Vf - Forward Voltage
+175C
Maximum Operating Temperature
Single
Configuration
20A
If - Forward Current
DPAK
Package-Case
