Yageo
معرفی
مقاومت دقیق فیلم نازک 300 اهم تلرانس 0.1% 125 میلیوات با TCR 10PPM/C سایز 0805

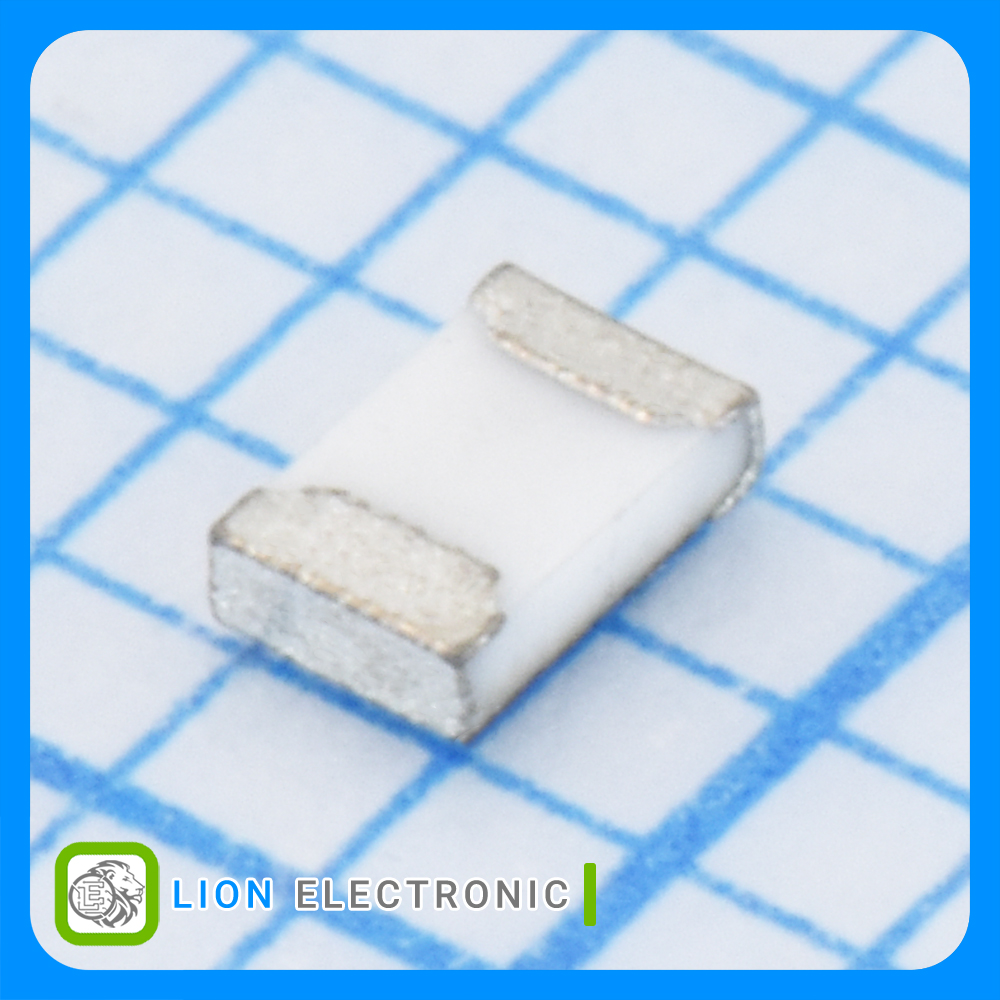

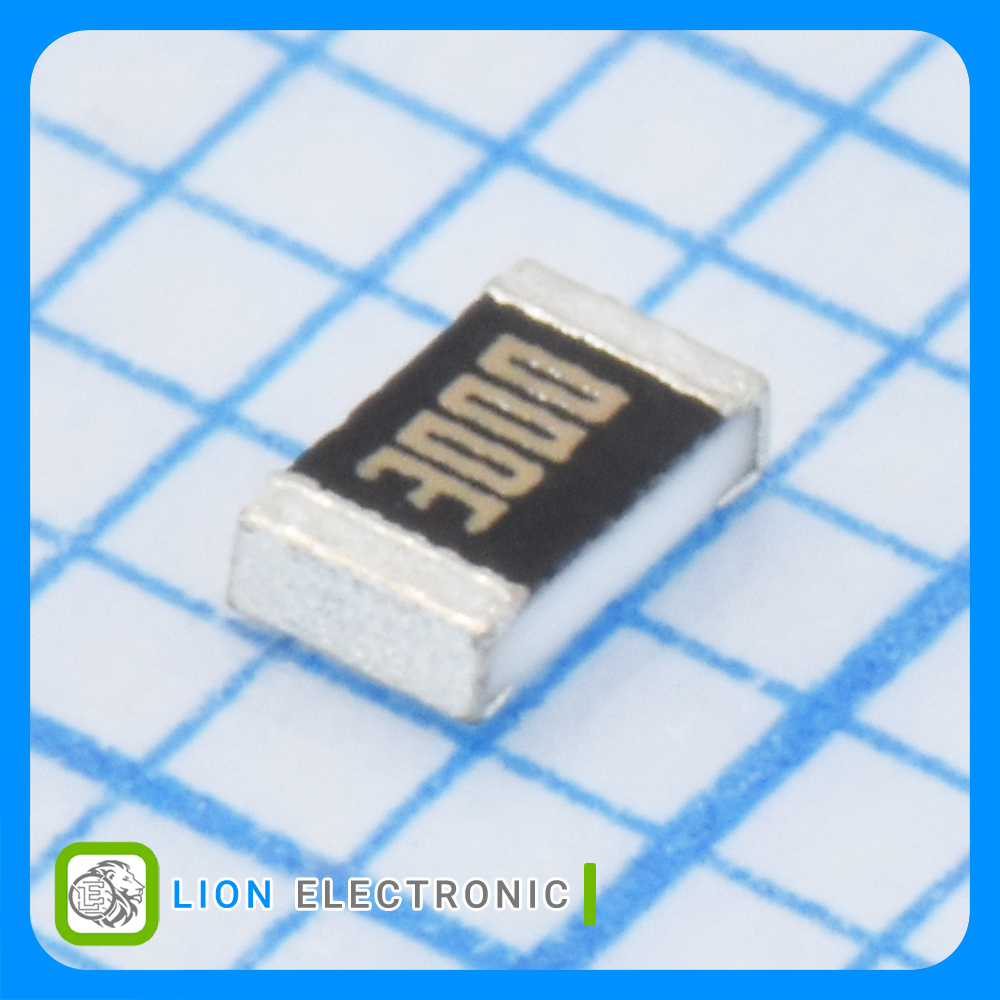

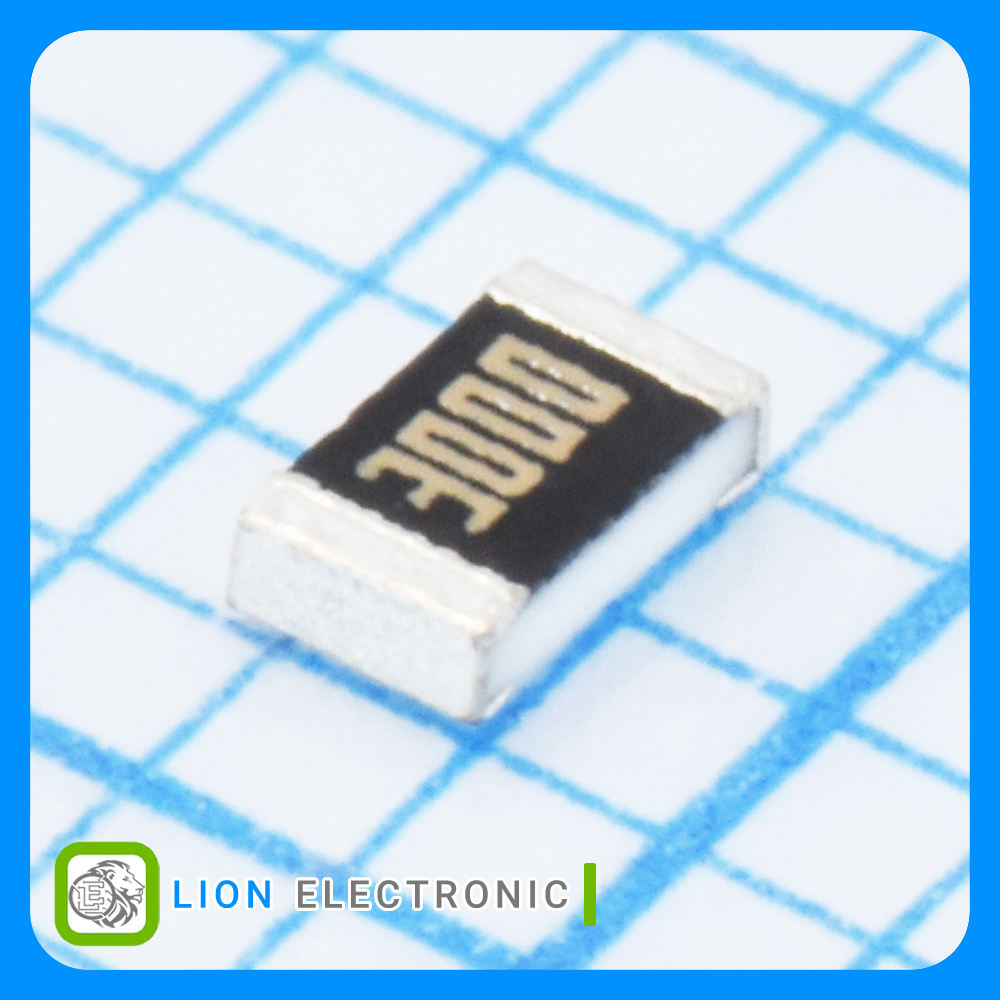

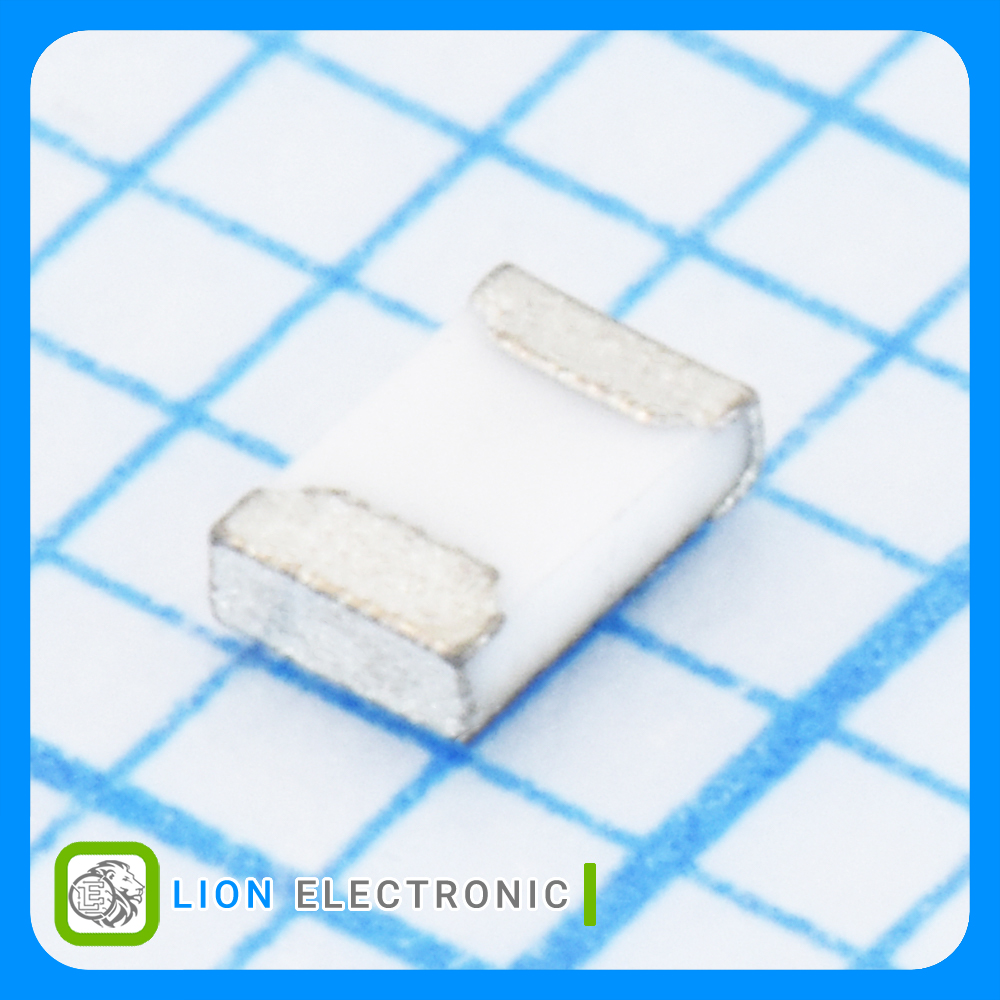

Precision Thin Film Resistor 300Ω, 0.1% with 125mW and TCR 10PPM/C, 0805 Size
Specifications
- Type: High Precision, High Stability
- Resistance: 300Ω
- Power Rating: 125mW
- Tolerance: 0.1%
- Temperature Coefficient: 10PPM/C
- Package/Case: 0805 (2012 metric)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +155C

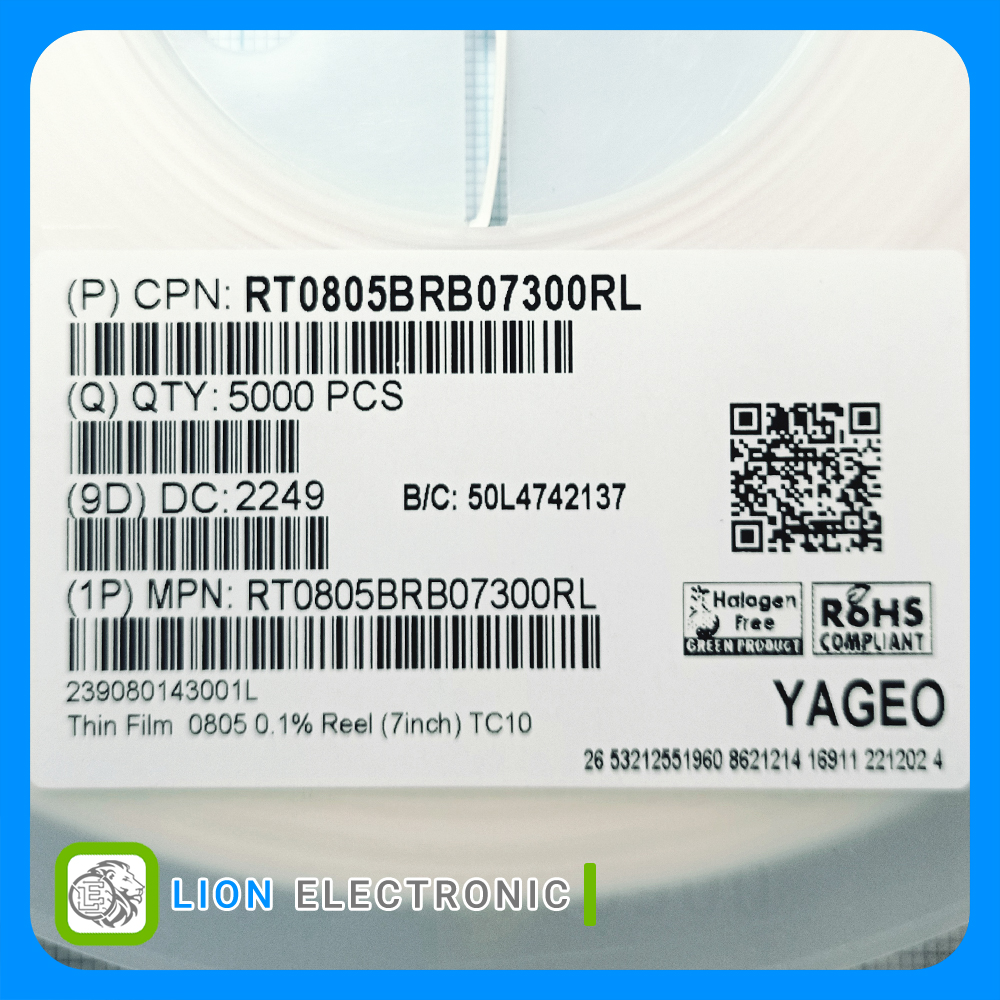

مشخصات مقاومت دقیق RT0805BRB07300RL
مقاومت دقیق RT0805BRB07300RL
Part Number
-55C
Minimum Operating Temperature
10PPM/C
Temperature Coefficient
0.1%
Tolerance
125mW
Power Rating
+155C
Maximum Operating Temperature
High Precision, High Stability
Type
0805 (2012 metric)
Package-Case
300Ω
Resistance
