MBRD20200CT
MBRD20200CT
Part Number
4527
Lion Part
Datasheet
Diodes Incorporated Manufacture
دیود شاتکی 200 ولت 2 در 10 آمپر با پکیج TO-252-3 (DPAK)

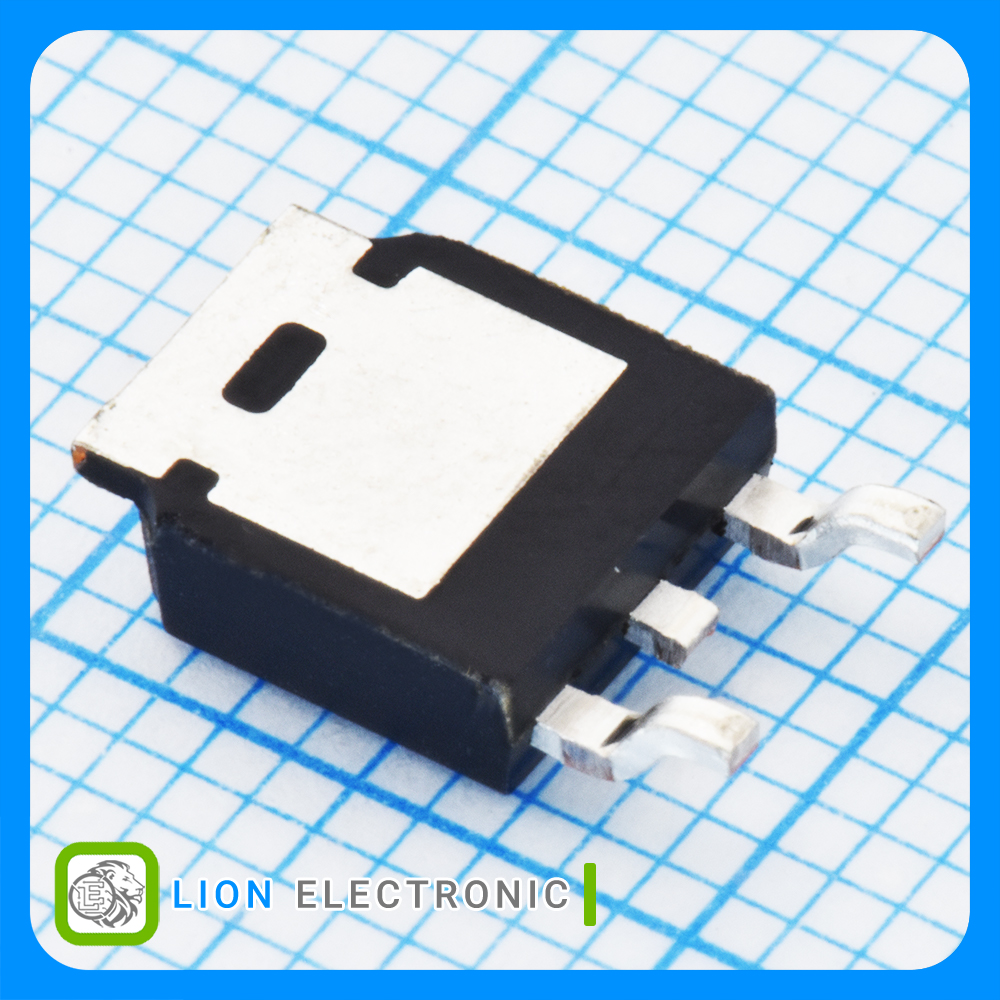

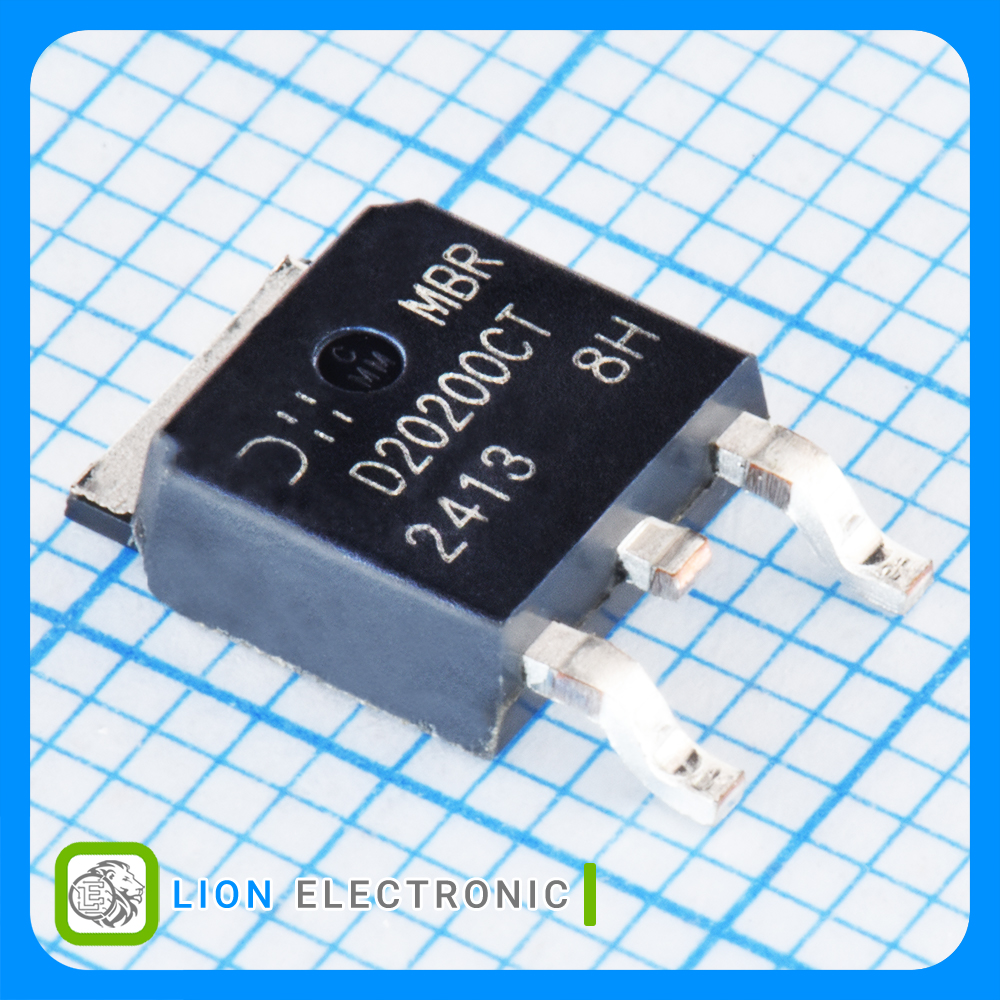

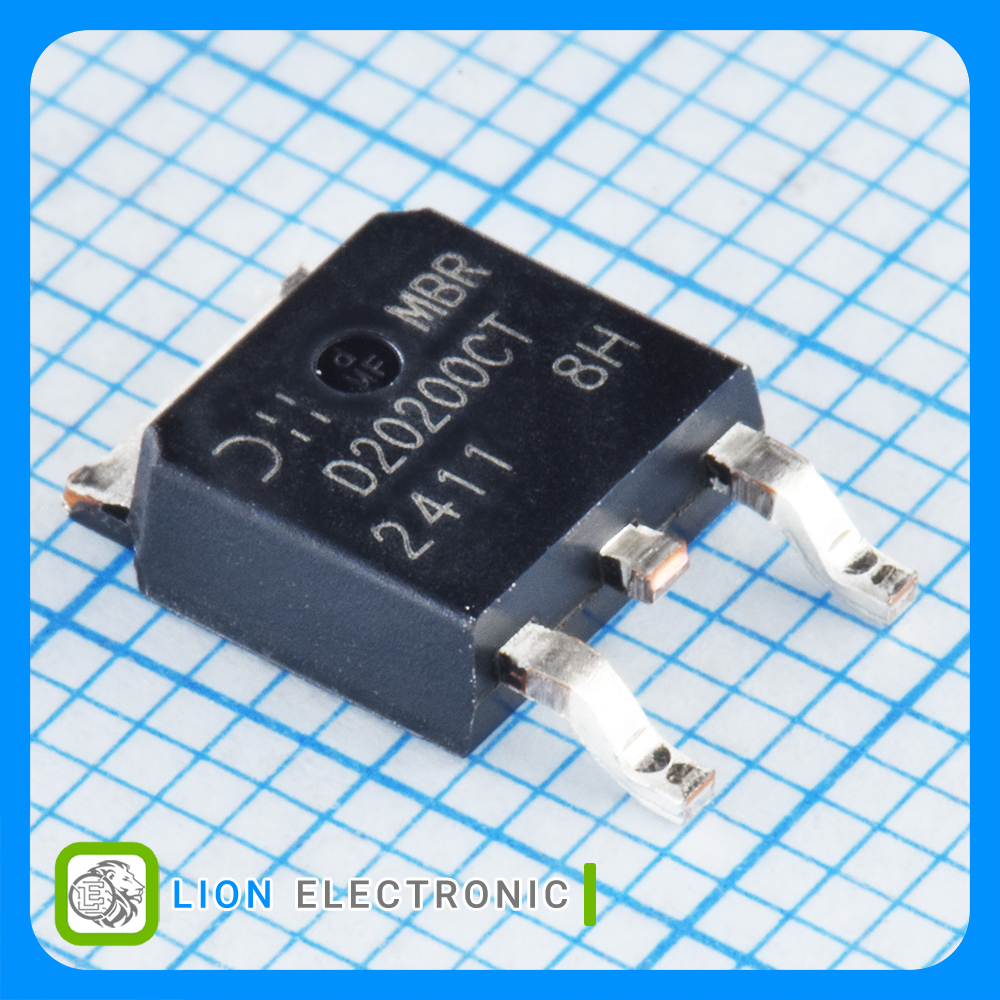

Schottky Diode 200V, 2x10A with TO-252-3 (DPAK) Package
معرفی
دیود شاتکی 200 ولت 2 در 10 آمپر با پکیج TO-252-3 (DPAK)
Schottky Diode 200V, 2x10A with TO-252-3 (DPAK) Package
Specifications
- Configuration: Dual Anode Common Cathode
- Vrrm - Repetitive Reverse Voltage: 200V
- If - Forward Current: 2x10A
- Ifsm - Forward Surge Current: 150A
- Vf - Forward Voltage: 840mV
- Ir - Reverse Current: 50uA
- Mounting Style: SMD/SMT
- Package/Case: DPAK
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود شاتکی MBRD20200CT
دیود شاتکی MBRD20200CT
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
200V
Vrrm - Repetitive Reverse Voltage
50uA
Ir - Reverse Current
150A
Ifsm - Forward Surge Current
+150C
Maximum Operating Temperature
840mV
Vf - Forward Voltage
2x10A
If - Forward Current
DPAK
Package-Case
