BAS7004E6327HTSA1
BAS7004E6327HTSA1
Part Number
4597
Lion Part
Datasheet
Infineon Technologies Manufacture
دیود شاتکی 70 ولت 70 میلیآمپر با پکیج SOT-23-3

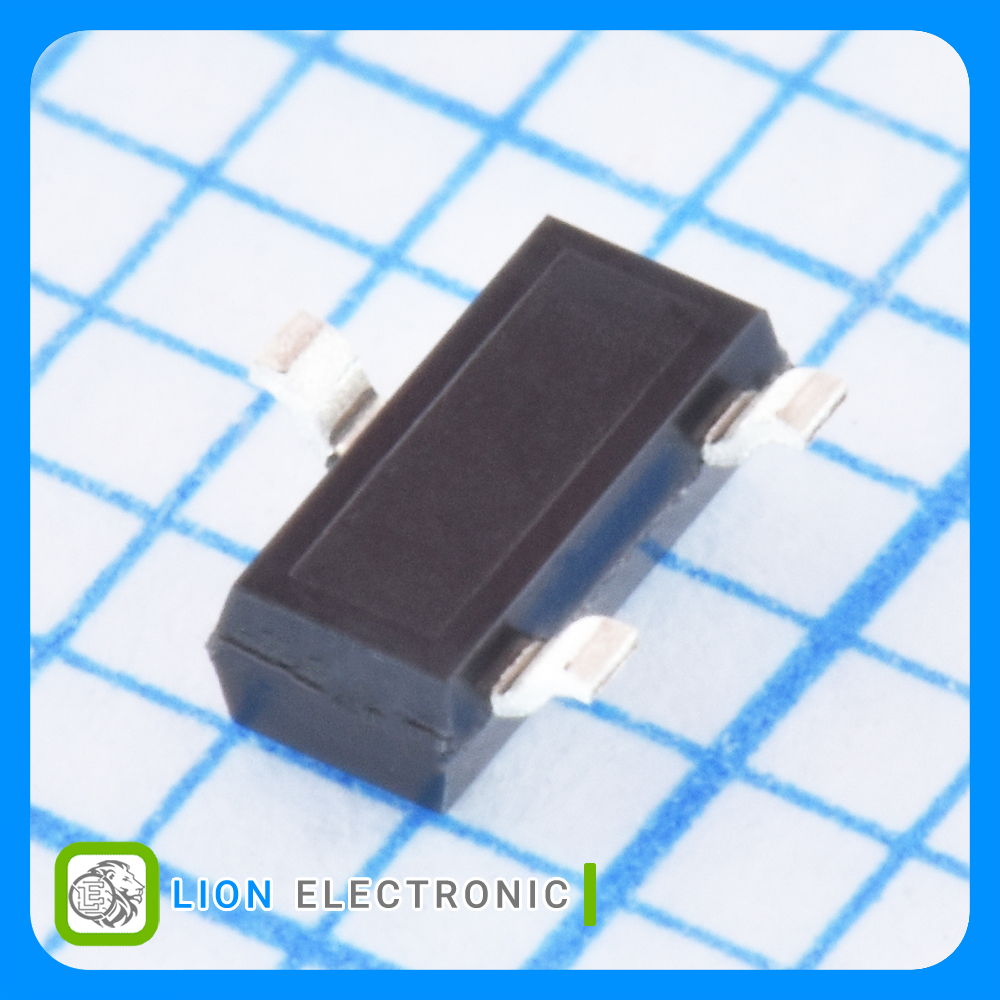

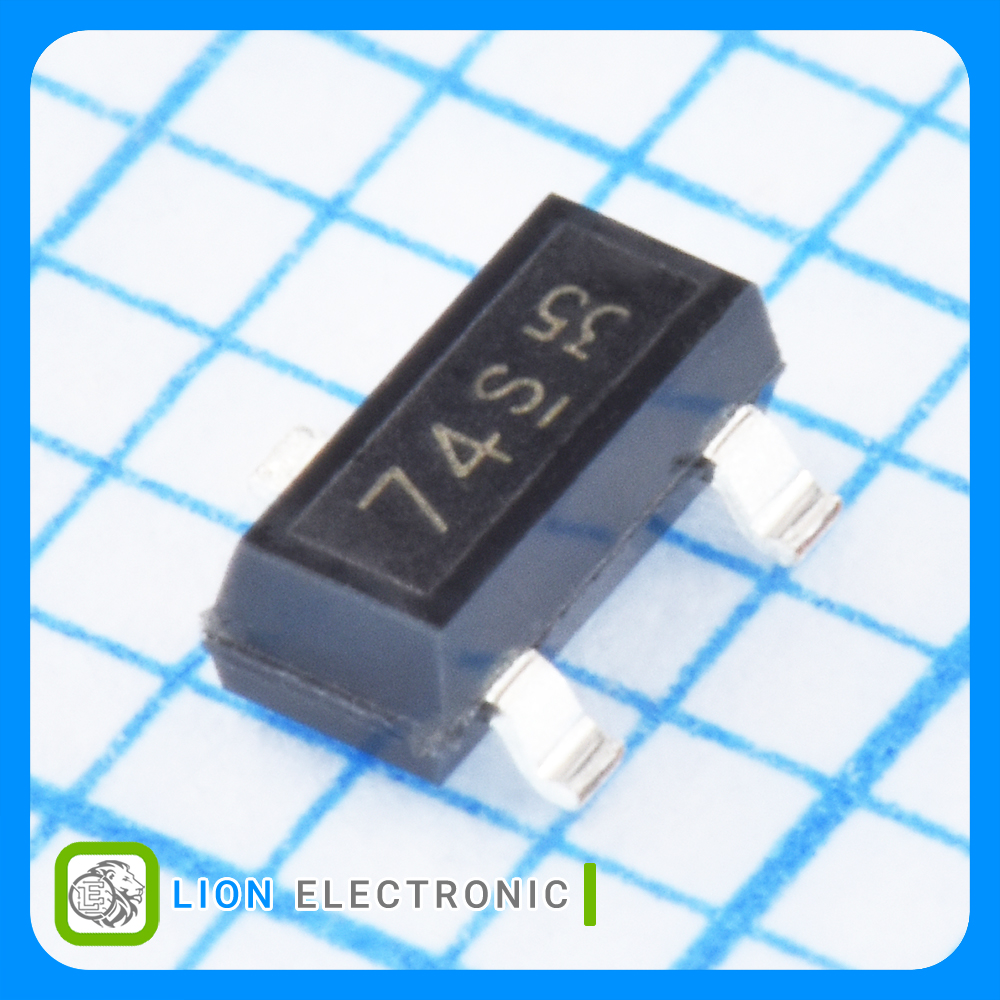

Schottky Diode 70V, 70mA with SOT-23-3 Package
معرفی
دیود شاتکی 70 ولت 70 میلیآمپر با پکیج SOT-23-3
Schottky Diode 70V, 70mA with SOT-23-3 Package
Specifications
- Configuration: Dual Series
- Vrrm - Repetitive Reverse Voltage: 70V
- If - Forward Current: 70mA
- Ifsm - Forward Surge Current: 100mA
- Vf - Forward Voltage: 700mV
- Ir - Reverse Current: 100nA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات دیود شاتکی BAS7004E6327HTSA1
دیود شاتکی BAS7004E6327HTSA1
Part Number
100mA
Ifsm - Forward Surge Current
100nA
Ir - Reverse Current
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
70V
Vrrm - Repetitive Reverse Voltage
70mA
If - Forward Current
+125C
Maximum Operating Temperature
Dual Series
Configuration
700mV
Vf - Forward Voltage
SOT-23-3
Package-Case
