Xilinx
معرفی

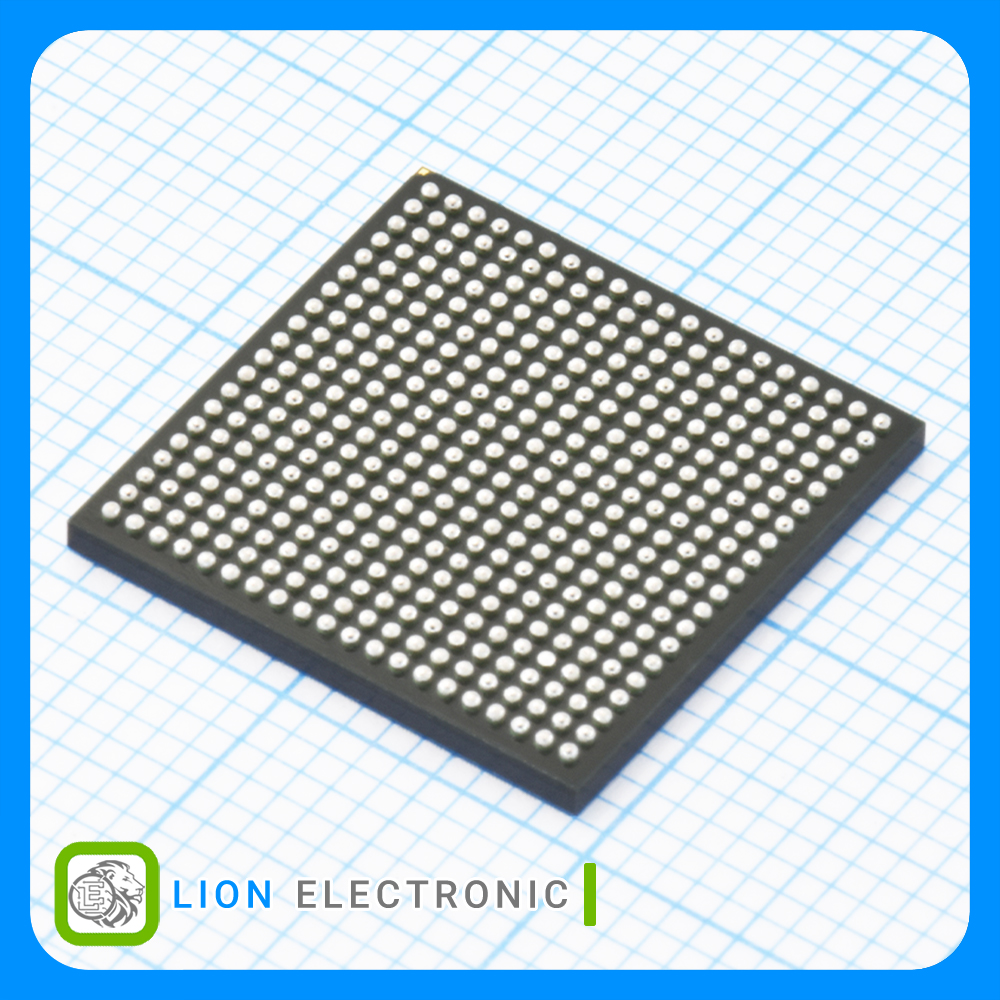

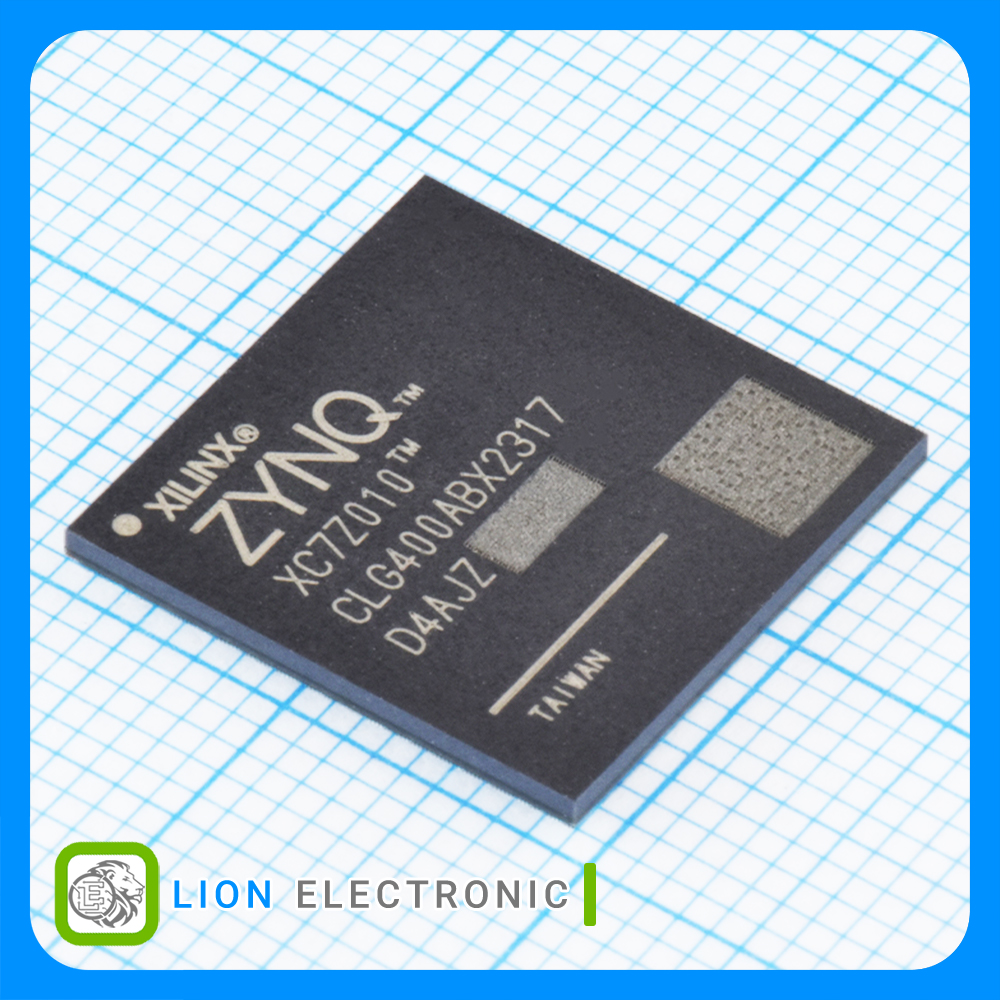

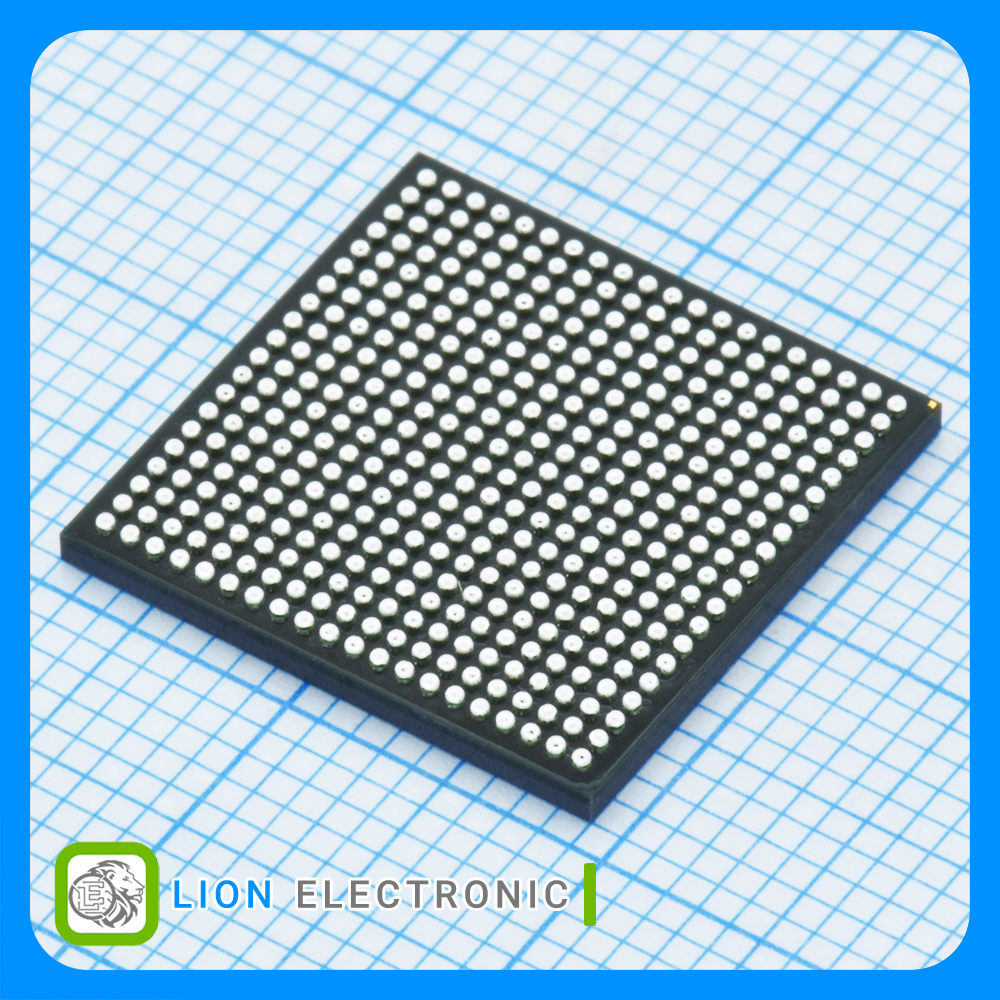

FPGA ترکیبی Zynq-7000 با پردازنده ARM Cortex-A9 دو هستهای، 866MHz، 118 ورودی/خروجی با پکیج CSBGA-400
Zynq-7000 SoC FPGA with Dual-Core ARM Cortex-A9, 866MHz, 118 I/Os with CSBGA-400 Package
Specifications
- Series: Zynq®-7000
- Core: ARM Cortex A9 + Artix-7
- Interface Type: Ethernet, CAN, I2C, SDIO, SPI, UART, USB
- Number of I/Os: 118
- ADC Resolution: 2 x 12bit
- Data Bus Width: 32bit
- Maximum Clock Frequency: 866MHz
- Operating Supply Voltage: 1.2V
- Mounting Style: SMD/SMT
- Package/Case: CSBGA-400
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +85C
- Packaging: Tray
مشخصات XC7Z010-1CLG400C

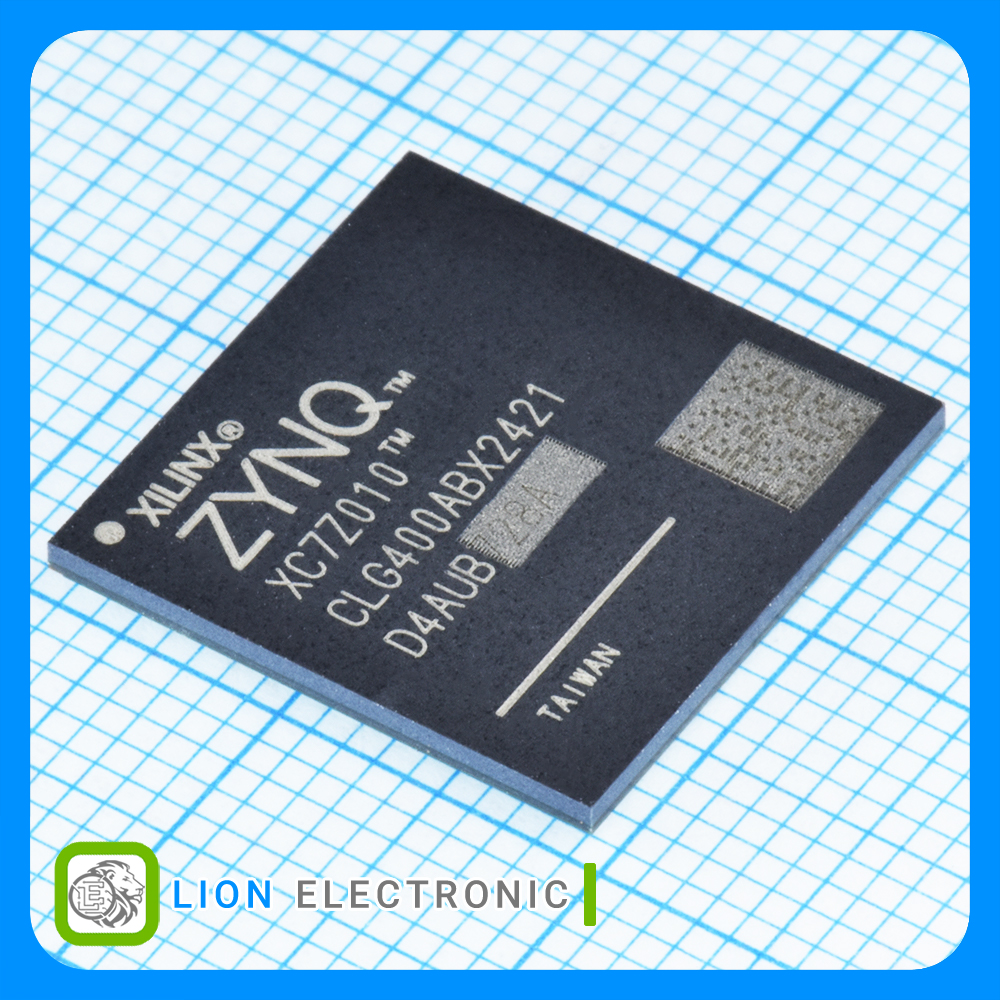

XC7Z010-1CLG400C
Part Number
32bit
Data Bus Width
2 x 12bit
ADC Resolution
Tray
Packaging
ARM Cortex A9 + Artix-7
Core
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
1.2V
Operating Supply Voltage
0C
Minimum Operating Temperature
Zynq®-7000
Series
N/A
Program Memory Size
866MHz
Maximum Clock Frequency
N/A
Data RAM Size
Ethernet, CAN, I2C, SDIO, SPI, UART, USB
Interface Type
118
Number of I-Os
CSBGA-400
Package-Case
