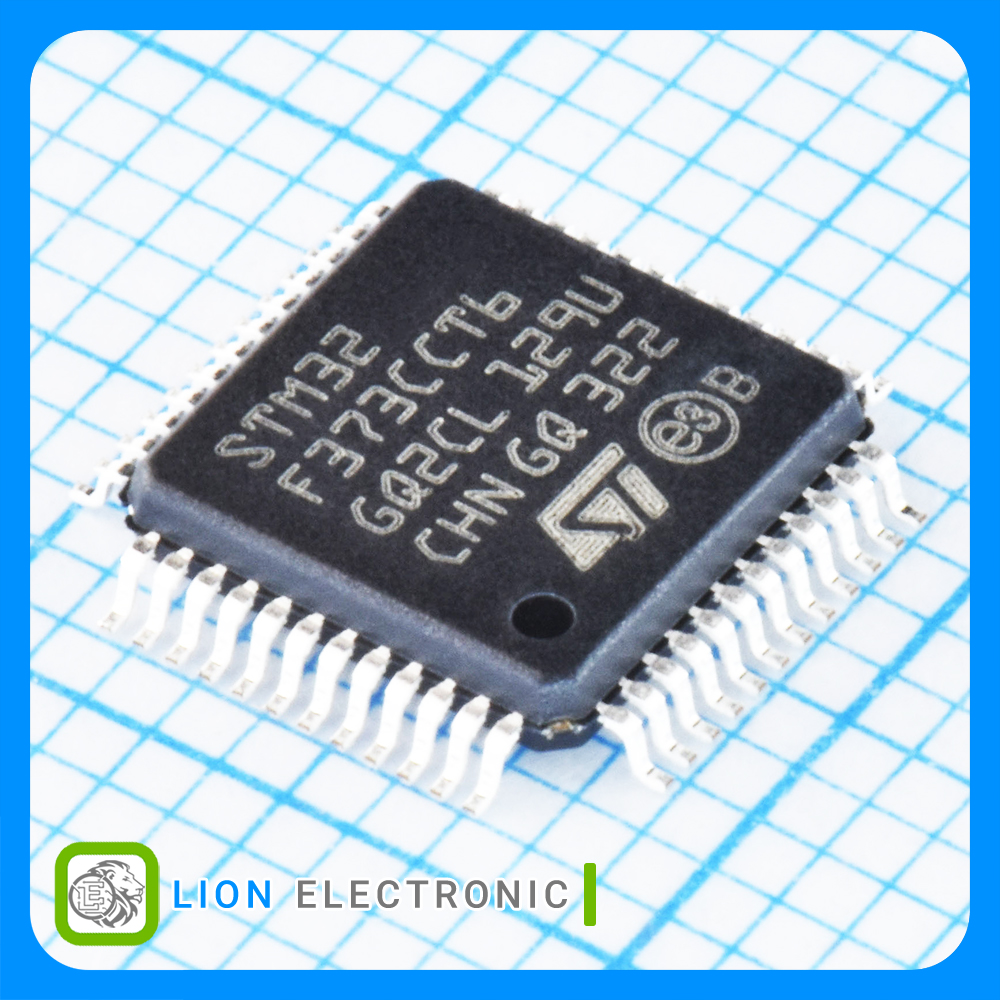

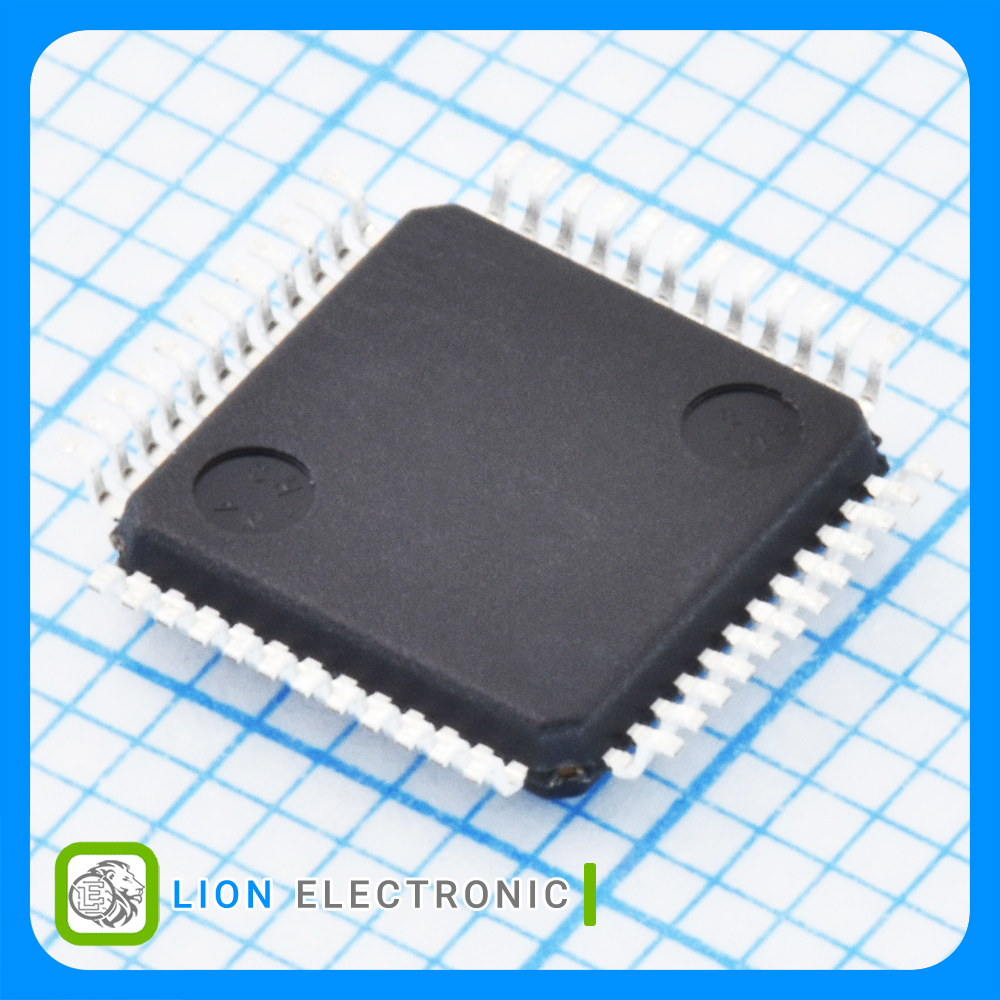

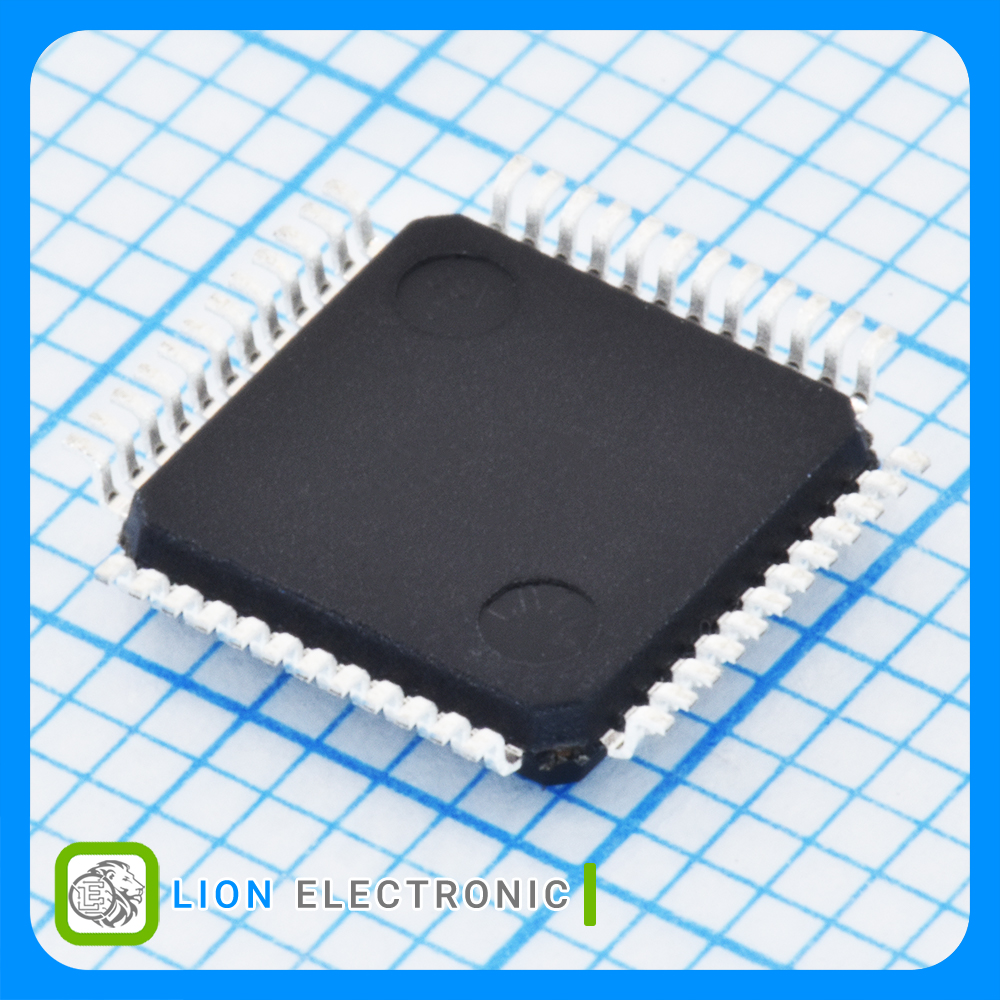

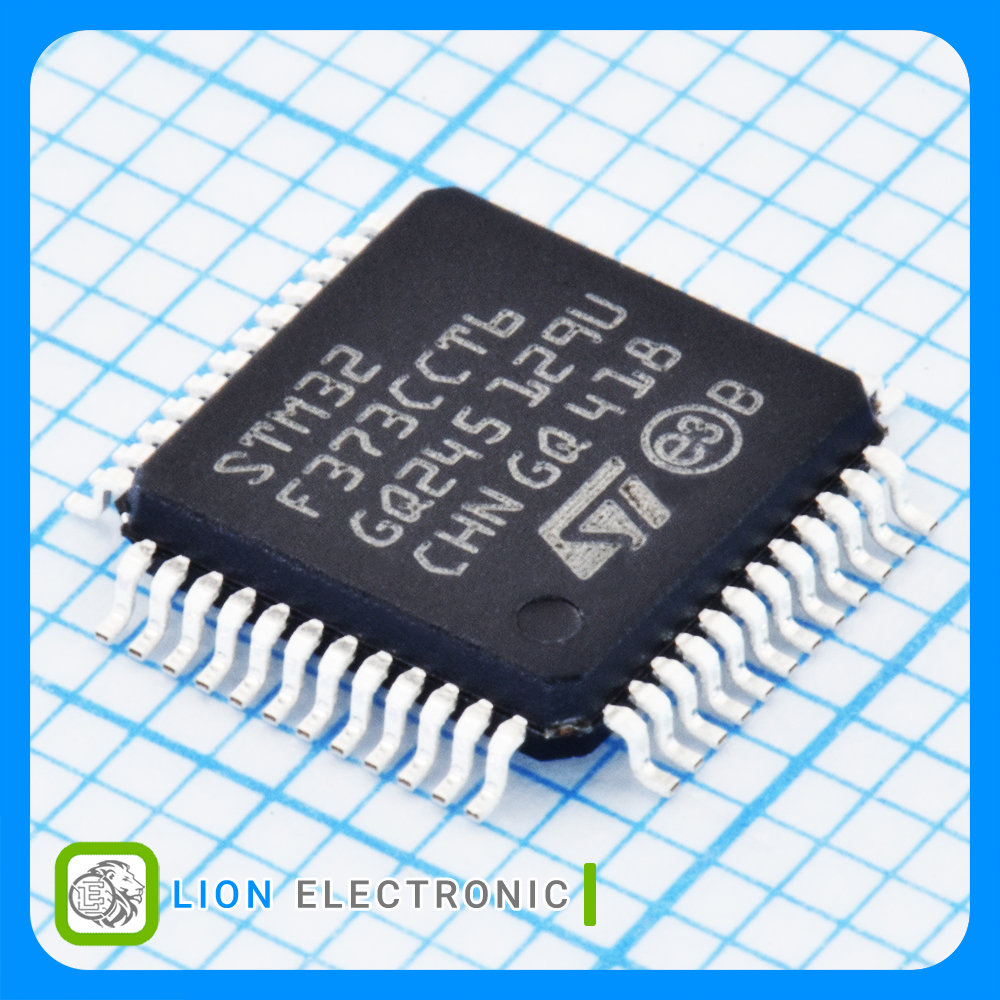

میکروکنترلر STM32F373CCT6
STM32F373CCT6
Part Number
4808
Lion Part
Datasheet
STMicroelectronics Manufacture
میکروکنترلر 256 کیلوبایت فلش، 32 کیلوبایت رم با پکیج LQFP-48
ARM Cortex-M4 32b MCU+FPU, 256KB Flash+32KB SRAM, timers, 4 ADCs (16bit Sig. Delta / 12-bit SAR), 3 DACs, 2 comp., 2.0-3.6V
مشخصات میکروکنترلر STM32F373CCT6
میکروکنترلر STM32F373CCT6
Part Number
32bit
Data Bus Width
-40C
Minimum Operating Temperature
Tray
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
ARM Cortex M4
Core
3x16bit, 1x12bit
ADC Resolution
STM32F3
Series
256kB
Program Memory Size
72MHz
Maximum Clock Frequency
32kB
Data RAM Size
37
Number of I-Os
CAN, I2C, SPI/I2S, USART, USB
Interface Type
2 - 3.6V
Operating Supply Voltage
LQFP-48
Package-Case
