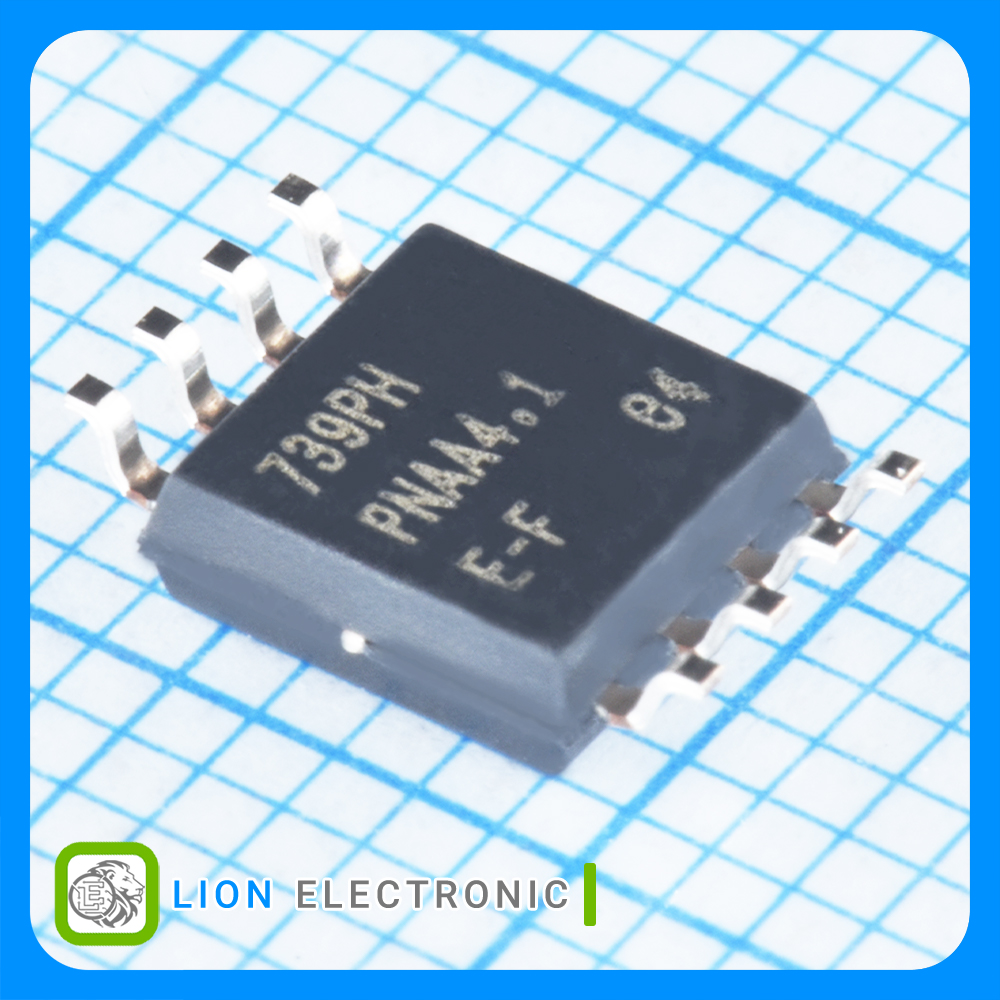

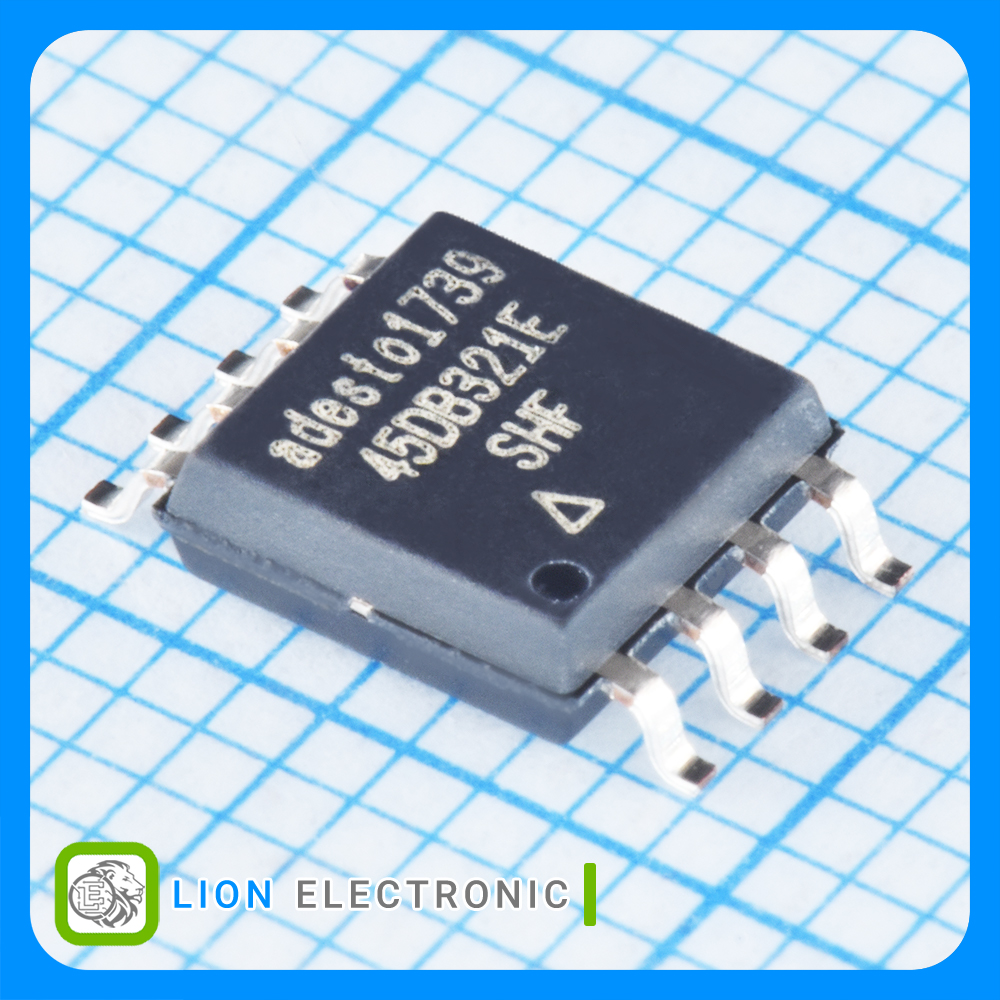

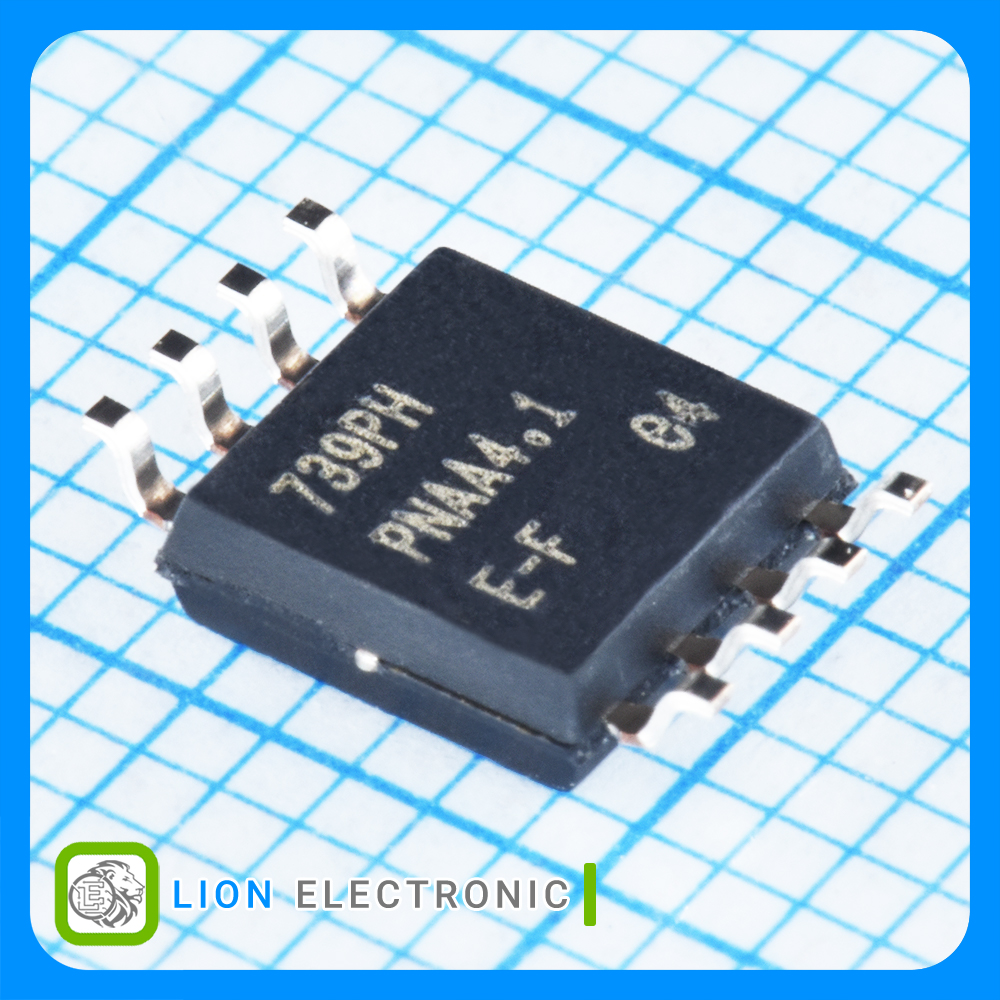

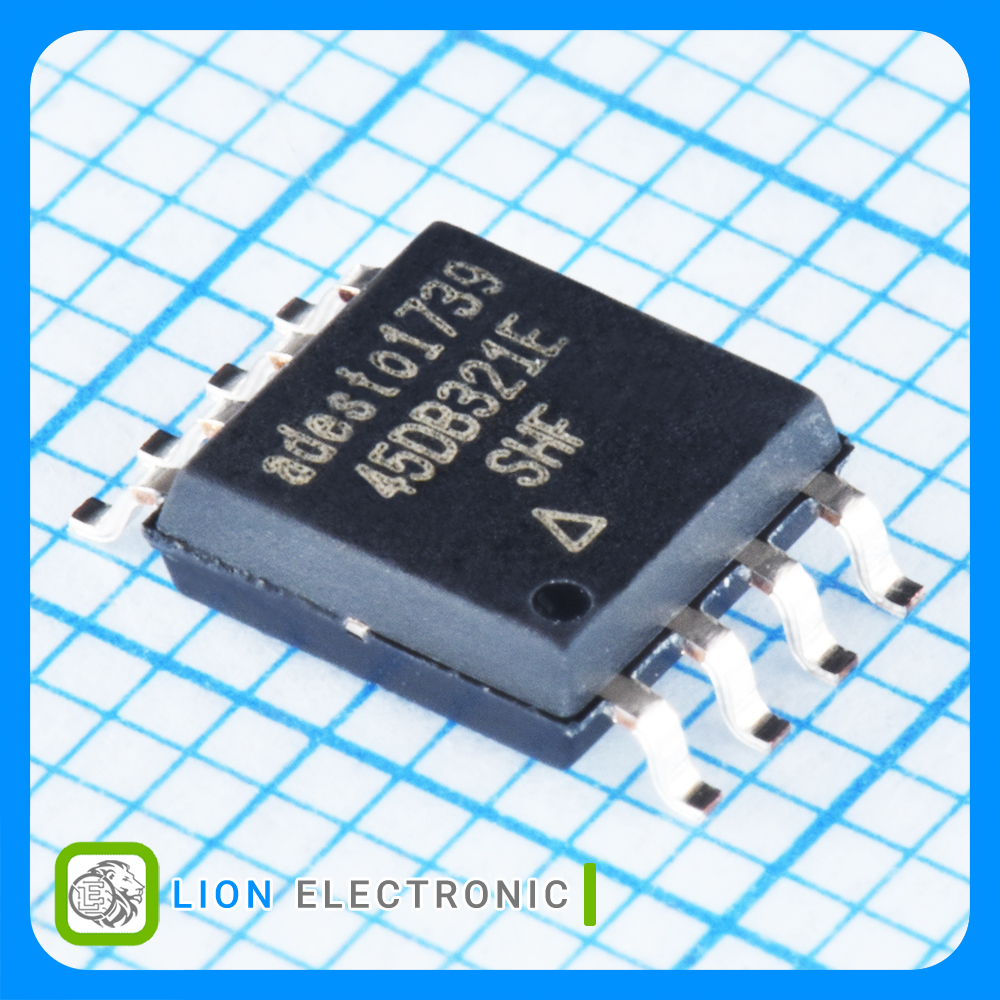

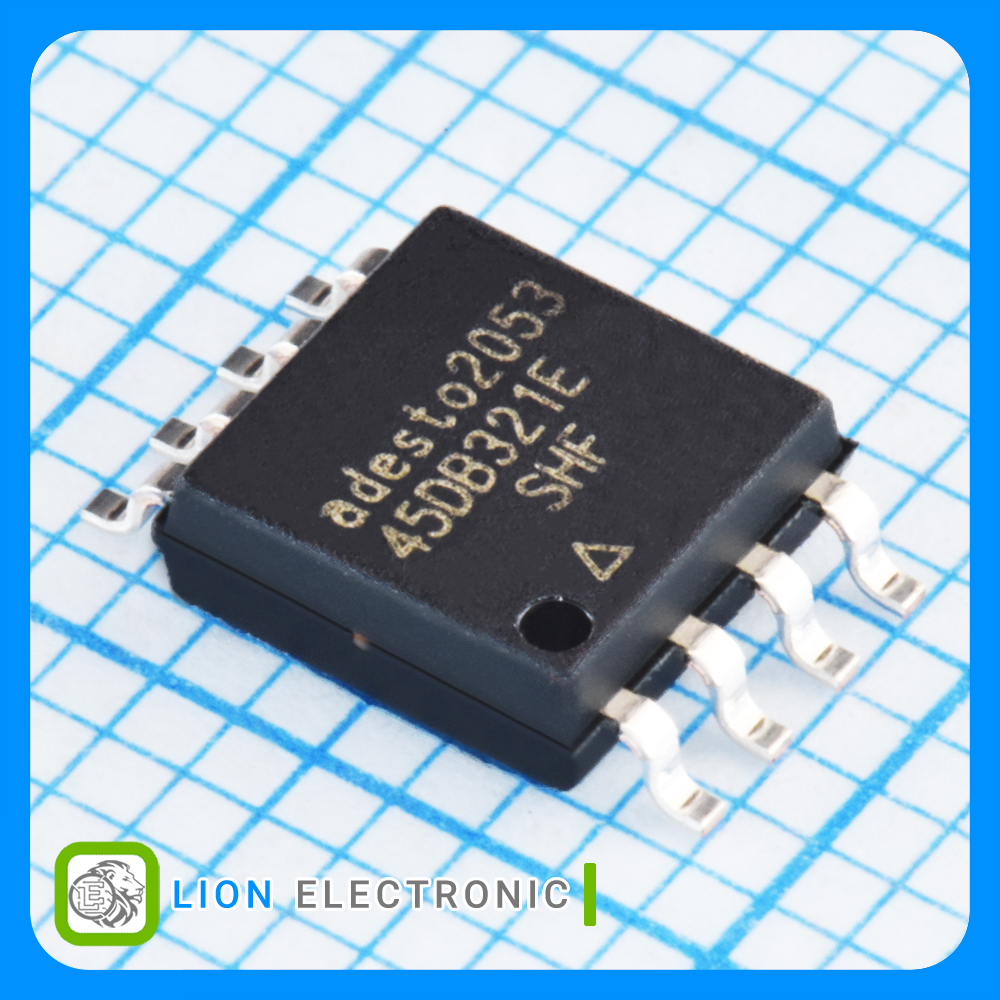

AT45DB321E-SHF-T
AT45DB321E-SHF-T
Part Number
510
Lion Part
Datasheet
Adesto Technologies Manufacture
حافظه فلش NOR 32 مگابیت DataFlash (با 1 مگابیت اضافه) با رابط SPI سریال، حداقل ولتاژ 2.3 ولت، فرکانس 85 مگاهرتز و پکیج SOIC-8
NOR Flash 32Mbit DataFlash (with Extra 1Mbits), 2.3V Minimum SPI Serial Flash Memory, 85MHz with SOIC-8 Package
معرفی
حافظه فلش NOR 32 مگابیت DataFlash (با 1 مگابیت اضافه) با رابط SPI سریال، حداقل ولتاژ 2.3 ولت، فرکانس 85 مگاهرتز و پکیج SOIC-8
NOR Flash 32Mbit DataFlash (with Extra 1Mbits), 2.3V Minimum SPI Serial Flash Memory, 85MHz with SOIC-8 Package
Specifications
- Interface Type: SPI
- Memory Size: 32Mbit
- Data Bus Width: 8bit
- Organization: 4M x 8
- Maximum Clock Frequency: 85MHz
- Timing Type: Synchronous
- Supply Voltage - Min: 2.3V
- Supply Voltage - Max: 3.6V
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات AT45DB321E-SHF-T
AT45DB321E-SHF-T
Part Number
Synchronous
Timing Type
8bit
Data Bus Width
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
3.6V
Supply Voltage - Max
32Mbit
Memory Size
4M x 8
Organization
22mA
Supply Current - Max
85MHz
Maximum Clock Frequency
2.3V
Supply Voltage - Min
NOR Flash
Product Type
SPI
Interface Type
SOIC-8
Package-Case
