PDS3200-13
PDS3200-13
Part Number
5130
Lion Part
Datasheet
Diodes Incorporated Manufacture
دیود شاتکی 200 ولت 3 آمپر با پکیج PowerDI5-3

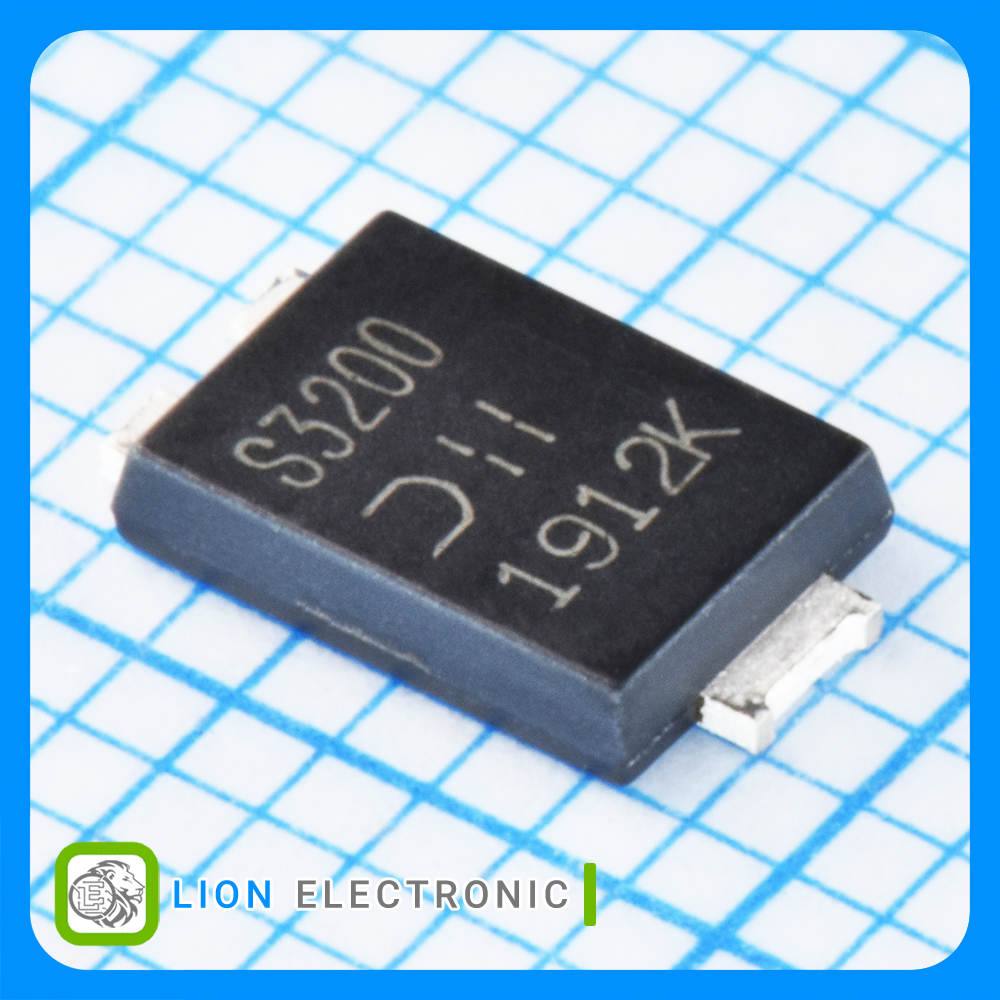

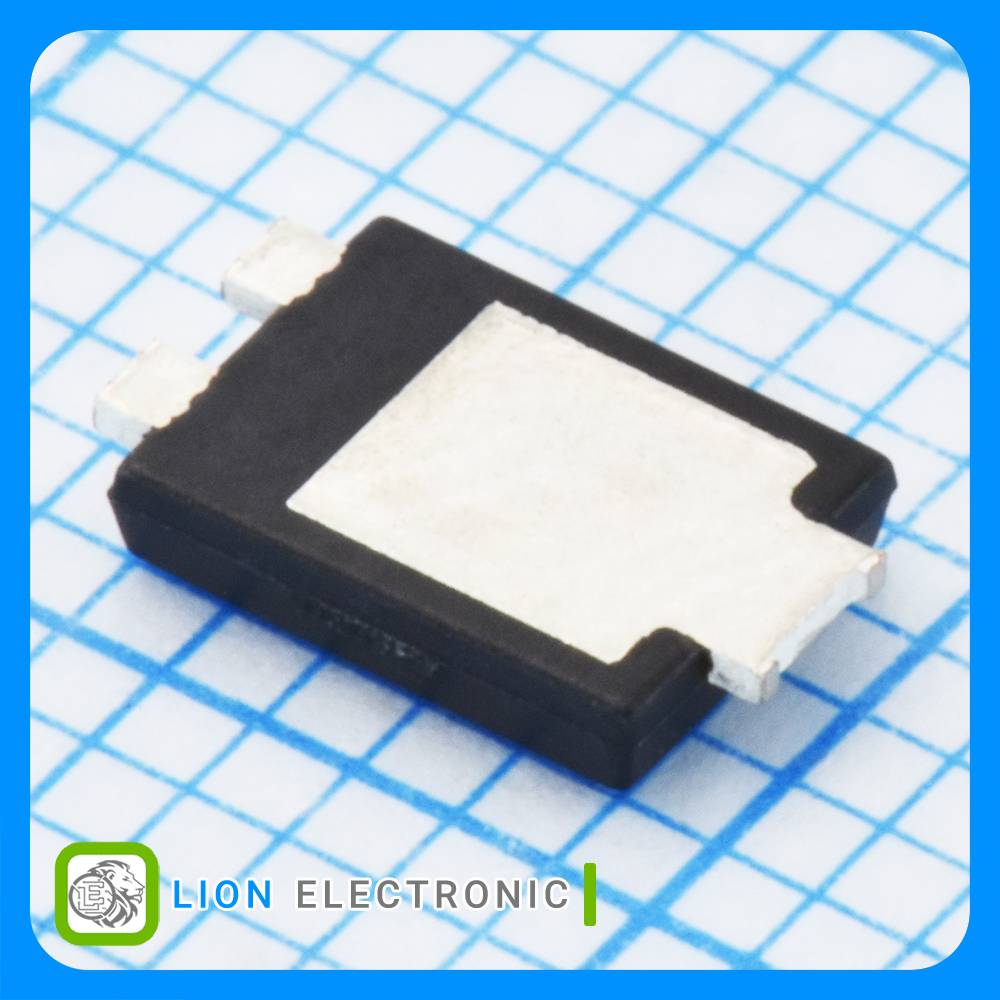

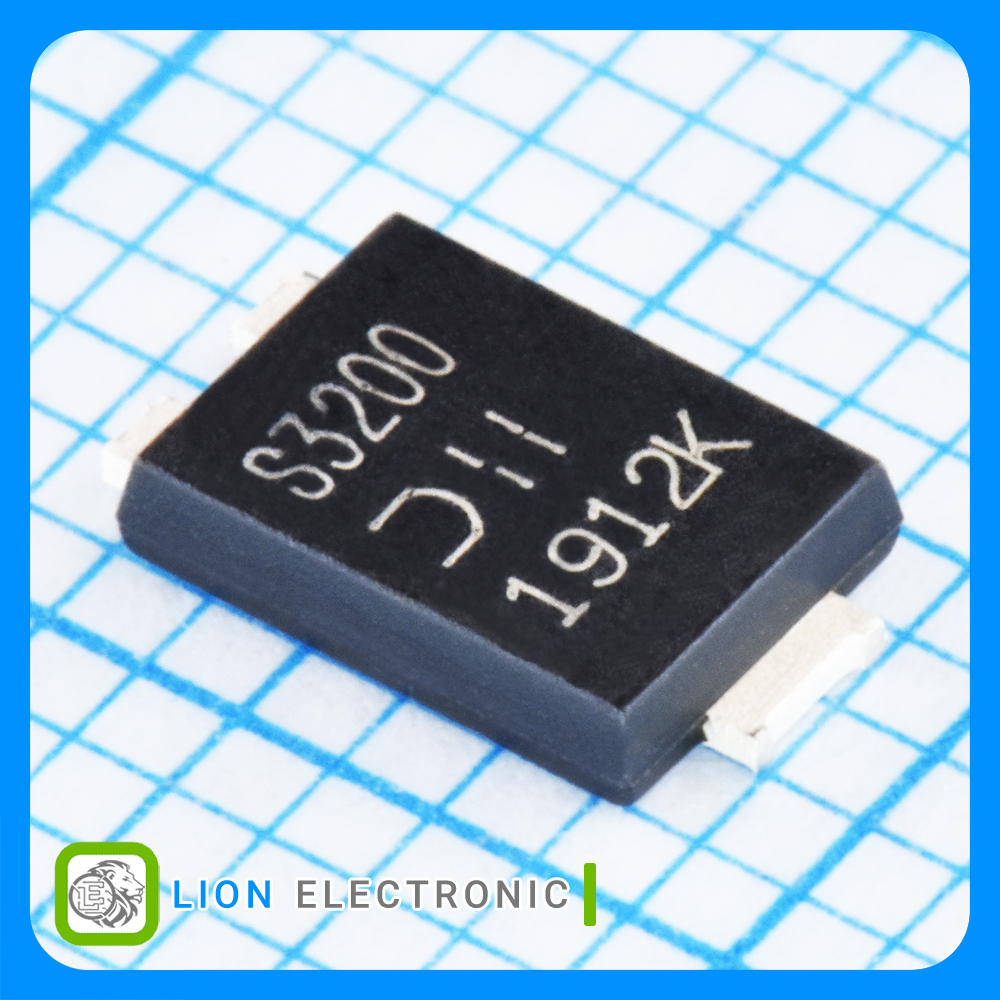

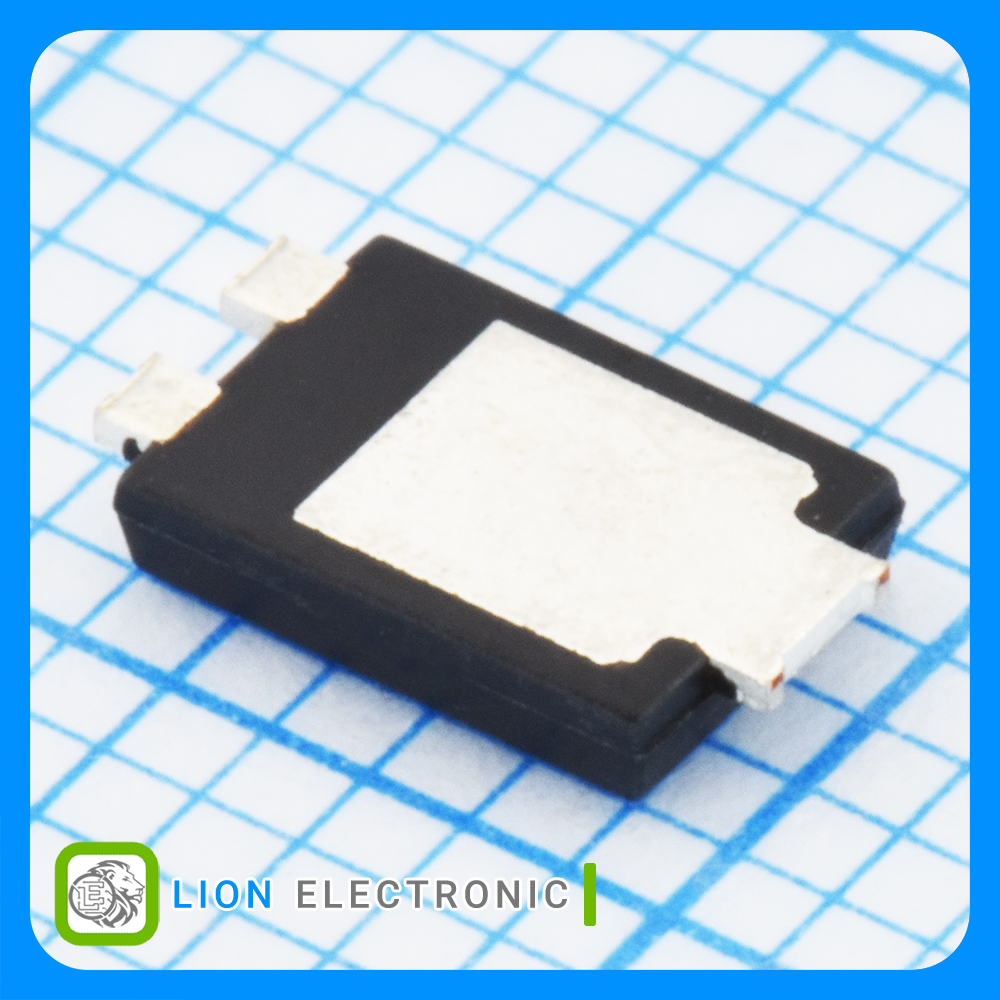

High Voltage Schottky Barrier Rectifier 200V, 3A with PowerDI5 Package
معرفی
دیود شاتکی 200 ولت 3 آمپر با پکیج PowerDI5-3
High Voltage Schottky Barrier Rectifier 200V, 3A with PowerDI5 Package
Specifications
- Configuration: Single Dual Anode
- Vrrm - Repetitive Reverse Voltage: 200V
- If - Forward Current: 3A
- Ifsm - Forward Surge Current: 180A
- Vf - Forward Voltage: 750mV
- Ir - Reverse Current: 1uA
- Mounting Style: SMD/SMT
- Package/Case: PowerDI5-3
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود شاتکی PDS3200-13
دیود شاتکی PDS3200-13
Part Number
-65C
Minimum Operating Temperature
1uA
Ir - Reverse Current
Reel
Packaging
SMD/SMT
Mounting Style
200V
Vrrm - Repetitive Reverse Voltage
+150C
Maximum Operating Temperature
180A
Ifsm - Forward Surge Current
750mV
Vf - Forward Voltage
Single
Configuration
3A
If - Forward Current
PowerDI5-3
Package-Case
