KAQY214A
KAQY214A
Part Number
5222
Lion Part
Datasheet
Cosmo Electronics Manufacture
رله حالت جامد ماسفت نوع N.O با 4 پین 400 ولت 130 میلیآمپر optomos با پکیج SMD-4

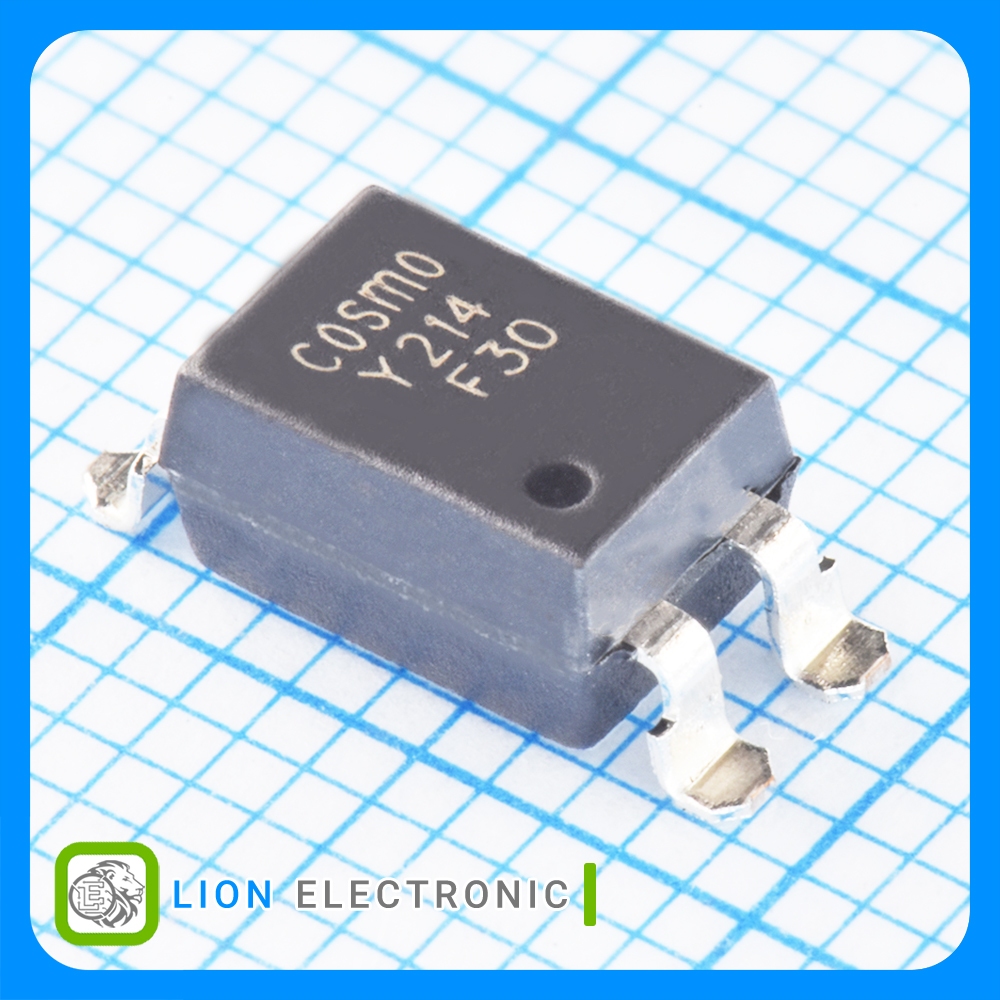

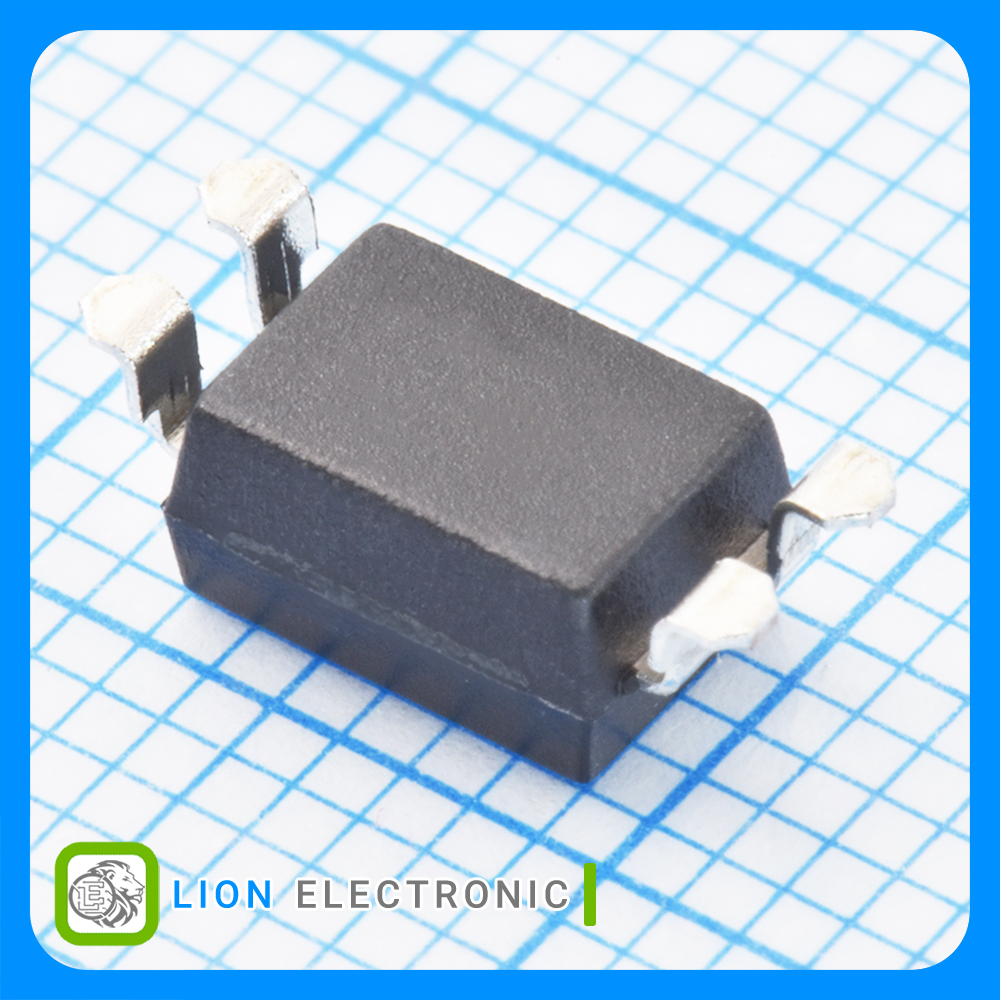

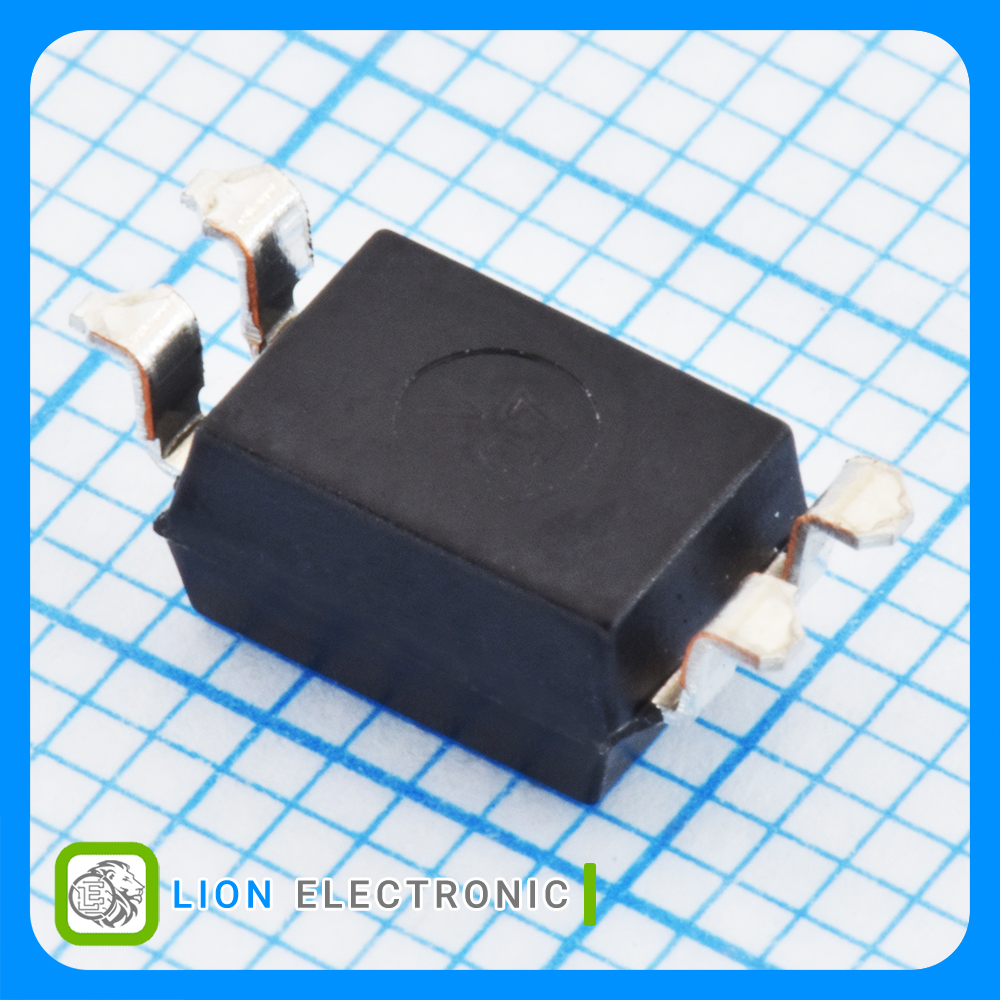

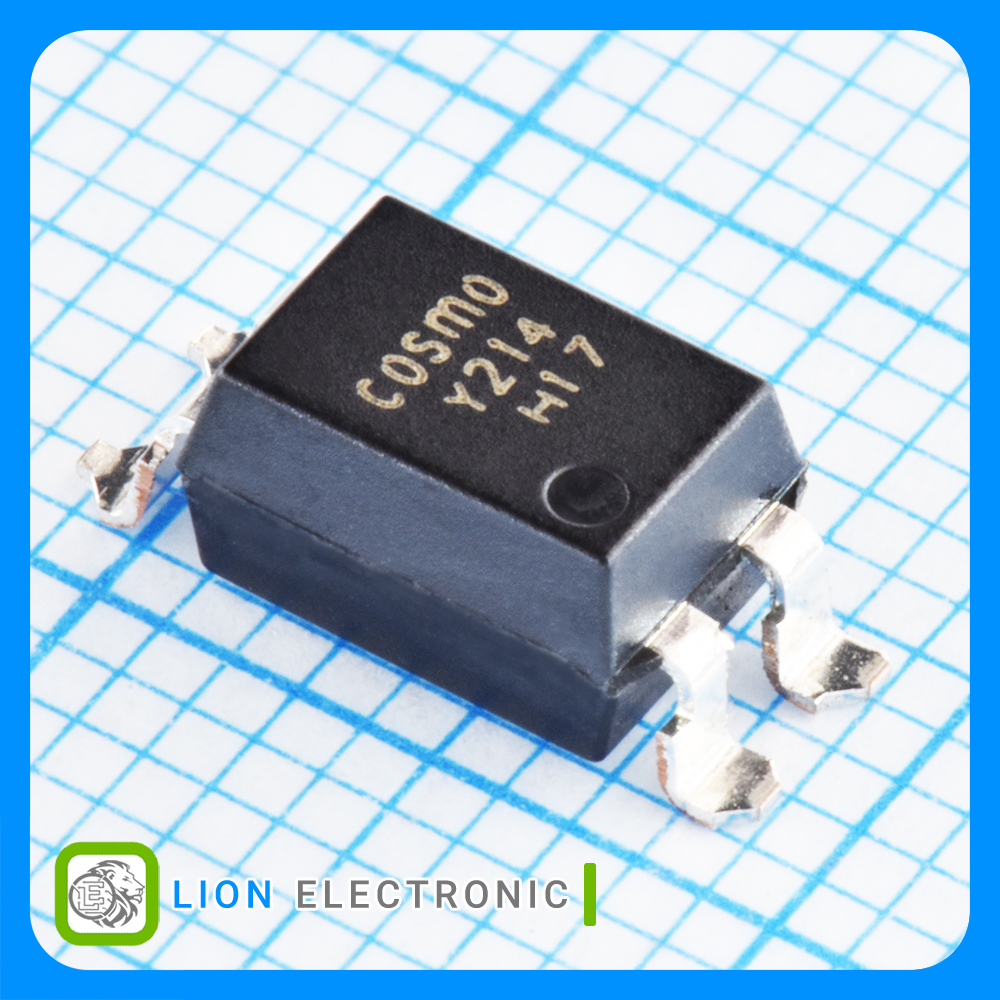

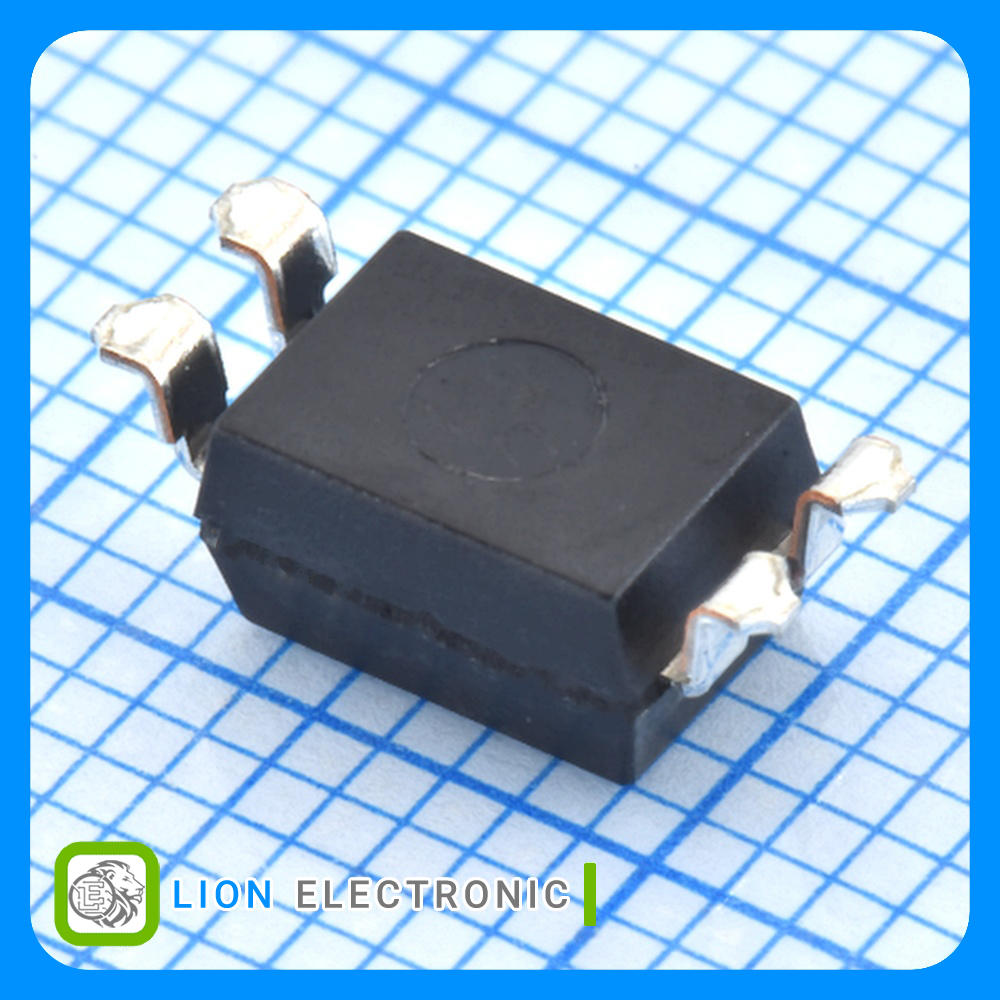

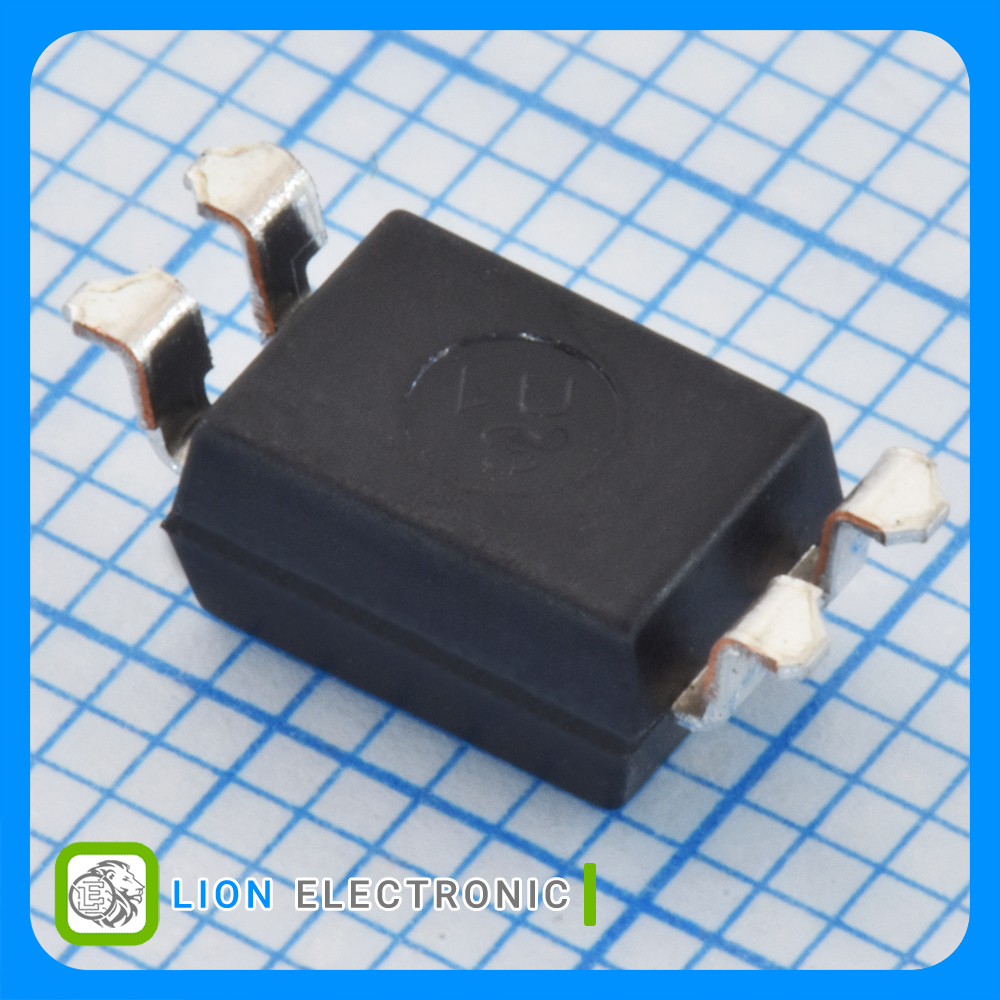

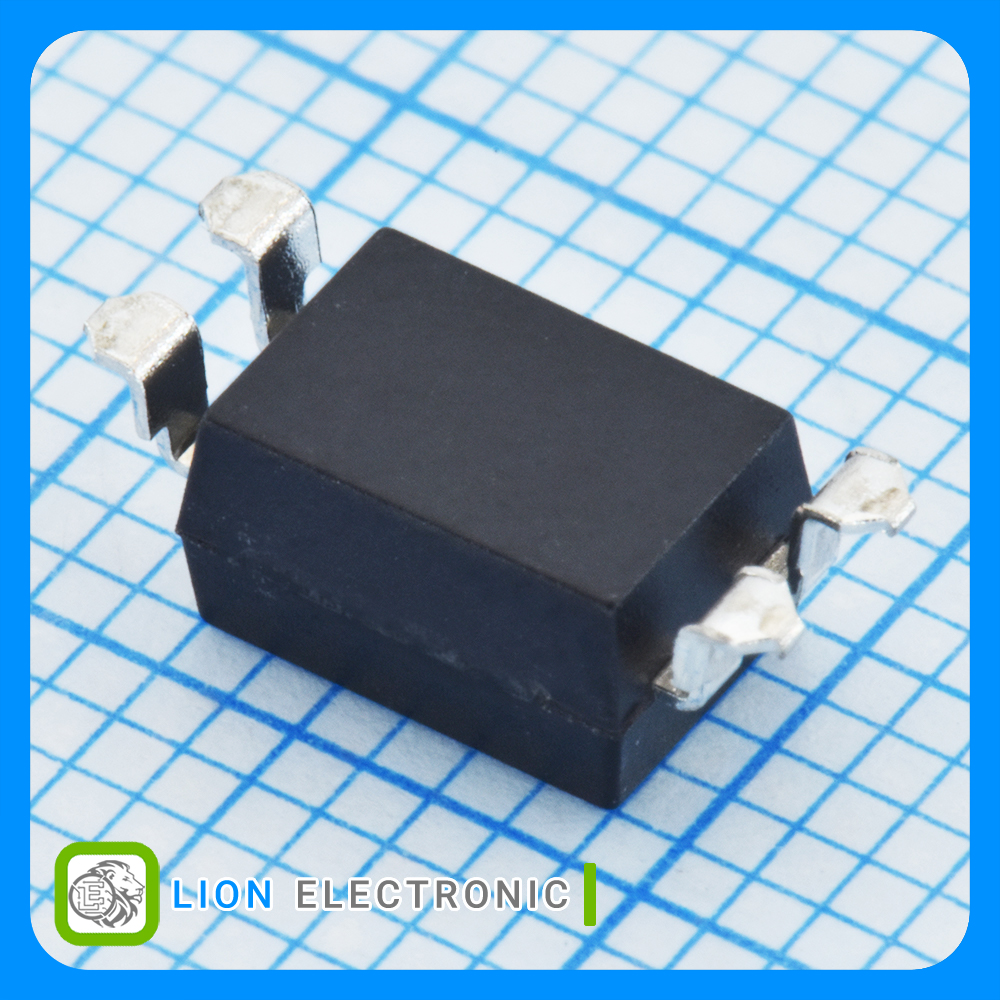

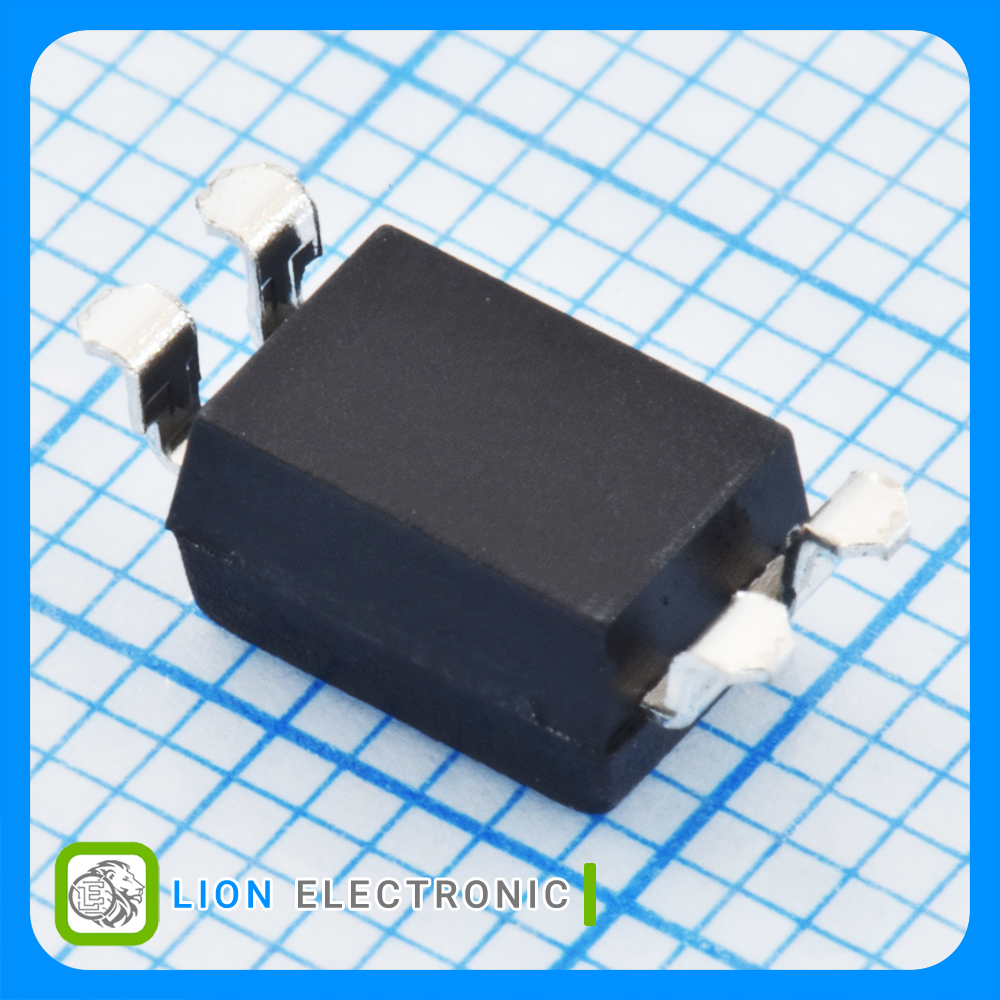

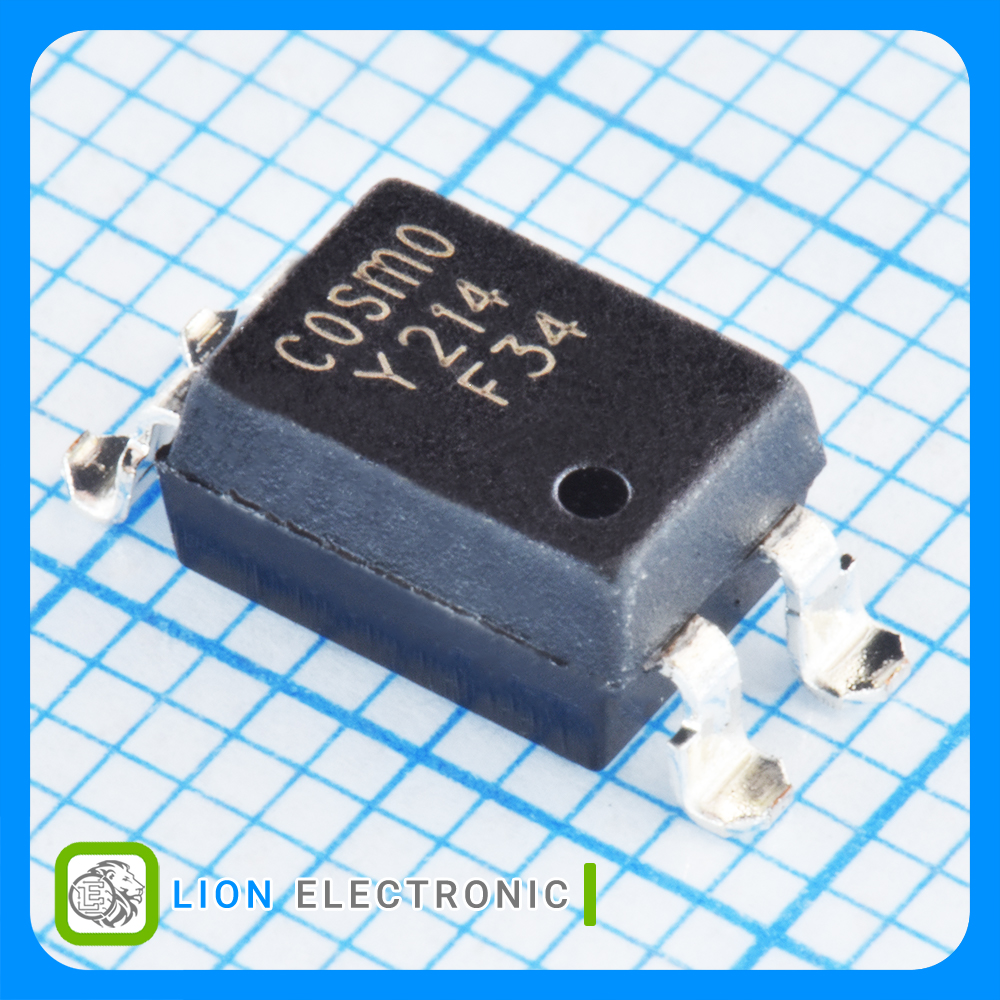

Solid State Relay 400V, 130mA, 4PIN N.O Type MOSFET Output optomos with SMD-4 Package
معرفی
رله حالت جامد ماسفت نوع N.O با 4 پین 400 ولت 130 میلیآمپر optomos با پکیج SMD-4
Solid State Relay 400V, 130mA, 4PIN N.O Type MOSFET Output optomos with SMD-4 Package
Specifications
- Output Type: MOSFET
- Relay Contact Form: 1 Form A (SPST-NO)
- Load Voltage Rating: 400V
- Load Current Rating: 130mA
- Control Voltage Range: 1.2V
- Height: 3.5mm
- Width: 4.6mm
- Length: 10mm
- Mounting Style: SMD/SMT
- Package/Case: SMD-4
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات رله حالت جامد KAQY214A

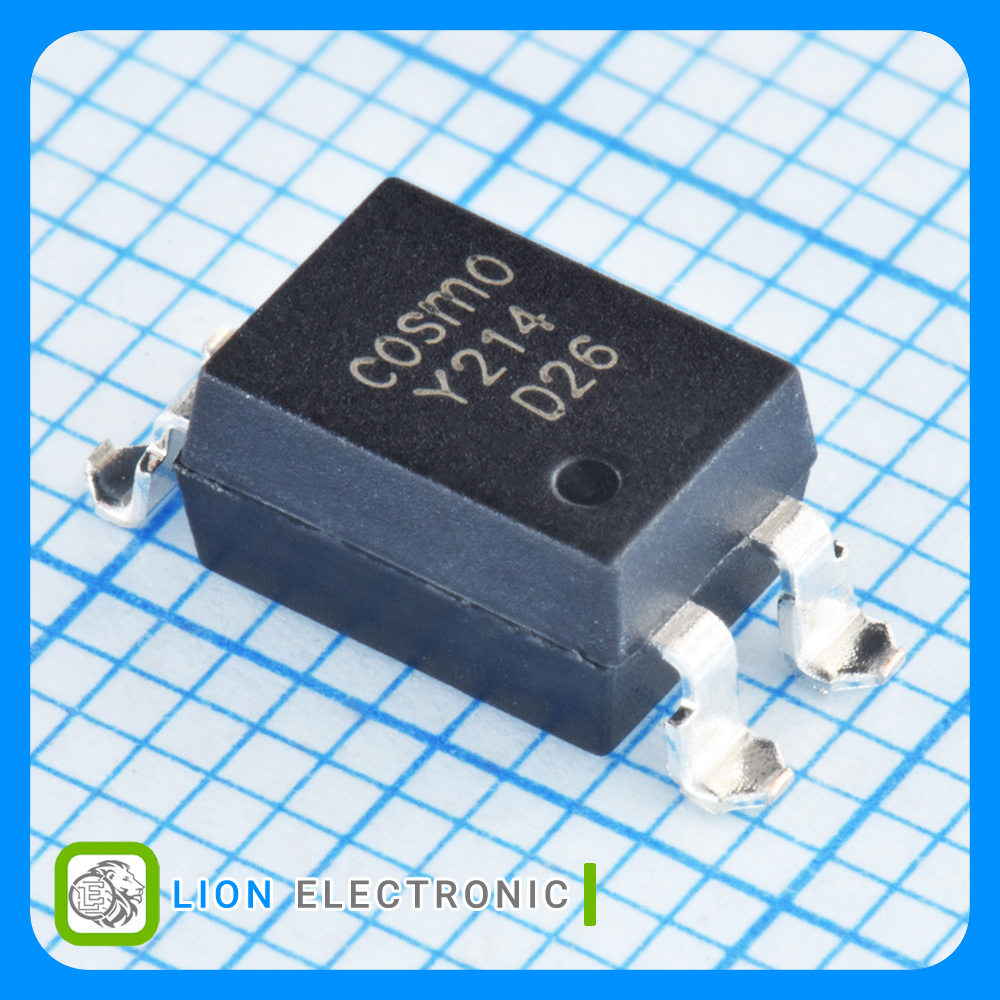

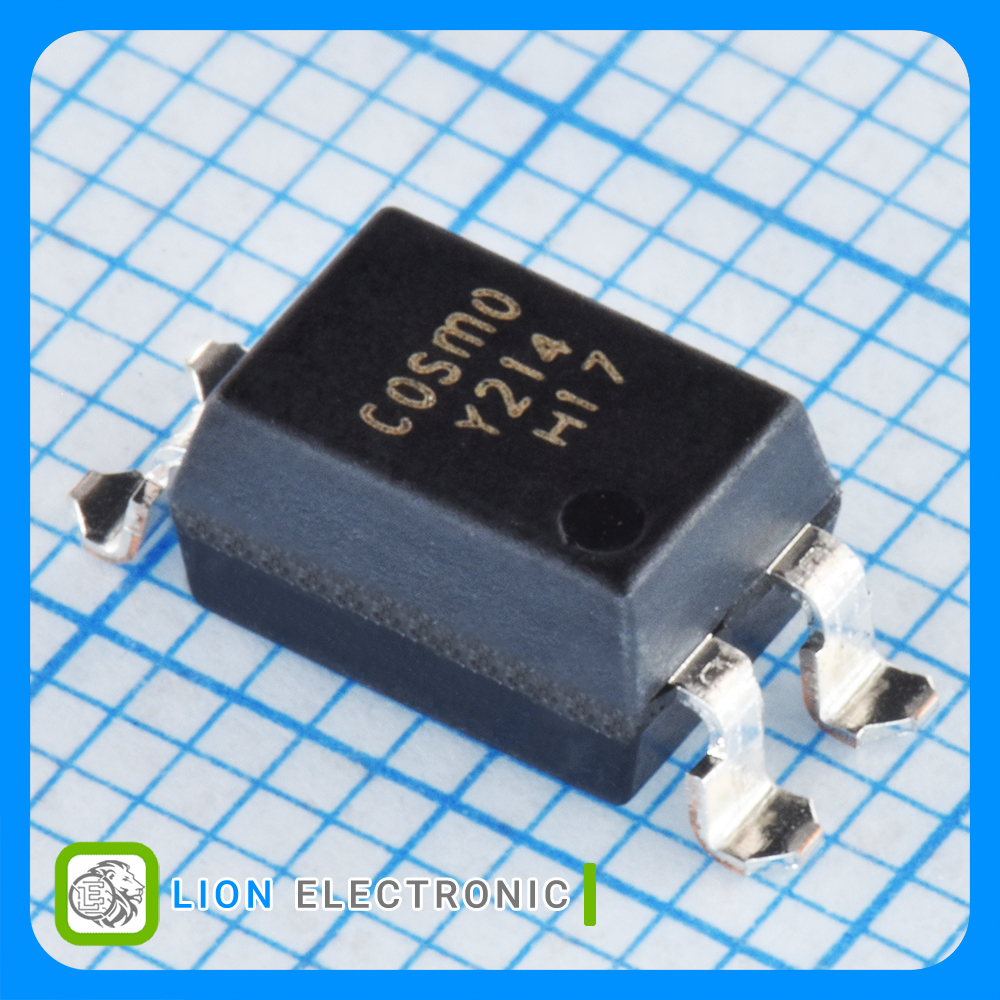

رله حالت جامد KAQY214A
Part Number
1 Form A (SPST-NO)
Relay Contact Form
1.2V
Control Voltage Range
400V
Load Voltage Rating
130mA
Load Current Rating
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
4.6mm
Width
MOSFET
Output Type
3.5mm
Height
10mm
Length
SMD-4
Package-Case
